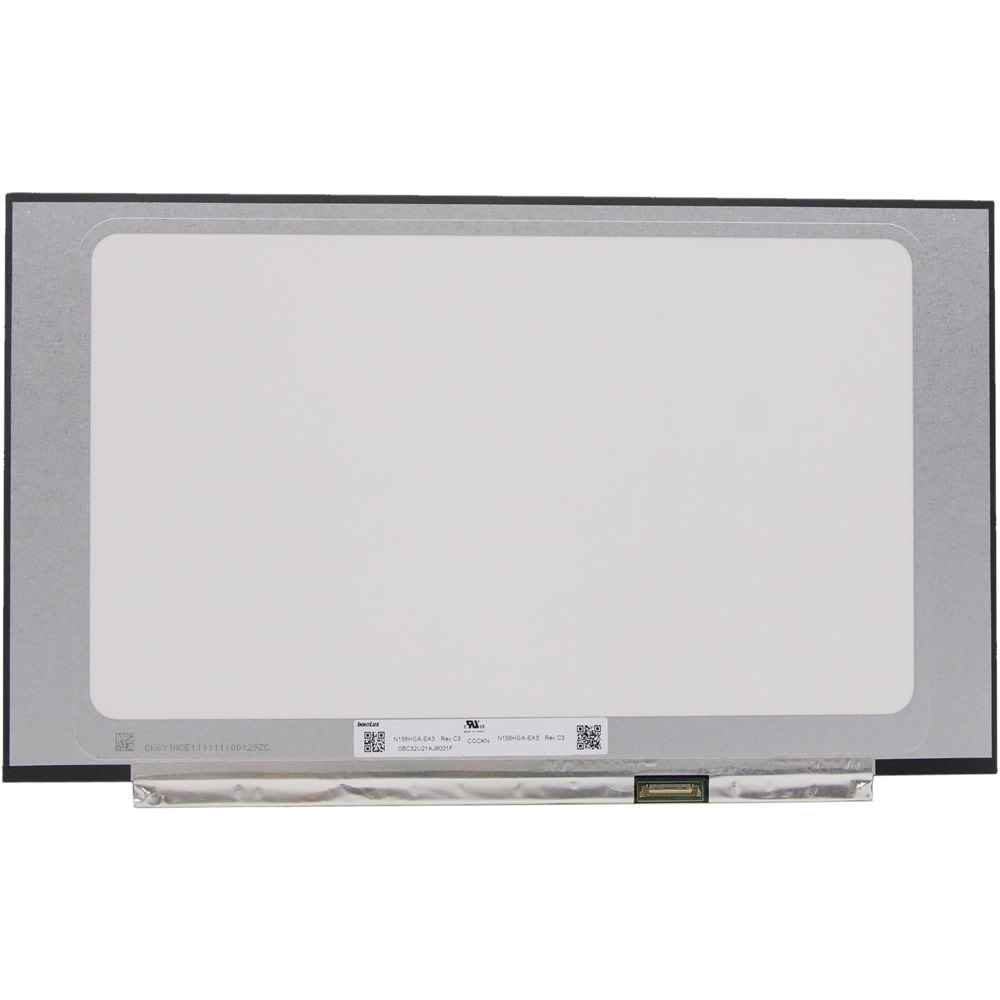

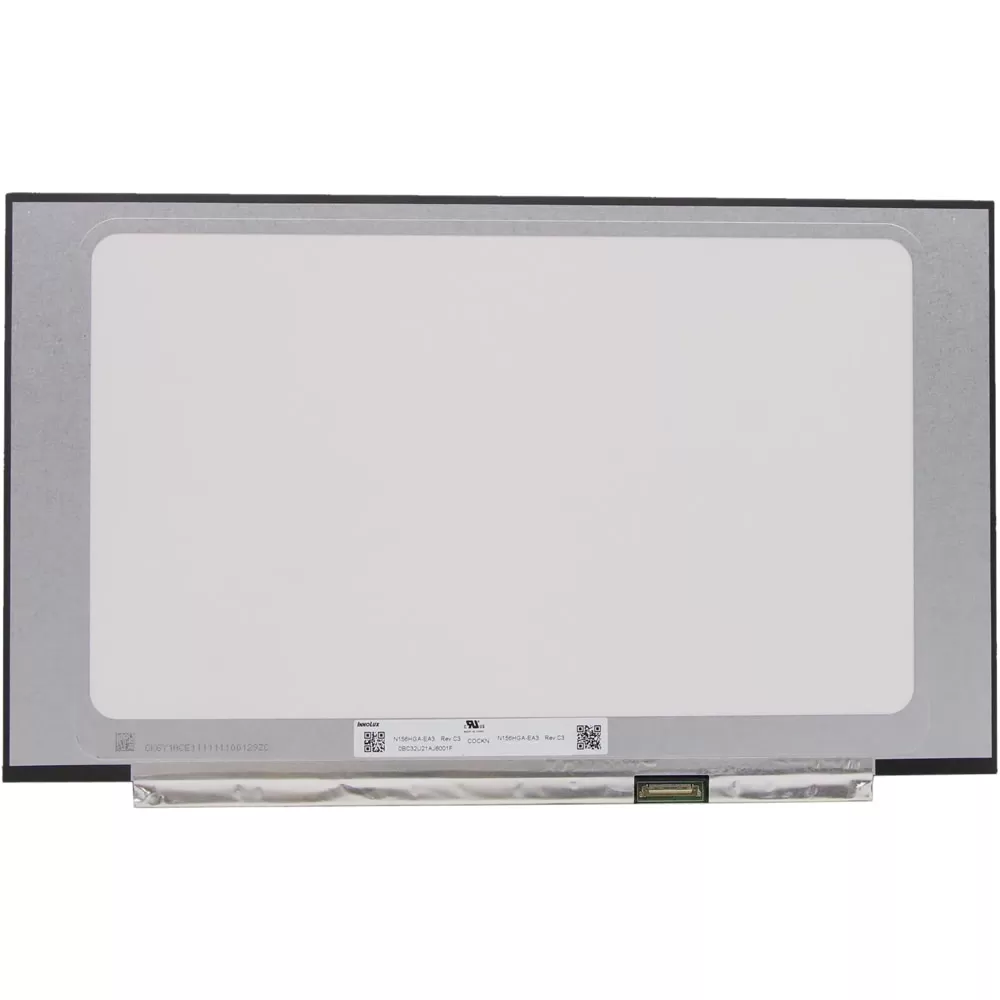

This is a new FHD WQHD screen for Asus TUF Dash F15 FX517ZC FX517ZE FX517ZM FX517ZR gaming laptops. The screen of the Asus FX517 has three specifications; please select the correct specifications in the drop-down menu.
If you don’t know the screen specifications, please contact us via service@myfixguide.com
We’re giving away two easy-stretch adhesives shipped with the screen.
Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no dead pixels.
Specifications:
15.6″, 1920×1080, IPS, 250nits, 144Hz, 62.5% sRGB, Anti-glare
15.6″, 1920×1080, IPS, 300nits, 300Hz, 100% sRGB, Anti-glare
15.6″, 2560×1440, IPS, 300nits, 165Hz, 100% DCI-P3, Anti-glare
Touch: Non-Touch
Connector: 40 pins
Aspect Ratio: 16:9
Condition: New, No Dead Pixels
Warranty: One (1) Year
Replacement Tips:
1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
6. Glue the two easy-to-pull adhesives to the LCD back cover, insert the screen cable into the screen connector, and then fix the screen on the LCD back cover.
