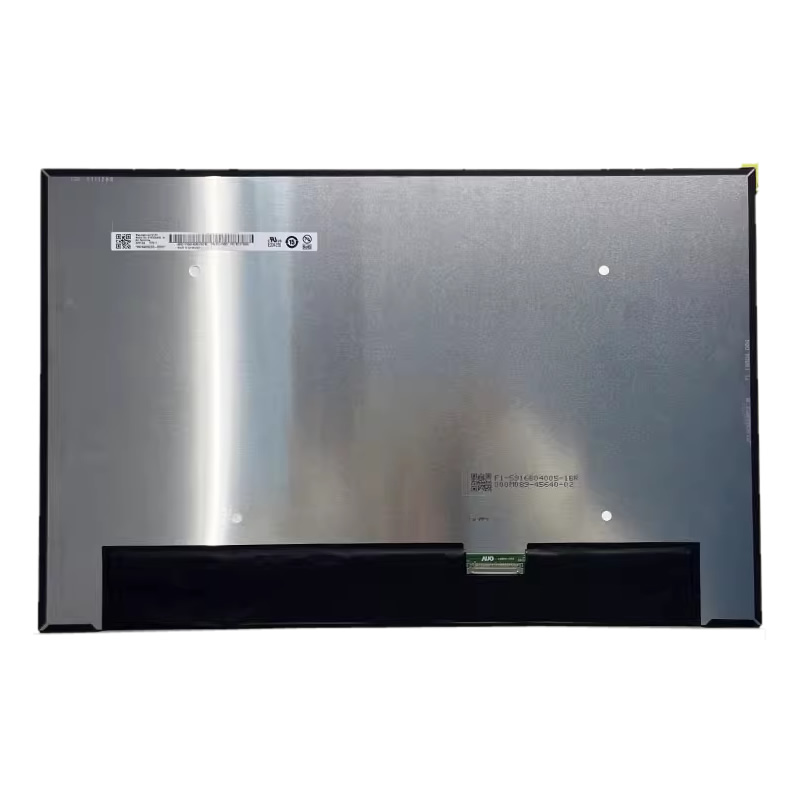

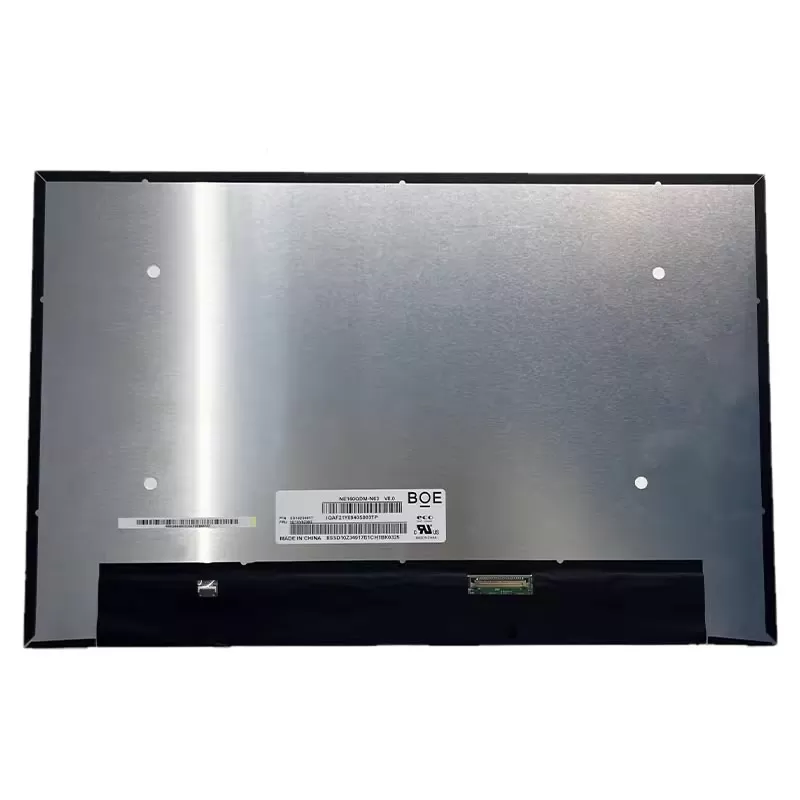

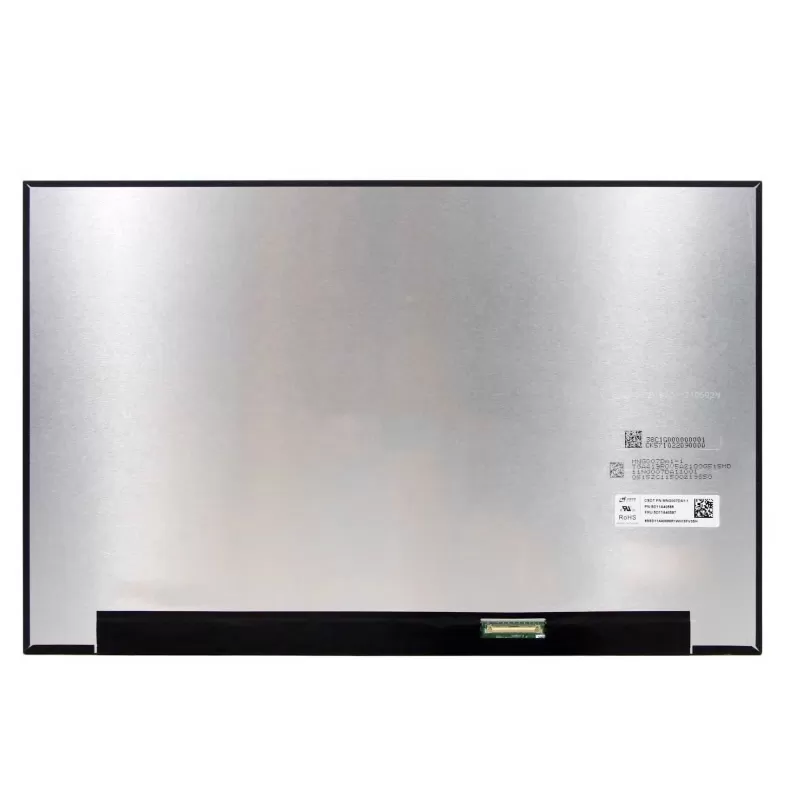

New 16″ WQXGA Screen for Lenovo 5D10V82384 5D10V82423 5D10V82424 5D11E21573 5D11F30920

This is a new 16″ WQXGA screen for Lenovo 5D10V82384, 5D10V82423, 5D10V82424, 5D11E21573, and 5D11F30920. This screen has a brightness of 400 nits, a resolution of 2560 x 1600, a color gamut of 100% sRGB, a 40-pin connector, and a 60Hz refresh rate.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Part Number:
5D10V82384
5D11F30920
5D11E21573

We will send you any of the three part numbers based on stock. If you need a specific part number, please specify it in the Order notes.

Compatible Part Numbers:
5D10V82423
5D10V82424

Specifications:
Size: 16.0-inch IPS Screen
Resolution: WQXGA (2560 x 1600)
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 60Hz
Brightness: 400 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:10
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year

Compatible Laptops
ThinkPad E16 Gen 1
ThinkPad T16 Gen 1
ThinkBook 16P Gen 2

Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
