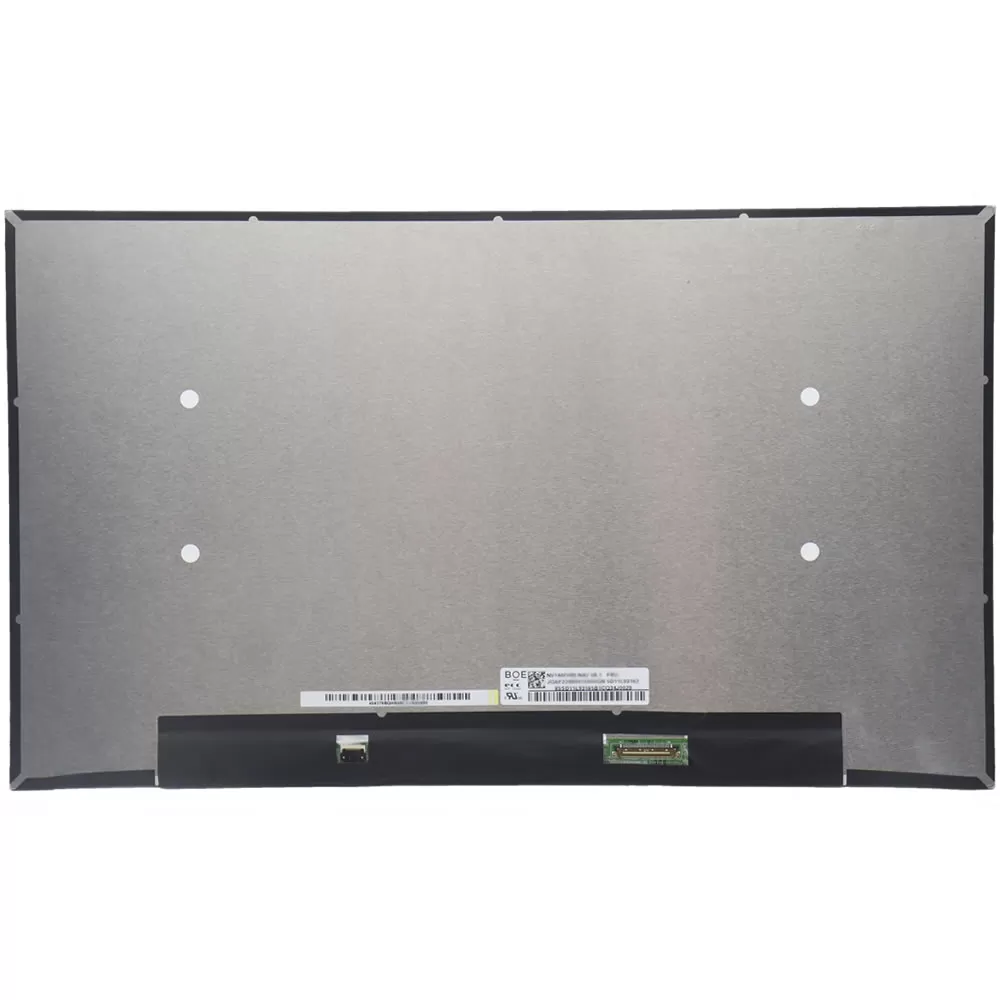

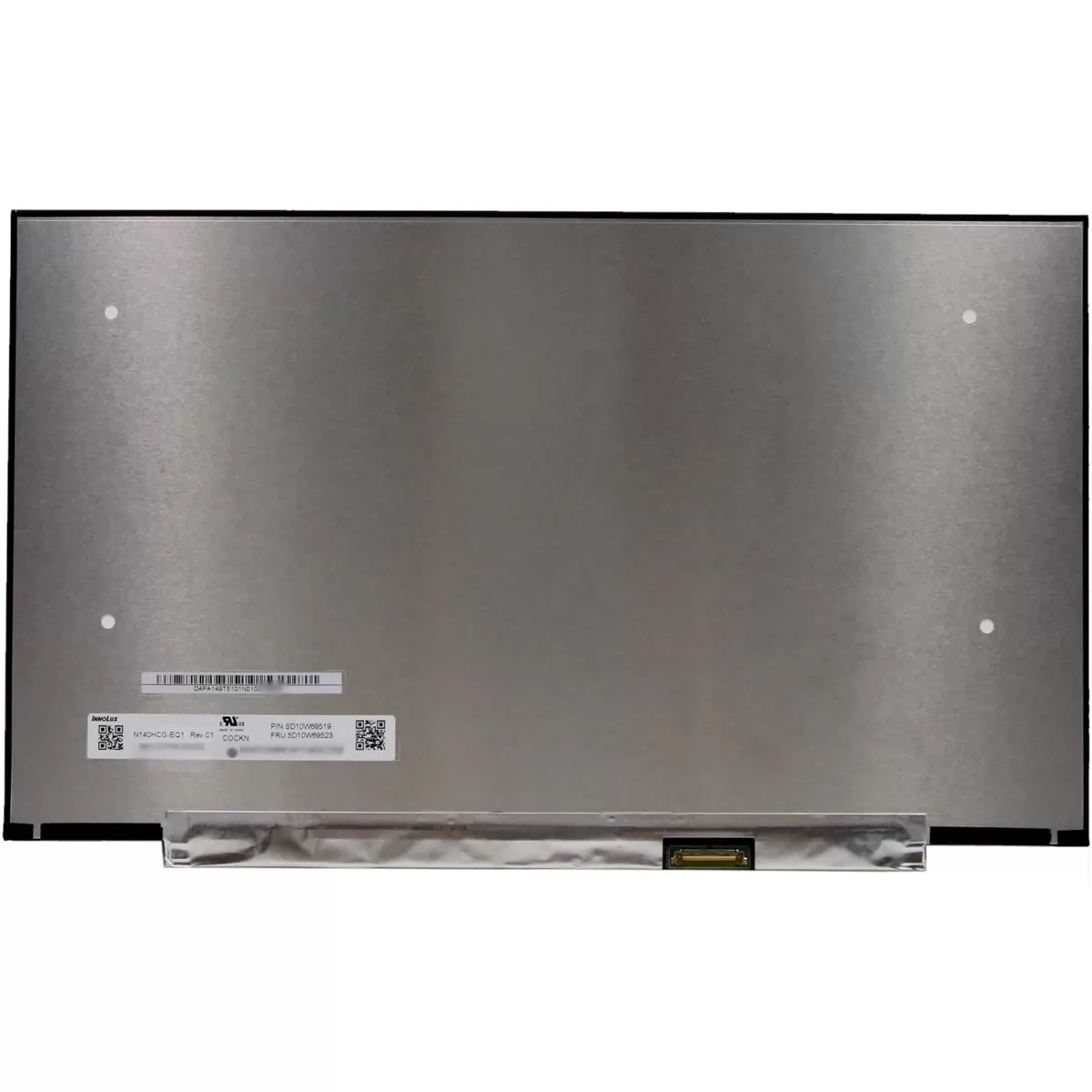

New FHD WUXGA Screen for Lenovo ThinkPad E14 Gen 1 2 3 4 5

This is a new FHD WUXGA WQXGA screen for Lenovo ThinkPad E14 Gen 1 2 3 4 5. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-lenovo-thinkpad-e14/

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
ThinkPad E14 Gen 1
14″ 1920×1080 TN 220nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 250nits 45% NTSC Anti-glare

ThinkPad E14 Gen 2
14″ 1920×1080 TN 220nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 250nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 100% sRGB Anti-glare
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare Touch

ThinkPad E14 Gen 3
14″ 1920×1080 TN 250nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 250nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 100% sRGB Anti-glare

ThinkPad E14 Gen 4
14″ 1920×1080 TN 250nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare Touch
14″ 1920×1080 IPS 300nits 100% sRGB Anti-glare

ThinkPad E14 Gen 5
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare Touch
14″ 2240×1400 IPS 300nits 100% sRGB Anti-glare

Aspect Ratio: 16:9, 16:10
Condition: New, no dead pixels
Warranty: One (1) Year

Compatible Part Numbers:
01YN170
02DA381
02DC314
02DC315
02DL762
5D10V82390
5D10V82392
5D10V82394
5D10V82395
5D10V82396
5D10V82397
5D10W42366
5D10W46403
5D10W69523
5D10W69523
5D10W69935
5D10W87242
5D10W87245
5D10W87246
5D10Z86938
5D11B09002
5D11B43177
5D11B60376
5D11B64084
5D11B64637
5D11B68428
5D11B77649
5D11B81385
5D11C12732
5D11C18140
5D11C89612
5D11D19219
5D11F23091
5D11F27016
5D11F28687
5D11F39180
5D11F39181
5D11H87044
5D11L89624
5D11L90075

Screen for Lenovo ThinkPad E14 Gen 1 2 3 4 5 Replacement Tips:

1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad E14 on the back cover, and install the LCD bezel on your laptop.
