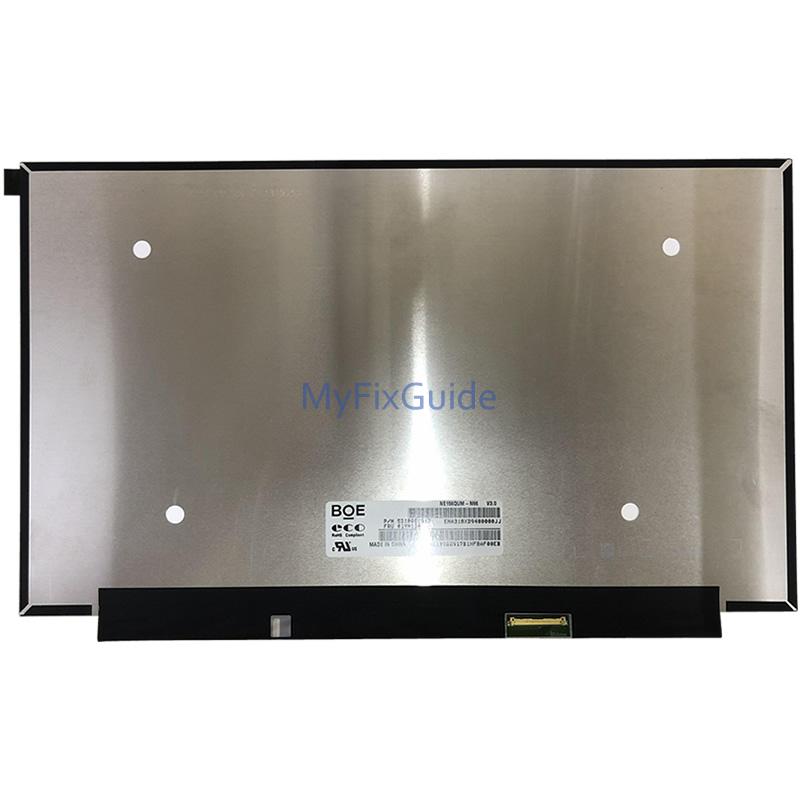

New FHD UHD WQXGA QHD+ Screen for Lenovo Thinkpad P1 Gen 1 2 3 4 5 6

This is a new screen for Lenovo Thinkpad P1 Gen 1 2 3 4 5 6. The screens of this series of laptops have a variety of specifications. Their resolution, brightness, and color gamut are different. Please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-lenovo-thinkpad-p1-x1-extreme/

If you don’t know the specification of your screen, please choose any specification to place an order, then take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, we will identify your screen specification.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications and model as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
ThinkPad P1 Gen 1
15.6″ 1920×1080 IPS 300nits 72% NTSC Anti-glare
15.6″ 3840×2160 IPS 400nits 100% Adobe RGB Touch (Out Of Stock)

ThinkPad P1 Gen 2
15.6″ 1920×1080 IPS 300nits 72% NTSC Anti-glare
15.6″ 1920×1080 IPS 500nits 72% NTSC Anti-glare (Out Of Stock)
15.6″ 3840×2160 IPS 500nits 100% Adobe RGB Anti-glare
15.6″ 3840×2160 OLED 500nits 100% DCI-P3 Anti-glare Touch (Out Of Stock)

ThinkPad P1 Gen 3
15.6″ 1920×1080 IPS 300nits 72% NTSC Anti-glare
15.6″ 1920×1080 IPS 500nits 72% NTSC Anti-glare (Out Of Stock)
15.6″ 3840×2160 IPS 600nits 100% Adobe RGB Anti-glare
15.6″ 3840×2160 OLED 500nits 100% DCI-P3 Anti-glare Touch (Out Of Stock)

ThinkPad P1 Gen 4
16″ 2560×1600 IPS 400nits 100% sRGB Anti-glare
16″ 3840×2400 IPS 600nits 100% Adobe RGB Anti-glare
16″ 3840×2400 IPS 600nits 100% Adobe RGB Anti-glare Touch (Out Of Stock)

ThinkPad P1 Gen 5
16″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
16″ 2560×1600 IPS 500nits 100% sRGB Anti-glare
16″ 3840×2400 IPS 600nits 100% Adobe RGB Anti-glare
16″ 3840×2400 IPS 600nits 100% Adobe RGB Anti-glare Touch (Out Of Stock)

ThinkPad P1 Gen 6
16″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
16″ 2560×1600 IPS 500nits 165Hz 100% sRGB Anti-glare
16″ 3840×2400 OLED 500nits 100% DCI-P3 Anti-glare Touch (Out Of Stock)

Condition: New, no dead pixel
Warranty: One (1) Year

Compatible Part Numbers
00NY692
01YN137
01YN138
01YN139
01YN145
01YN166
01YN174
02HM880
02HM881
02HM884
5D10V82343
5D10V82350
5D10V82351
5D10V82385
5M10Y87517
5M10Y87518
5M10Z68399
5M10Z68400
5M11D12265
5M11D12266
5M11D12267
5M11D12268
5M11D12269
5M11D12270
5M11D12271
5M11D12272
5M11D12273
5M11D12274
5M11D12275
5M11D12276
5M11D12277
5M11D12307
5M11D12308
5M11D12309
5M11D12310
5M11D12311
5M11D12312
5M11D12313
5M11D12314
5M11D12315
5M11D12316
5M11D12317
5M11D12318
5M11D12319
5M11D12320
5M11D12321
5M11F52400
5M11F52401

Compatible laptop:
Thinkpad P1 Gen 1
Thinkpad P1 Gen 2
Thinkpad P1 Gen 3
Thinkpad P1 Gen 4
Thinkpad P1 Gen 5

Screen for Lenovo Thinkpad P1 Gen 1 2 3 4 5 6 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen for ThinkPad P1 on the back cover and install the LCD bezel on your laptop.
