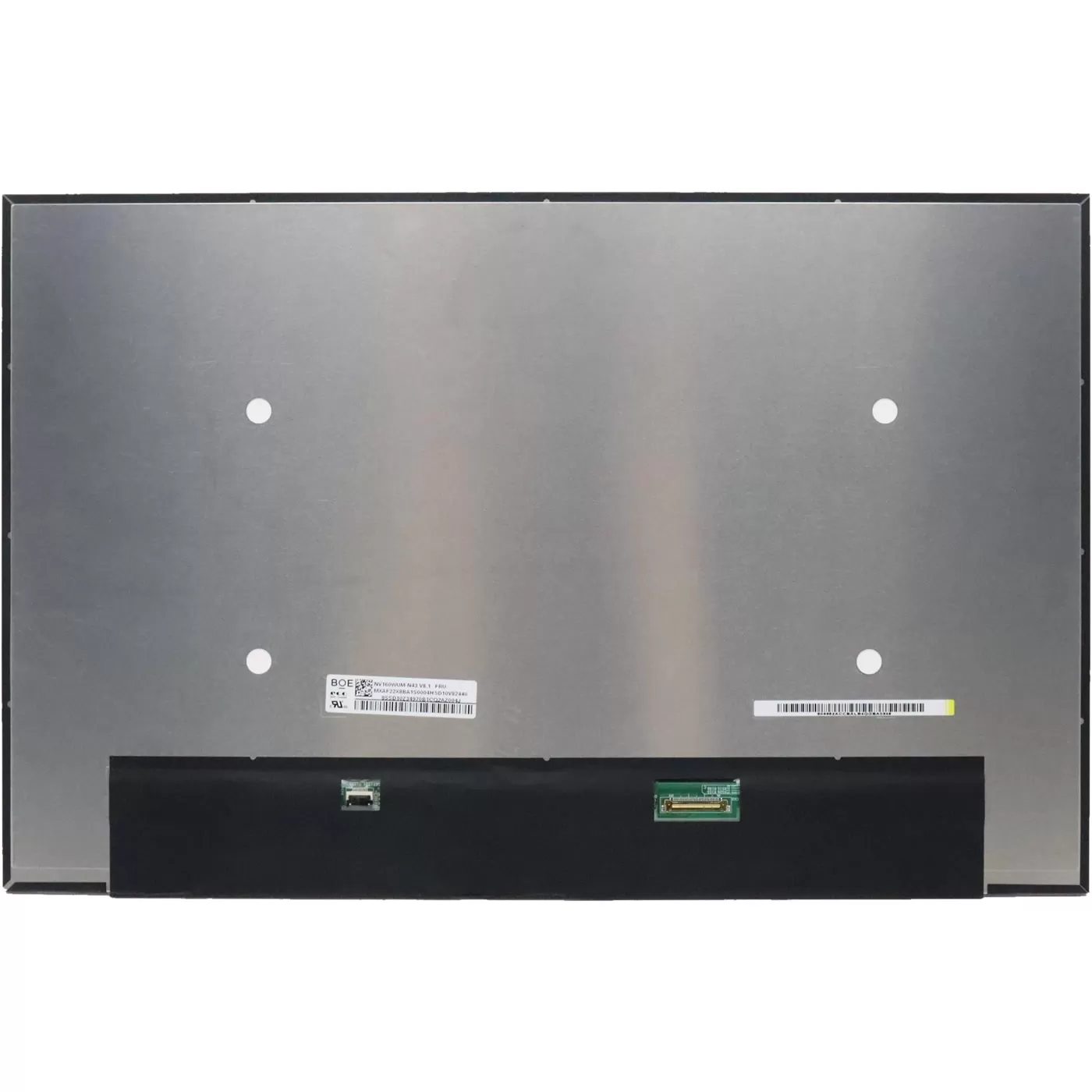

New WUXGA UHD Screen for Lenovo ThinkPad P16v Gen 1

This is a new WUXGA UHD screen for Lenovo ThinkPad P16v Gen 1. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your screen specification at https://www.myfixguide.com/store/screen-specification-for-thinkpad-p-series/

If you don’t know the specifications of your screen, please take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, and we will identify your screen specification.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
16″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
16″ 1920×1200 IPS 300nits 45% NTSC Anti-glare Touch
16″ 1920×1200 IPS 300nits 100% sRGB Anti-glare
16″ 3840×2400 IPS 800nits 100% DCI-P3 Anti-glare Dolby Vision (Out Of Stock)

Aspect Ratio: 16:10
Condition: New, no dead pixels
Warranty: One (1) Year

Part Numbers:
5D10V82408
5D10V82410
5D10V82411
5D10V82439
5D10V82440
5D10V82507
5D11C95917
5D11C95918
5D11C95924
5D11E38374
5D11E38375
5D11E38376
5D11M04143

Screen for Lenovo ThinkPad P16v Gen 1 Replacement Tips:

1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
6. You can first connect the display cable to your screen, then start the laptop to check that your screen is working properly, then fix the screen for ThinkPad P16v on the back cover, and install the LCD bezel on your laptop.
