Huawei Honor 7 Teardown
In this guide, I will explain how to disassemble the Huawei Honor 7 to remove the back cover, battery, camera, speaker, and motherboard.
Follow us on Facebook for the latest updates from MyFixGuide.com.

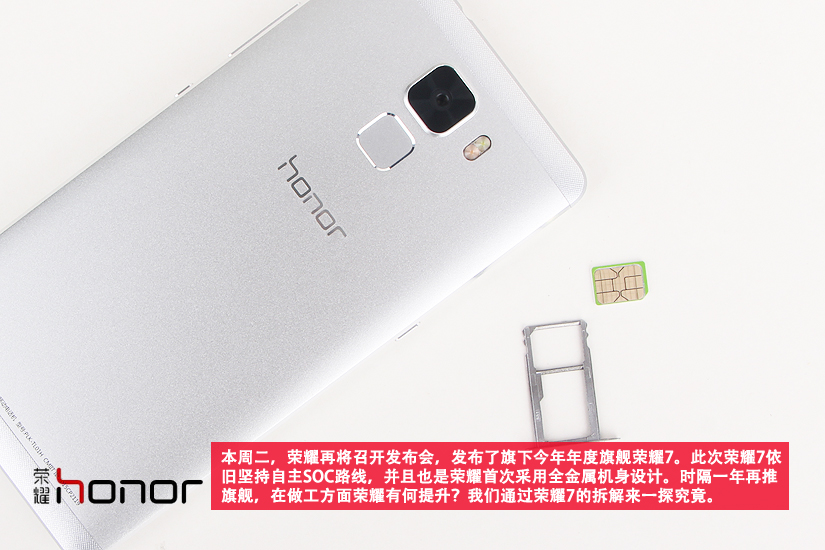

The first step is to remove the SIM card tray.

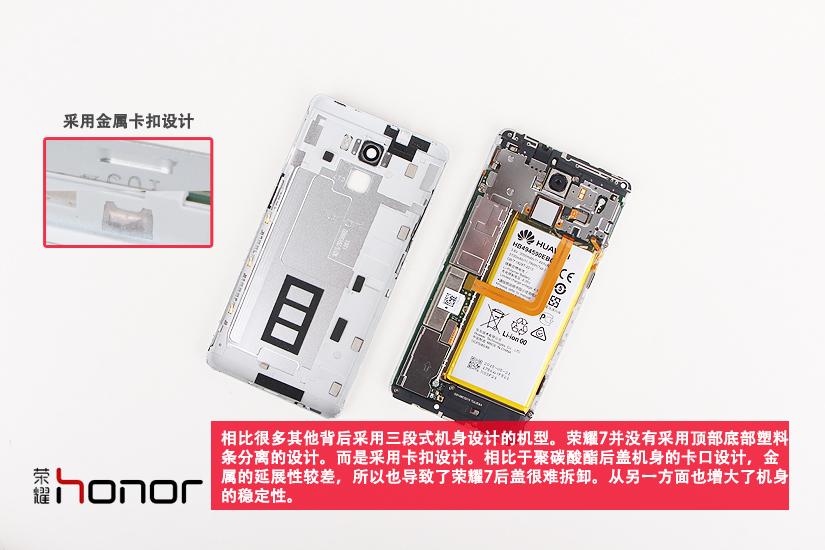

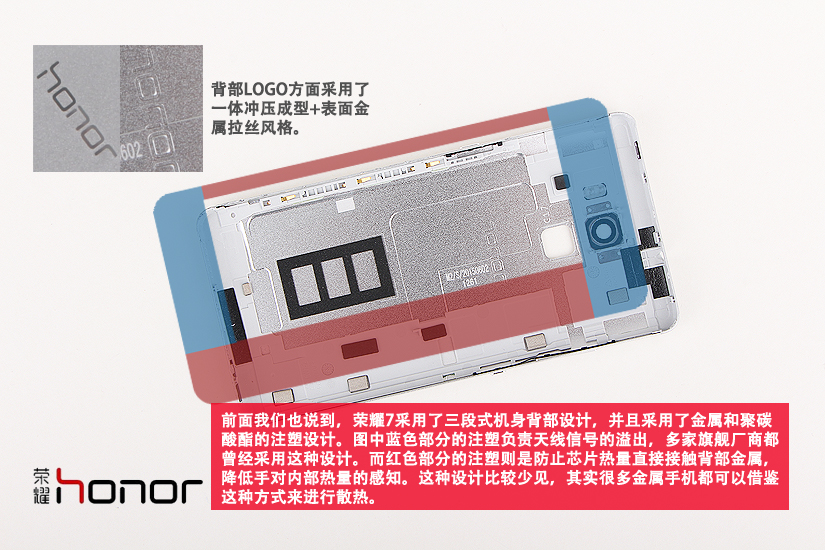

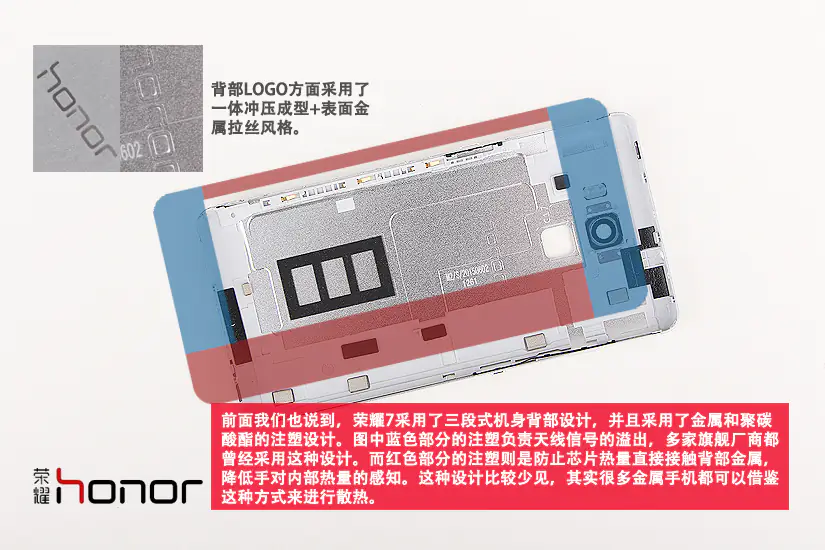

The back cover is connected to the body by metal clips. Insert a plastic pick under the back cover and slide the pick to separate the back cover from the phone.

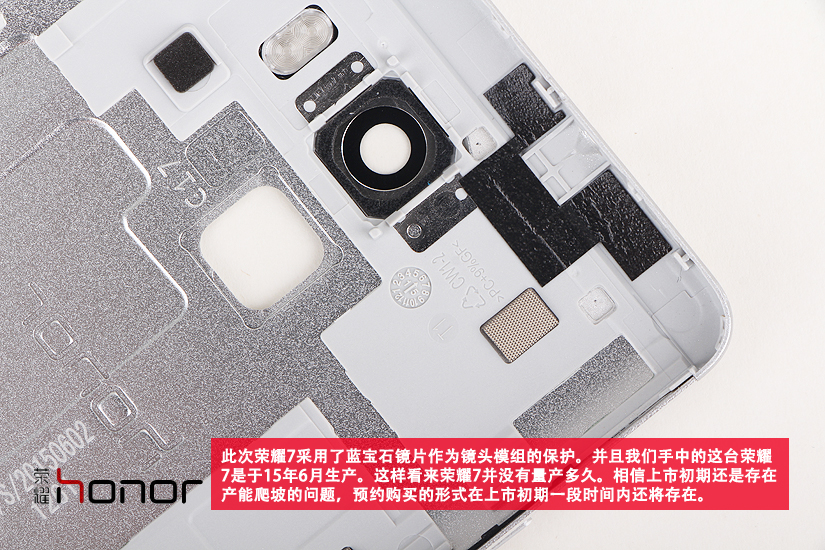

The Honor 7 uses sapphire glass as a protective device for the lens module.

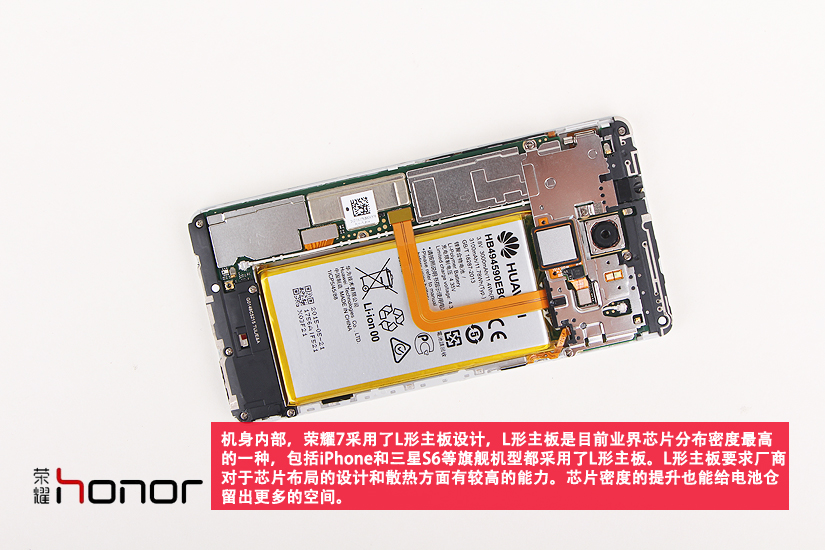

Once the back cover is removed, you can access the internal structure.

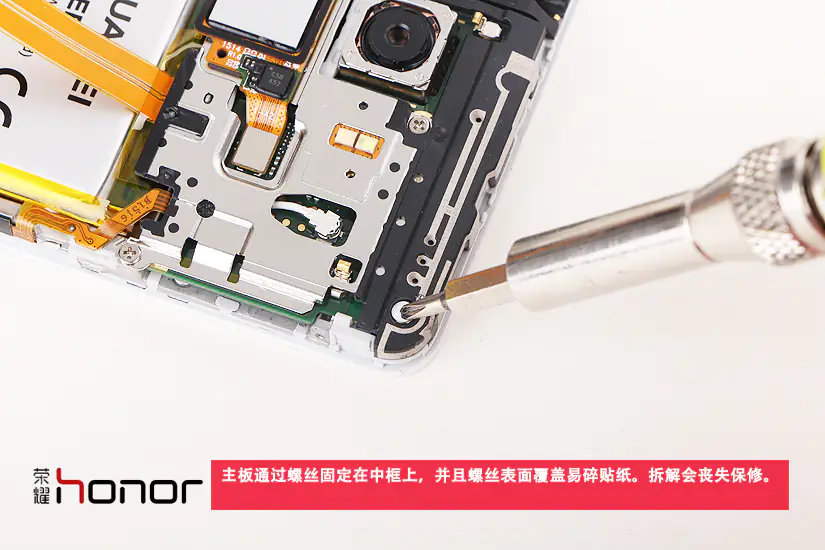

Remove all screws securing the metal shield.

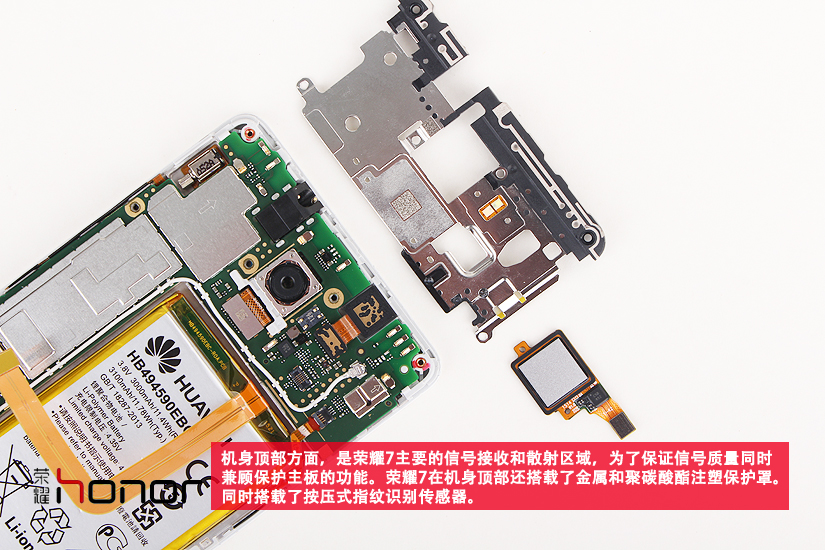

Use tweezers to pry up and remove the protective cover plate from the motherboard.

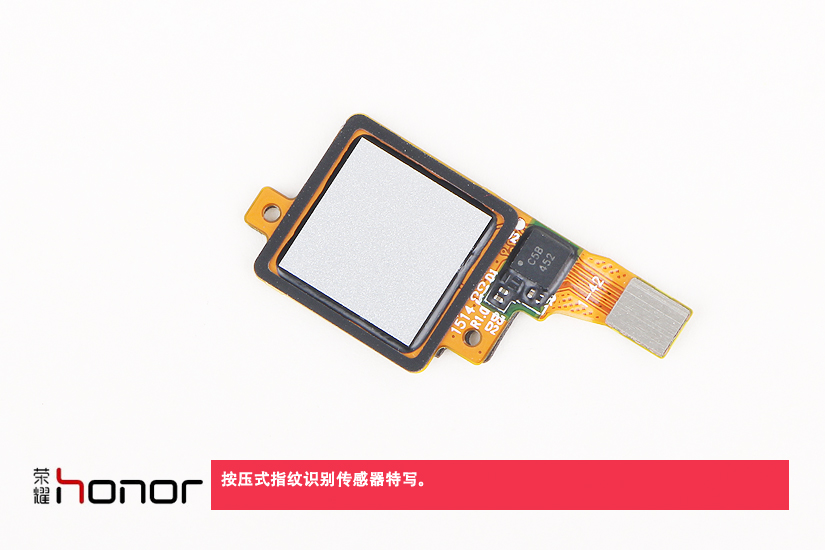

Close-up of the Honor 7 fingerprint sensor

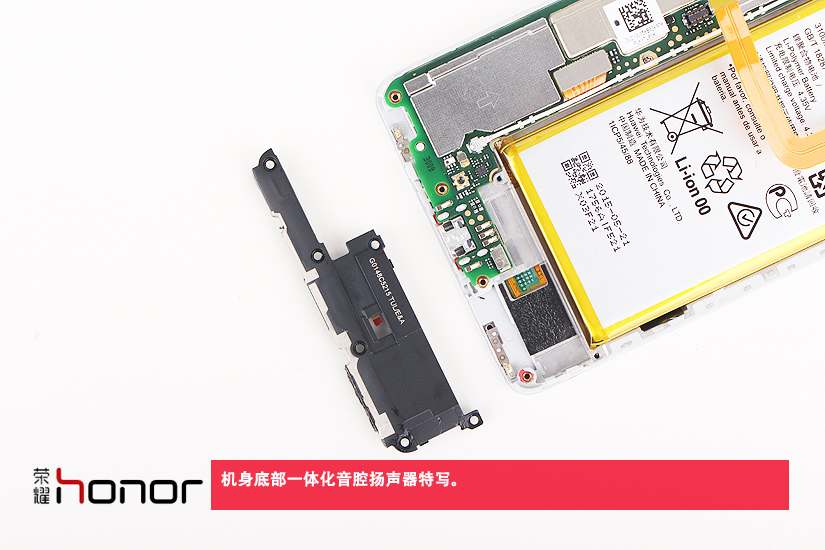

Remove the screws securing the speaker and then use tweezers to pry up and remove the speaker module.

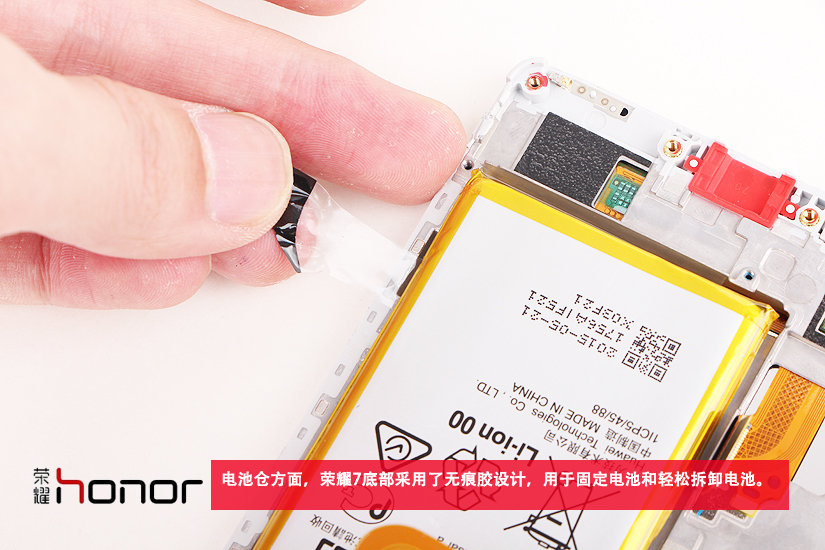

Pull the adhesive tape beneath the battery and remove the battery.

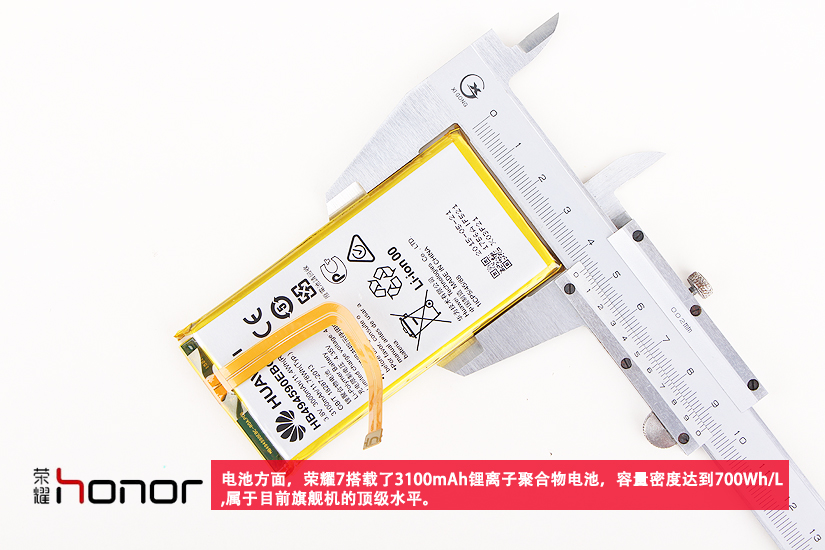

The Huawei Honor 7 comes with a 3100mAh Li-Polymer battery.

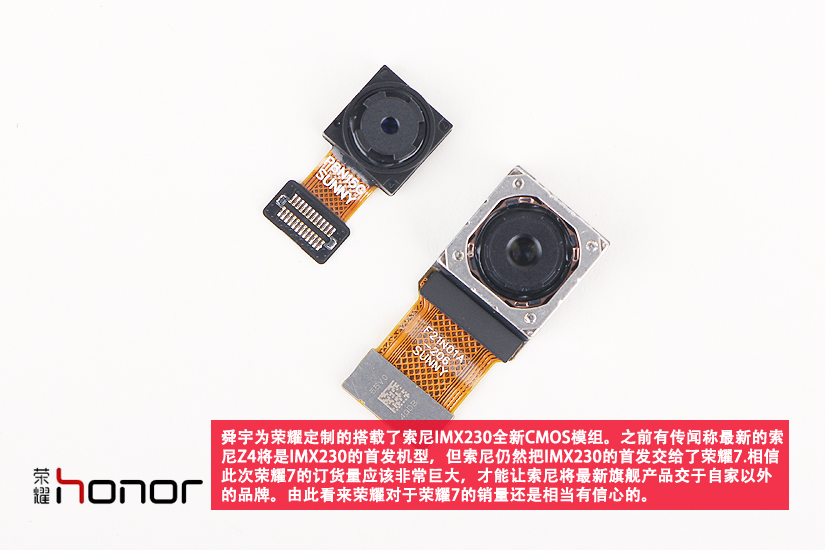

Close-up of the rear camera and front camera, the Huawei Honor 7 uses a Sony IMX230 CMOS module.

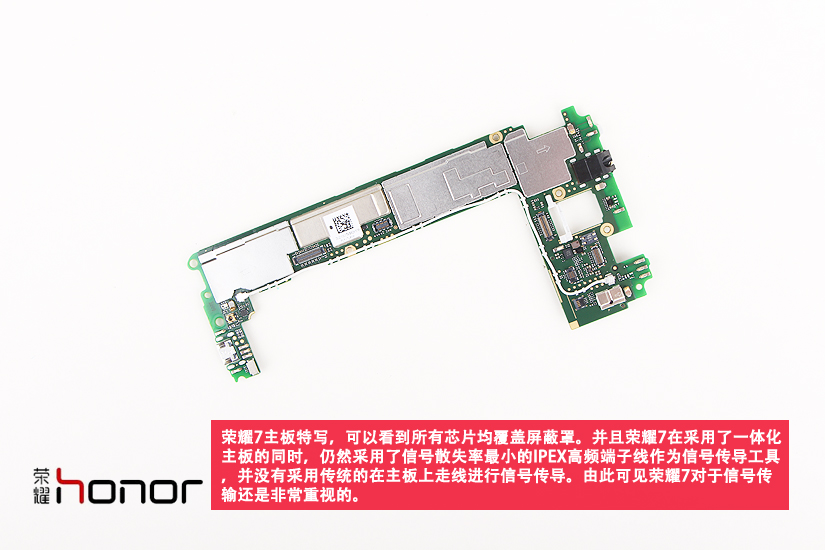

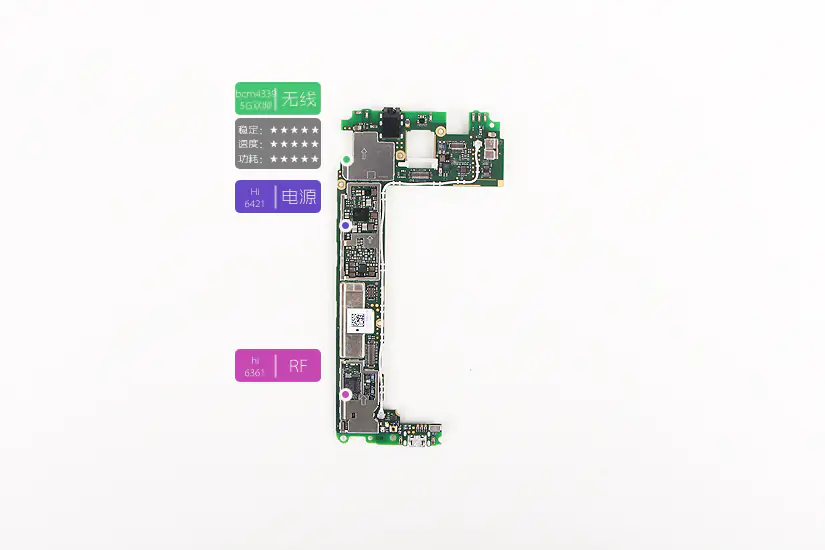

Close-up of the Honor 7 motherboard. The chips on the motherboard are covered by a metal shield. To access the chips, we need to remove the metal shields.
Broadcom BCM4339 5G module
HiSilicon Hi6421 Power management chip
HiSilicon Hi6361 RF chip

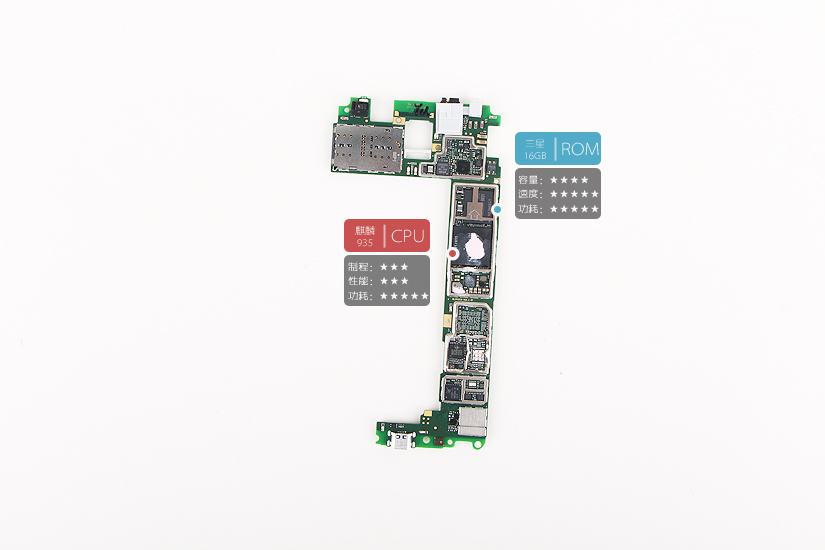

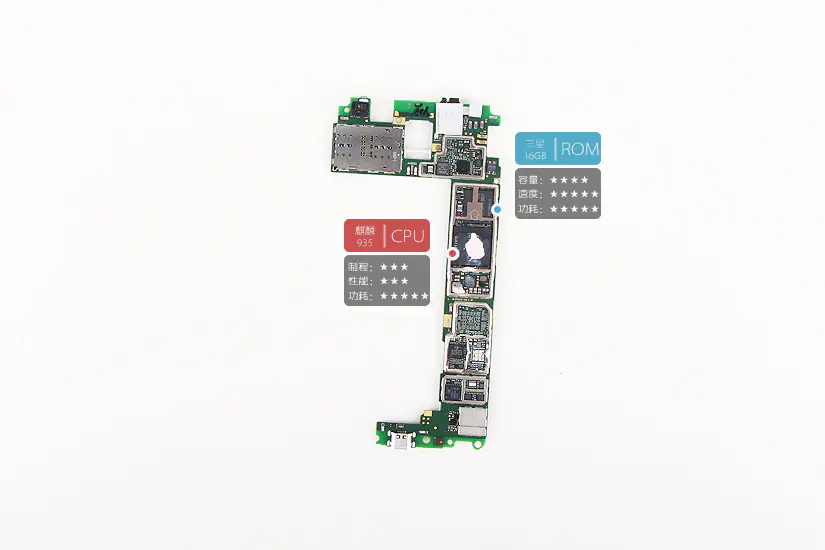

HiSilicon Kirin 935 processor
Samsung 16GB ROM

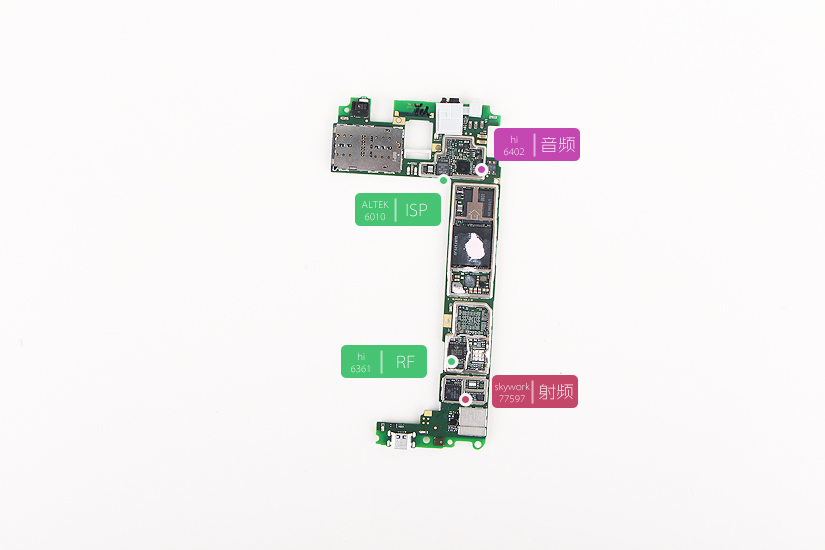

ALTEK 6010 ISP
HiSilicon Hi6361 RF chip
HiSilicon Hi6402 Audio decoder chip
Skyworks 77597 RF chip

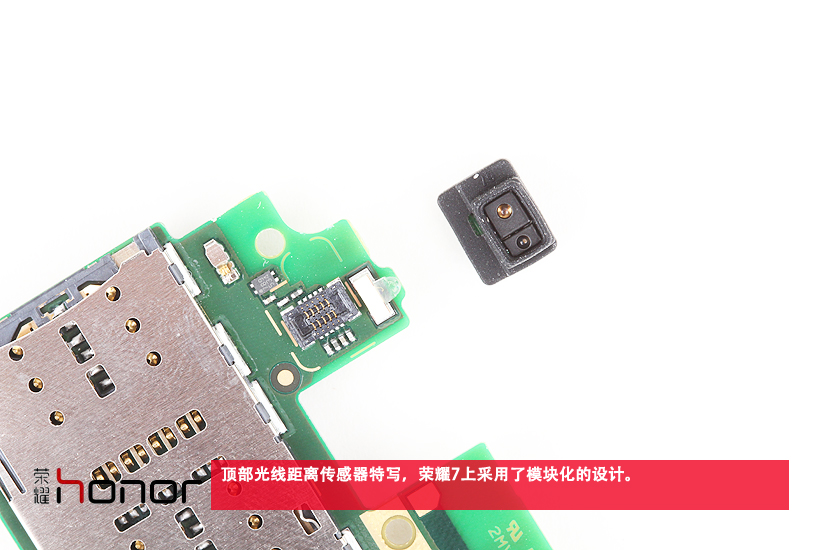

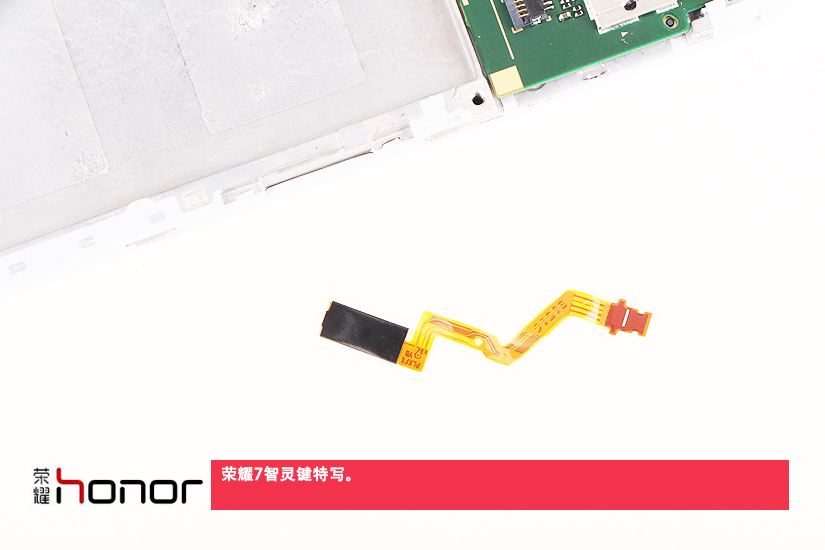

Light distance sensor

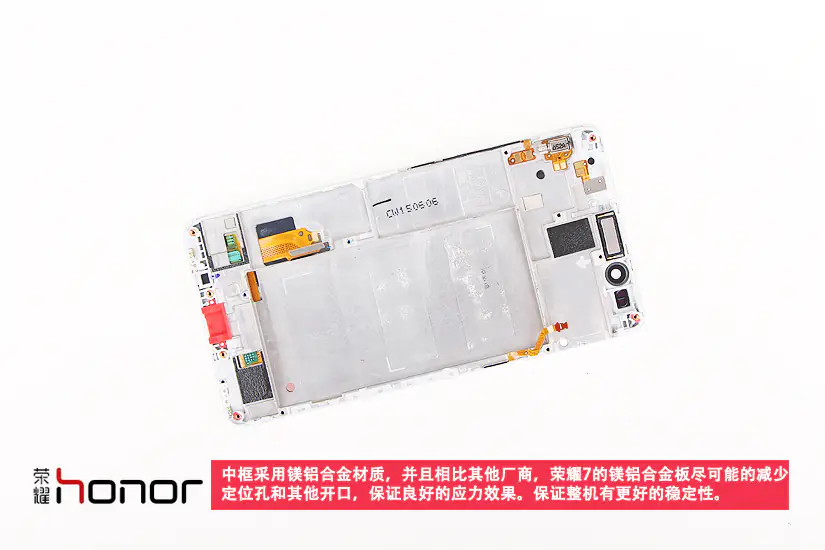

Close-up of the middle frame
