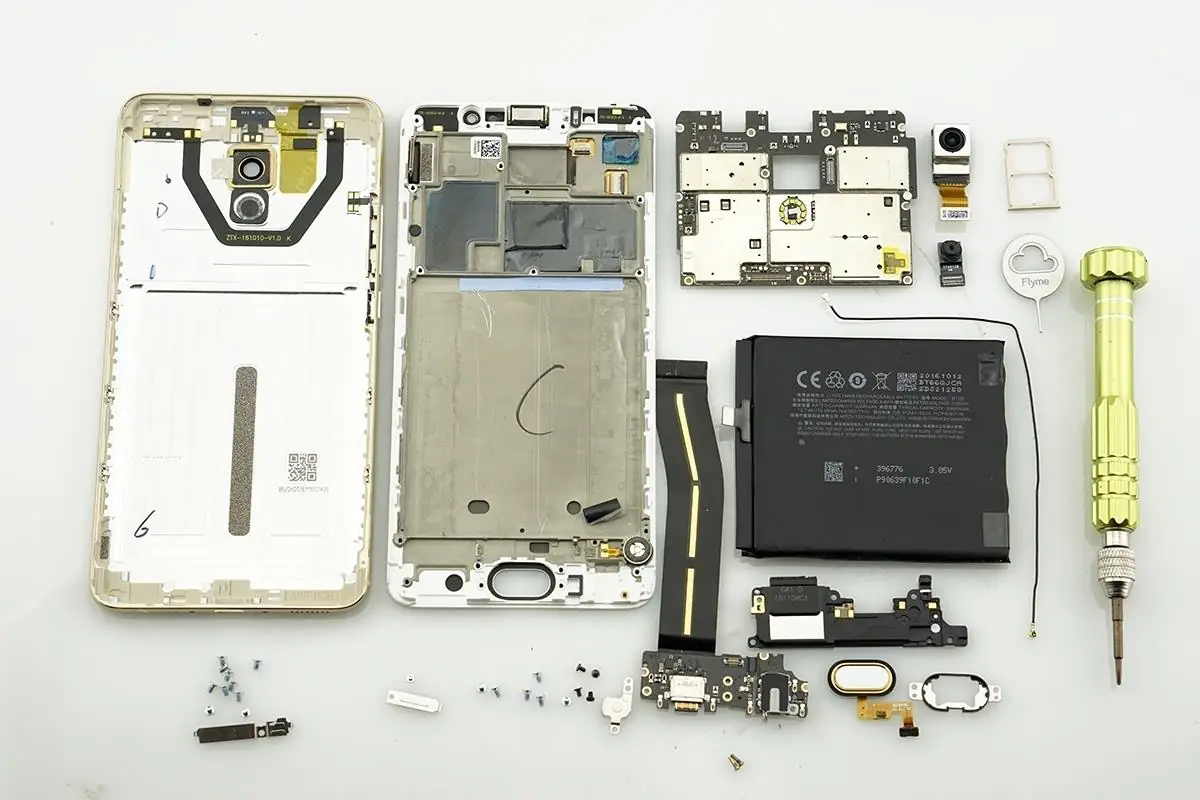

Meizu Pro 6 Plus Teardown

Meizu Pro 6 Plus was launched in November 2016. The phone comes with a 5.7-inch touchscreen with a resolution of 2560 x 1440.

The Meizu Pro 6 Plus is powered by 2GHz octa-core Samsung Exynos 8890 processor, and it comes with 4GB of RAM. The phone packs 64GB of internal storage cannot be expanded. It is packed a 12-megapixel rear camera on the rear and a 5-megapixel front shooter for selfies.

The Meizu Pro 6 Plus runs Android 6.0 and is powered by a 3400mAh non-removable battery. It measures of 155.60 x 77.30 x 7.30 and weight of 158.00 grams.

The Meizu Pro 6 Plus is a dual SIM smartphone that accepts. Connectivity options include Wi-Fi, GPS, Bluetooth, NFC and 4G. Sensors on the phone include the proximity sensor, accelerometer and ambient light sensor.

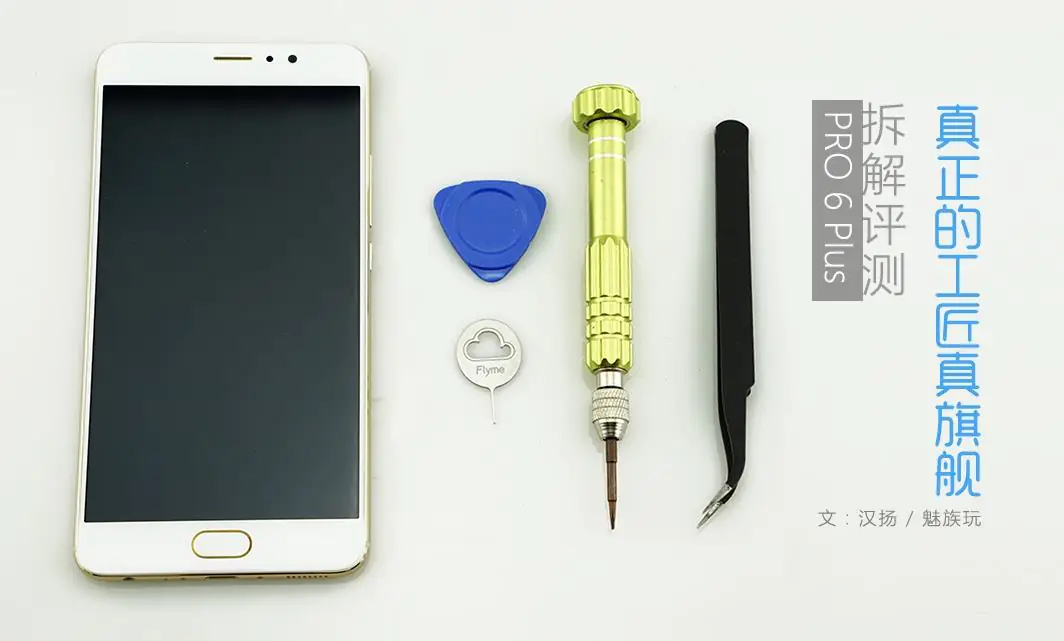

Tools needs: screwdriver, tweezers, pick, suction cup

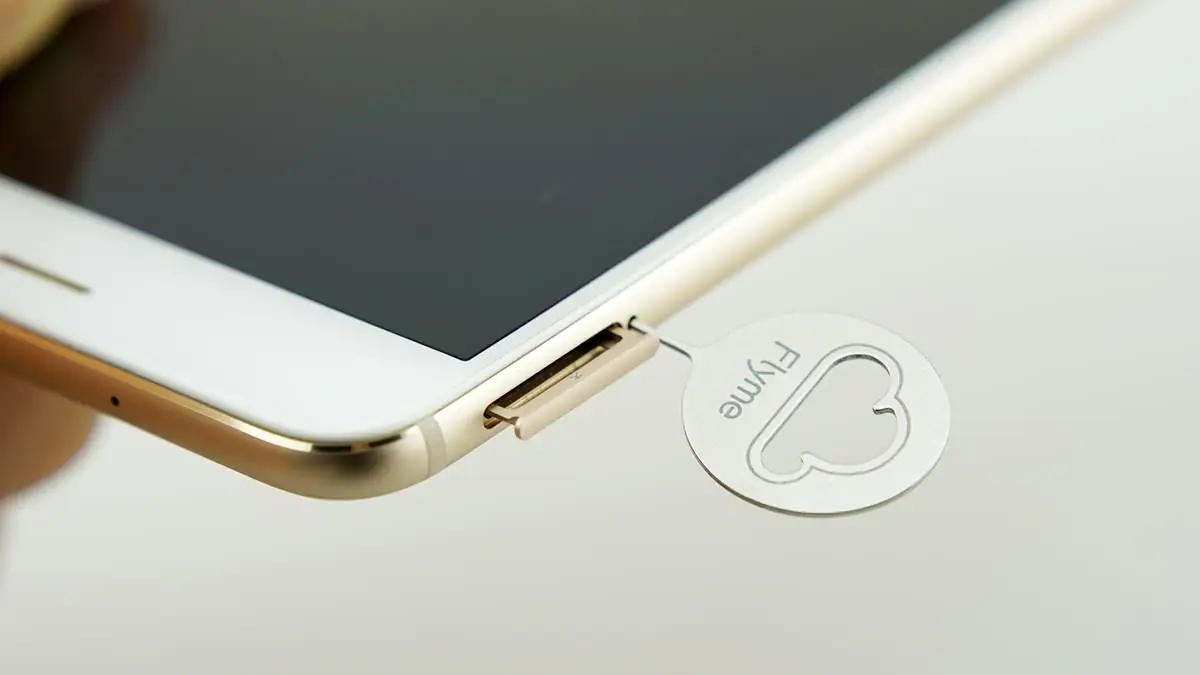

Before the disassembly process, you will need to remove Meizu Pro 6 Plus’s SIM card slot.

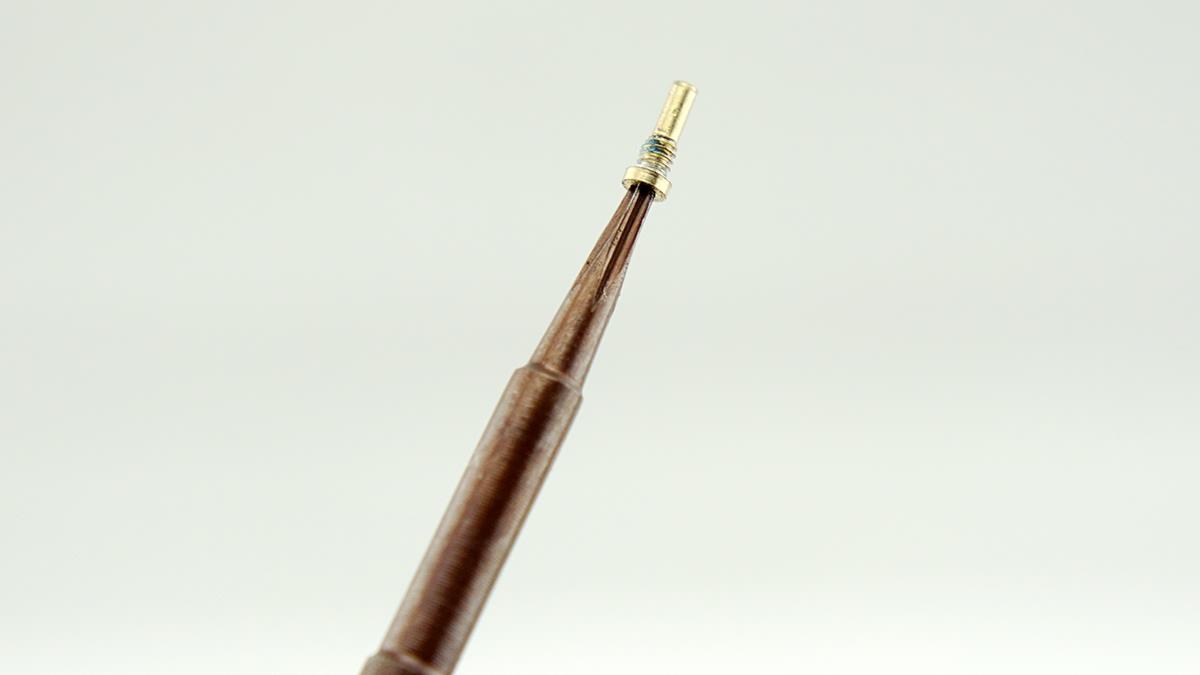

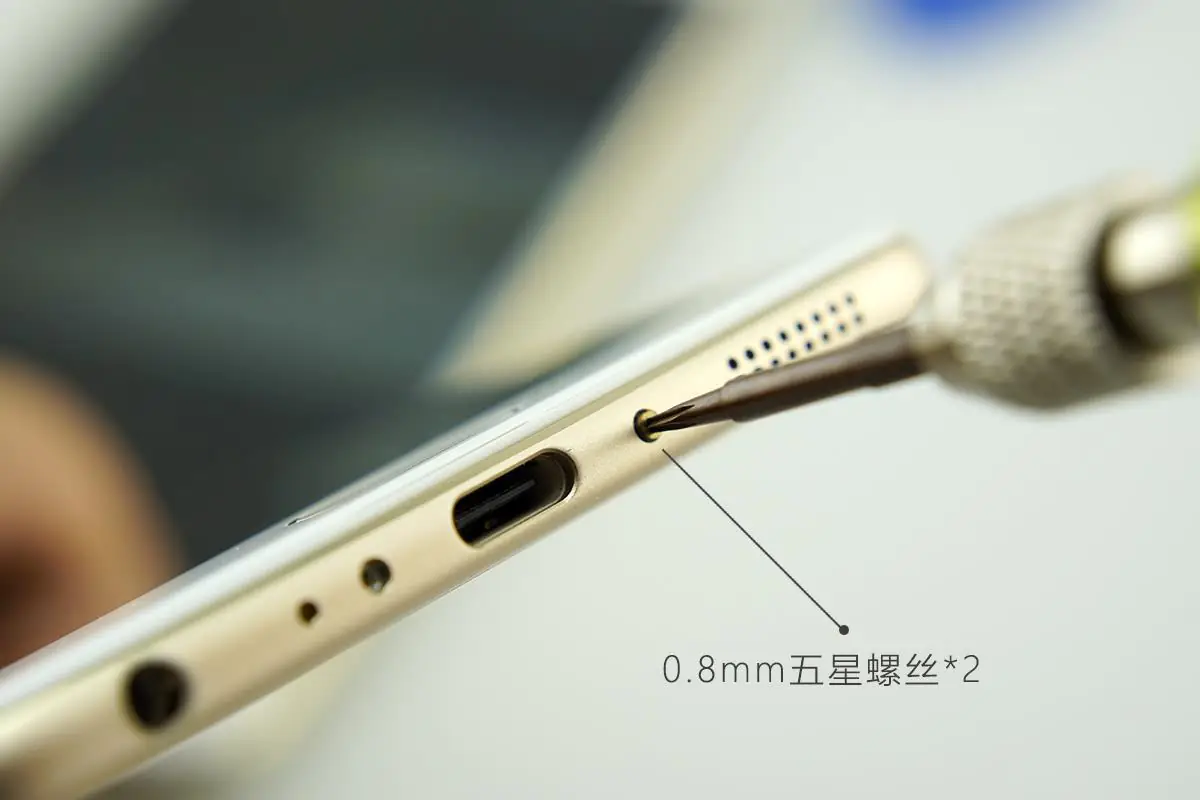

Remove two screws close to the USB Type-C port of the phone with a screwdriver.

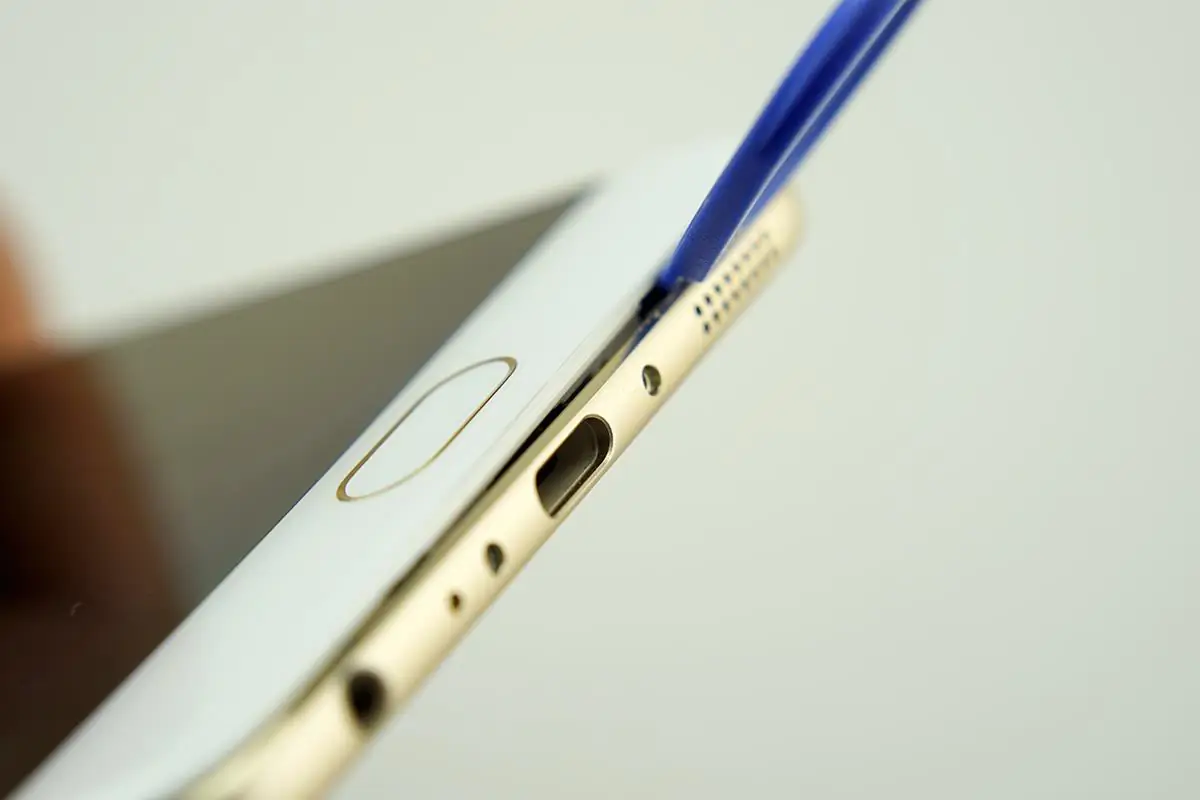

Meizu Pro 6 Plus’s back cover is fixed on its body with clips. Use a suction cup and pick to separate the back cover and its body.

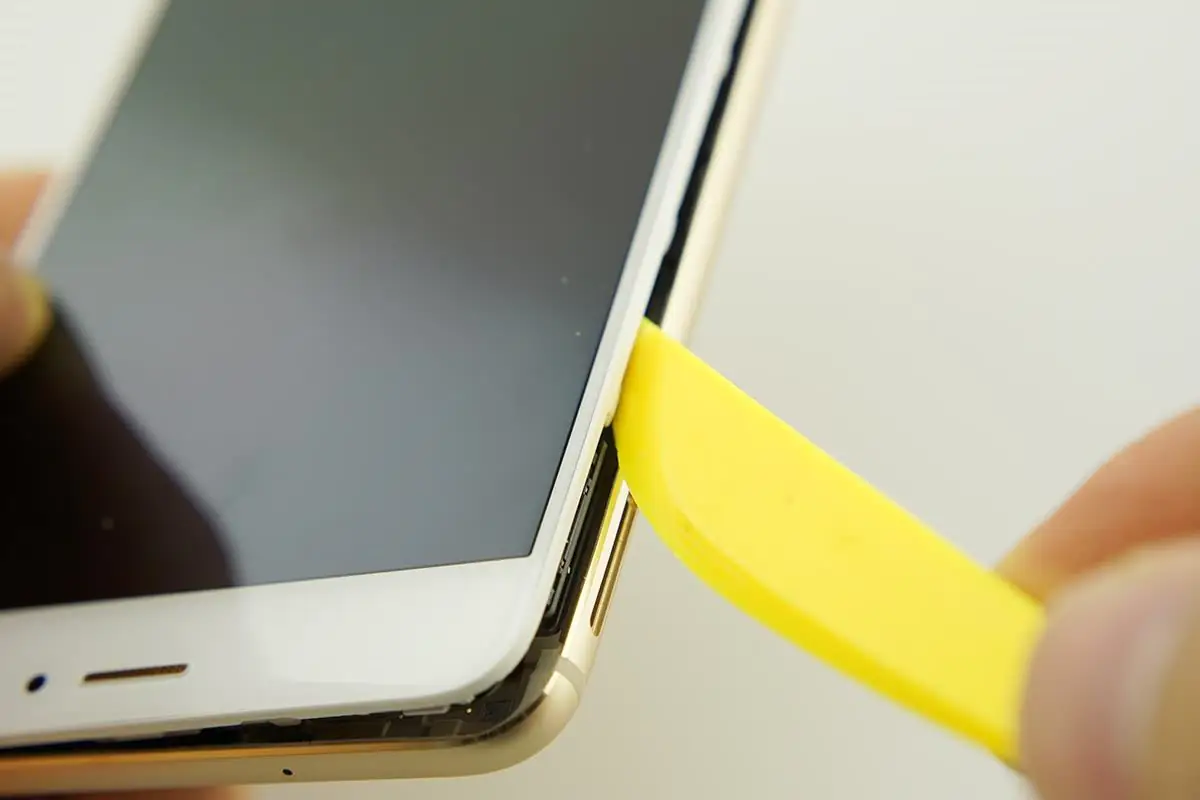

Use the pick to separate the back cover along the edge.

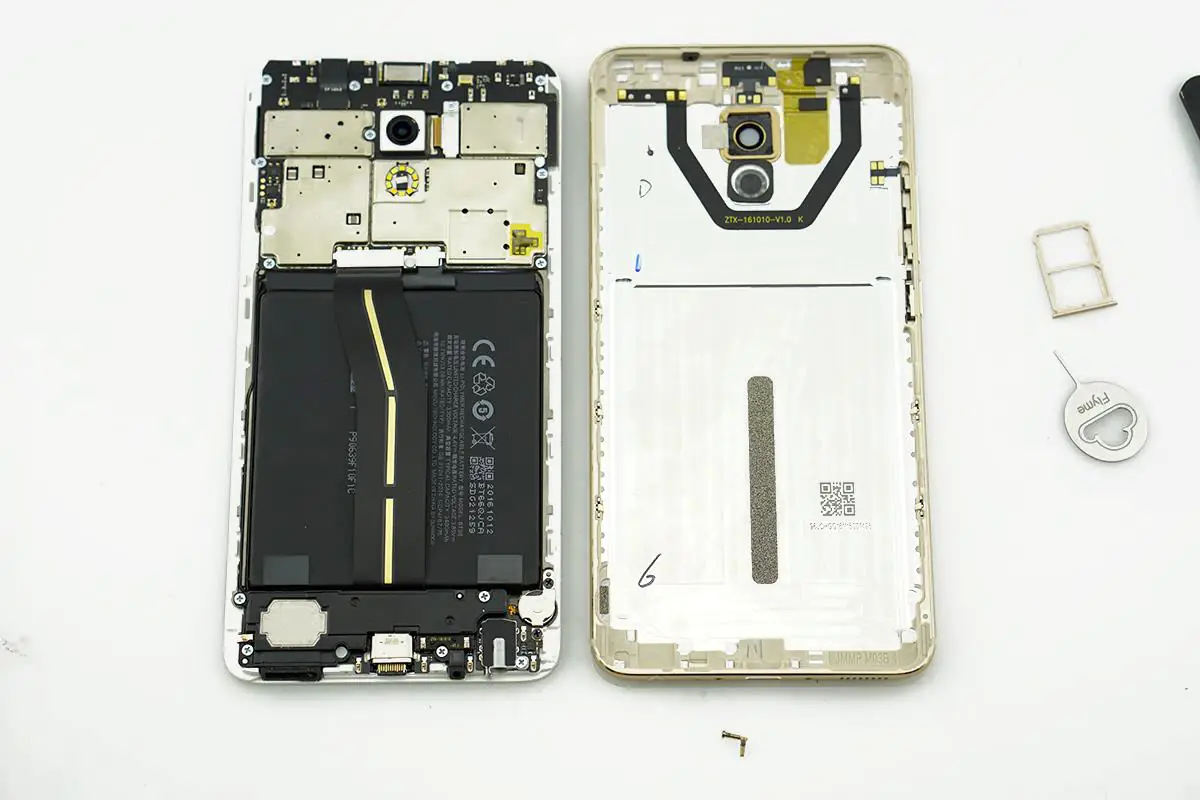

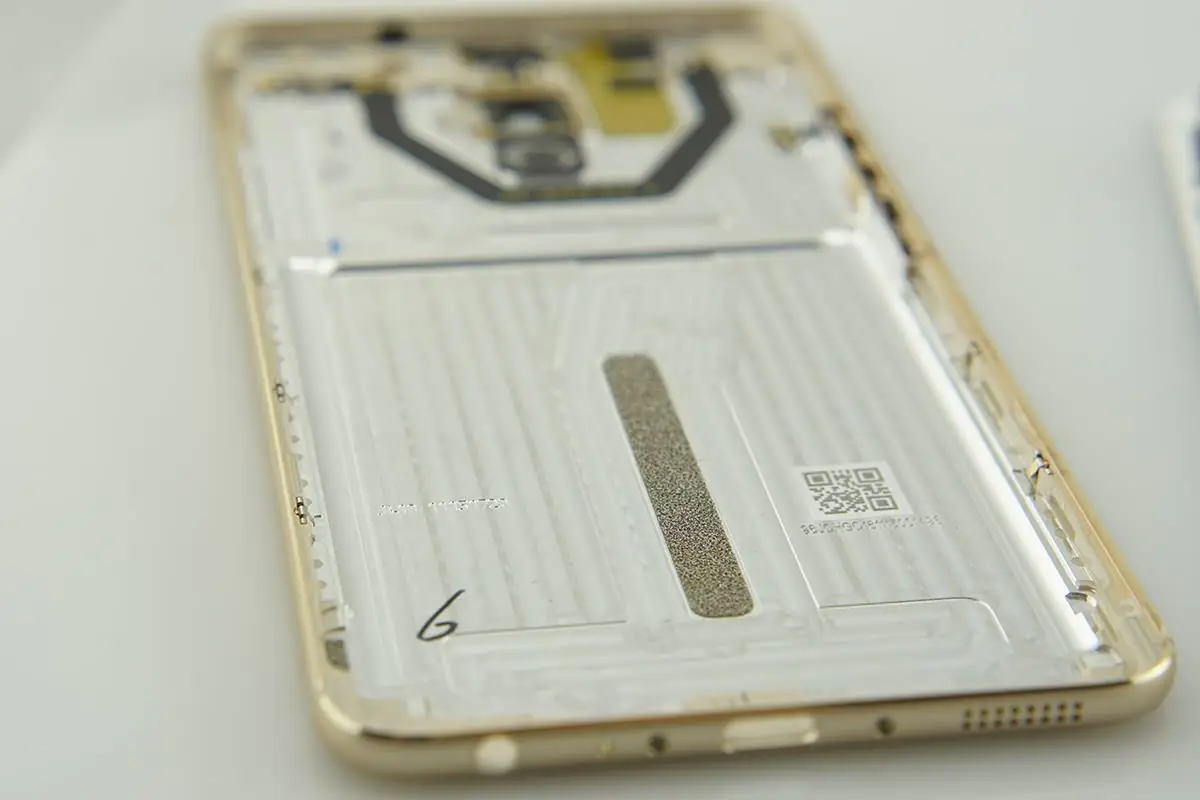

The back cover using the contact way to complete some of the functional requirements of mobile phones, no cable connected to the body, very neat and tidy.

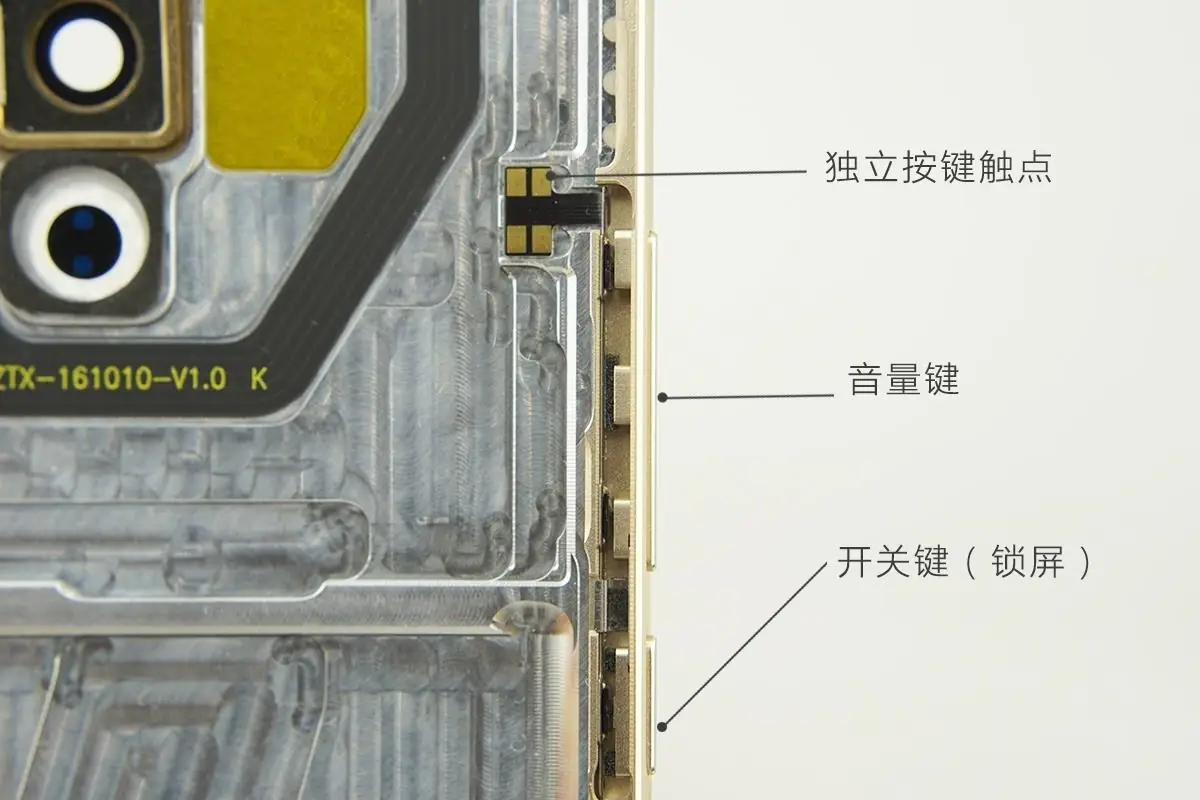

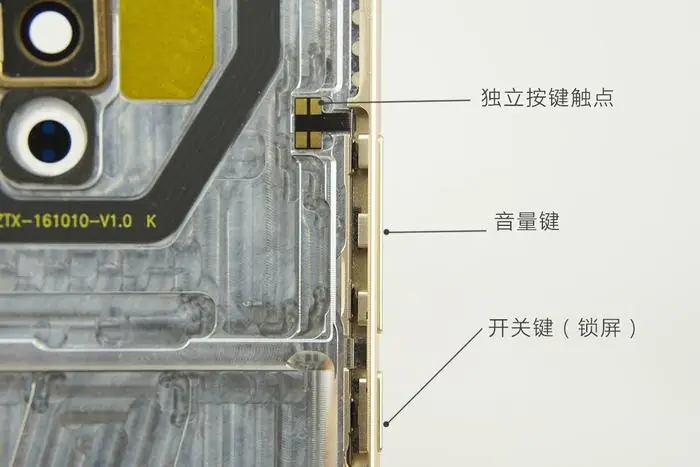

Independent key contacts, volume keys, and power button

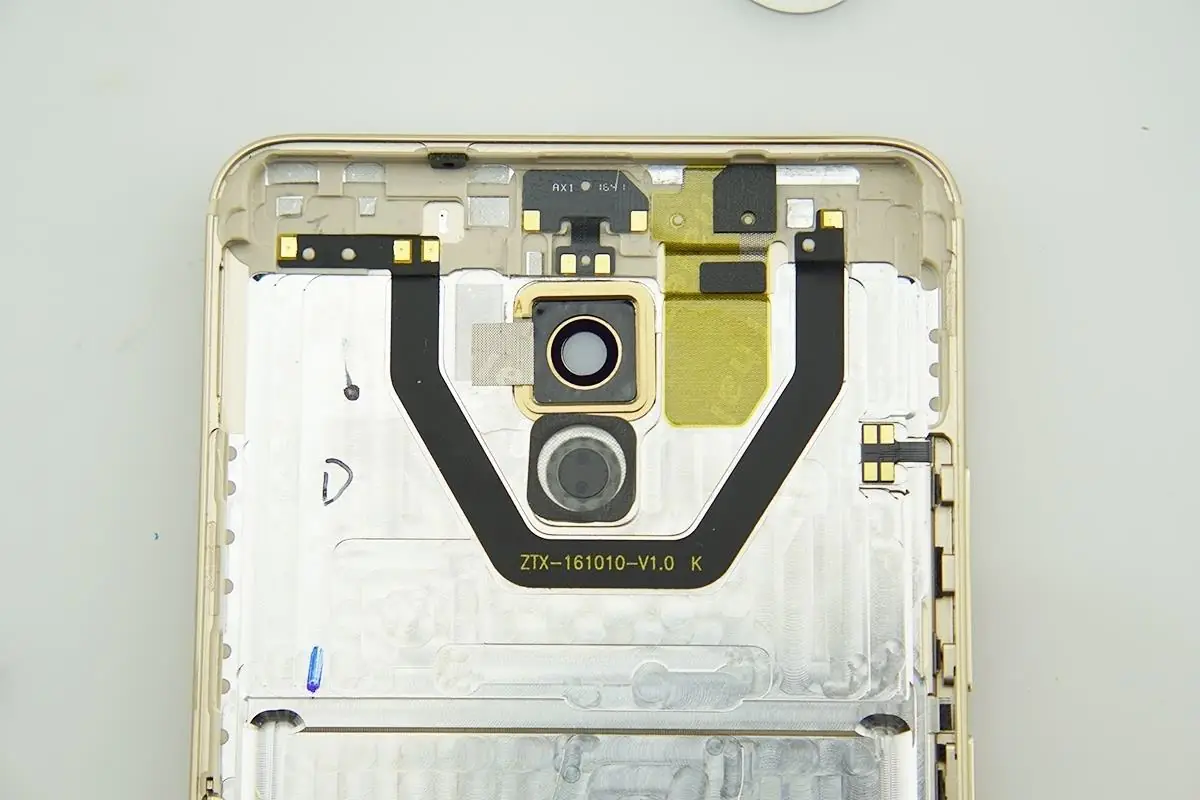

The rear antenna of the Meizu PRO 6 Plus integrates NFC, MIMO, Wi-Fi and GPS.

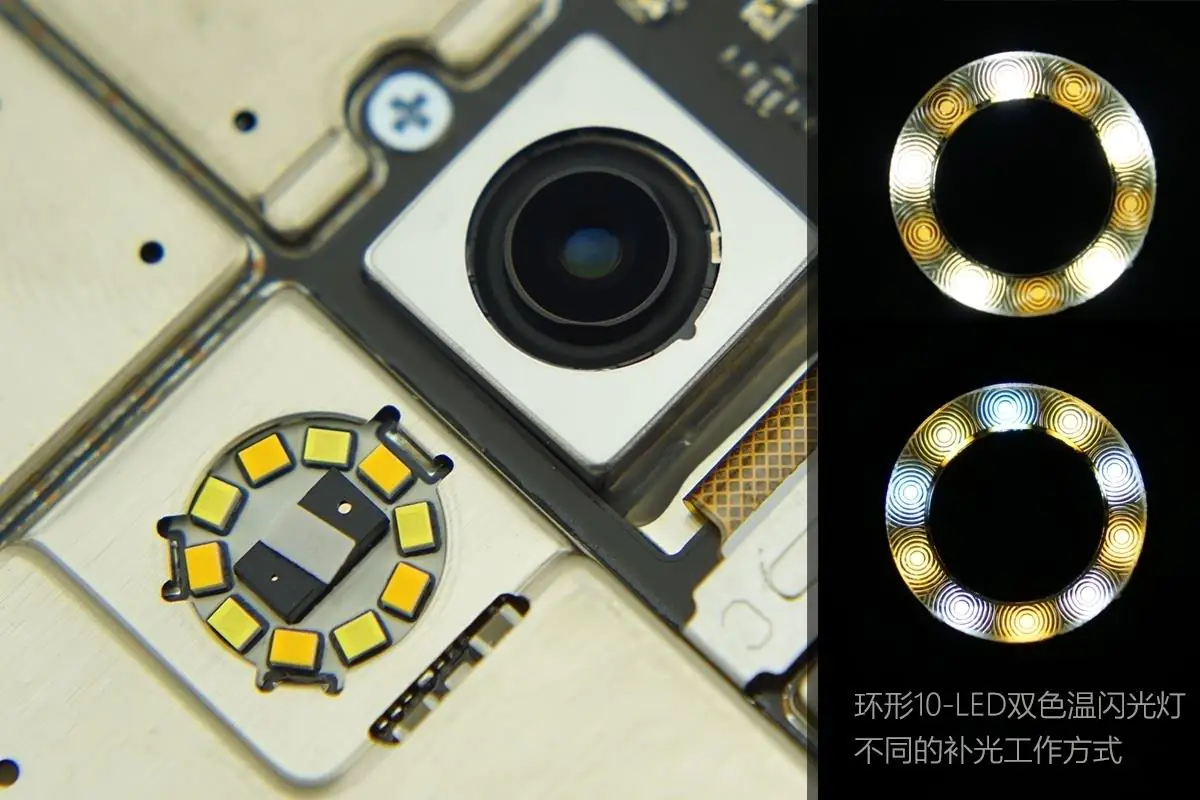

Meizu PRO 6 Plus’s ring 10-LED dual color temperature flash, fill the light natural uniform, the middle is the laser-assisted focus.

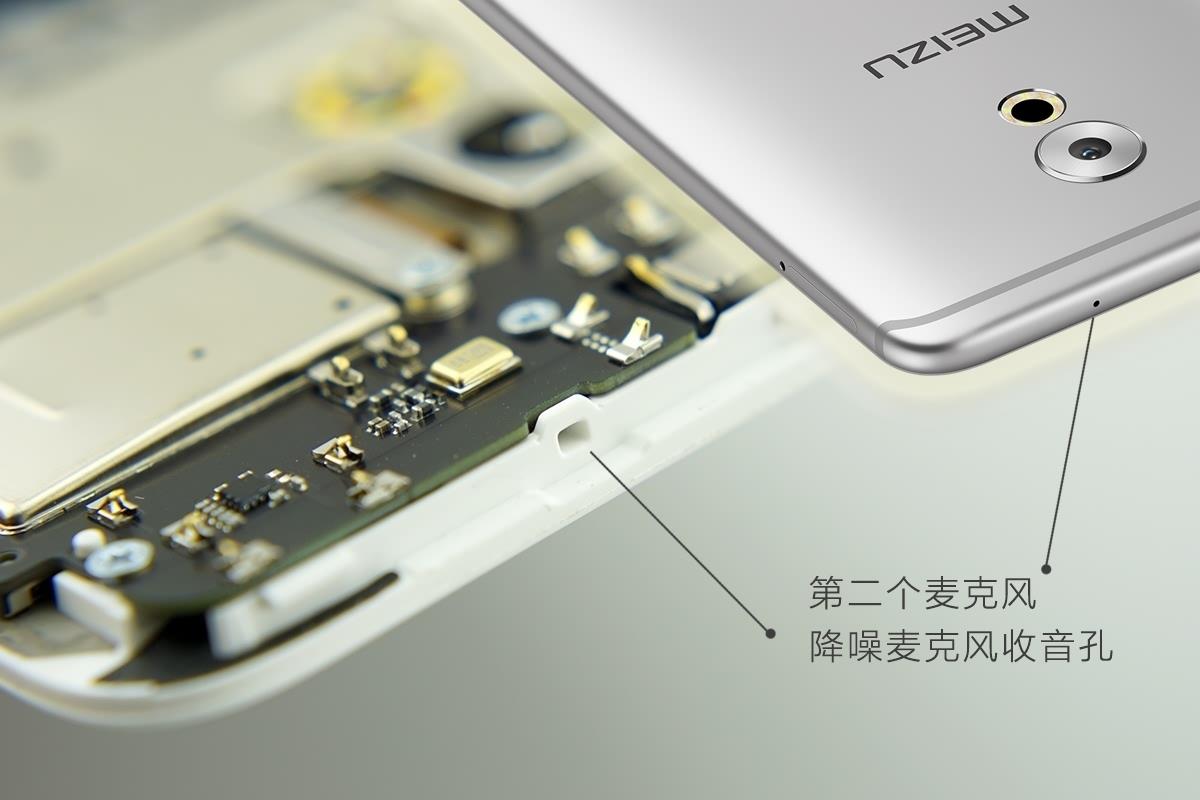

The top also has a noise-canceling microphone radio hole.

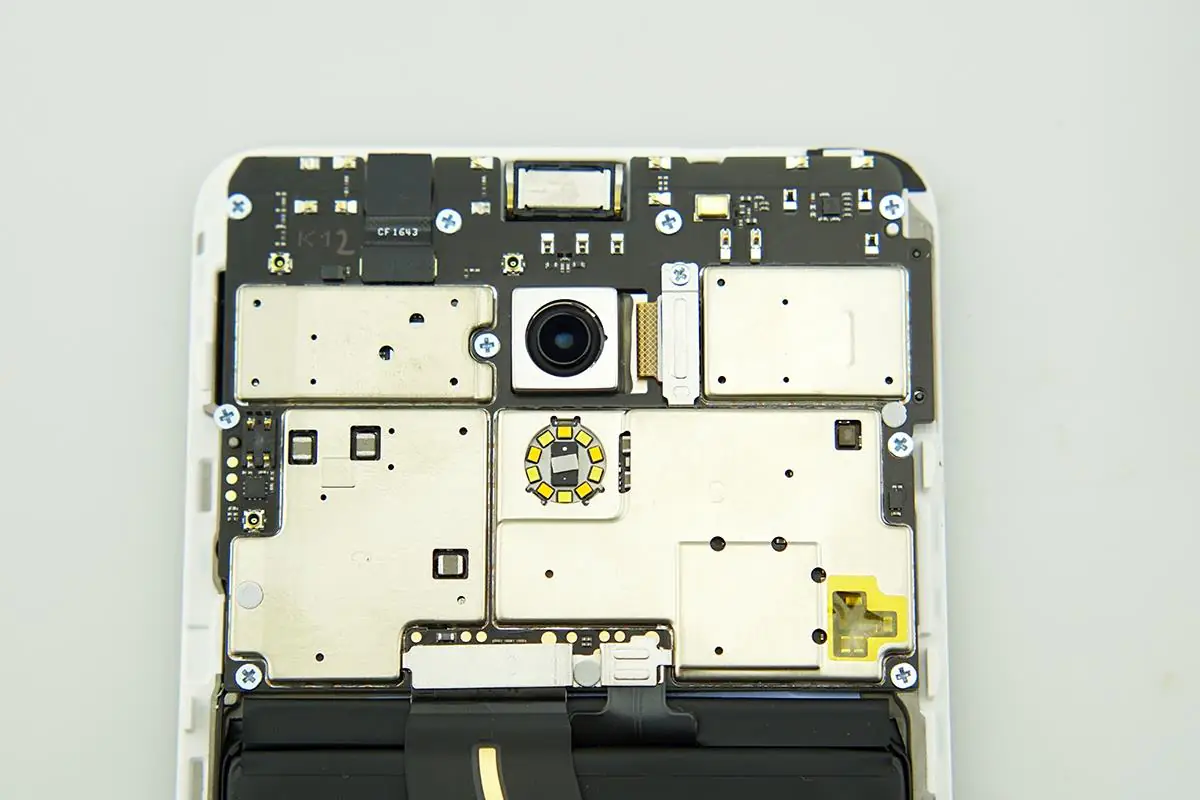

Remove ten screws securing the motherboard.
One of the screws covered with the fragile label. If damaged it, you will void the warranty.

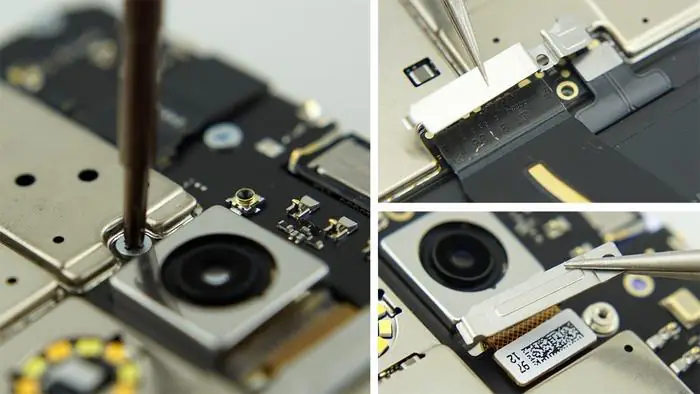

Battery connector and main FPC are reinforced with a metal sheet.

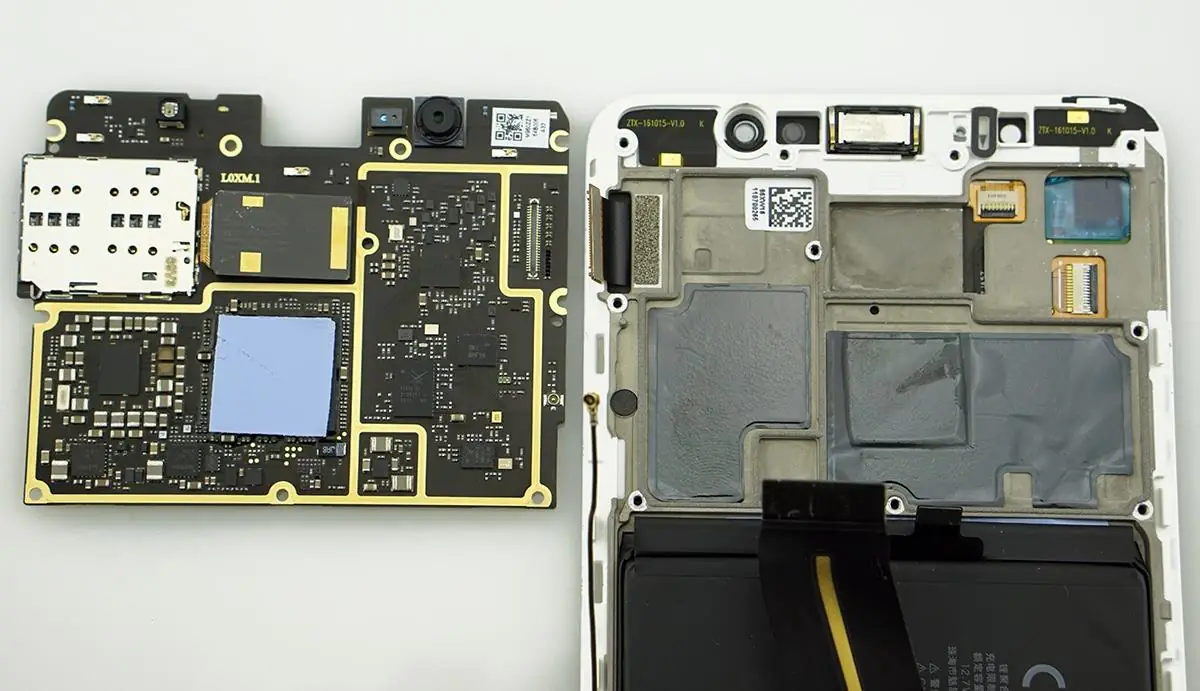

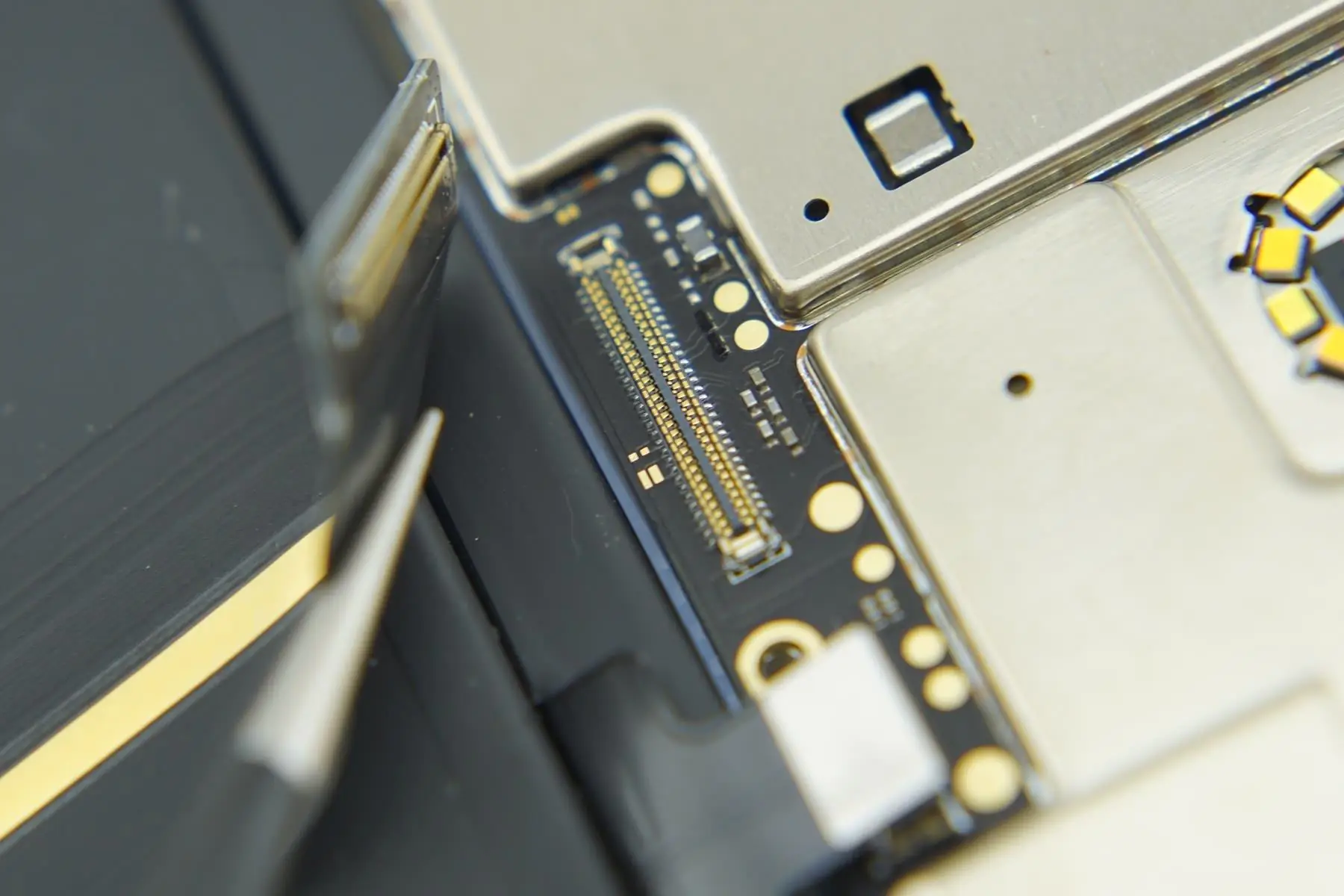

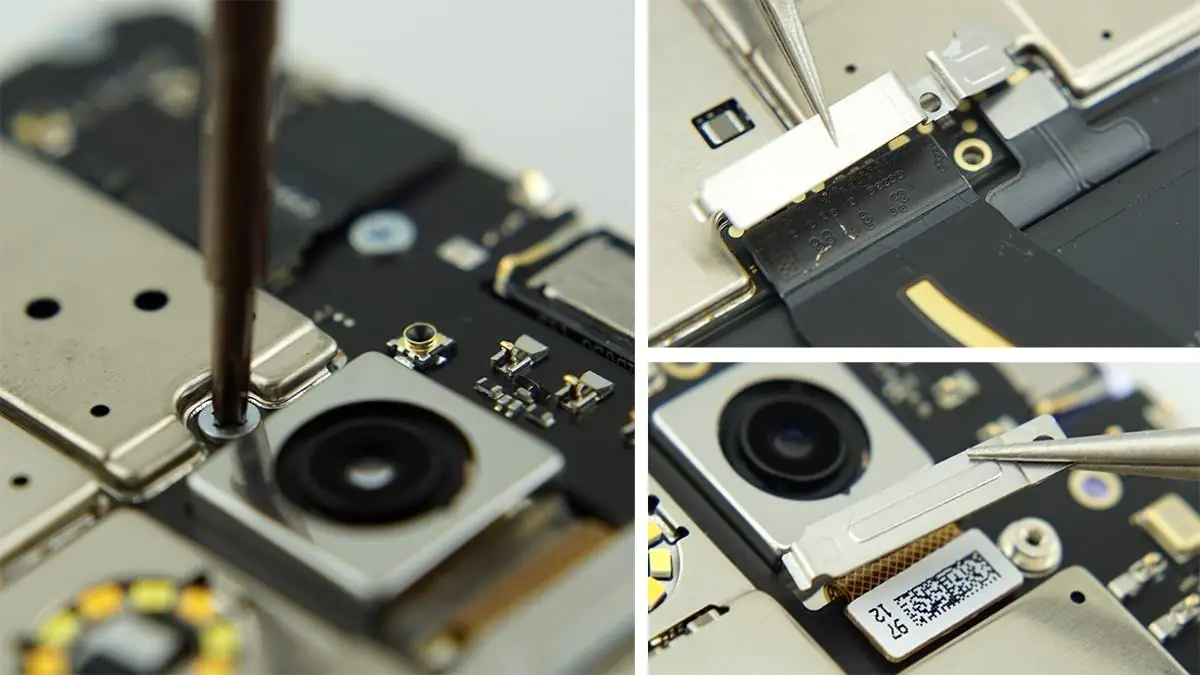

Disconnect the LCD cable and coaxial cable from the motherboard and take out the motherboard from its board.

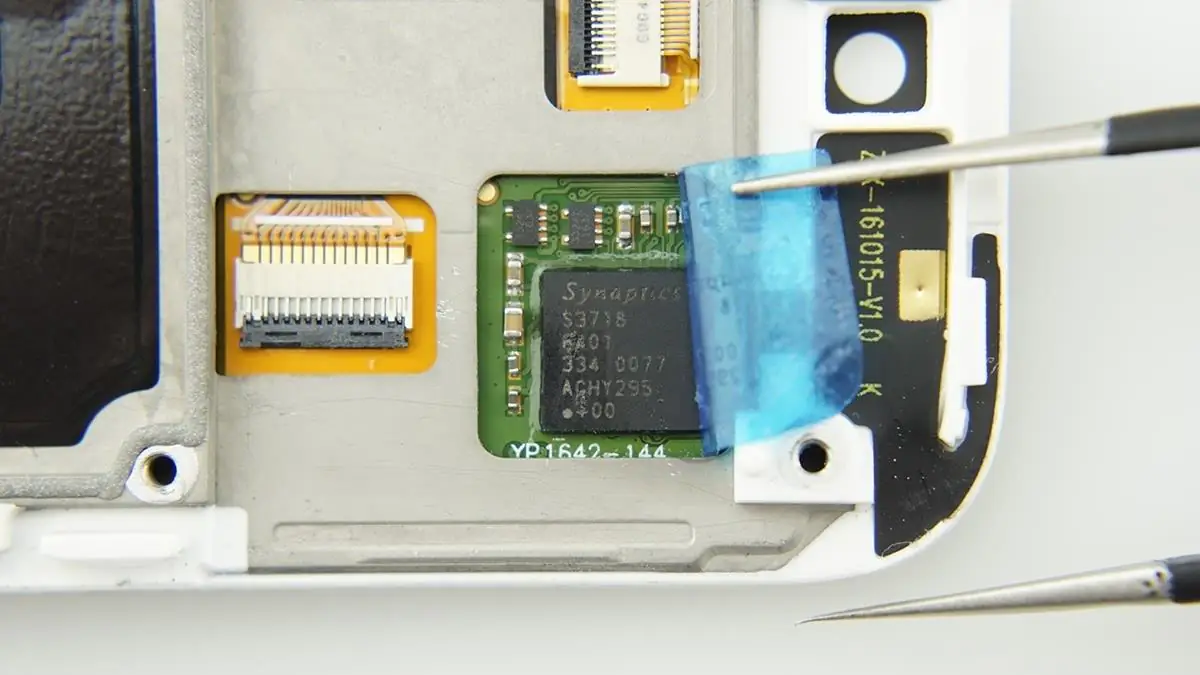

Synaptics touch chip

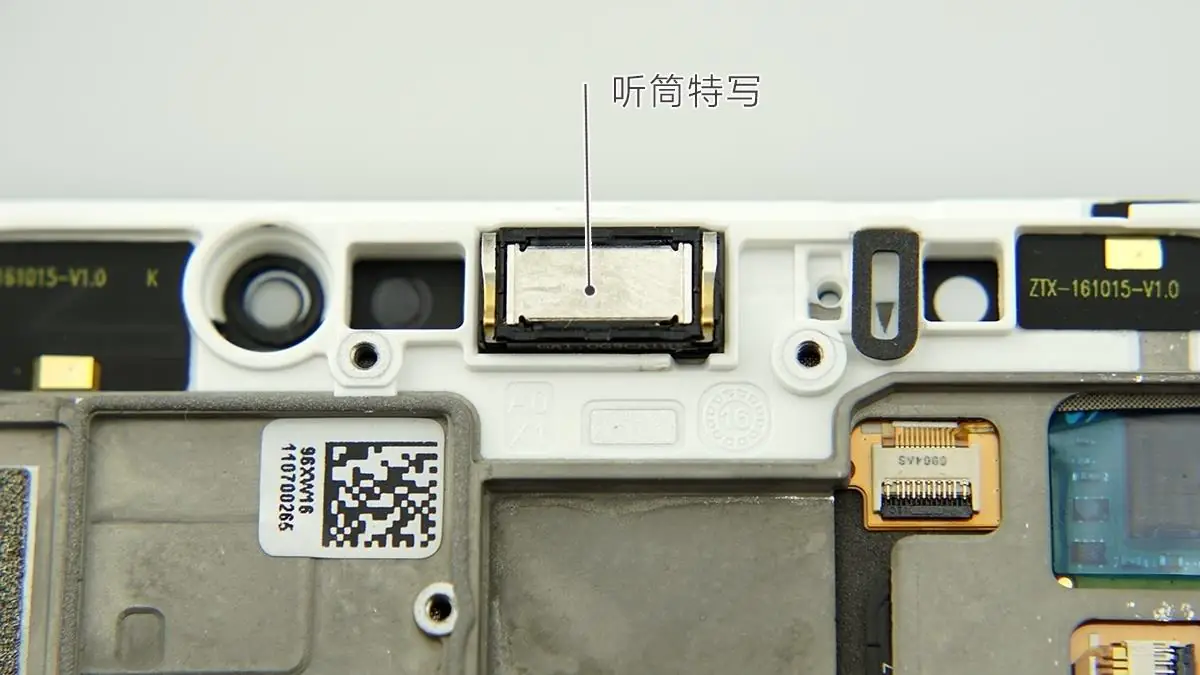

The earpiece fixed on the phone body with glues.

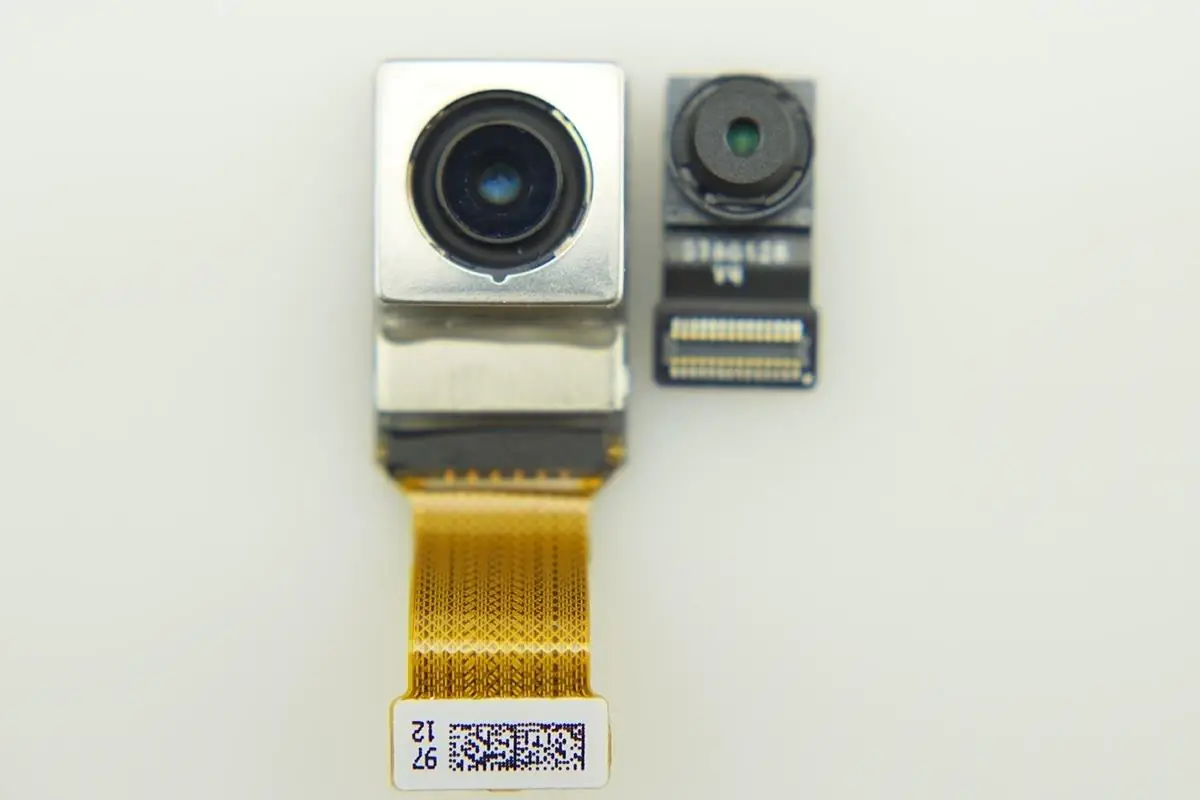

Rear camera: 12MP, F/2.0, four-axis optical image stabilization of a clear and stable, 6-piece lens
Front camera: 5MP, F/ 2.0, 5-piece lens

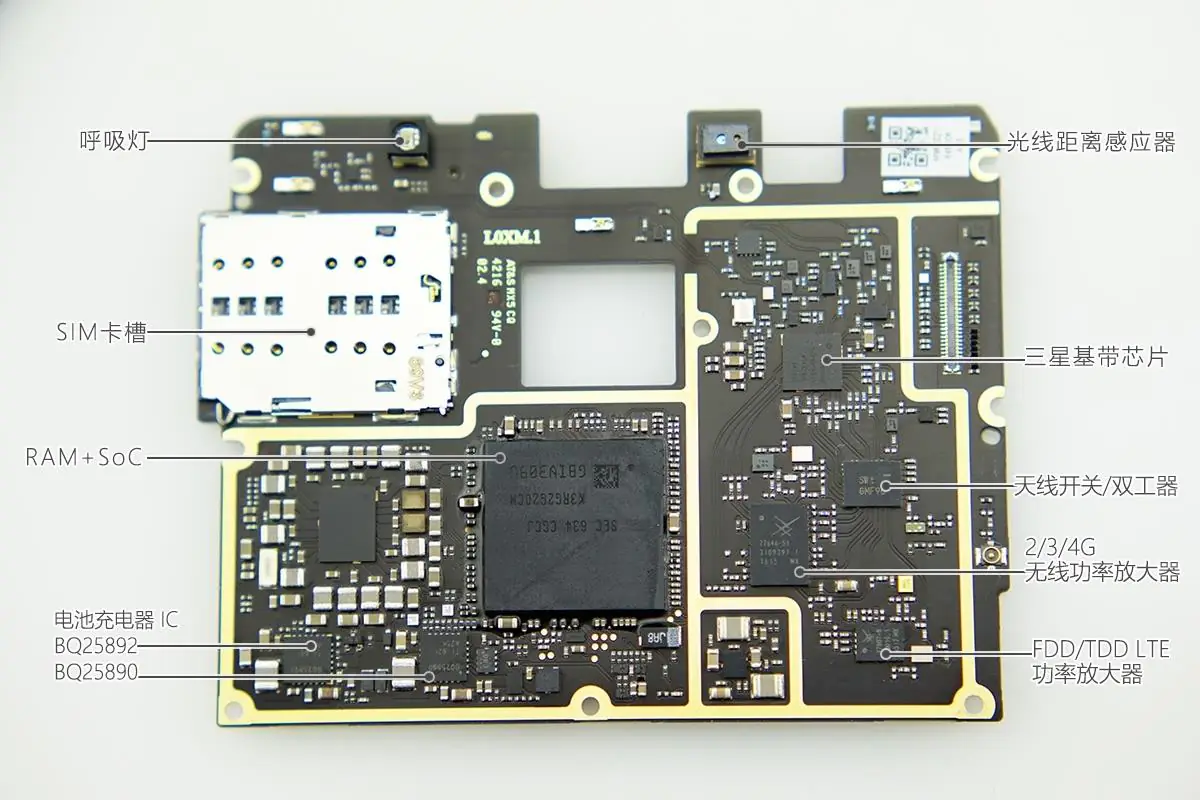

1. RAM + SoC: Samsung SEC 634 K3RG2G20CM
2. SKYWORKS 77646-51 CDMA WCDMA 4G multi-mode multi-band power amplifier module
3. Multimode Multiband Power Amplifier Module for Quad-Band GSM/EDGE – Bands (1, 25, 3, 4, 26, 8, 13, 12, 20, 28, 34 and 39) WCDMA/HSDPA/HSUPA/HSPA/LTE
4. SKYWORKS 77807-8 FDD / TDD LTE four-band power amplifier module
5. Texas Instruments BQ25892 charging chip

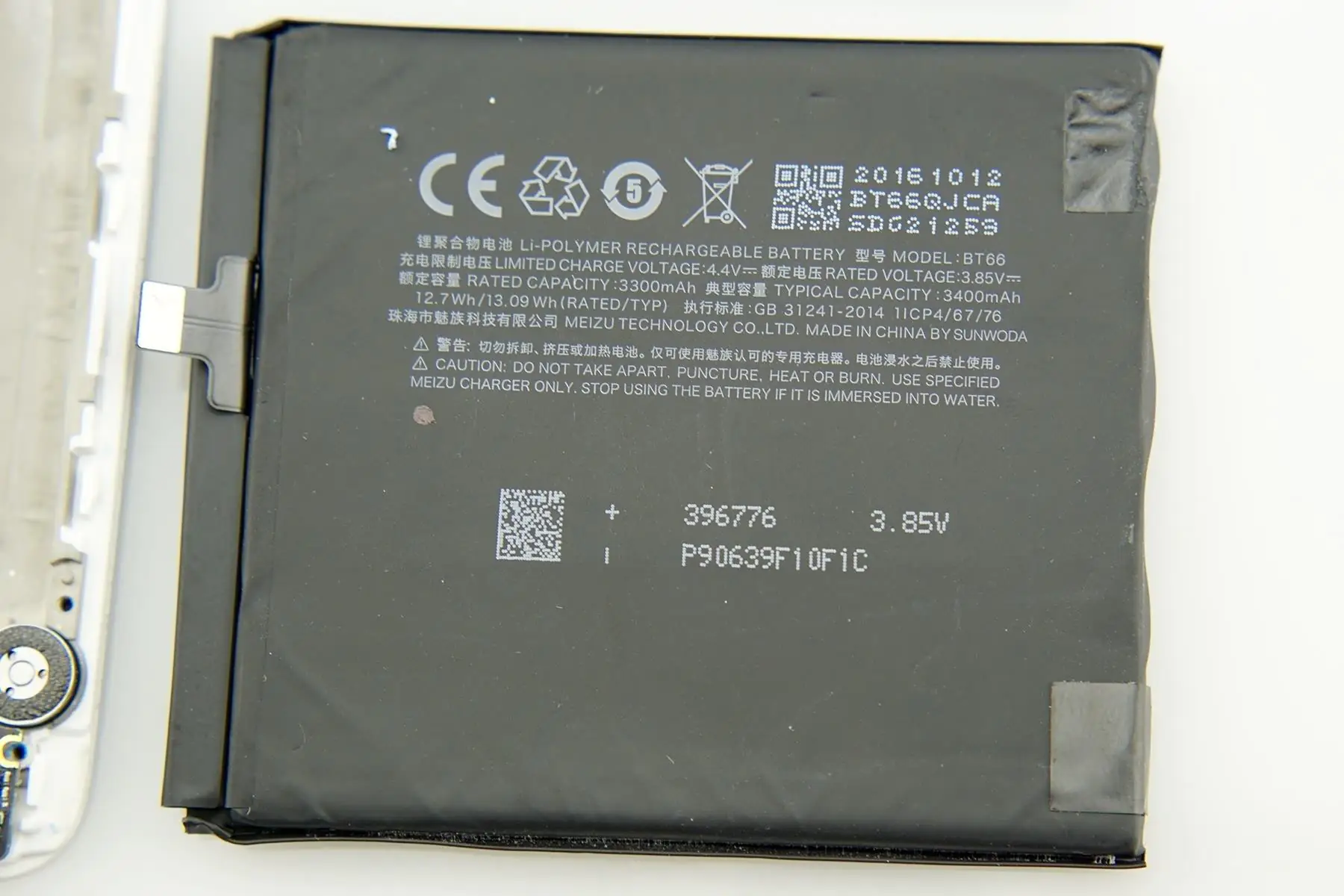

Meizu PRO 6 Plus comes with a 3400mAh lithium polymer battery, using double-sided adhesive fixed. The model is BT66, support mCharge fast charge technology.

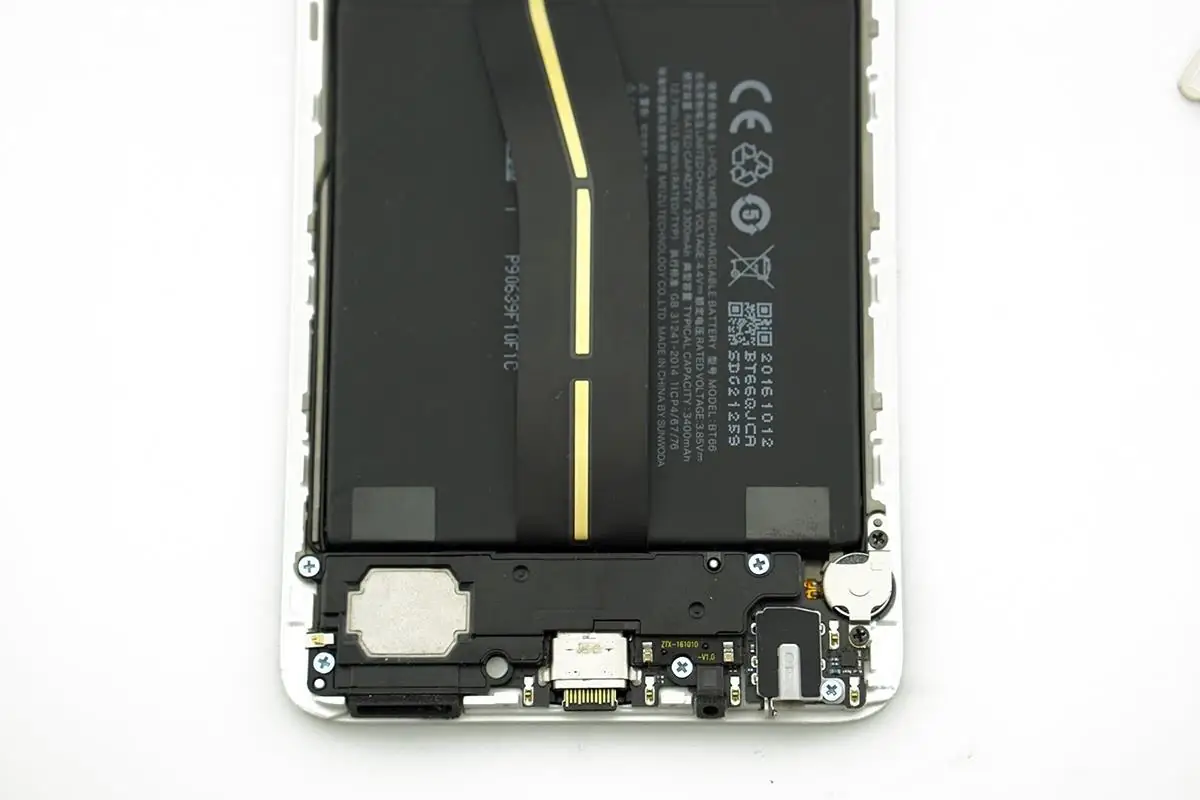

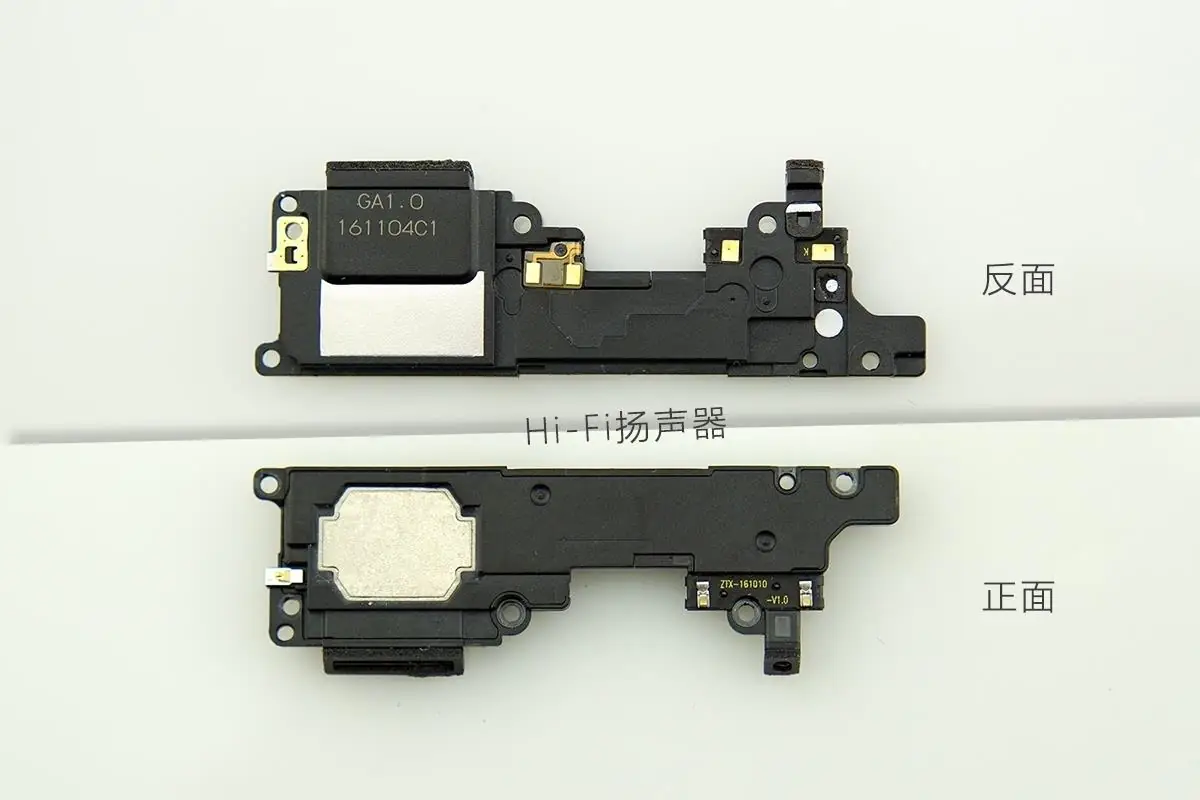

The bottom board also has a fragile label. The speaker takes up most of the space.

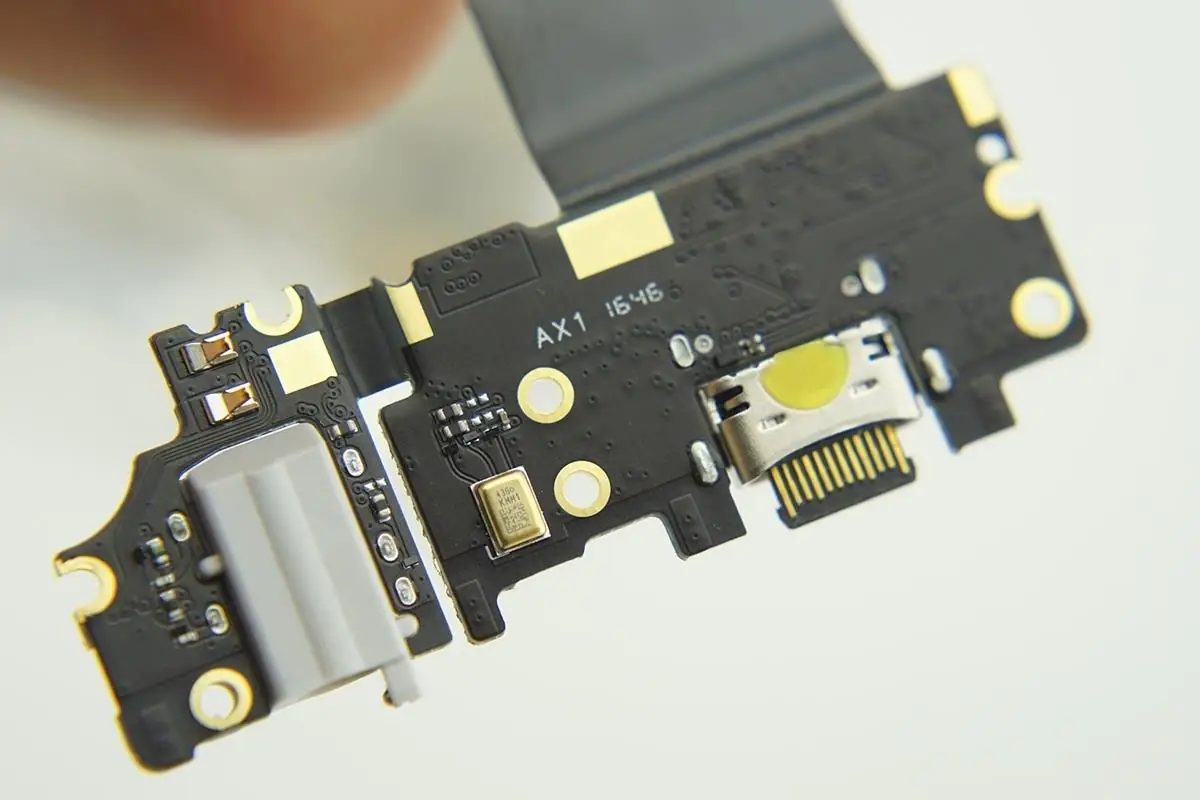

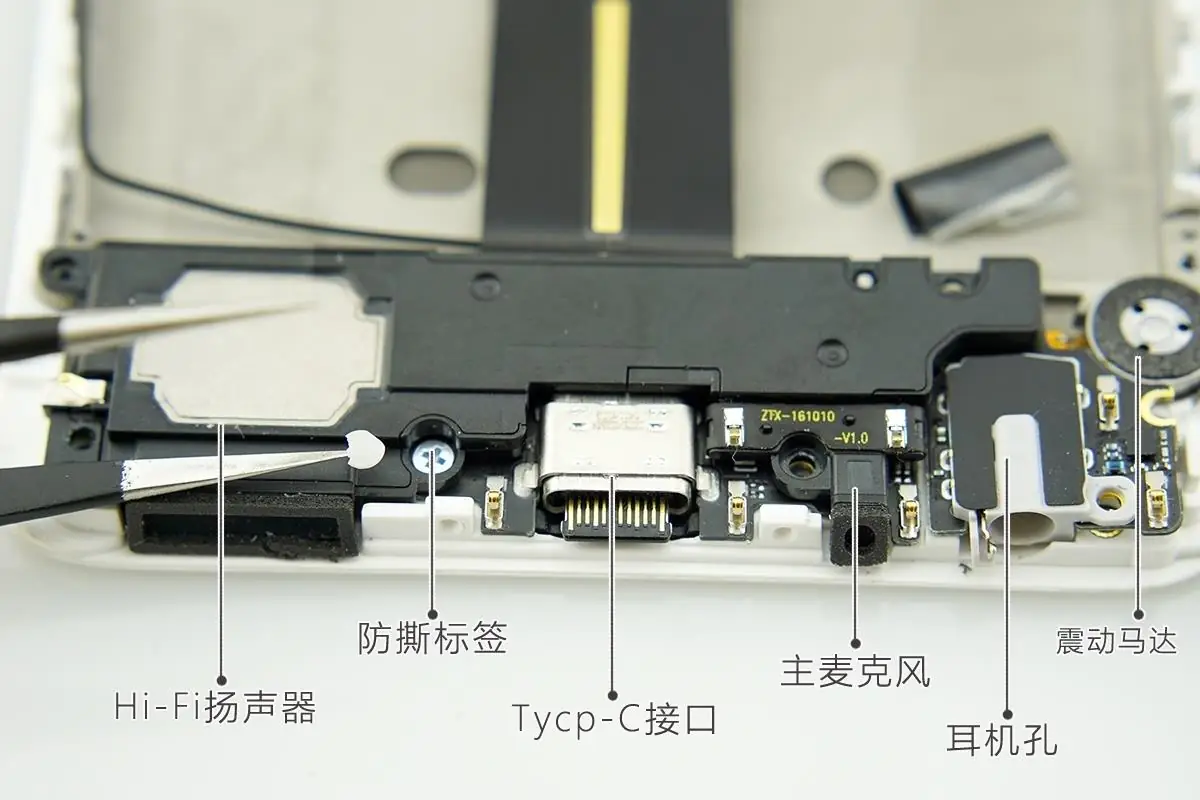

The bottom board has a USB port, headphone jack, main MIC, vibration motor, HiFi, etc., the USB Type-C port support USB 3.1 standard, faster transmission, the maximum also supports 24w charging.

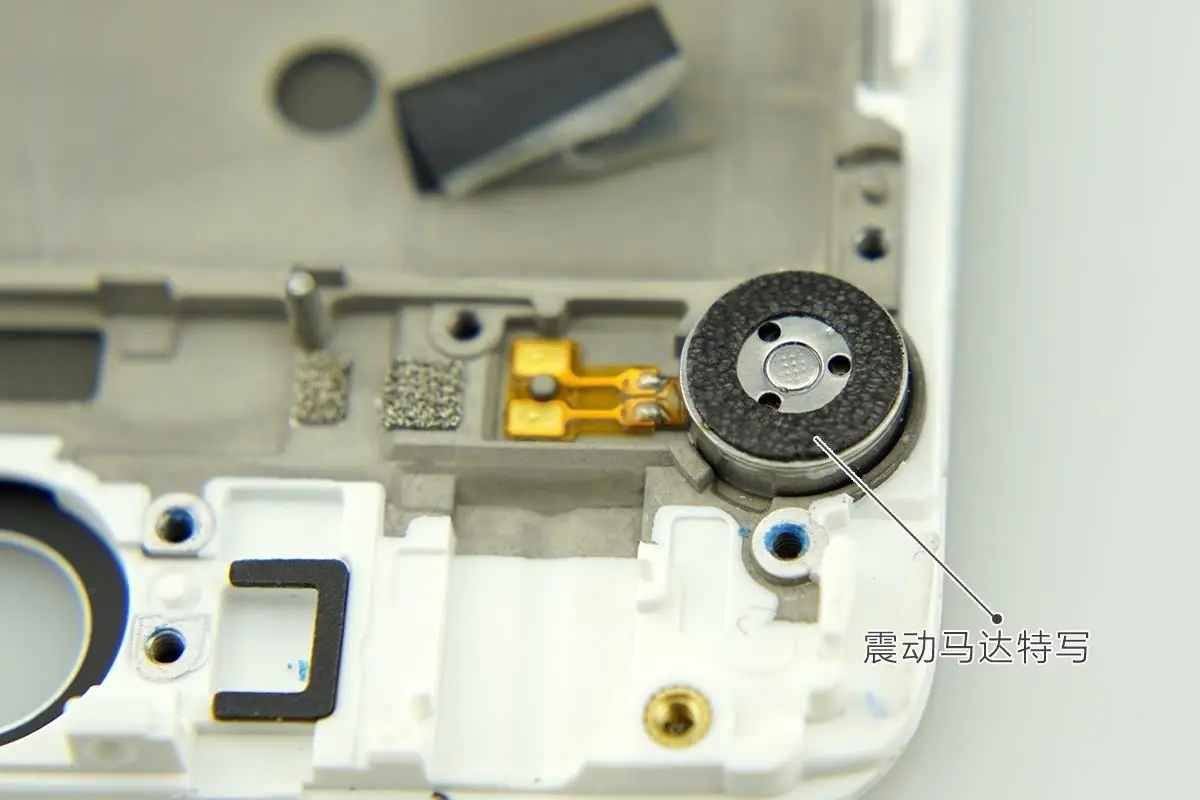

The vibration motor

Meizu Pro 6 Plus’s HiFi uses the ESS ES9018K2M decoder chip and the ADI AD45275 op-amp chip.

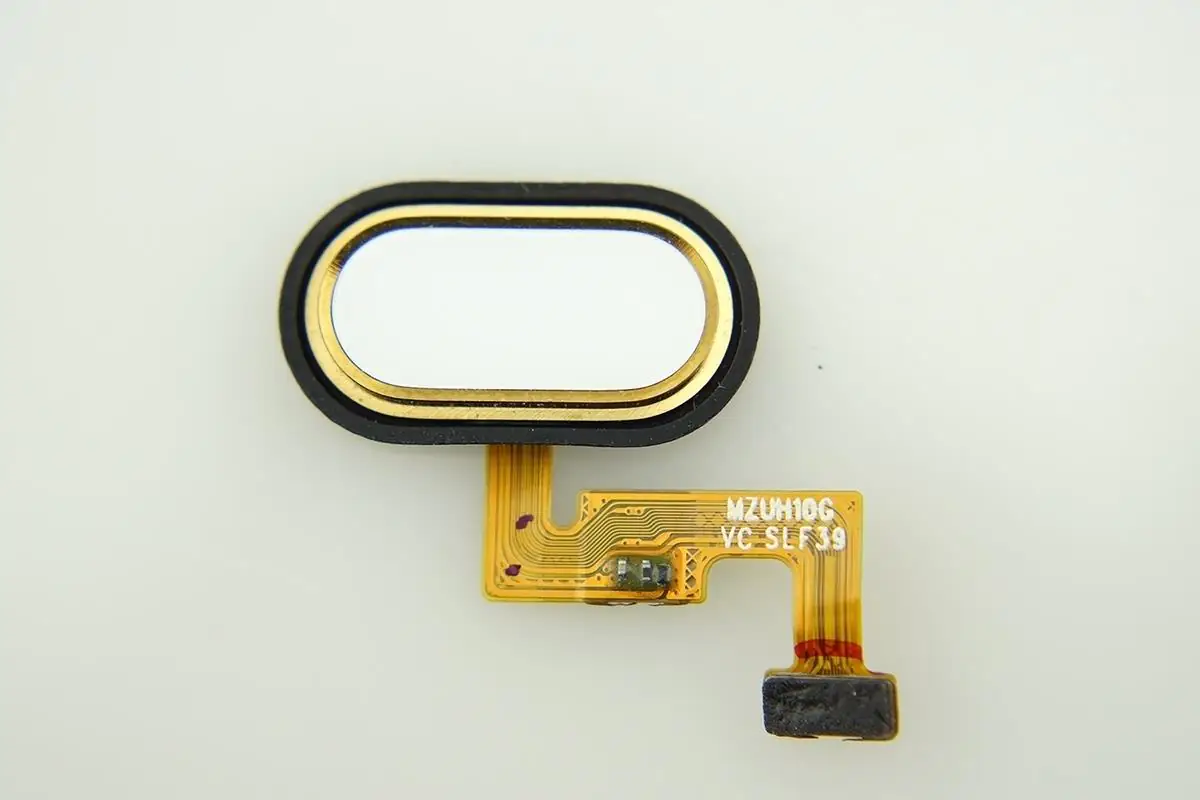

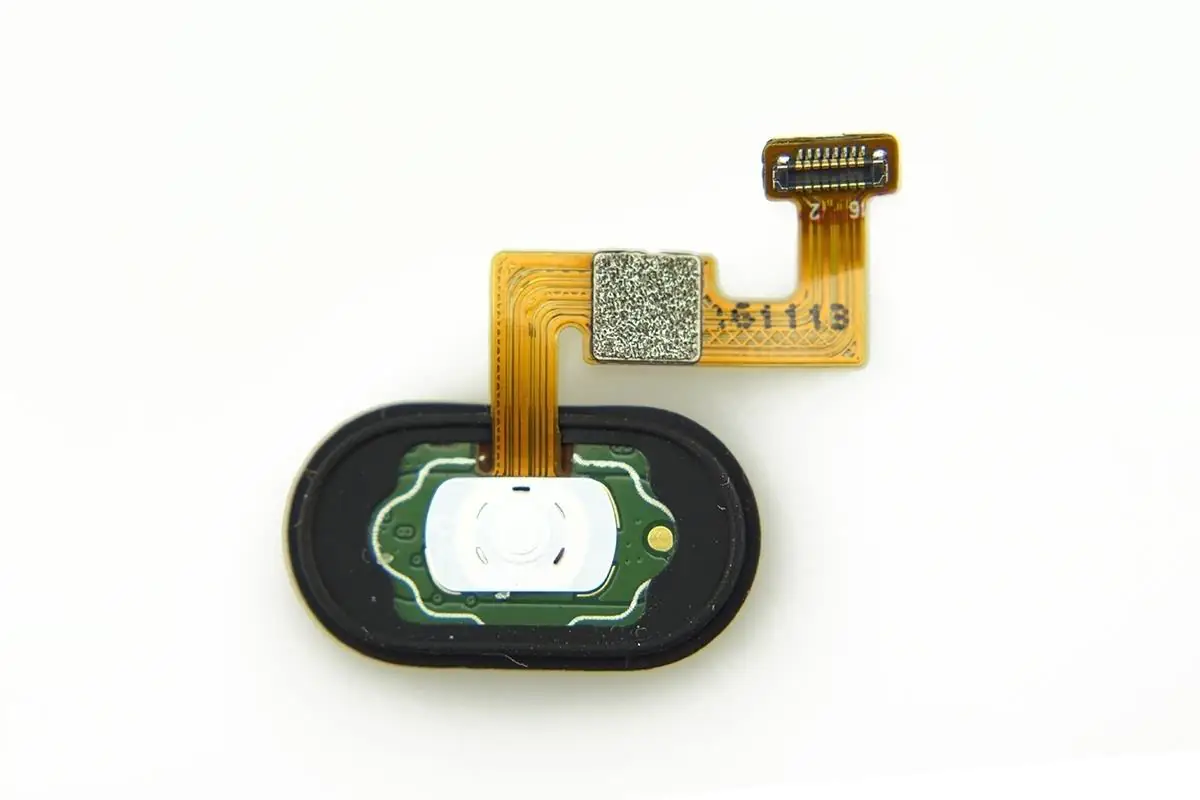

Meizu mTouch fingerprint module, support heart rate detection.
