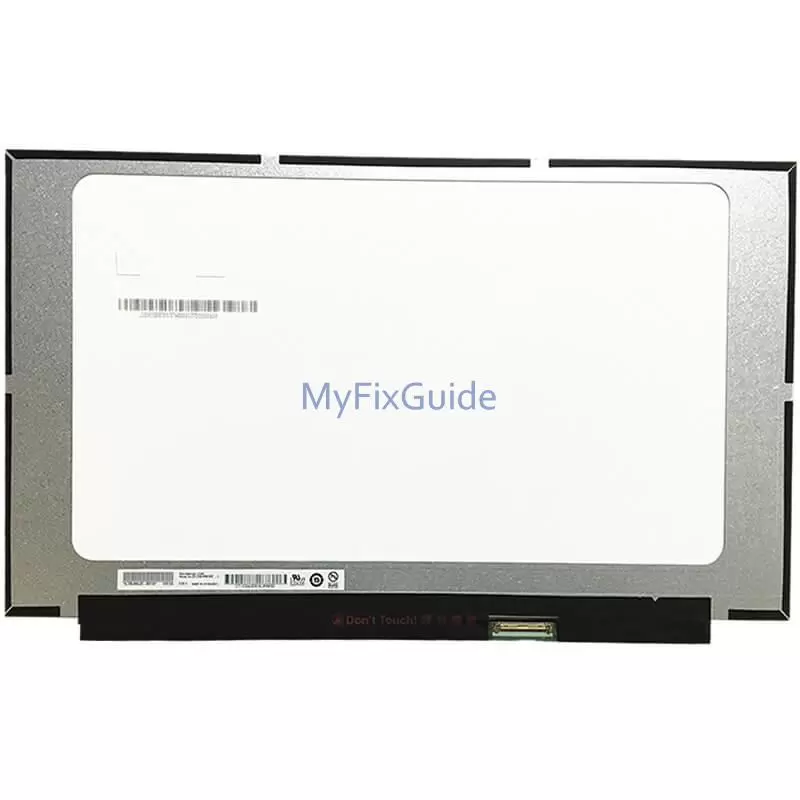

This is a brand new, replacement FHD IPS screen for Lenovo ThinkPad T590 and ThinkPad P53s that compatible with 01YN132, 01YN133, and 01YN134. These three screens can be compatible with each other, and their specifications are exactly the same.
1. We will ship the screen according to the stock, if you need to specify the FRU, please contact us after placing the order.
2. The screen only works on a T590, P53s with an FHD non-touchscreen.
Size: 15.6-inch IPS Widescreen
Resolution: FHD (1920 x 1080)
Backlight Type: LED
Surface Type: Matte
Video Connector: 30 pin socket
Condition: brand new, no dead pixel
Warranty: One (1) Year
Lenovo ThinkPad T590 (20N4, 20N5)
Lenovo ThinkPad P53s (20N6, 20N7)
1. Please verify the resolution, FRU, size, description, and our image matches your screen.
2. If possible, please remove your LCD screen to confirm that the FRU number is on the back of your old screen.
3. To replace the screen, please restart the laptop, When the logo screen is displayed, immediately press F1 to enter the BIOS and then go to Config->Power-Select Disable Built-in Battery and press Enter, then select Yes in the setup confirmation window. Now you have disabled the built-in battery, and you can start replacing the LCD screen.
4. Because the LCD bezel is glued to the LCD back cover, removing it can easily cause damage the LCD bezel, so I suggest you buy a new LCD bezel at the same time as the LCD screen.
