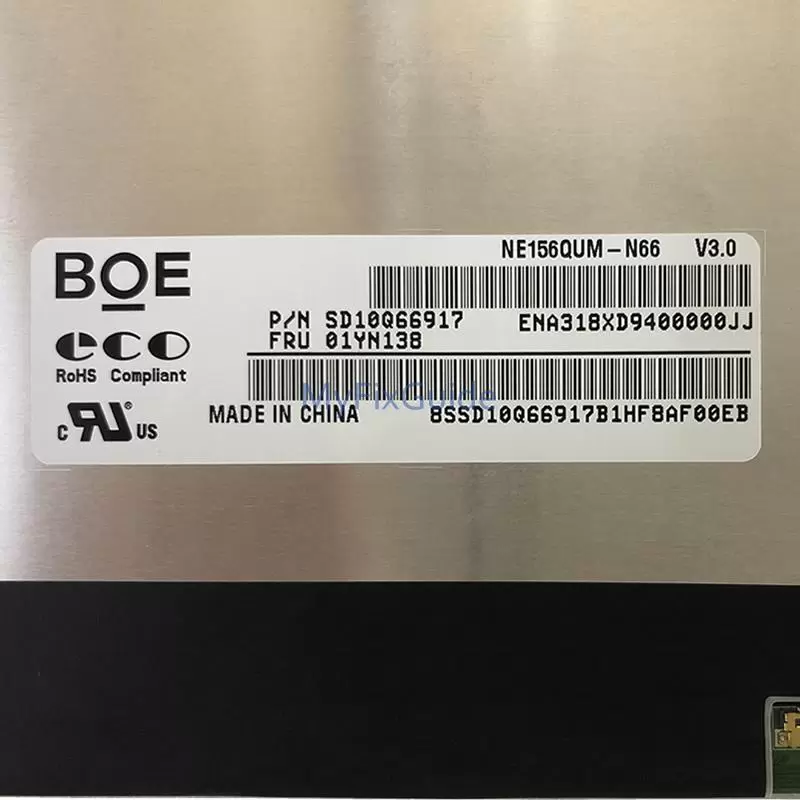

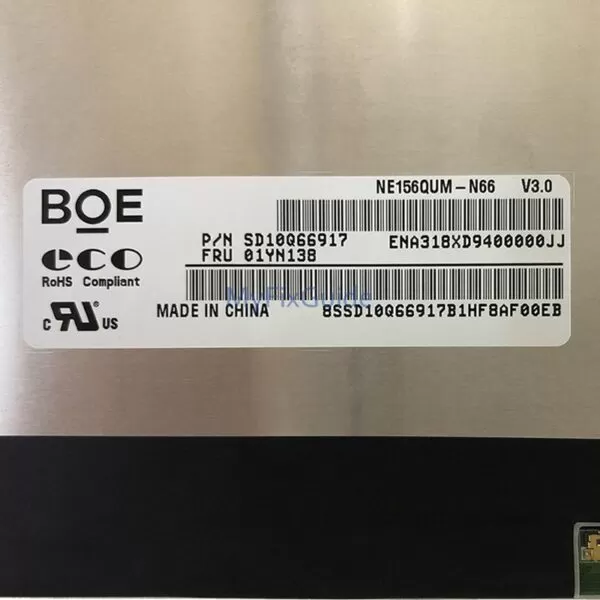

This is a genuine, brand new HDR UHD screen for Lenovo ThinkPad T590, ThinkPad P53, and ThinkPad P53s laptop. There are three parts number 01YN138, NE156QUM-N66, and SD10Q66917 on the back of the screen.
Note: Please make sure your LCD screen resolution is 3840 × 2160 before placing an order. Otherwise, it is not compatible with your laptop.
1. It is an 4K UHD screen.
2. The screen features 500 nits brightness and 100% Adobe RGB color gamut.
Resolution: 4K UHD (3840×2160)
Backlight Type: LED
Surface Type: Matte
Brightness: 500 cd/m²
Contrast Ratio: 1000:1
Color Gamut: 100% Adobe RGB
Video Connector: EDP (4 Lanes), 40 pins
Dimensions: 350.658(W)×216.12(H) ×2.6(D) mm
Condition: Original, Brand New, no dead pixel
Warranty: One (1) Year
1. This is a brand new, genuine UHD screen. It is 100% compatible with your laptop.
2. If your laptop has an FHD LCD screen and you want to replace your old screen with this UHD screen, then you need to buy a UHD cable.
3. Before you start to replace the LCD screen, please turn off your laptop and then remove the external and built-in laptop batteries to avoid damage to your laptop due to a short circuit when replacing the LCD screen.
4. If you do not have the experience of replacing the laptop, I do not recommend that you replace it yourself, because replacing the LCD screen requires some professional skills
5. To replace the LCD screen, you need to remove the LCD bezel covering the LCD screen. Since it is fixed to the back cover with glue, you need to heat the LCD bezel before you can slowly remove it.
