New Backlit Keyboard for Dell XPS 15 9510 XPS 17 9710

This is a new backlit keyboard for Dell XPS 15 9510 and XPS 17 9710. It’s a keyboard only and doesn’t include the palm rest, which works perfectly on your old palm rest.

Features:
1. This is a US keyboard with a backlit. It is not compatible with EU layout keyboards. The UK layout is compatible with the EU Layout keyboard, for example, German, Italian, Spanish, French, Portuguese, Latin, Danish, Norwegian, Polish, etc.
2. There is a backlit cable and keyboard cable on the back.
3. This item does not include a palm rest.

Specifications:
Layout: US, UK
Color: Black, White
Backlit: Yes
Condition: New, Original
Warranty: One (1) Year

P/N:

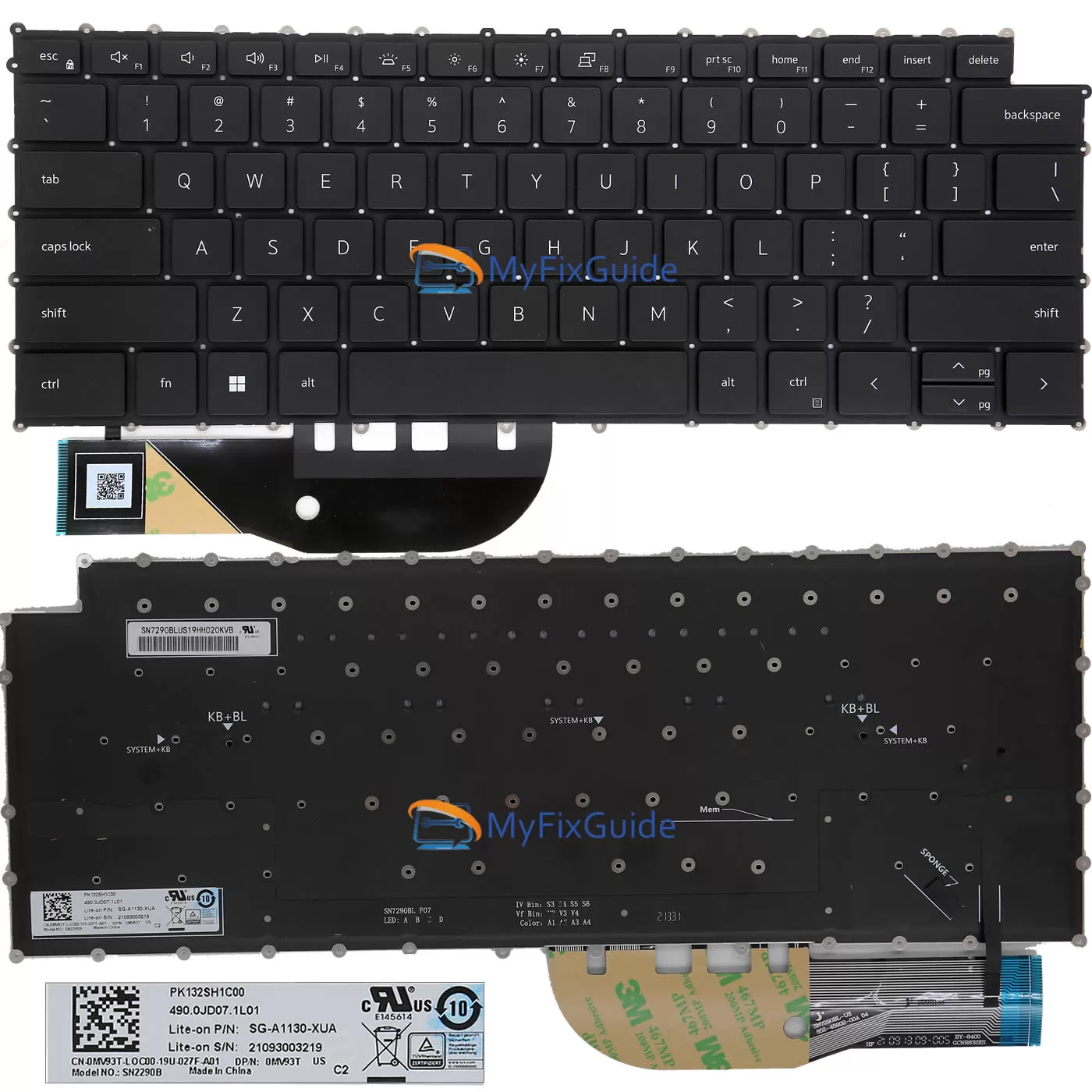

Black, US: 0MT93T, PK132SH1C00, 490.0JD07.1L01, SG-A1130-XUA
Black, UK: 0K3VC4, PK132SH1C16, 490.0JD07.1L0U, SG-A1130-2BA

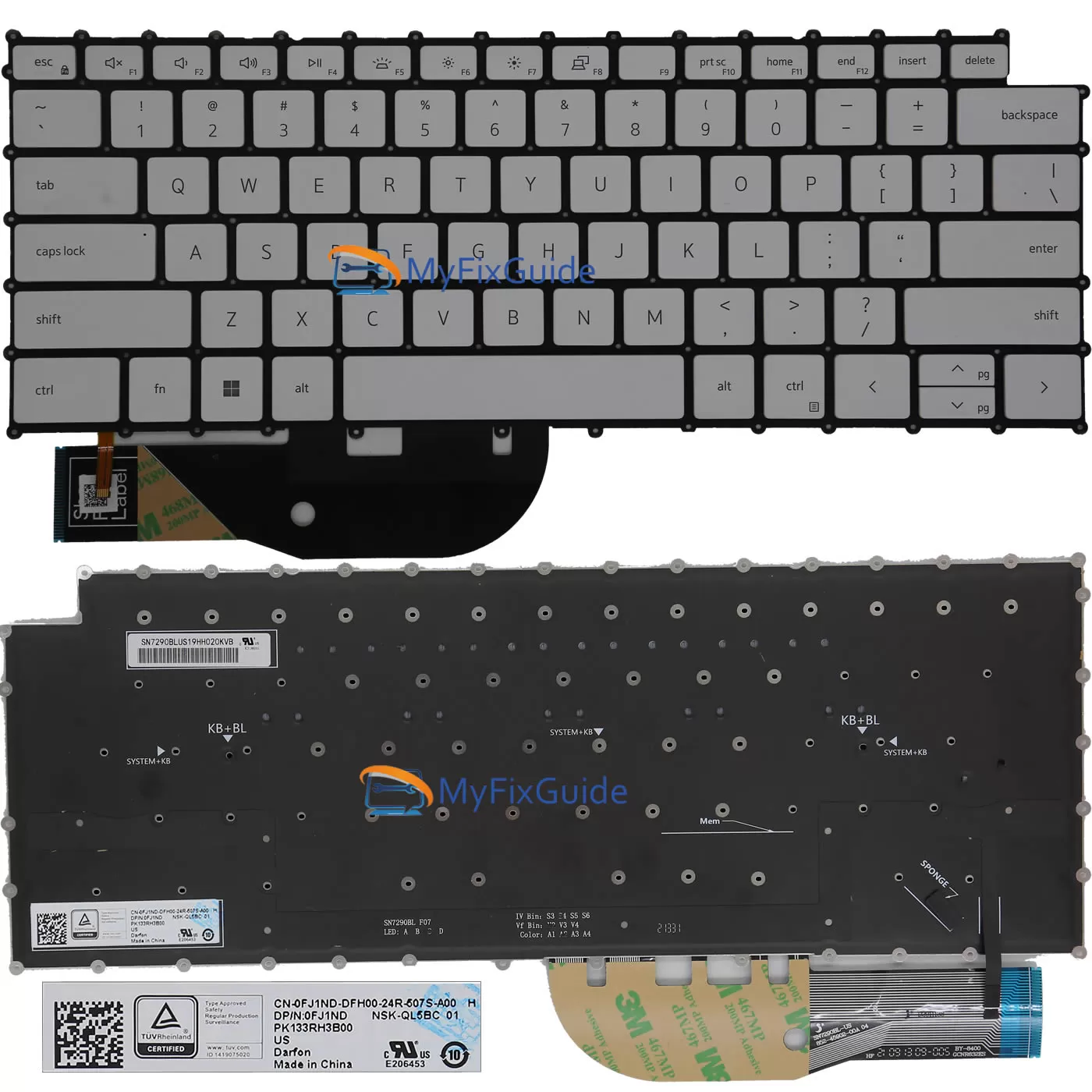

White, US: 0FJ1ND, PK133RH3B00, NSK-QL5BC 01

Compatible P/N:
PK132SH3C00,490.0JD07.1D01, NSK-QL2BC/W 01

Compatible Laptops:
XPS 15 9510
XPS 17 9710

Replacement Tips:
1. Please verify that the part number, description, and image match the existing keyboard.
2. This laptop uses a built-in keyboard. You need to remove your palm rest from the laptop and then install this keyboard on your existing palm rest.
3. Installation instruction is not included, and professional installation is recommended.
4. To replace the keyboard, you have to remove the battery, SSD, heatsink, CPU fan, display assembly, motherboard, and all components covering the keyboard.
