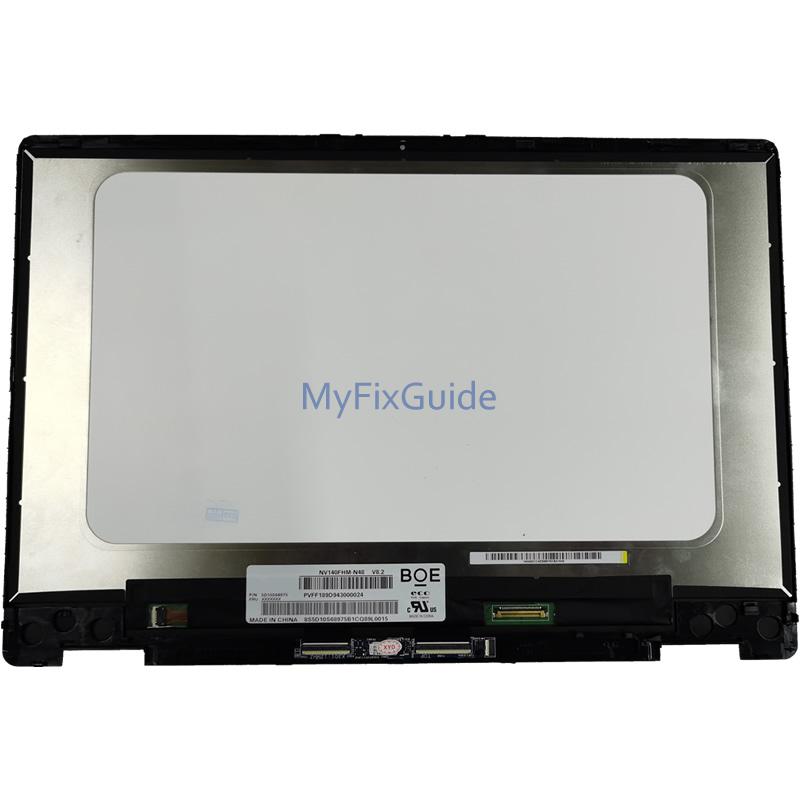

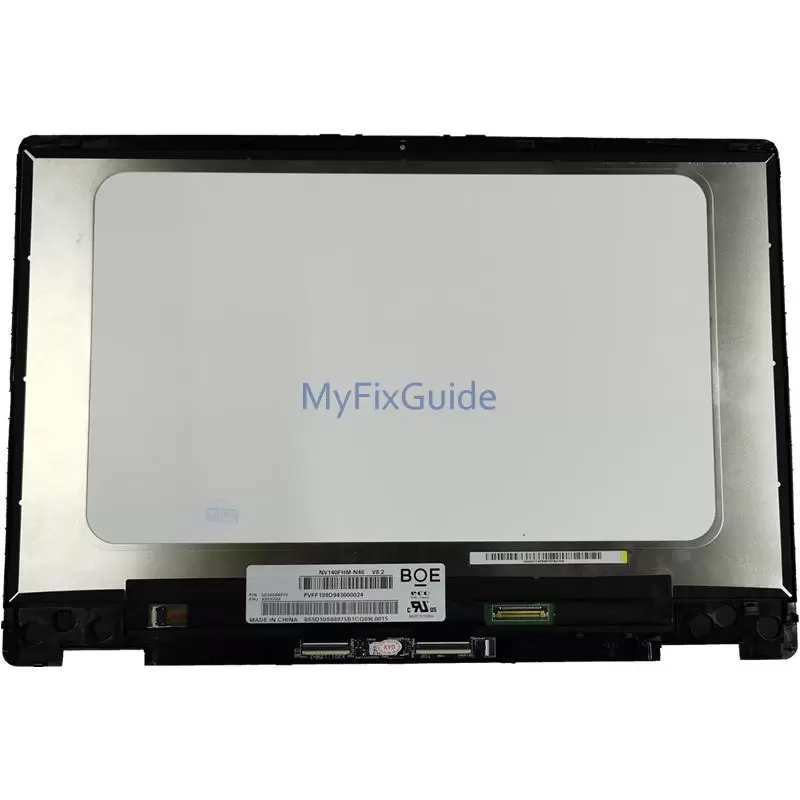

HD Touchscreen Assembly for HP Pavilion x360 14m-dh0001dx 14m-dh1001dx L51120-001

This is a new HD touchscreen assembly for HP Pavilion x360 14m-dh0001dx and Pavilion x360 14m-dh1001dx. The screen is compatible with part number L51120-001 and has a resolution of 1366 x 768.

Feature:
The touchscreen assembly includes an LCD screen, front glass touch digitizer, frame, and touch board.

Specifications:
Size: 14.0-inch Touchscreen Assembly
Resolution: HD (1366 x 768)
Backlight Type: LED
Surface Type: Glassy
Video Connector: 30 pin
Refresh Rate: 60HZ
Condition: brand new, no dead pixel
Warranty: One (1) Year

Compatible laptop:
Pavilion x360 14-dh0007ca
Pavilion x360 14-dh0031nr
Pavilion x360 14-dh2010nr
Pavilion x360 14-dh2075nr
Pavilion x360 14m-dh0001dx
Pavilion x360 14m-dh1001dx
and all Pavilion x360 14-DH series laptop with a 1366 x 768 touchscreen

Tips:
1. Please confirm your LCD model, shape, and resolution match our LCD screen.
2. If you can’t confirm your LCD resolution, please visit our guide to check your screen resolution.
3. To replace the touchscreen, you need to disconnect the battery connector from the motherboard.
4. Use a plastic tool and work around the display to separate it from the display enclosure, you can start from the top edges.
5. Disconnect the video cable from the screen.
6. Disconnect the touch cable from the ZIF connector on the board.
