New WUXGA Screen for Lenovo Thinkpad T14 T14s P14s Gen 3 Gen 4 5D10V82394 5D10V82395 5D10V82396

This is a new screen for Lenovo 5D10V82394. It is compatible with part numbers 5D10V82395 and 5D10V82396. This screen has a resolution of 1920 x 1200, a brightness of 300nit, and an Anti-Glare surface.

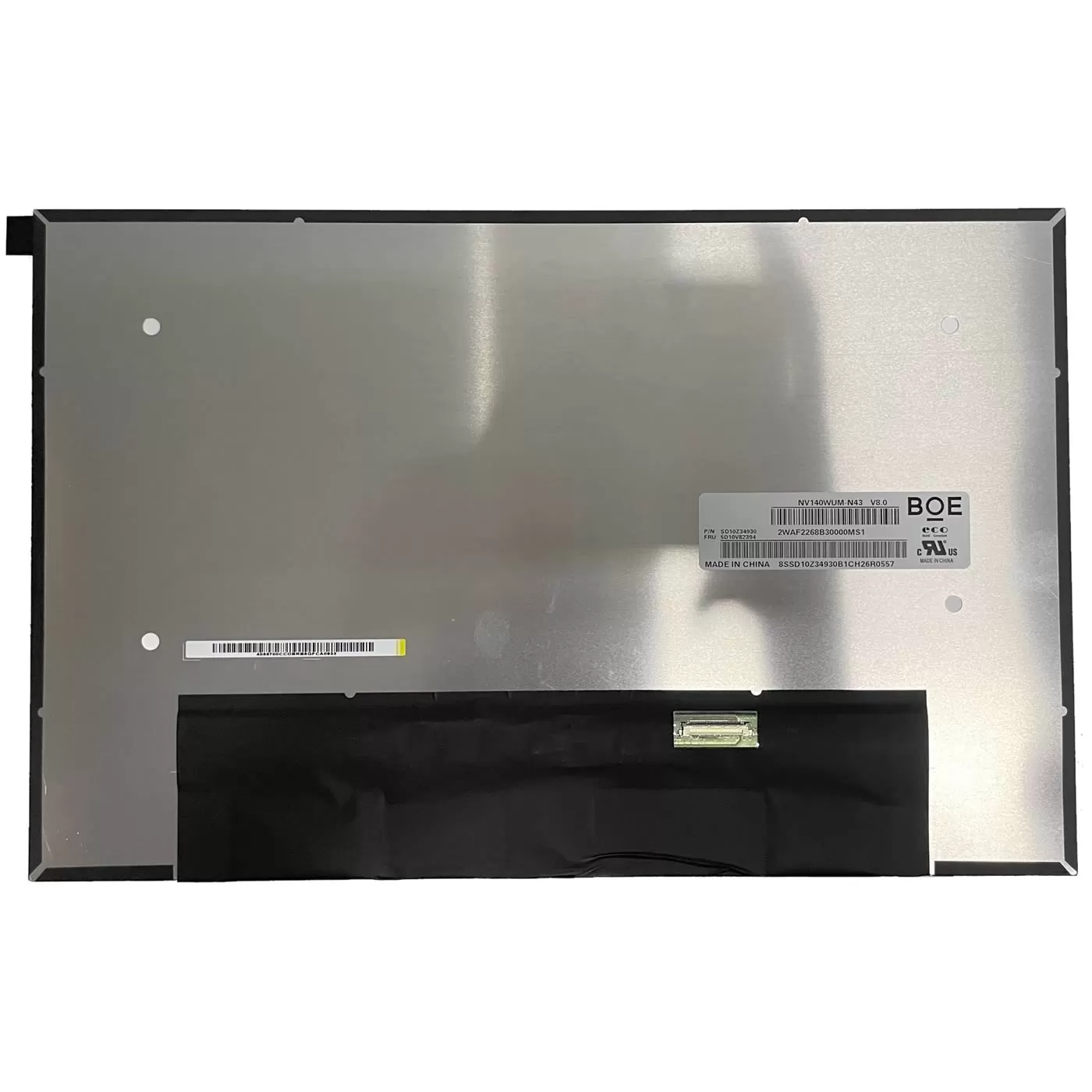

The screen you will receive is exactly the same as the images.

Features:
1. The screen is a 100% new screen.
2. It’s a perfect screen without bad pixels.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

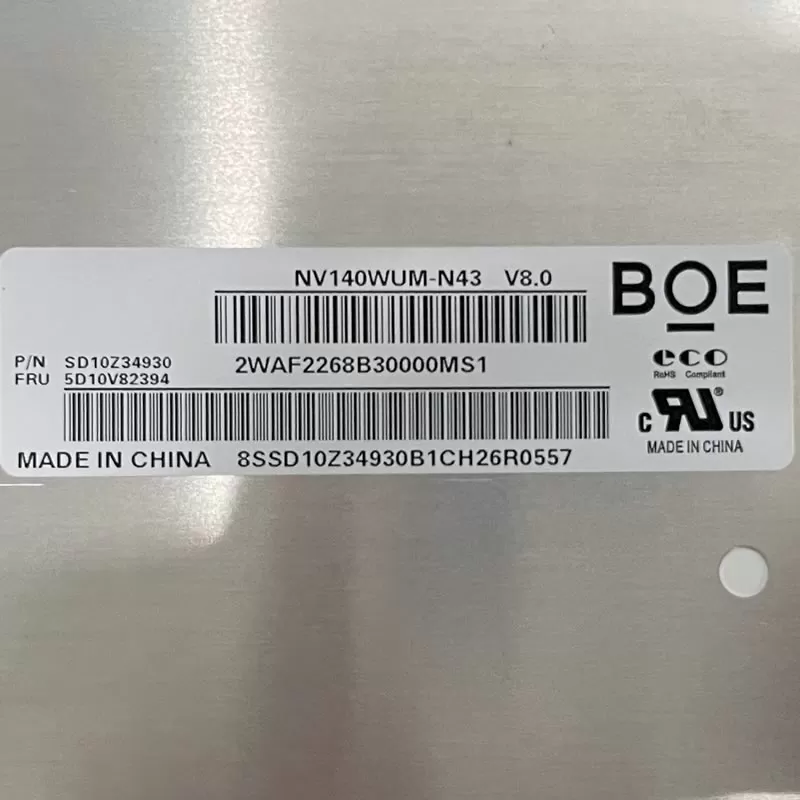

Part Number:
5D10V82394
SD10Z34930

Compatible Part Number:
5D10V82395, SD10Z34931
5D10V82396, SD10Z34932

Specifications:
Size: 14.0-inch IPS Screen
Resolution: FHD+ (1920 x 1200, WUXGA)
Connector: 30 pins
Brightness: 300nit
Refresh Rate: 60Hz
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 700:1
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare
Condition: New, no dead pixel
Warranty: One (1) Year

Compatible laptop:
ThinkPad E14 Gen 5
ThinkPad P14s Gen 3
ThinkPad P14s Gen 4
ThinkPad T14 Gen 3
ThinkPad T14 Gen 4
ThinkPad T14s Gen 3
ThinkPad T14s Gen 4

Screen for Lenovo 5D10V82394 5D10V82395 5D10V82396 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
