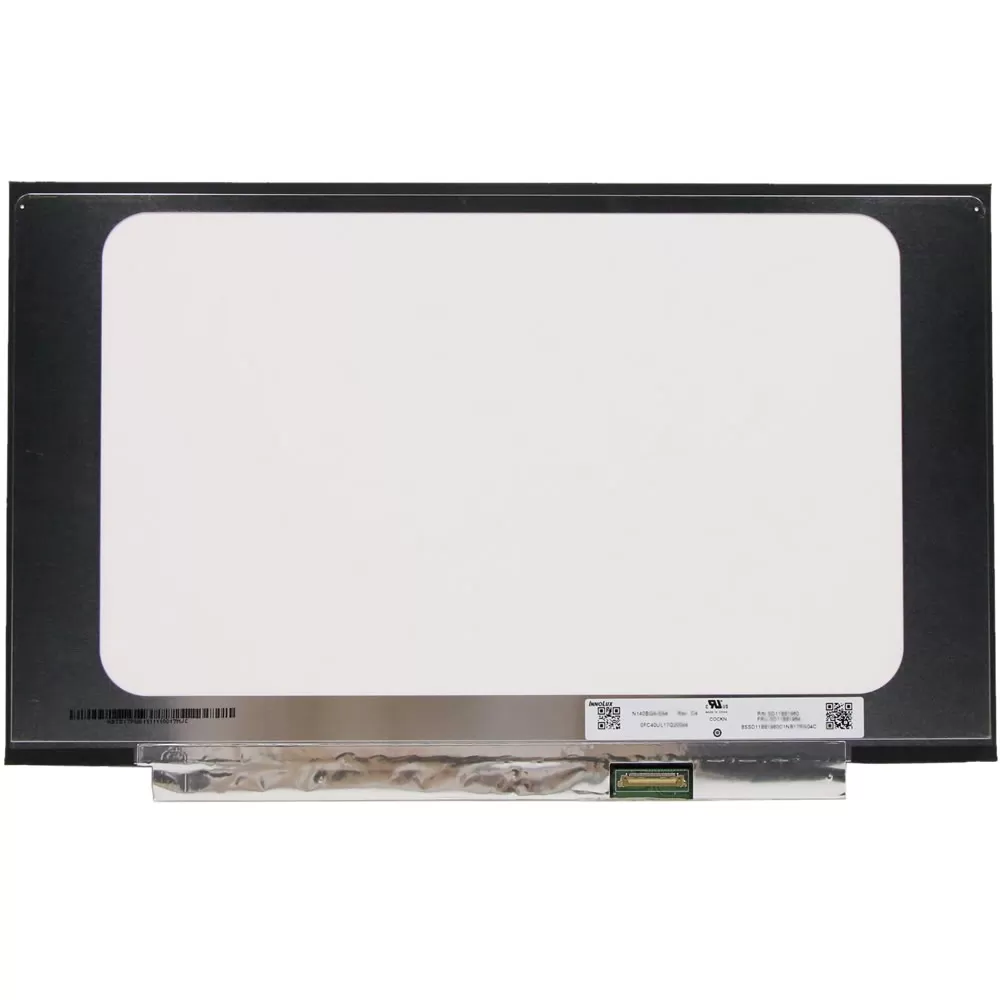

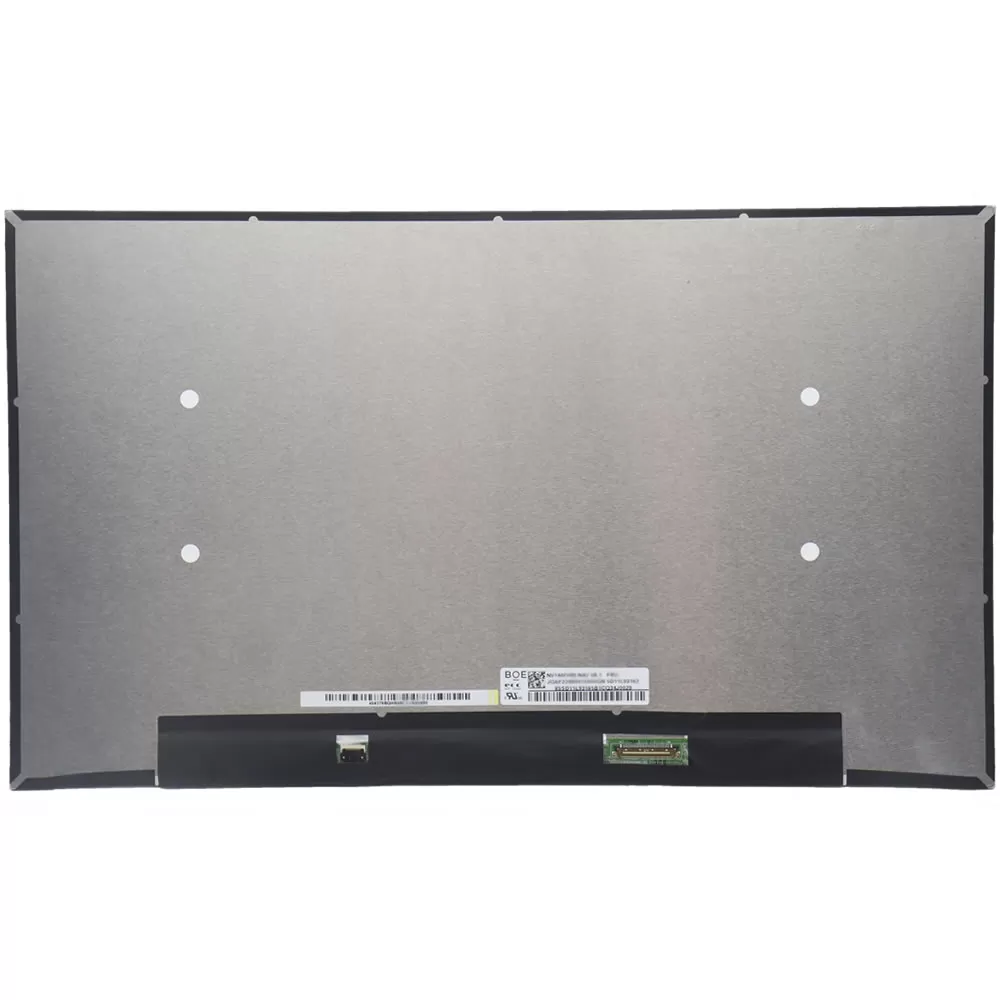

New Screen for Lenovo ThinkPad P14s Gen 1 2 3 4

This is a new screen for Lenovo ThinkPad P14s Gen 1 2 3 4. The screens for ThinkPad P14s have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-thinkpad-p-series/

If you don’t know the specification of your screen, please take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, we will identify your screen specification.

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:

ThinkPad P14s Gen 1
14″ 1920×1080 IPS 250nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 400nits 72% NTSC Anti-glare Low power
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare Touch
14″ 1920×1080 IPS 500nits 72% NTSC Anti-glare Touch (Out Of Stock)
14″ 3840×2160 IPS 500nits 100% Adobe RGB Glossy

ThinkPad P14s Gen 2
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1080 IPS 400nits 72% NTSC Anti-glare Low power
14″ 1920×1080 IPS 300nits 45% NTSC Anti-glare Touch
14″ 1920×1080 IPS 500nits 72% NTSC Anti-glare Touch (Out Of Stock)
14″ 3840×2160 IPS 500nits 100% DCI-P3 Anti-glare

ThinkPad P14s Gen 3
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare Touch
14″ 1920×1200 IPS 400nits 100% sRGB Anti-glare Low power
14″ 1920×1200 IPS 500nits 100% sRGB Anti-glare Touch (Out Of Stock)
14″ 2240×1400 IPS 300nits 100% sRGB Anti-glare
14″ 3840×2400 IPS 500nits 100% DCI-P3 Anti-glare Dolby Vision Touch (Out Of Stock)

ThinkPad P14s Gen 4
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare
14″ 1920×1200 IPS 300nits 45% NTSC Anti-glare Touch
14″ 1920×1200 IPS 400nits 100% sRGB Anti-glare Low power
14″ 1920×1200 IPS 500nits 100% sRGB Anti-glare Touch
14″ 2240×1400 IPS 300nits 100% sRGB Anti-glare
14″ 2880×1800 OLED 400nits 100% DCI-P3 Anti-glare (Out Of Stock)

Condition: New, no dead pixel
Warranty: One (1) Year

Compatible Part Numbers:
01YN131
01YN142
01YN150
01YN152
01YN154
01YN155
01YN157
01YN170
02DA381
02DC316
02DL762
5D10V82345
5D10V82348
5D10V82349
5D10V82364
5D10V82366
5D10V82372
5D10V82387
5D10V82390
5D10V82392
5D10V82394
5D10V82395
5D10V82396
5D10V82397
5D10V82398
5D10V82399
5D10V82400
5D10V82401
5D10V82402
5D10V82446
5D10V82454
5D10V82458
5D10V82523
5D10W87245
5D10W87246
5D10Z46334
5D10Z72100
5D10Z86945
5D11A22491
5D11A24588
5D11A41184
5D11B07705
5D11B43177
5D11B68428
5D11C95349
5D11C95781
5D11C95994
5D11C99675
5D11D96811
5D11F23091
5D11F27016
5D11F39180
5D11G33815
5D11G99892
5D11H45003
5D11J52876
5D11L44830
5D11L89624
5M10Z54307
5M10Z54308
5M11C43969
5M11C43970
5M11C94785
5M11C94786
5M11F26626
5M11F26627
5M11F26628
5M11J05809
5M11J05811
5M11M02575
5M11M02576

Screen for Lenovo ThinkPad P14s Gen 1 2 3 4 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the video cable to your screen, then start the laptop to check that your screen is working properly, then fix the screen for ThinkPad P14s on the back cover, and install the LCD bezel on your laptop.
