ASUS ROG GL553VE Disassembly and SSD, HDD, RAM upgrade options
ASUS ROG GL553VE features an Intel’s seventh-generation Core Duo processor (i5-7300HQ or i7-7700HQ), an 8GB DDR4-2400MHz RAM, maximum support 32GB DDR4-2400MHz memory, 128GB SSD and 1TB mechanical hard drive, and an NVIDIA GTX1050 Ti Discrete graphics card. We dismantled the laptop specific model of ROG GL553-VE7700.
The laptop body thickness of 30mm, ASUS through the optimization of material and structure, the weight of this product will be controlled to 2.5kg. This weight is acceptable for a 15.6-inch gaming laptop.
Thanks to the relatively thick body, so it got more excellent scalability. The left side of the fuselage has RJ45, HDMI, USB3.0 and USB Type-C port. The right side of the fuselage to provide a DVD burner (yes, that is, the drive is not a bracket) and a USB2.0 port.
In this guide, you will learn how to disassemble the ASUS ROG GL553VE and upgrade the SSD, RAM and HDD.
Teardown is what we do! Follow us on Facebook for the latest repair news.

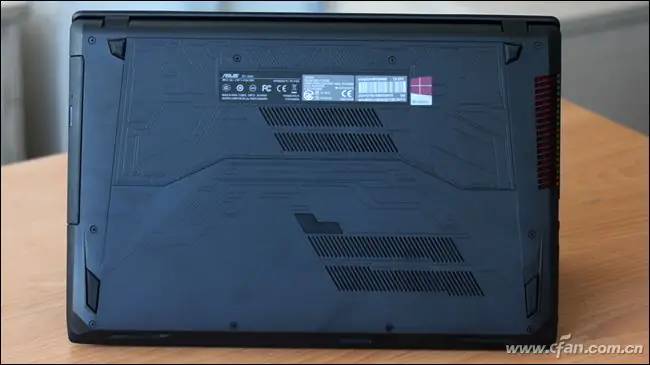

1. Removing the bottom case
Remove all visible screws from the bottom case.

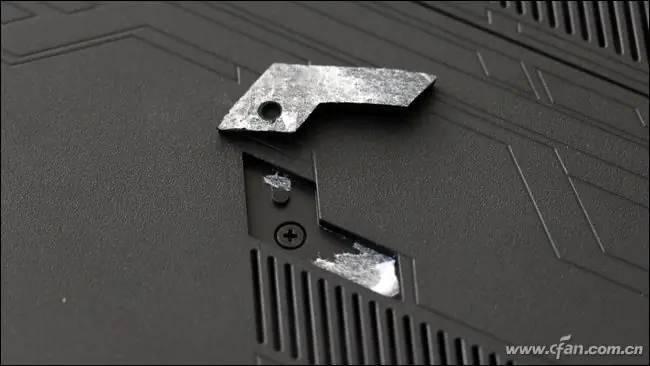

There is a screw under the rubber foot. If you forget to screw it down, violent demolition will cause irreversible damage.

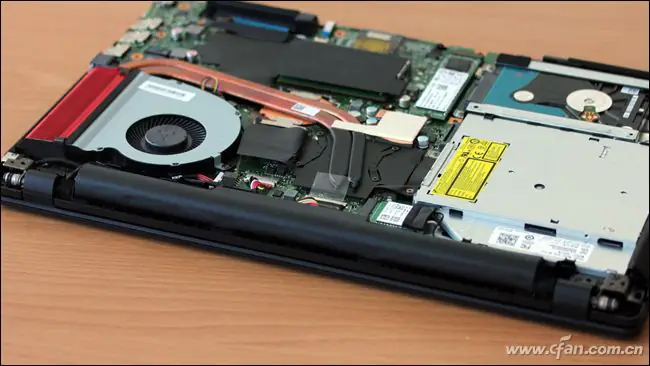

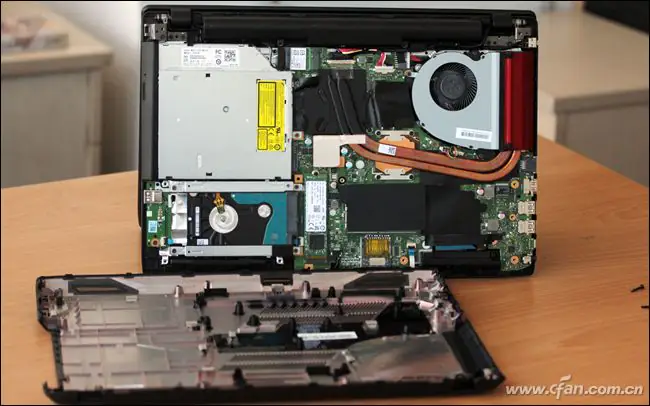

With the bottom case removed, you can get access to the battery, hard drive, SSD, RAM, speaker modules, heat sink, cooling fan, wireless card and motherboard.
The laptop uses a battery consisting of 3 cells 18650, the capacity of 48Wh.

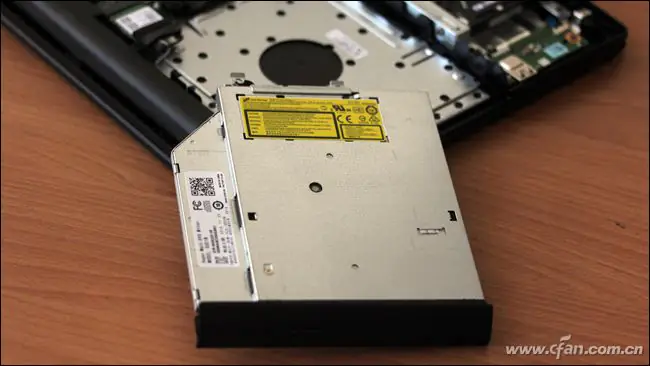

2. Removing the optical drive

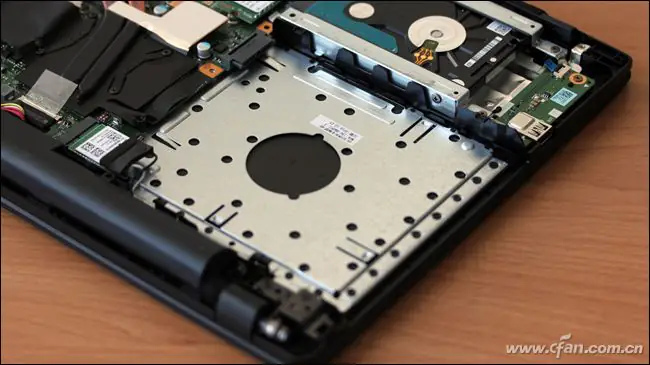

Here’s optical drive, you can buy an optical drive caddy to install a 2.5″ hard drive or SSD.
3. Wi-Fi card upgrade option

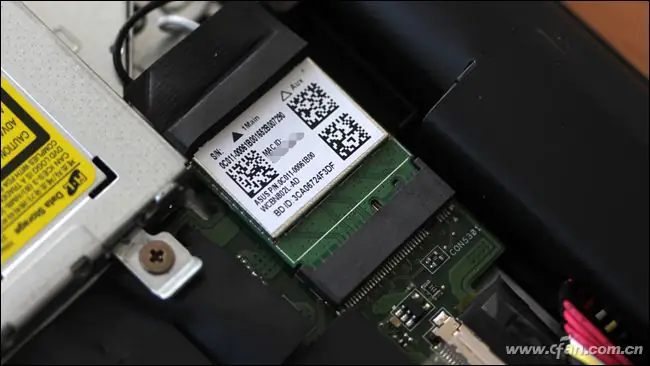

Here’s ROG GL553VE wireless, it supports 802.11 AC and Bluetooth.
4. ASUS ROG GL553VE HDD upgrade & Removal

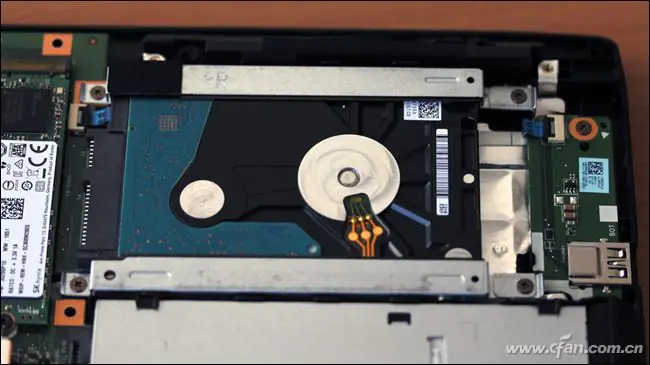

Here’s HDD hard drive. It is fixed on the metal bracket, with good shock resistance.
5. ASUS ROG GL553VE M.2 SSD upgrade & Removal

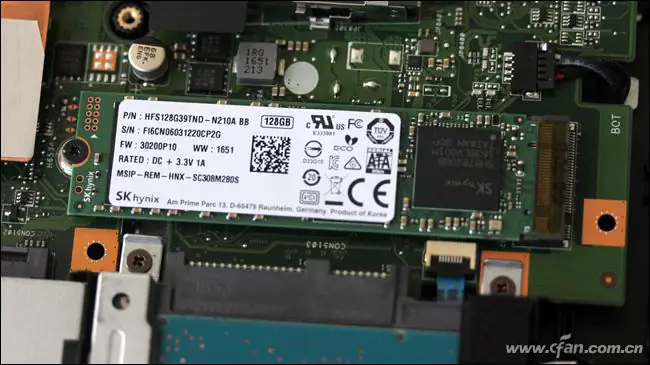

SK Hynix 128GB SSD, unfortunately, it is with SATA channel. The good news is that the M.2 slot should be supported NVMe SSD.
6. ASUS ROG GL553VE RAM memory upgrade & Removal

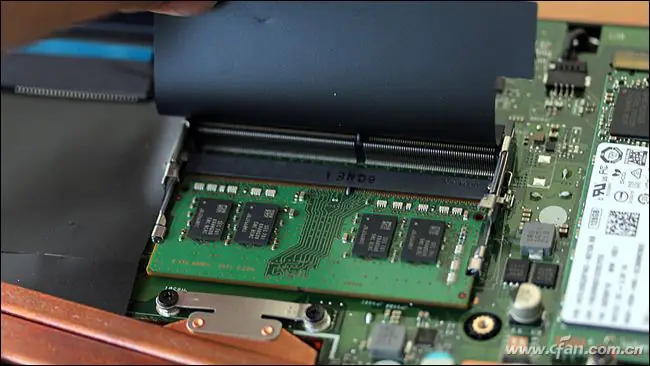

It comes with an 8GB DDR4-2400MHz memory, but also has a spare memory slot. If necessary, you can install two 16GB memory to form a 32GB dual channel mode.

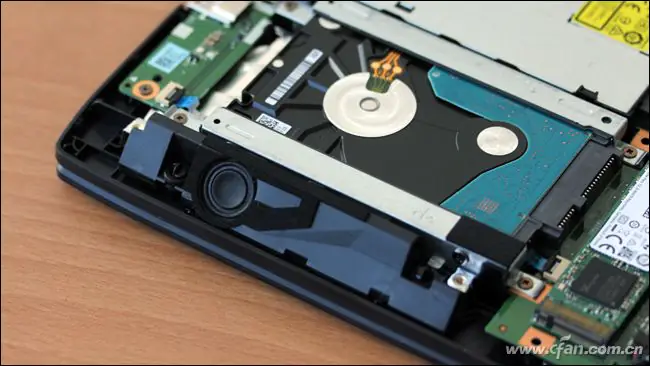

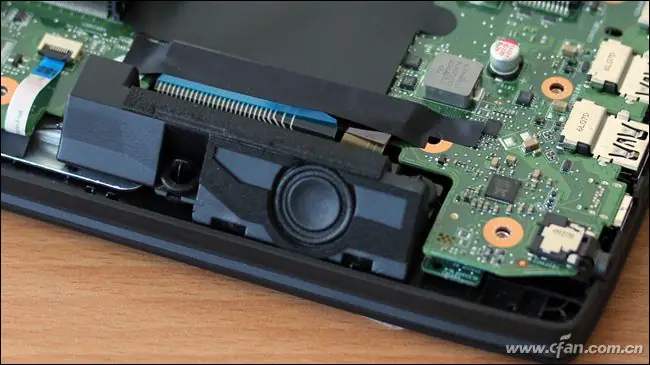

Two speakers embedded in the fuselage on both sides of the front, let the sound closer to the player from the location of the transfer out, the sound quality is still very good.

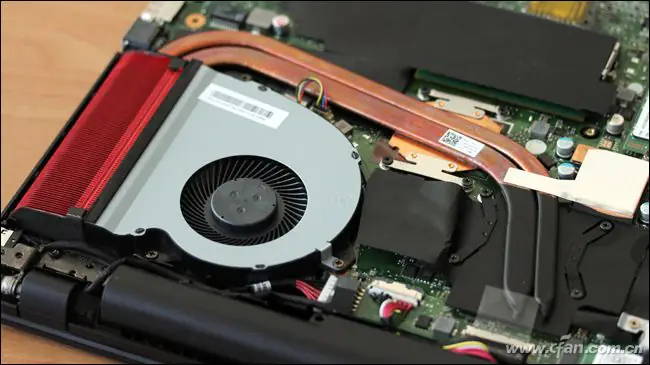

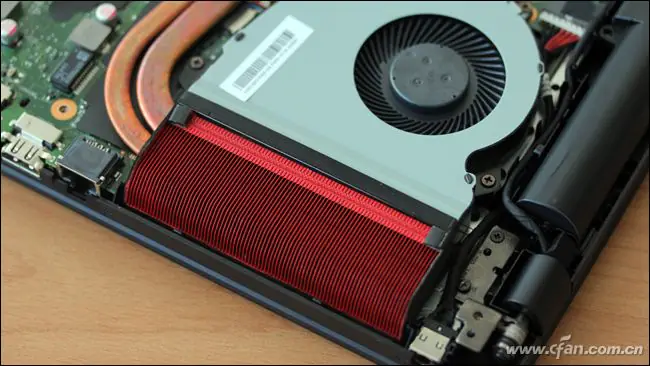

Asus ROG GL553VE heat sink and cooling fan module
The ROG GL553VE keyboard, screen, cooling fan and adapter are available in our parts store.
Source: cfan.com.cn
For more exclusive mobile phone tips, follow up our Twitter page
hello
thanks for this info and i have a question: does it support the SSD 960 EVO NVMe M.2 500 GB from samsung and it only with one line?
Yes. The ASUS GL553VE-FY127T supports NVME M.2 SSD in the slot as a replacement for the pre-installed M.2 SATA SSD. I bought a Gigabyte 1 TB NVME M.2 SSD and installed the Windows 10 Pro on the same afresh and installed all the Drivers downloaded from ASUS support site. It works fine. I have also replaced the 1 TB SATA 7200 rpm Hard Disk with a 1 TB SATA SSD and have upgraded the RAM with 32 GB 2666 Mhz RAM with Two 16 GB sticks. The Laptop is lightning fast now.
Hello,
How can I replace the keyboard module in this model ? I tried but I could not disassembly the Keyboard, I was a bit afraid of messing up the notebook. If you know, can you give me some tips about ?
Thanks in advance,
hi, i have that laptop, but my wifi speed si very low, i will need change the wireless card, is this possible?, support shot shape wireless card? regards
Please be aware that the laptop sports a single Wireless Card (Intel BT_7265) which manages both Wifi and Bluetooth. If the Wifi speed appears low, it might be your Router problem and not a problem with the Laptop’s wifi Card because Intel BT_7265 is one of the best in its class of Wifi Cards. My Wifi functions normally and it never slows down. Please try downloading the New Driver for INTEL BT_7265 Card from the Intel website for offline installation. Then uninstal the old Driver, Restart the Laptop and instal the downloaded latest Driver. You will notice the difference. Also check your external router for any faults if any problem persists despite doing the above.
m.2 slot is sata 3 or pcie?
SATA3
PCIe in the Australian version
The M.2 slot in ASUS GL553VE-FY127T supports both SATA and PCIE SSDs with M.2 form factor. Mine is now upgraded by replacing the SATA M.2 SSD with NVME M.2 SSD. NVME works faster than the pre-installed SATA M.2 SSD.
Caddy for dvd is 12.7 or 9.5 height?
9.5
is it the same with gl553vd?
9.5
Hello! Thank you for information!
I have a question… is the “receptor of ethernet” a module?
I mean, if the motherboard is changed, can that module be switched to the new motherboard, so that the MAC Address will remain the same?
Thank you!
Battery need to take out before update ram?
Yes, just disconnect the battery connector from the motherboard, you do not need to remove the battery.
Not necessarily. I have upgraded the RAM without touching the Battery.
SOS – My issue is Windows and iTunes having a fit over the 128Gb/1Tb factory and I’d like to update them to 1Tb SSD/5Tb SATA combo. I already checked the ASUS/ROG site(s) to no avail and I’m you’ll happen to know if a 15mm thick HDD could replace the 1Tb 2ndary/data drive.
Usually, the laptop does not support a 15mm hard drive. There is another way to add a hard drive. You can remove the optical drive and then add a hard drive in the optical drive bay.
what is recommended type ssd for ROG Strix GL553VE ?
Hi, the M.2 slot support NVMe SSD, So I suggest you buy a PCIe NVMe SSD.
The M.2 slot in ASUS GL553VE-FY127T supports both SATA and PCIE SSDs with M.2 form factor. Mine is now upgraded by replacing the SATA M.2 SSD with NVME M.2 SSD. NVME works faster than the pre-installed SATA M.2 SSD.
merhabalar bu model icin hangi rami onerirsiniz ? tessekurler
hi, how can I remove the battery from the slot? in here you didn’t post the photo of the removed battery. cause I’m having a problem with my FX553VD Asus laptop which was bought last Asus 2018.
it didn’t turn on and I tried to on – off and at least holding the off button for a couple of minutes but still no luck to turn my laptop on.
can u please help me with my query?
my laptop is new and didn’t use to much cause of my work time.
You need to remove the bottom plate first, then, disconnect the battery connector from the motherboard, take out the battery by screwing off several screws that securing the battery to laptop body.
hello I wonder if this laptop support this SSD Crucial P1 CT1000P1SSD8 1 TB Solid State Drive (3D NAND, NVMe, PCIe, M.2)
Hey, Sandu. Have you tried installing Crucial P1 CT1000P1SSD8 1 TB Solid State Drive (3D NAND, NVMe, PCIe, M.2) SSD into this laptop? Does it work?
Hi, does this model have a BIOS battery that can be removed to reset it?
I have not found a CMOS battery inside it.
It does, it’s on the back of the motherboard
Hello, I have purchased a SATA 3 SSD and optical bay caddy and I was wondering if it would be better to put the SSD in there or the HDD and have the SSD where the HDD sits now. Are the connections all sata 3?
Yes, the DVD drive is a SATA port that supports SATA 3 HDD and 2.5″ SATA 3 SSD.
Hi,
I bought a caddy and a SATA 3 SSD to upgrade, I was wondering if it would be better to put the HDD in the cady or the SSD for best speed.
Are you pretty sure that the ASUS GL553VE 127T comes pre-installed with Realtek Bluetooth card? My ASUS GL553 VE127T is found installed with Intel Bluetooth and Wifi modules. Wifi is working fine, but Bluetooth is detecting the other device and showing up its name but not pairing and connecting. The driver is installed properly and the Device Manager shows no error sign. Everything is listed properly there. I tried resetting the Bluetooth options in SERVICES.MSC but to no avail. The other Bluetooth Device, my phone is connecting with any other device seamlessly. But the phone is visible in ASUS Laptop and the Laptop is visible on the phone. But they are not pairing with each other and they are not connecting with each other. They just see one another. What would be the reason for this? I tried uninstalling the Driver, Reinstalling the same, etc. but to no avail. Please help me rectify this Bluetooth connectivity issue of my ASUS GL553VE 127T. I am from India.
will it support m.2 sata ssd in ssd port given…
Hi, I have upgraded the M2 SSD to a 480 GB Western Digital Green (SATA Channel). After installing everything, I noted from another website that it supports M2 SSDs of both SATA and NVME. It is good. I also have replaced the 1 TB Hard Disk with a 1 TB SATA SSD (Silicon Power). This resulted in more battery backup as the SSD consumes less power than a conventional Hard Disk which has a rotating disk inside it. I have upgraded the RAM by installing two 16GB SODIMM modules of ADATA Premier 2666 Mhz, taking the total RAM to 32 GB. The Laptop now works fine with more speed and more battery backup. I now wish to know how can I adjust the RAM speed from 2400 Mhz to 2666 Mhz in BIOS? I have checked all options, but I did not find any such option to set the RAM speed in BIOS. But, this was possible in my MSI 970 Gaming DDR3 Desktop Motherboard when I upgraded the RAM to 1866 Mhz, and set the RAM speed to 1866 Mhz in the BIOS as such an option is available there in the BIOS that motherboard. But I find no such option to set the RAM speed in BIOS in my ASUS GL553VE Laptop.
Thank You for your effort.
The M.2 slot in ASUS GL553VE-FY127T supports both SATA and PCIE SSDs with M.2 form factor. Mine is now upgraded by replacing the SATA M.2 SSD with NVME M.2 SSD. NVME works faster than the pre-installed SATA M.2 SSD.
does Asus rog gl553ve fy047t support which type of SSD? I have no SSD installed having Nvidia 1050Ti. Does it support NVme SSD with M.2 2280 form factor
