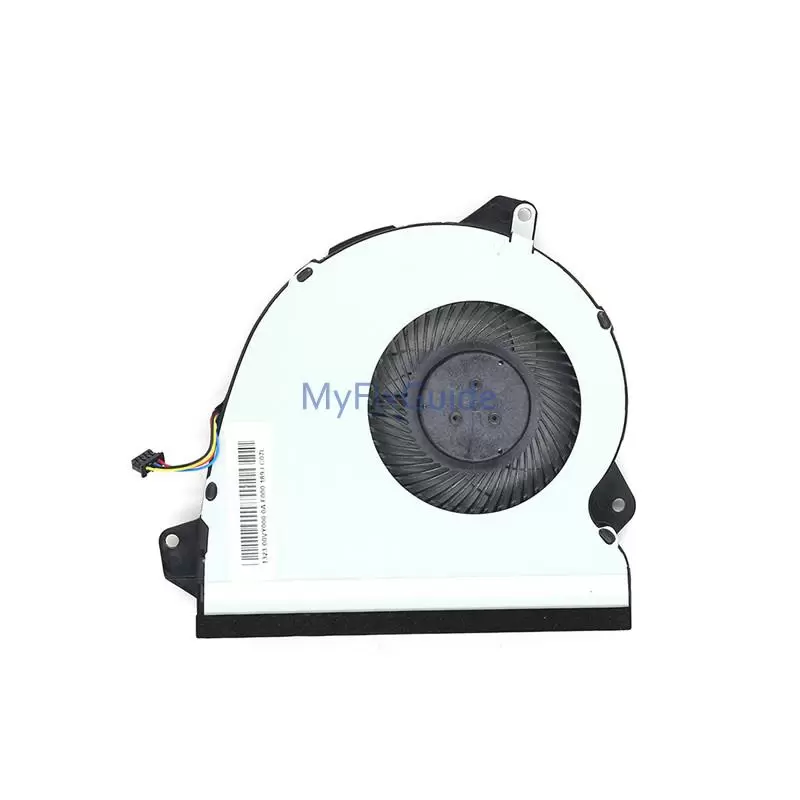

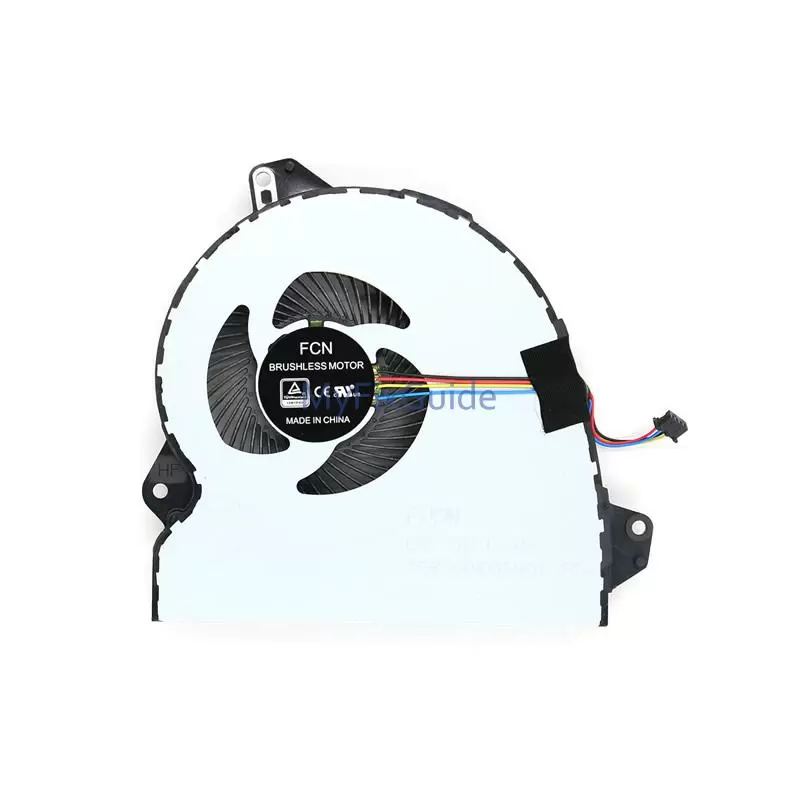

This is a genuine, brand new cooling fan for Asus ROG GL553VD GL553VE GL553VW series laptops with a part number of 1323-00VY00, it is cooling fan only and without the heat sink. Please remove your old fan to compare the part number, photo, and description before making your purchase, because the same series of the laptop may use different internal parts.
Asus ROG GL553VD
Asus ROG GL553VE
Asus ROG GL553VW
Condition: Original, Brand New
Import & output: DC5V, 0.50A
Warranty: One (1) Year
How to install tips:
1. Remove all visible screws from the bottom case.
2. There is a screw under the rubber foot, remove the rubber foot and one screw under it.
3. Using a plastic case opener separate the bottom case from the laptop body. Insert the guitar pick under the bottom cover to release all latches securing the cover.
4. Disconnect the battery cable from the motherboard.
5. Remove three screws and disconnect the fan cable, now the cooling fan can be removed.
6. For the removing guide with images, please visit our Asus ROG GL553VE disassembly guide.
