Huawei Ascend G7 Teardown

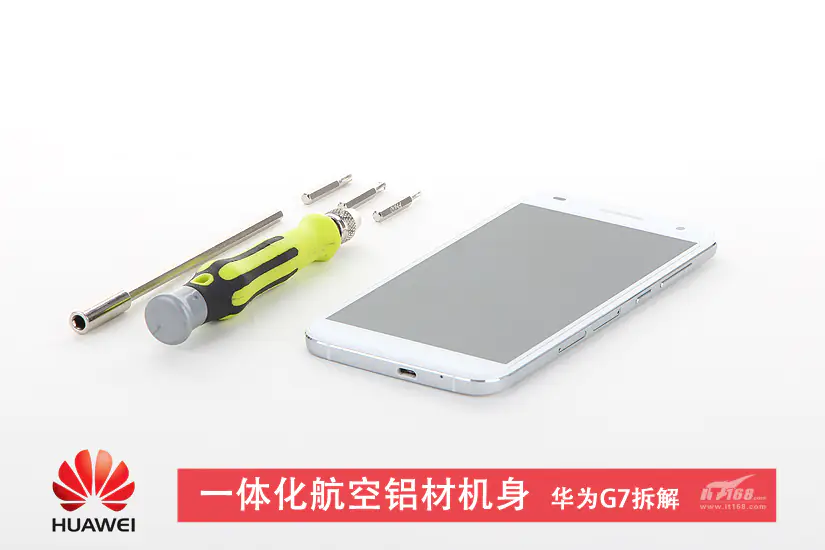

In this guide, I will explain how to disassemble the Huawei Ascend G7 to remove the back cover, battery, volume button, rear camera, front camera, middle frame, and motherboard.
Want to keep in touch with us? Follow us on Facebook for more repair news.

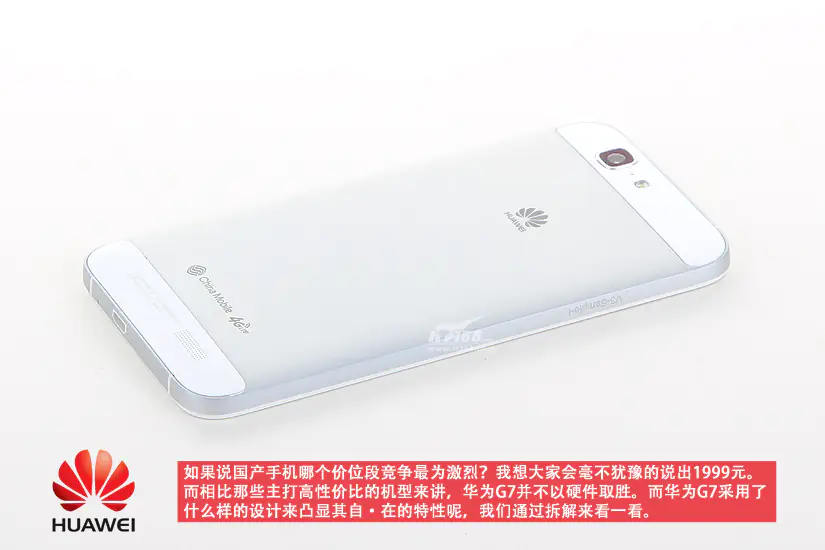

Insert a pry tool under the top and bottom covers, pry them up, and remove both covers. These covers are glued to the phone; you can also heat them with a heat gun for easier removal.
Remove all screws under the two bottom covers.

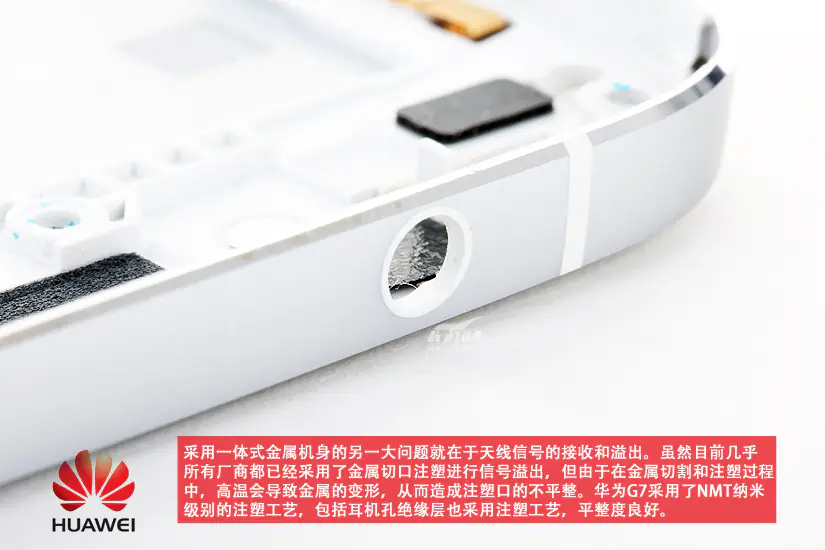

The rear cover integrates the speaker and signal overflow module.
Remove the power button, volume button, and SIM card tray.
Close-up of the power button, volume button, and SIM card tray.
Remove all screws securing the middle frame. Insert a pry tool beneath the middle frame and slide it along the edge until the middle frame detaches from the phone. After removing the middle frame, you can access the battery, motherboard, and camera module.
The battery of the Huawei Ascend G7 is not secured with glue, making it very easy to remove. Pull the adhesive strip from the left side to remove the battery.
The Huawei Ascend G7 comes with a 3000mAh Li-Polymer battery.
Remove the screws securing the motherboard and take out the motherboard.

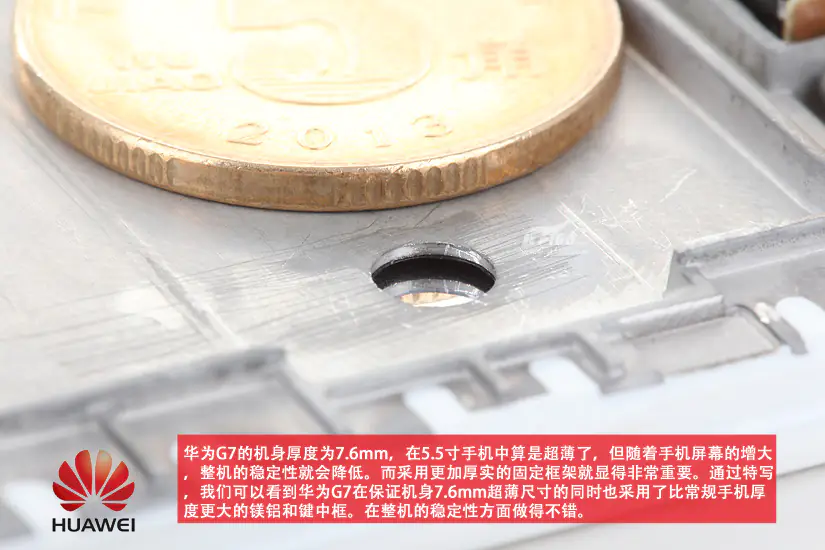

The body frame of the Huawei Ascend G7 is quite thick and will not bend easily like the iPhone 6.

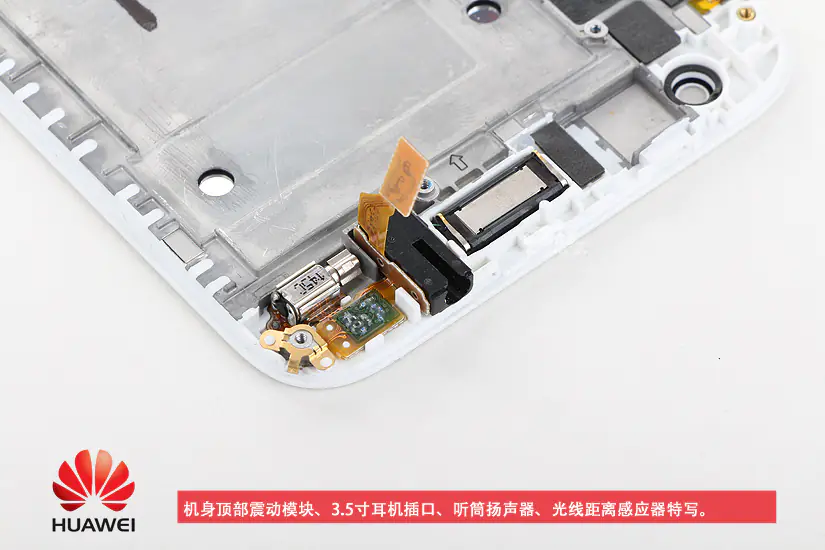

The vibrator module, 3.5mm headphone jack, earpiece speaker, and light distance sensor
Rear camera and front camera

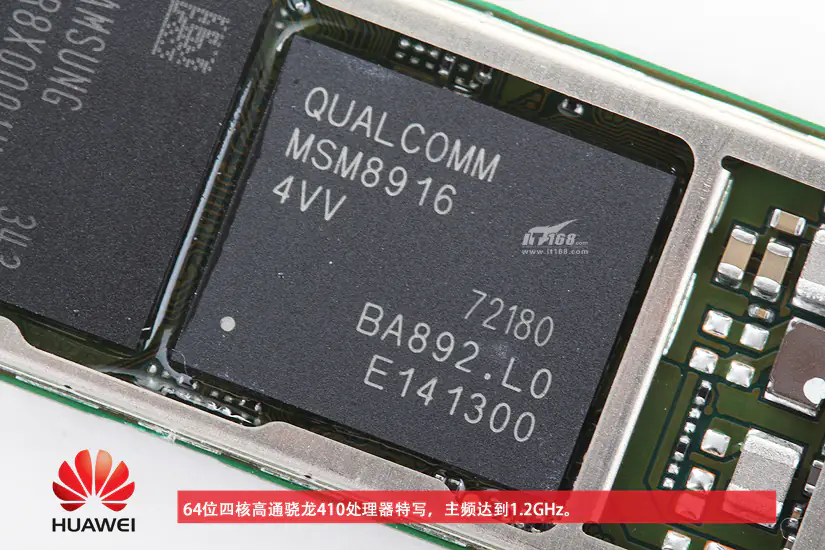

Qualcomm Snapdragon 410 processor

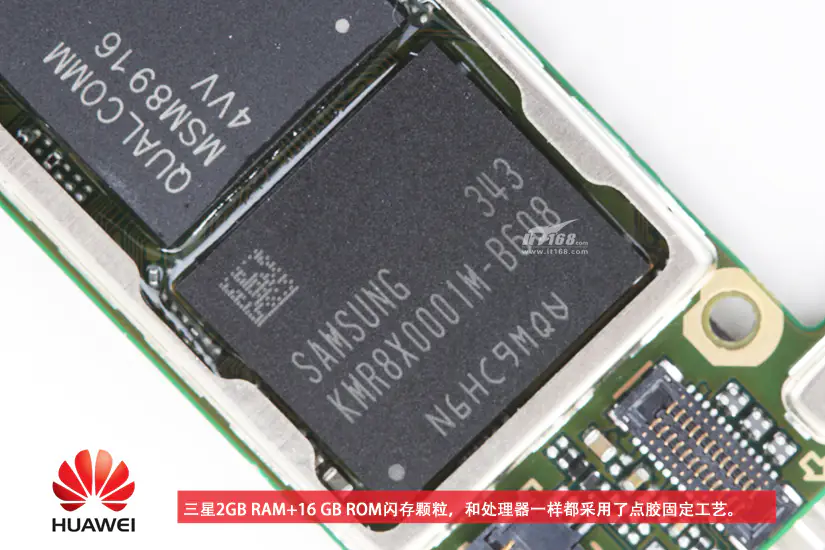

Samsung 2GB RAM and Samsung 16GB ROM

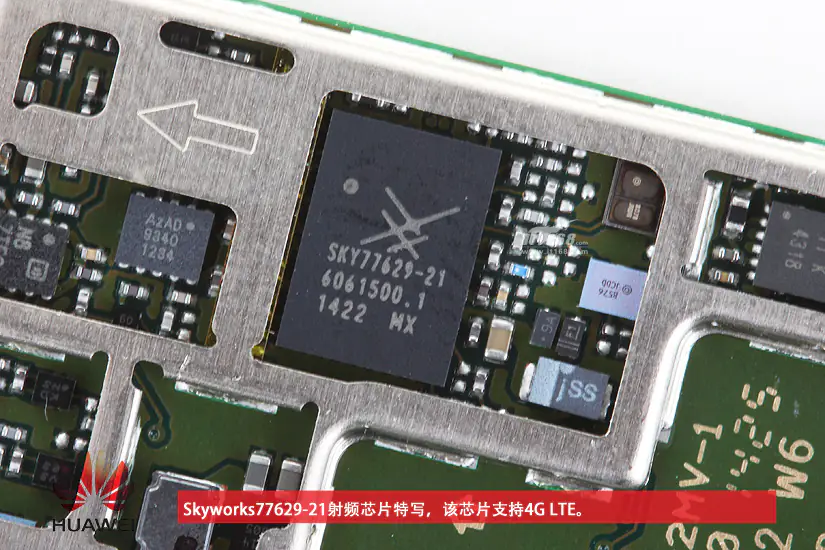

The Skyworks77629-21 RF chip supports 4G LTE.

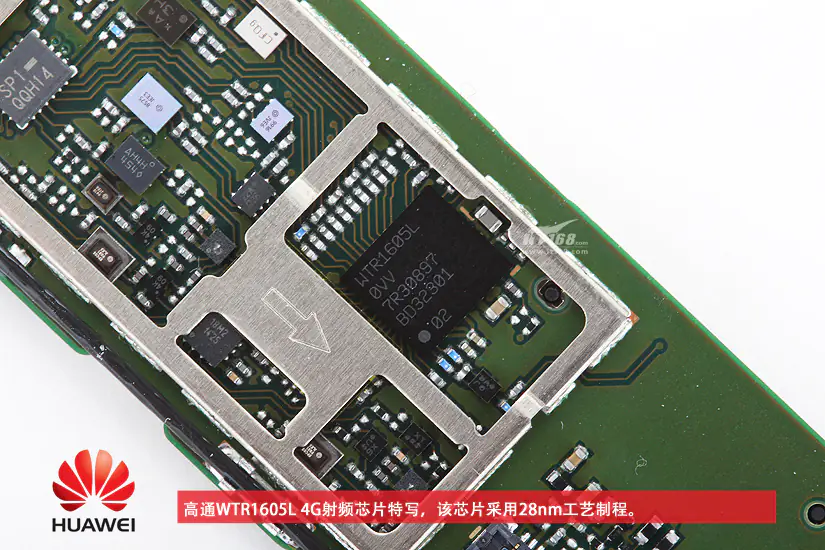

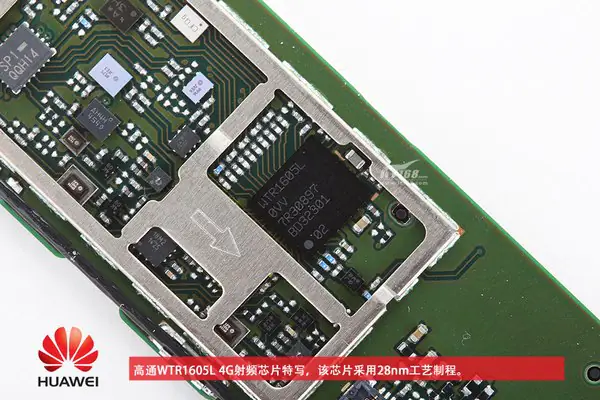

Qualcomm WTR1605L 4G RF chip

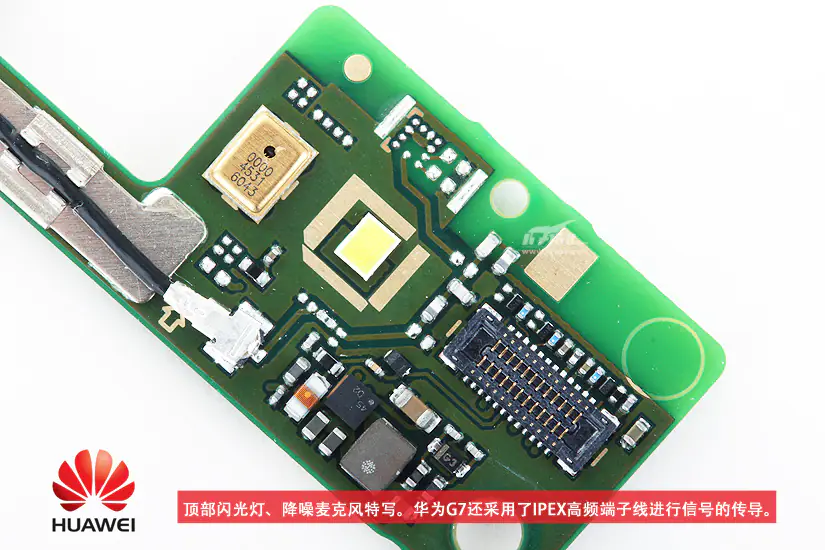

Flash and noise-canceling microphone
Source: it168
I want to know how to open the Huawei Ascend G7 to replace the LCD screen.
Thank you so much
Once the battery is removed, you can access the screen wire and replace it. Be careful, as the battery can bend and break.
I’m trying to remove the two covers, but I can’t. How can I remove them?
You should heat the cover with a heat gun and insert a guitar pick, then you can remove it.
My display is cracked, but it works. Do I need to replace only the Touch Screen Digitizer or the whole LCD panel? It still works, but only the digitizer is cracked.
Does anyone know how to fix the SIM jacket? Is there any replacement part available?
I tried to remove the two covers, but they are broken. How can I buy new ones to replace them?
You can search for it on eBay.
Thank you very much. This helped me fix my wife’s phone and eased my very stressed mind. Che Che.
Could anyone share the schematic for the Ascend G7?
