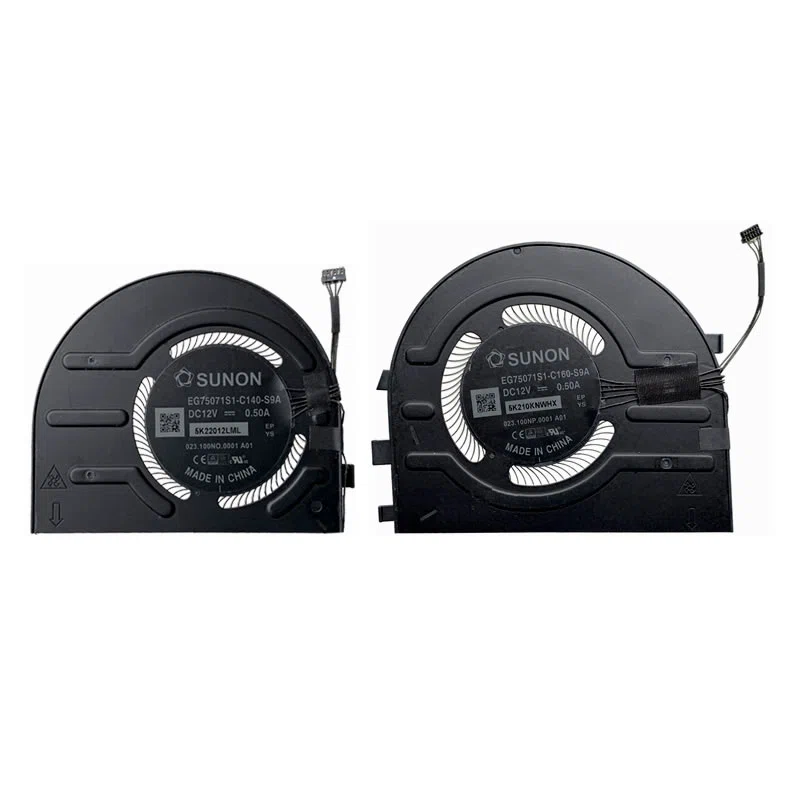

This is a heatsink with a GPU fan and CPU fan for Lenovo ThinkPad P1 Gen 5 and ThinkPad X1 Extreme Gen 5 laptops. We also have GPU fans and CPU fans without heatsinks, which you can select from the drop-down menu.
Features:
1. Before shipping, each fan is strictly tested to ensure that it works properly.
2. This fan has five wires leading to the connector, which attaches to the motherboard.
3. If you have any questions about this fan, please click Ask a Question to submit your question.
Specifications:
Voltage/Current: 12V/0.5A
Condition: Original, New
Warranty: One (1) Year
Part Number:
5H41H42462
Compatible Part Numbers:
5H41H42463
5H41H42464
Compatible Laptops:
ThinkPad P1 Gen 5
ThinkPad X1 Extreme Gen 5
Replacement Tips:
1. Please compare the image, part number, and shape with your fan and make sure it matches your original fan.
2. After you remove the bottom cover, you need to disconnect the battery cable from the motherboard first, and then start removing the fan, this is to avoid static electricity damage to your laptop.
3. Remove all the screws that secure the heatsink and fan to the motherboard. Disconnect the fan cable from the motherboard, then carefully lift and separate the cooling assembly from the motherboard.
4. You need to remove the old thermal grease left on the CPU with a cleaning cloth and apply the new thermal grease on the CPU.
5. You can go to the Lenovo website to download the hardware repair manual for this laptop and follow the instructions for replacing the fan in the manual.
