Huawei Honor V9 (8 Pro) Teardown

Huawei Honor V9 (8 Pro) comes with a 5.70-inch touchscreen display with a resolution of 1440 pixels by 2560 pixels at a PPI of 515 pixels per inch. It is powered by 1.8GHz octa-core Kirin 960 processor and it comes with 6GB of RAM. The phone packs 64GB of internal storage that can be expanded up to 128GB via a microSD card. As far as the cameras are concerned, the Huawei Honor V9 packs a 12-megapixel primary camera on the rear and an 8-megapixel front shooter for selfies.

Huawei Honor V9 (8 Pro) runs Android 7.0 and is powered by a 4000mAh non-removable battery. It measures 157.00 x 77.50 x 6.97 and weight 184.00 grams.

Teardown is what we do! Follow us on Facebook for the latest repair news.

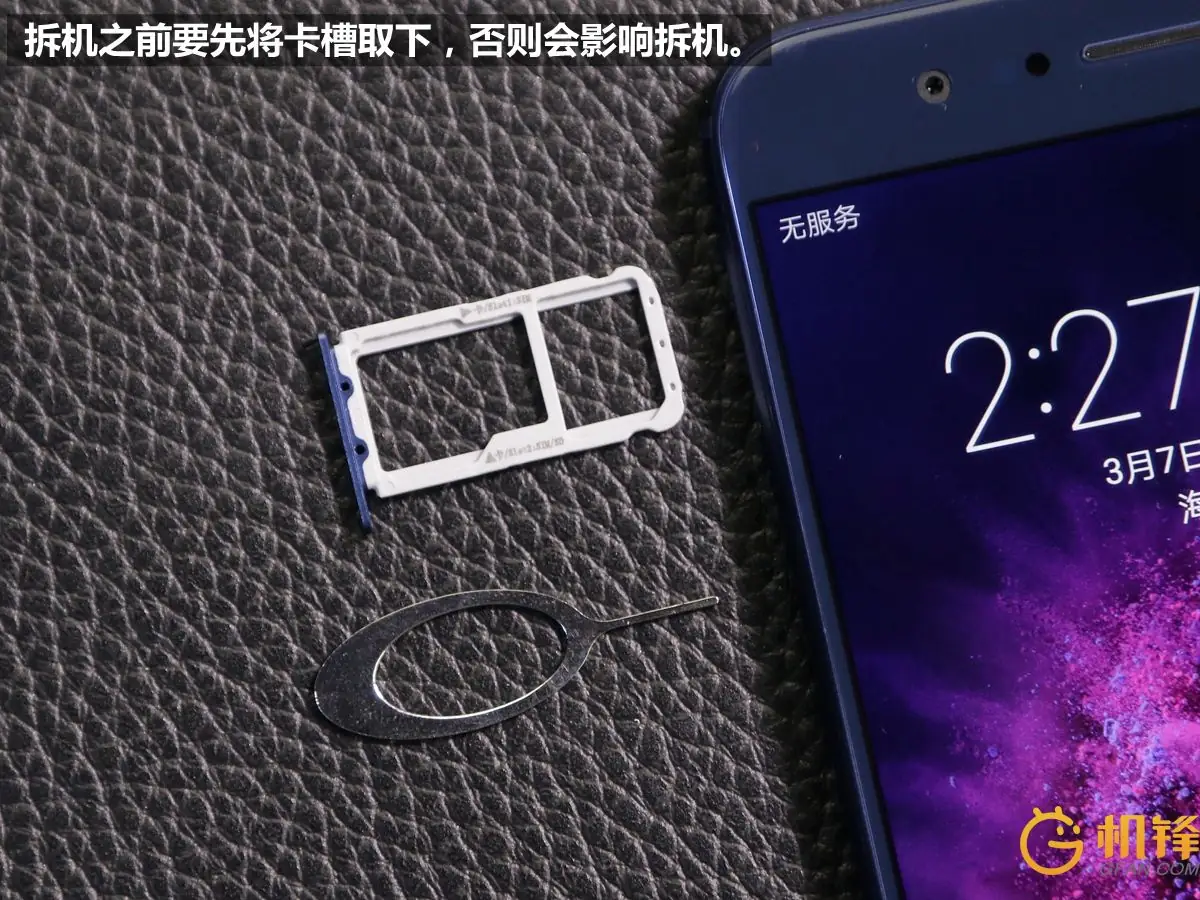

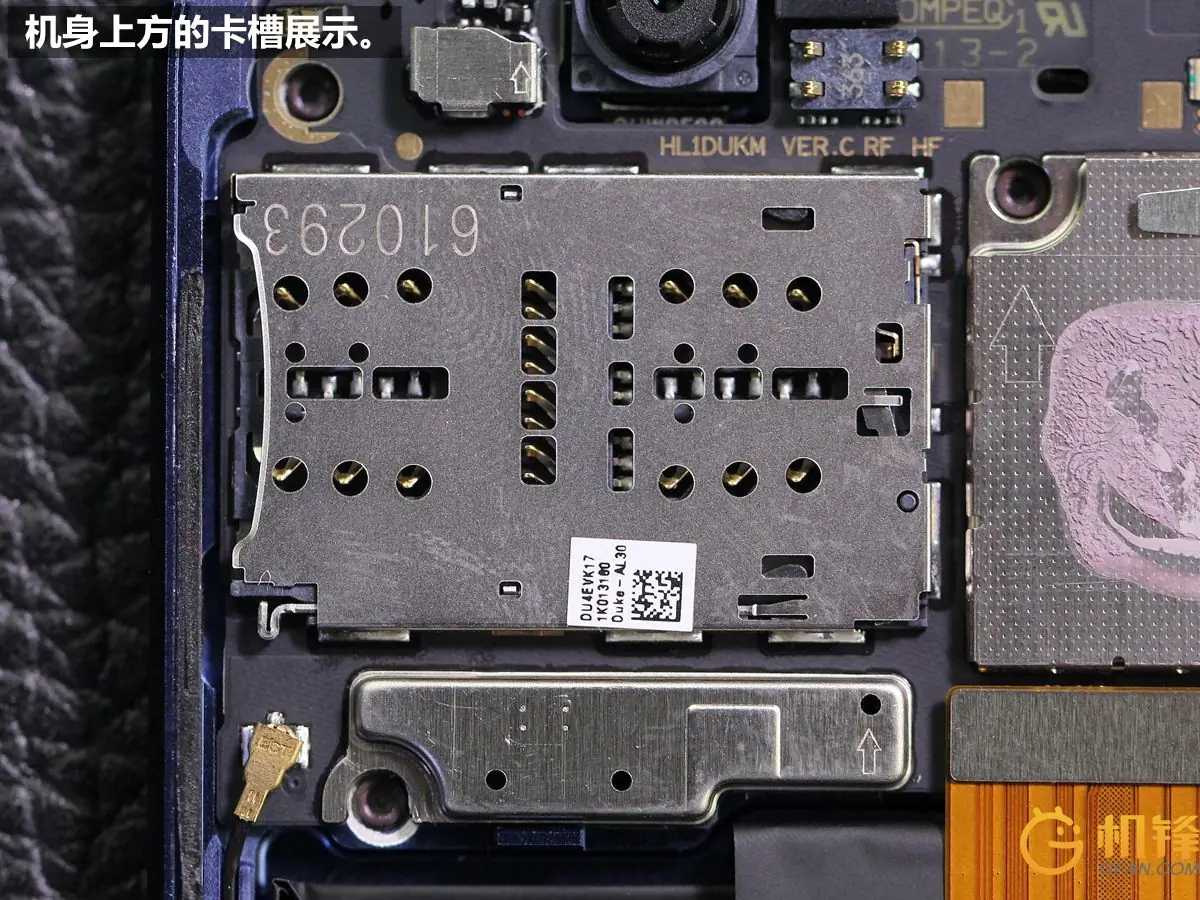

Before start the disassembly process, you should remove the SIM card tray first.

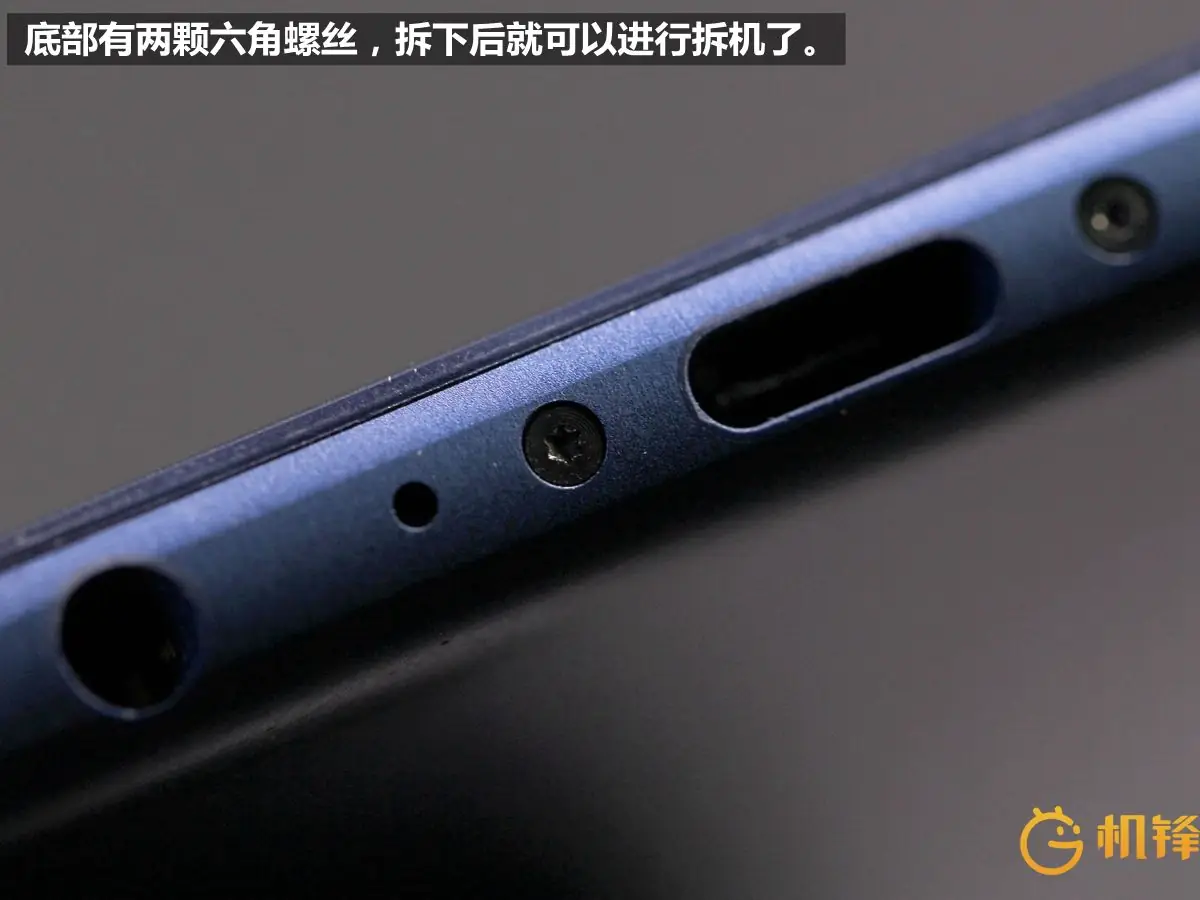

Remove two screws beside the USB Type-C port with a screwdriver.

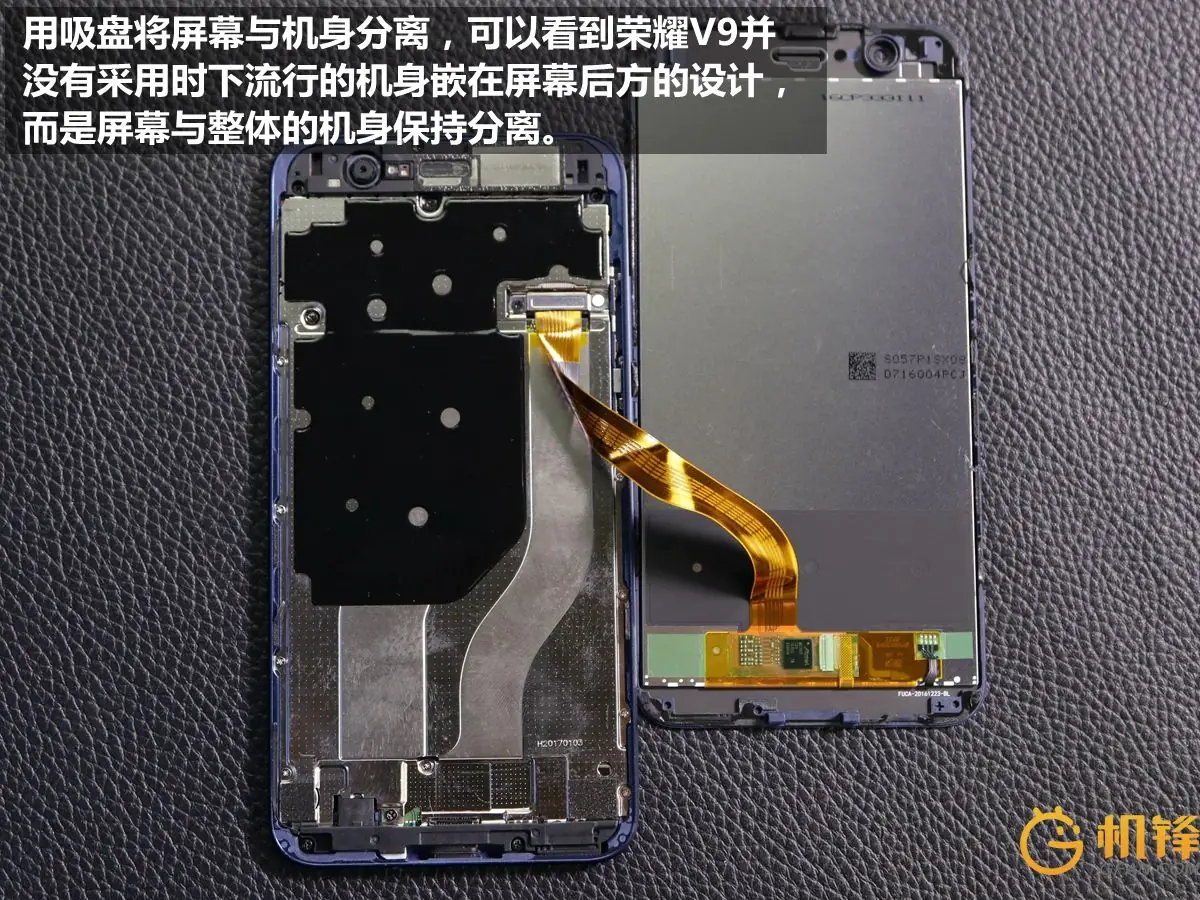

Lift up the display assembly a little bit with a sucker. Insert a guitar pick under the display assembly. Slide the pick to take off the display assembly.

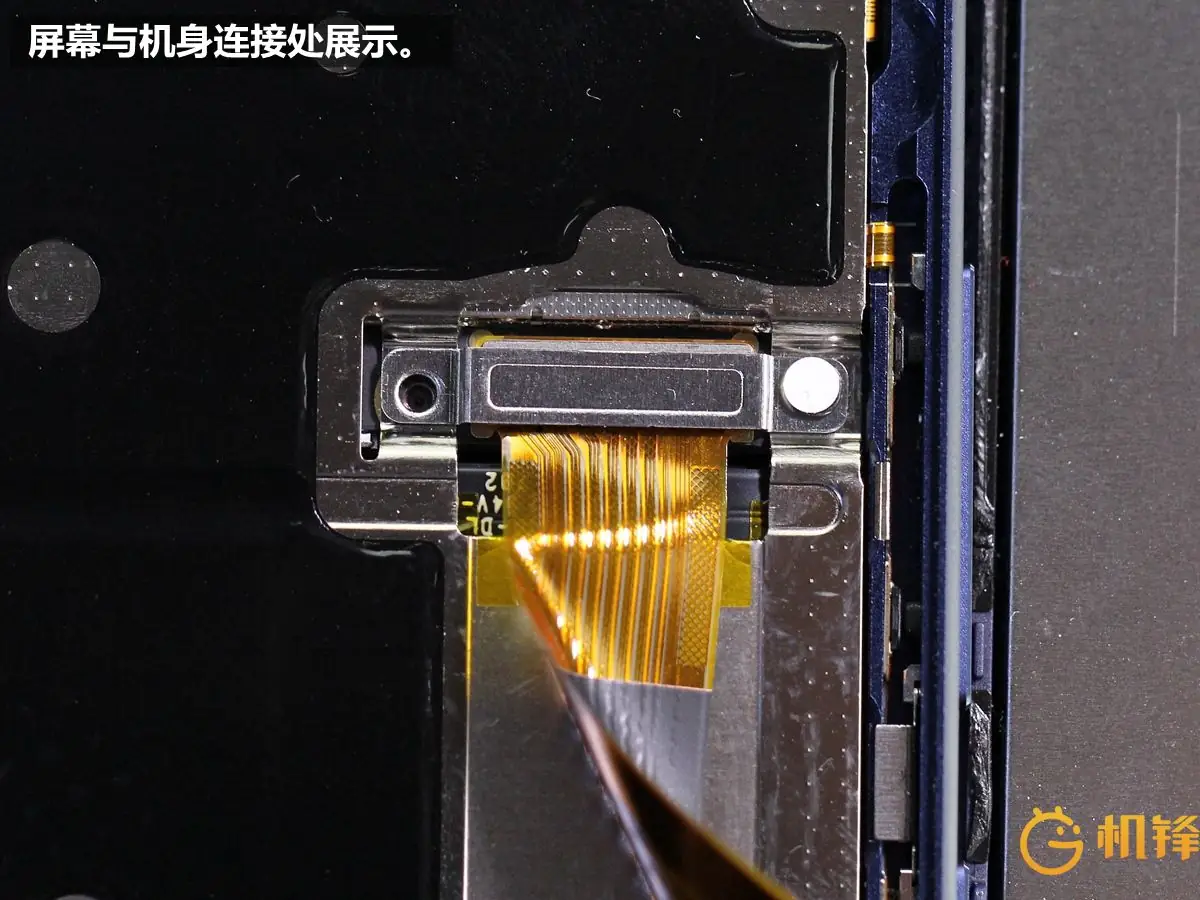

Remove the screw that securing the display cable stator. And then disconnect the cable from the motherboard.

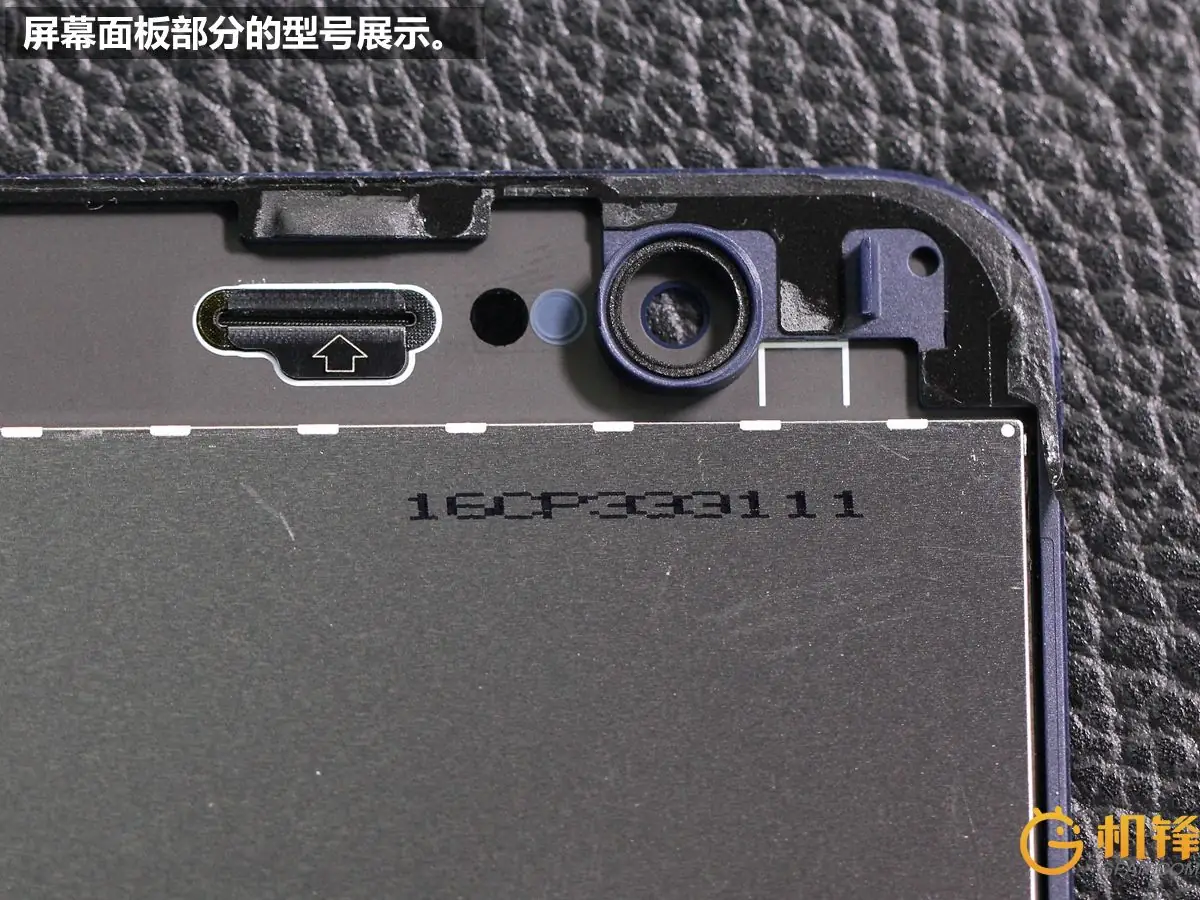

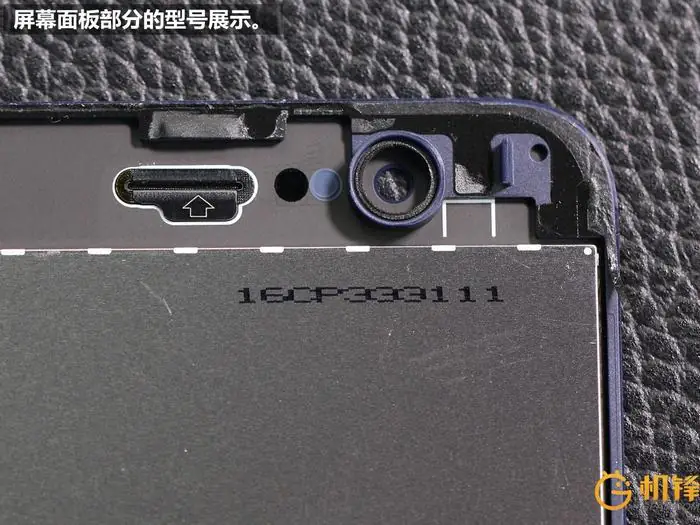

Here’s display part number.

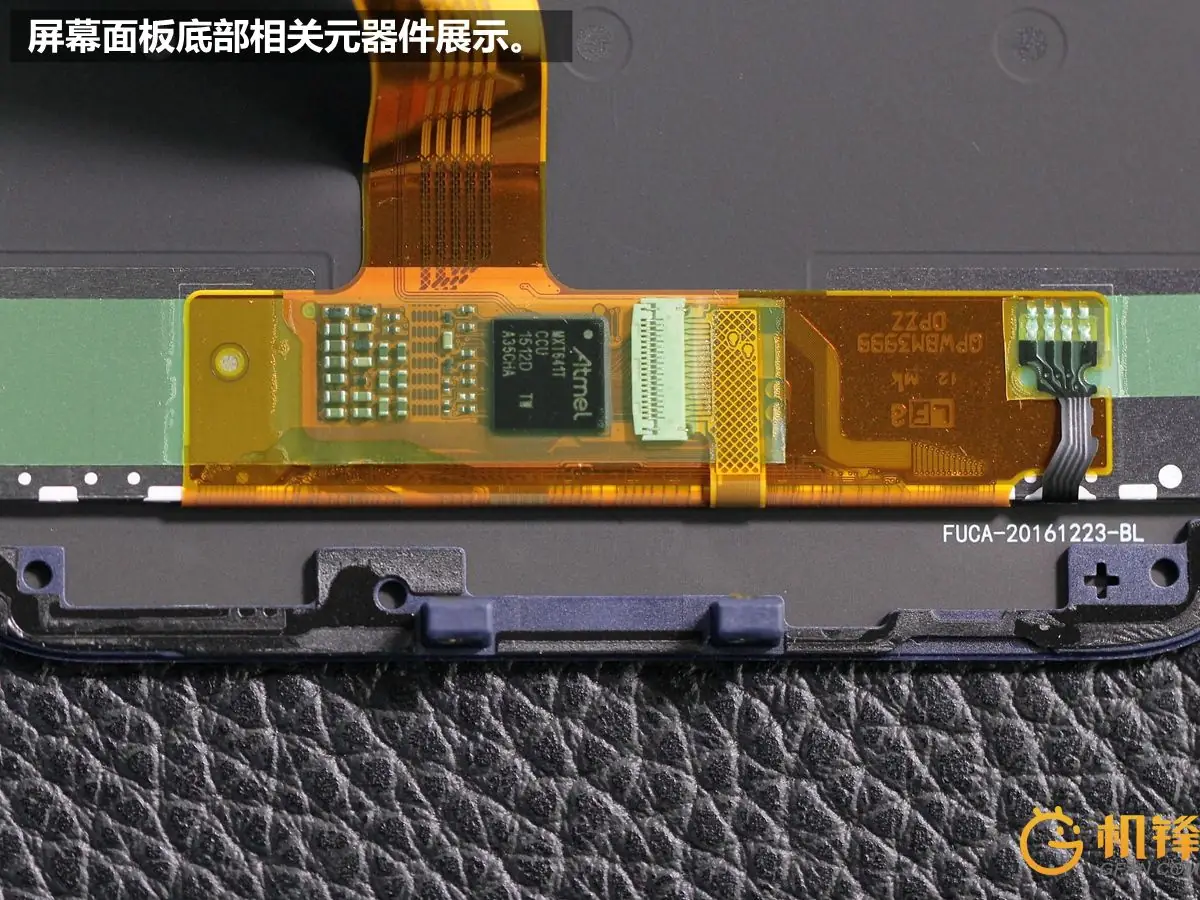

Huawei Honor V9 features an Atmel MXT641T touch chip.

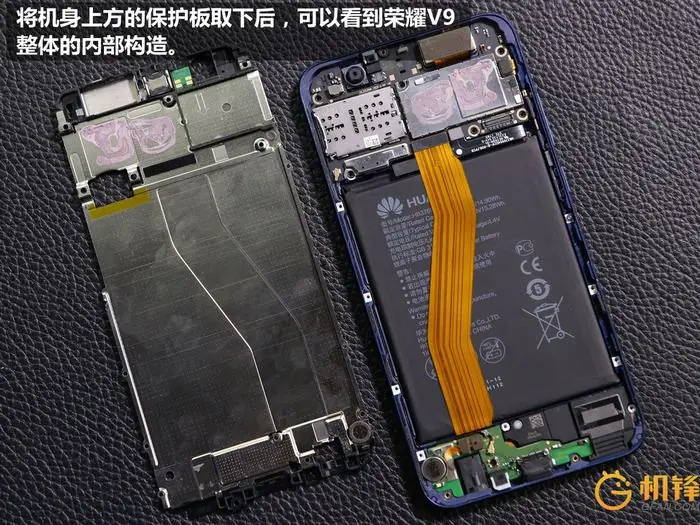

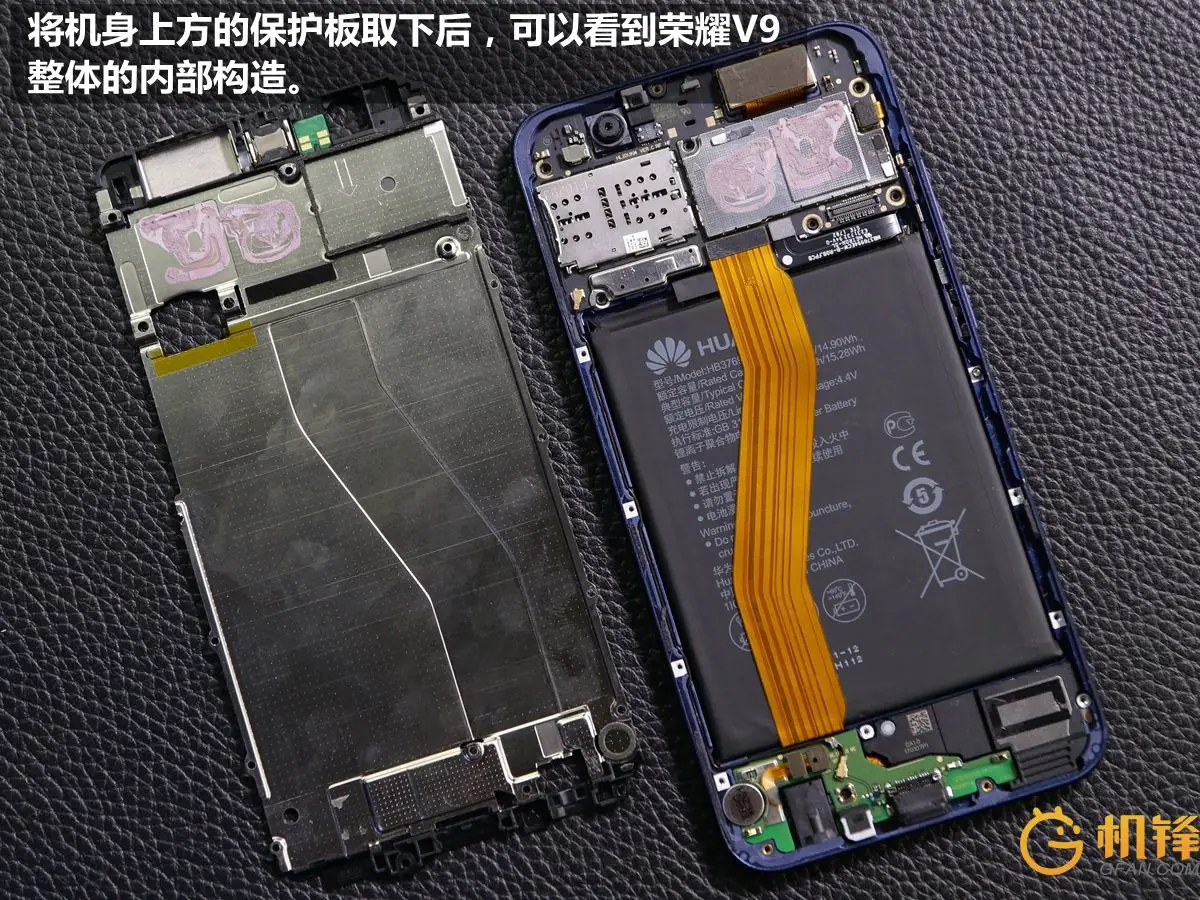

Remove all screws securing the metal protecting plate and remove it from the phone body.
You can see there is a groove on the protection board, which is used to protect the main FPC. Please do not underestimate this groove. It will increase the cost and process.

Huawei Honor V9 uses the common three-stage design, the motherboard and the bottom board connected with the flexible cable.

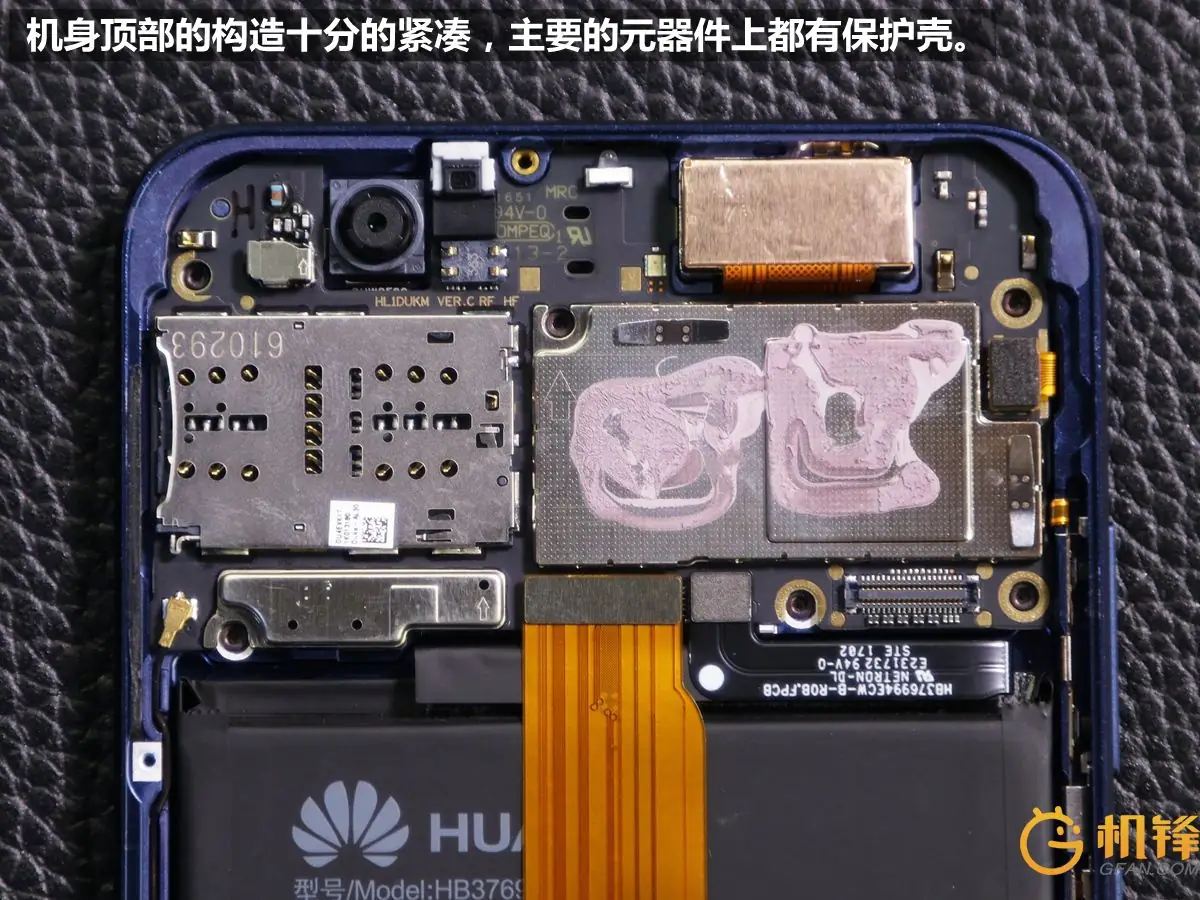

The top of the fuselage structure is very compact. The main components are covered with metal shields.

Disconnect the BTB and coaxial cable from the bottom board.
Lift up the bottom board with a crowbar.

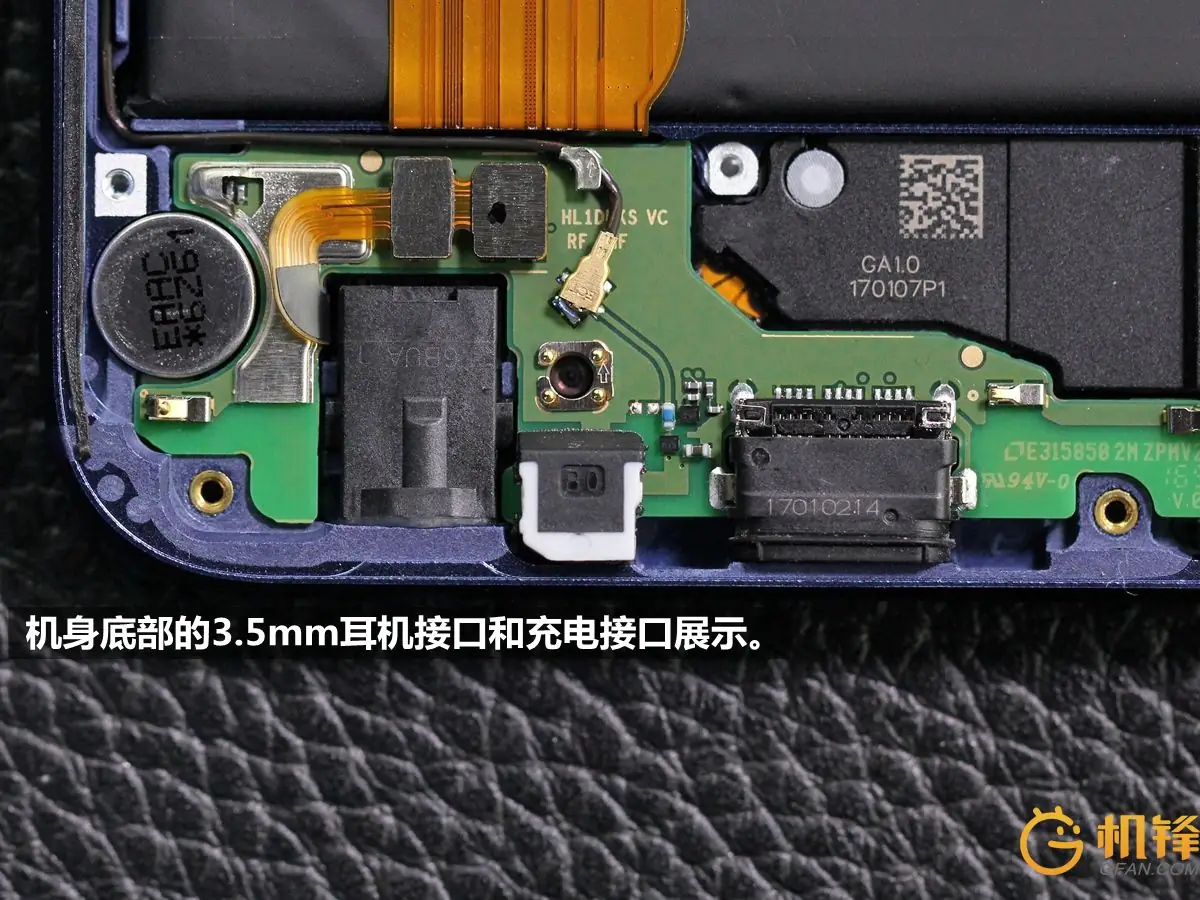

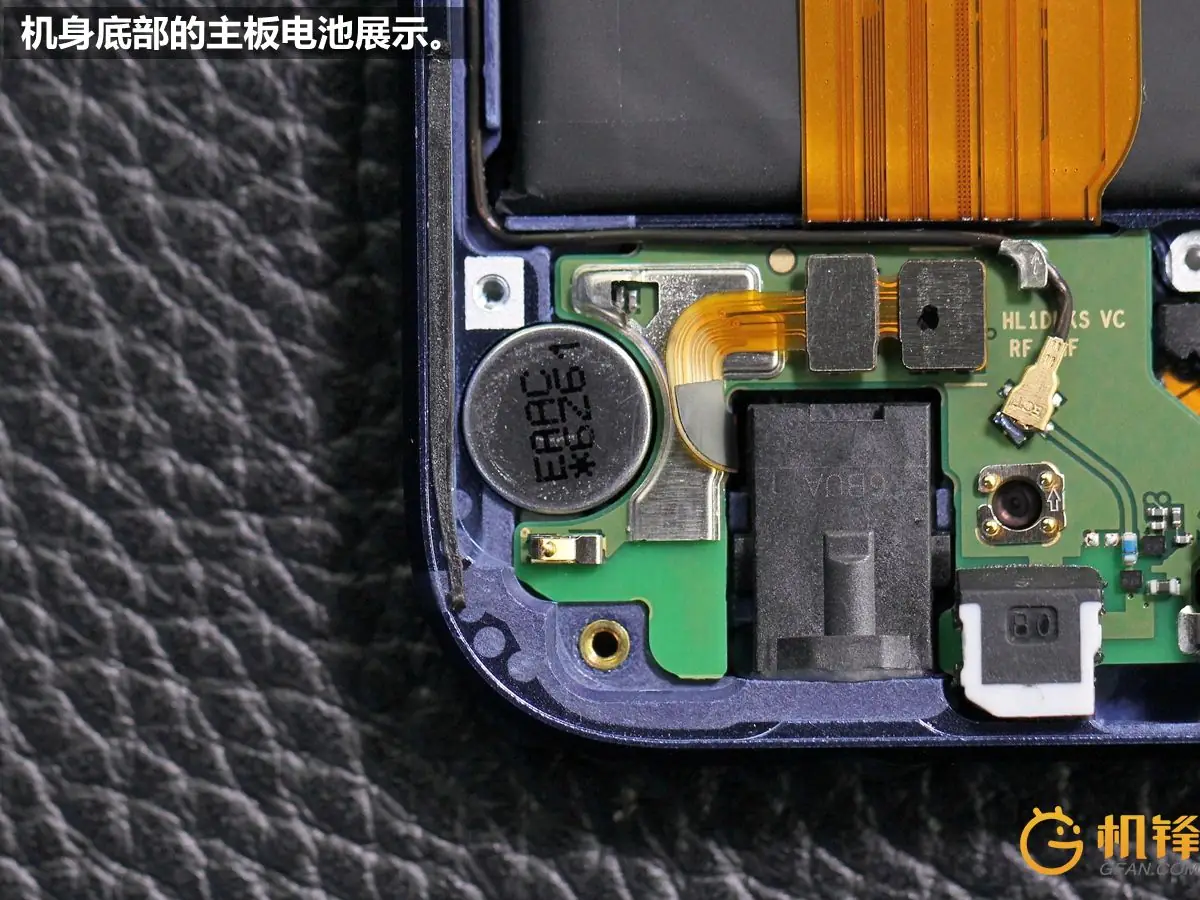

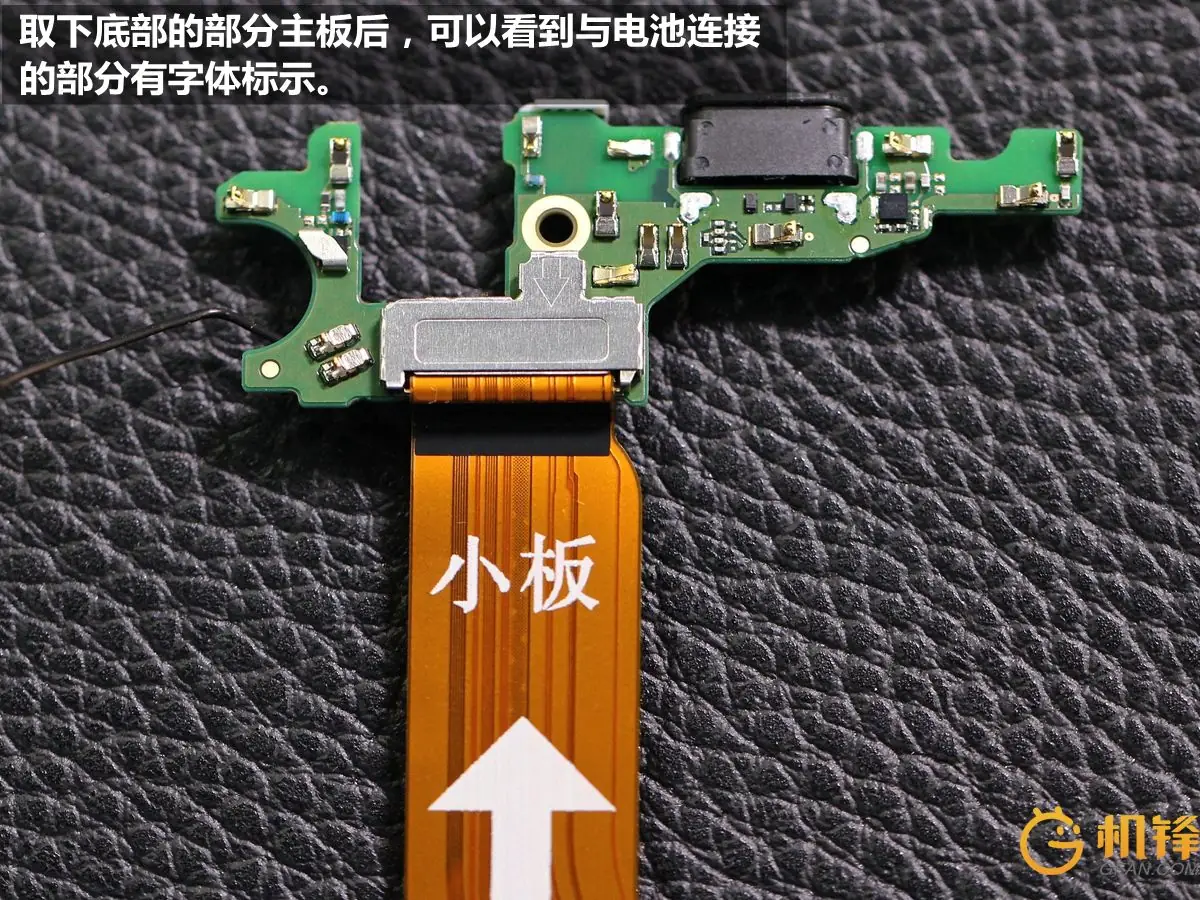

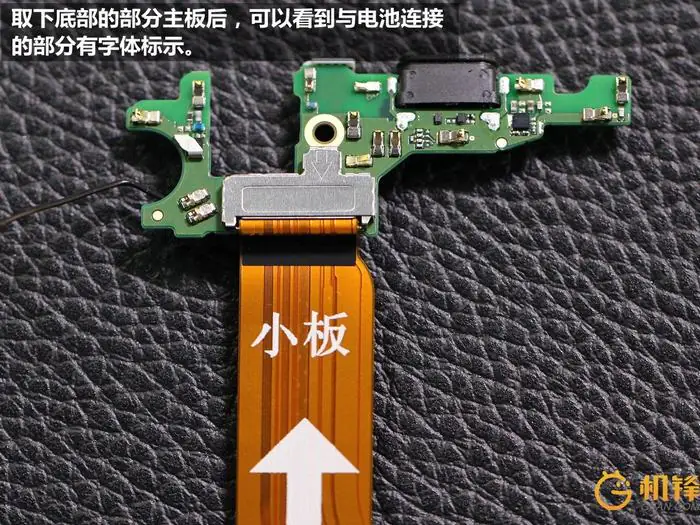

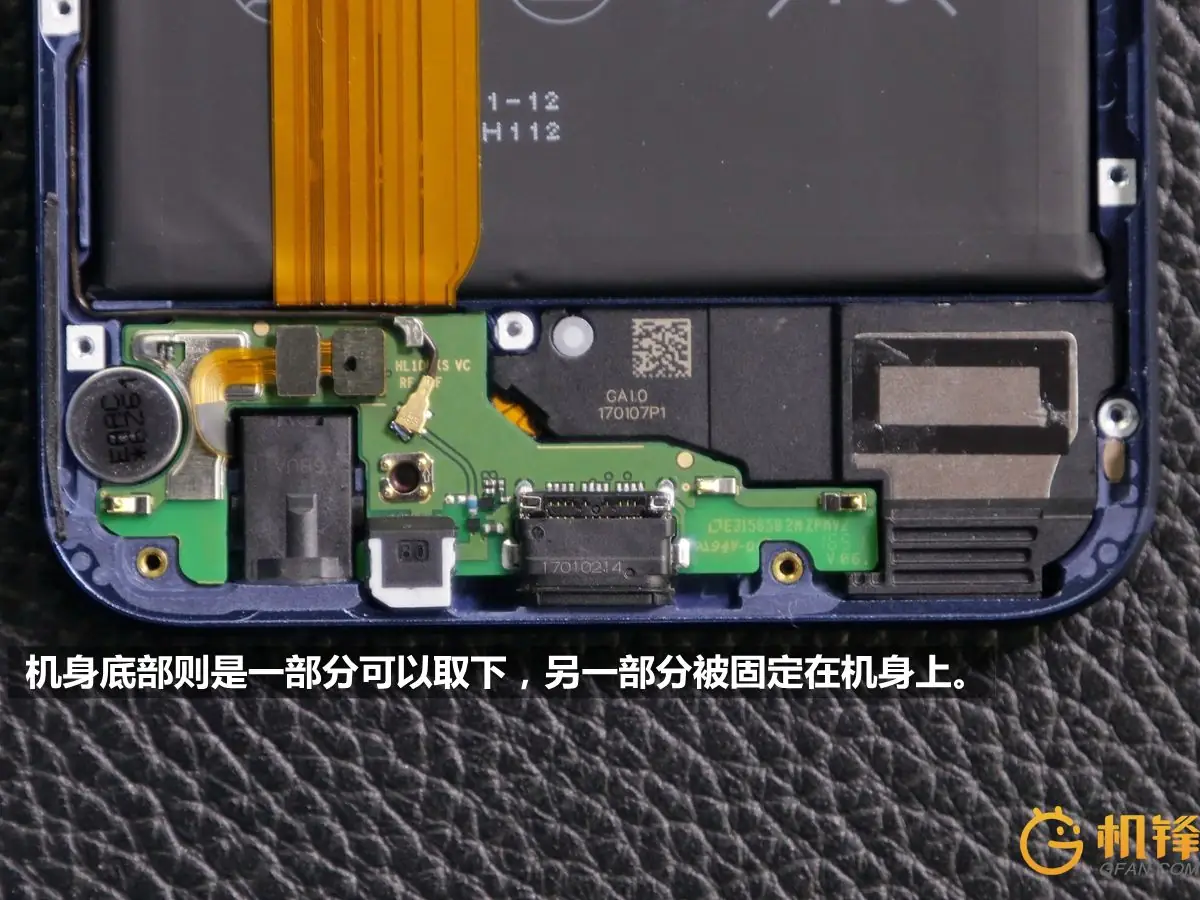

The bottom board Integrated with a 3.5mm headphone jack, a USB Type-C port and some metal contacts.

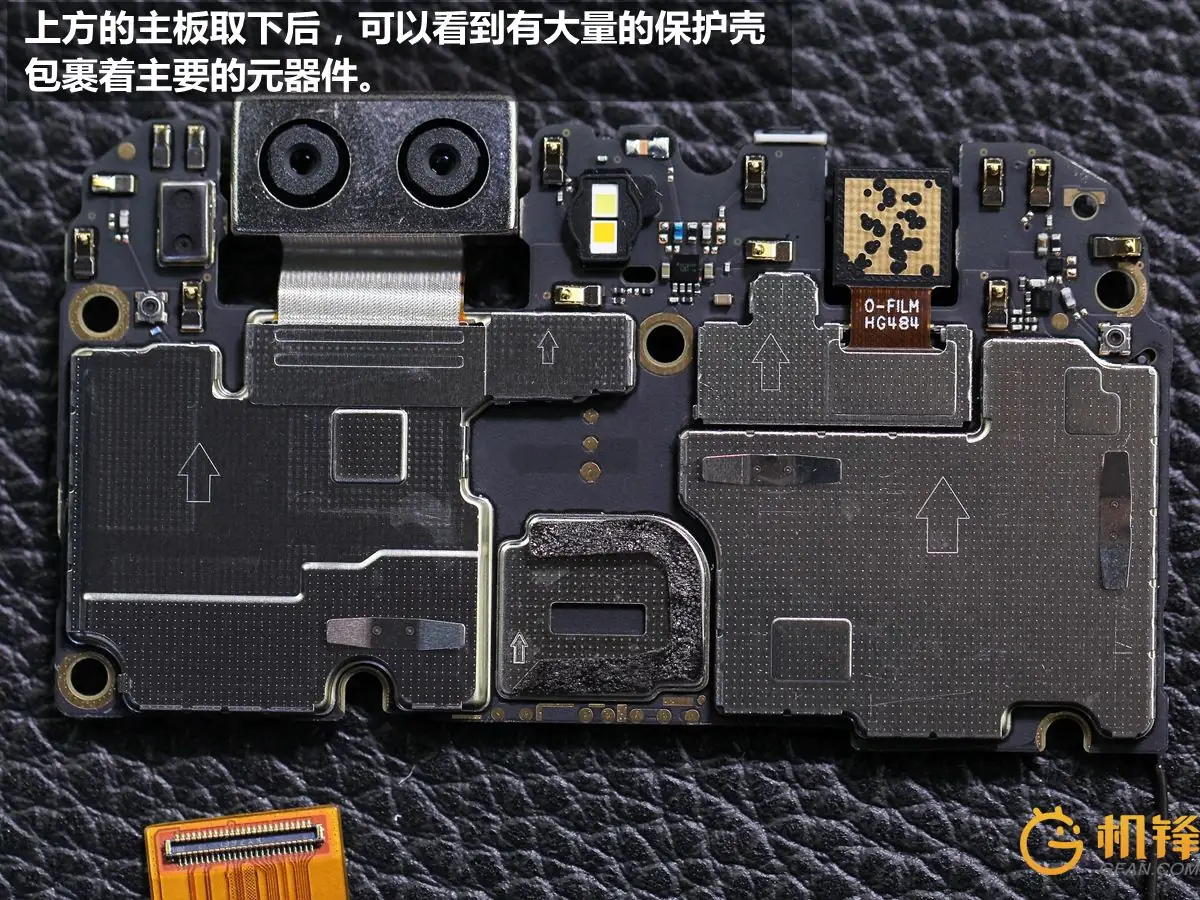

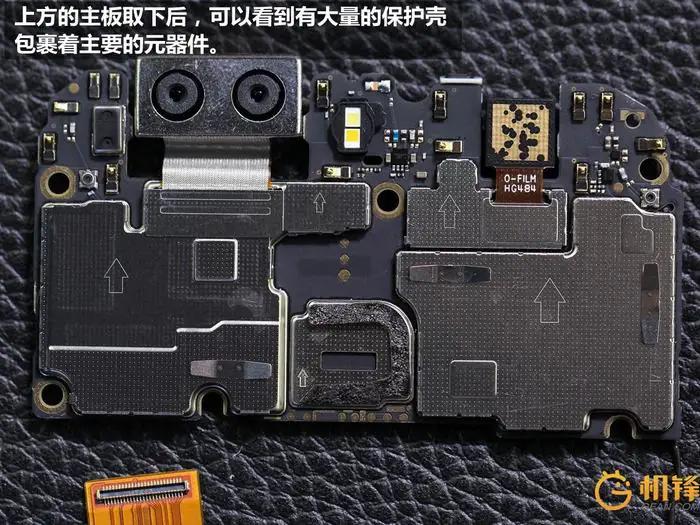

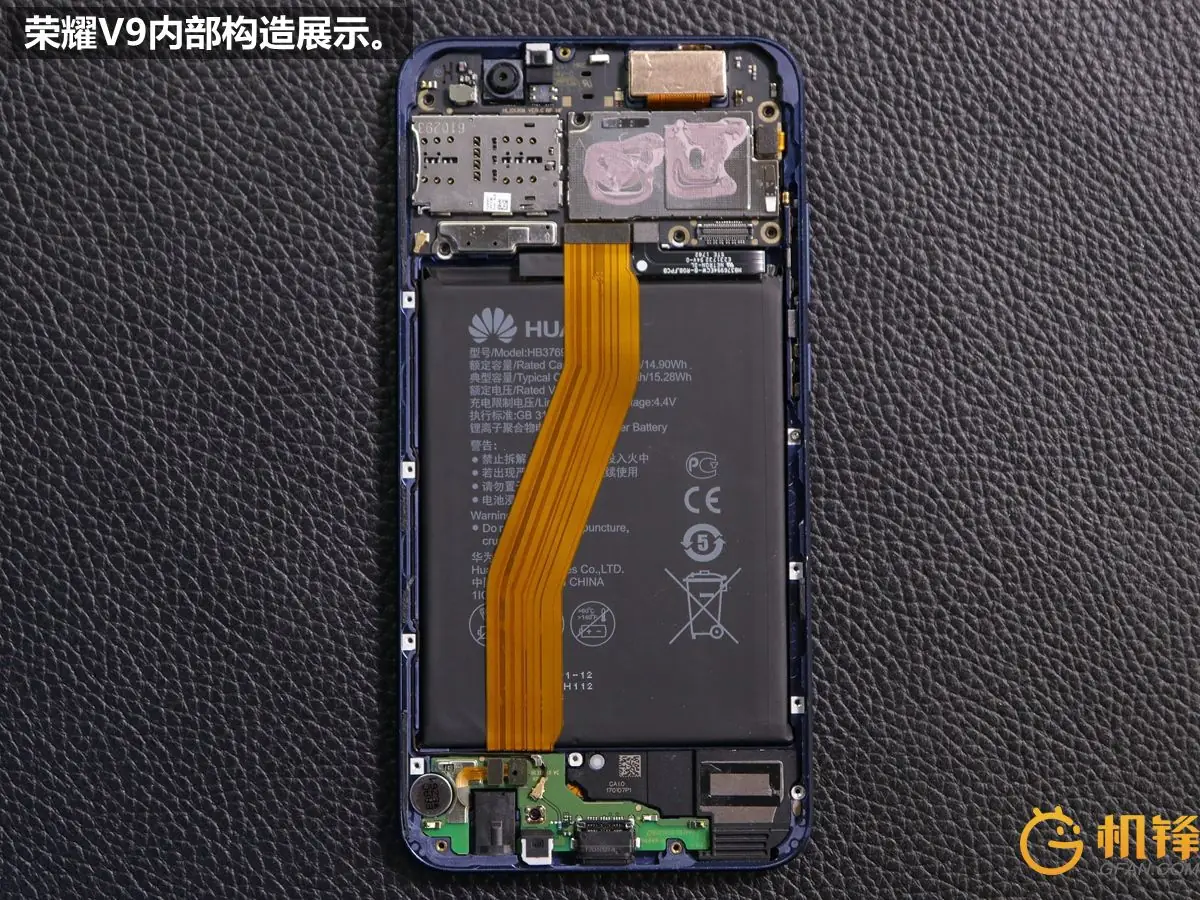

After removing the motherboard, we can see all chips is covering with metal shields.

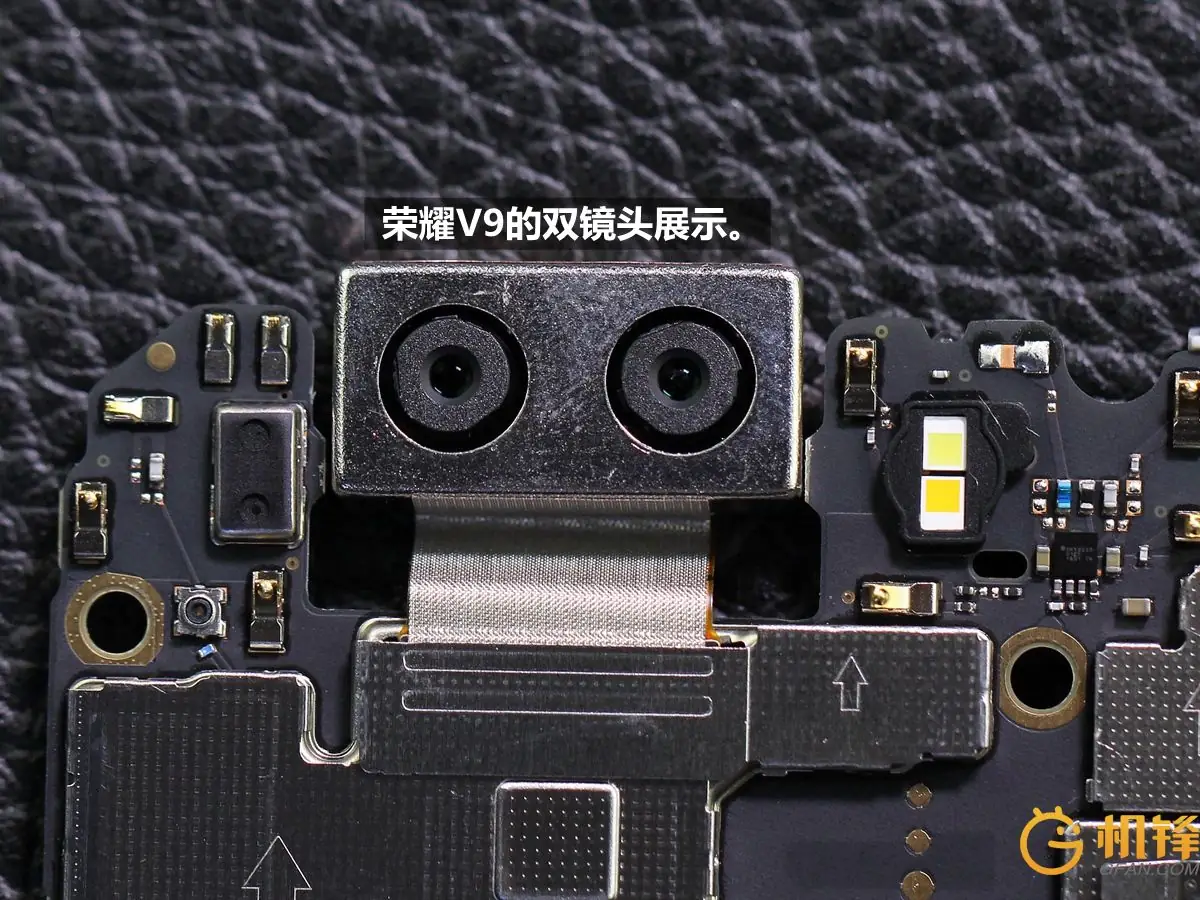

Huawei Honor V9’s dual cameras

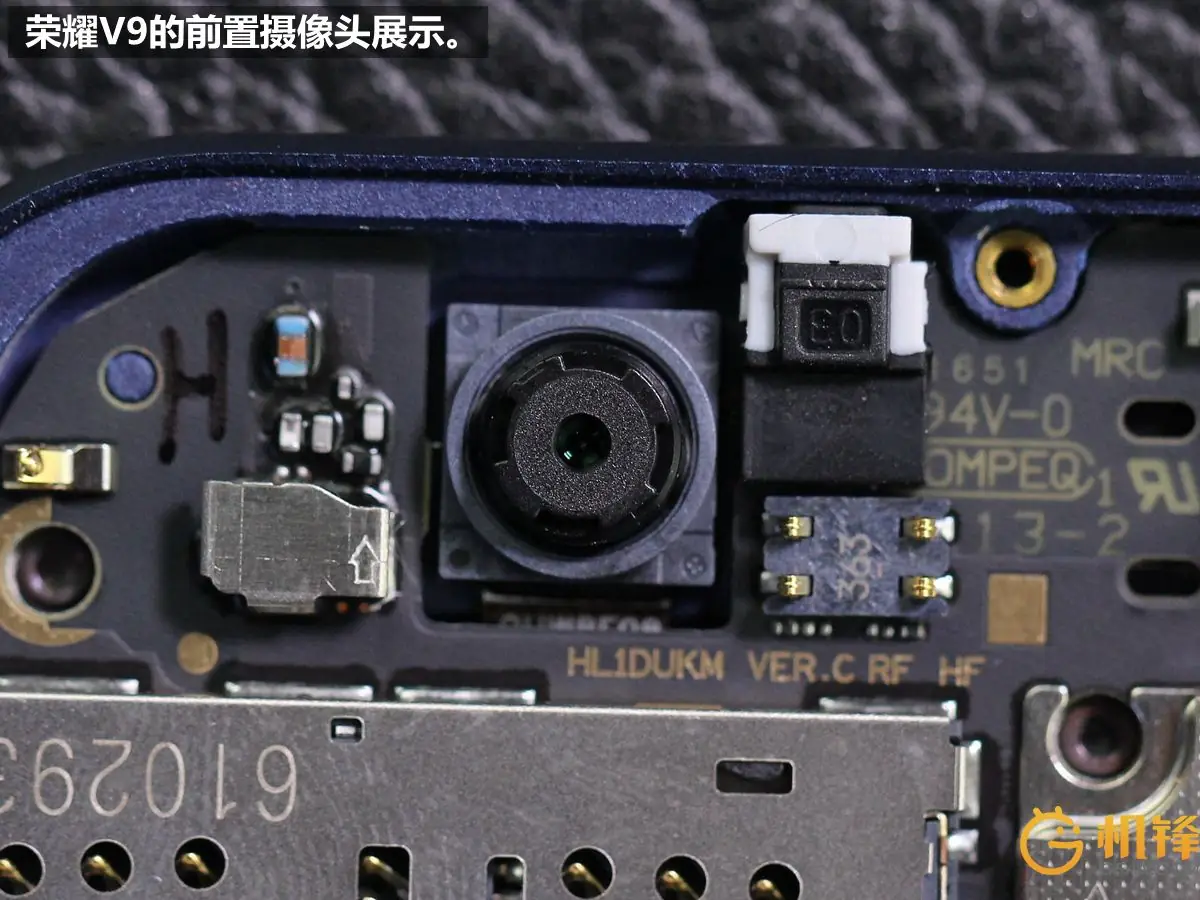

Huawei Honor V9’s front-facing camera

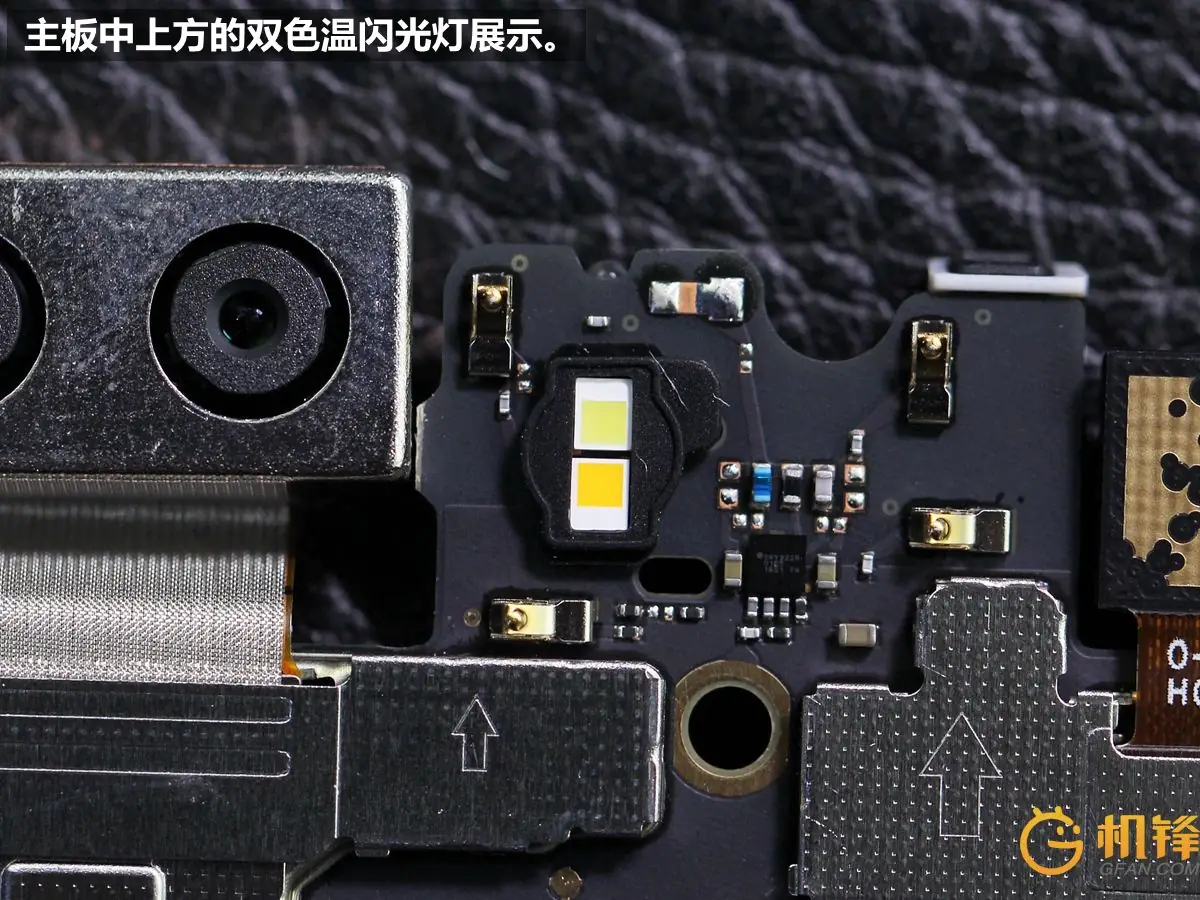

Huawei Honor V9’s Dual LED flash

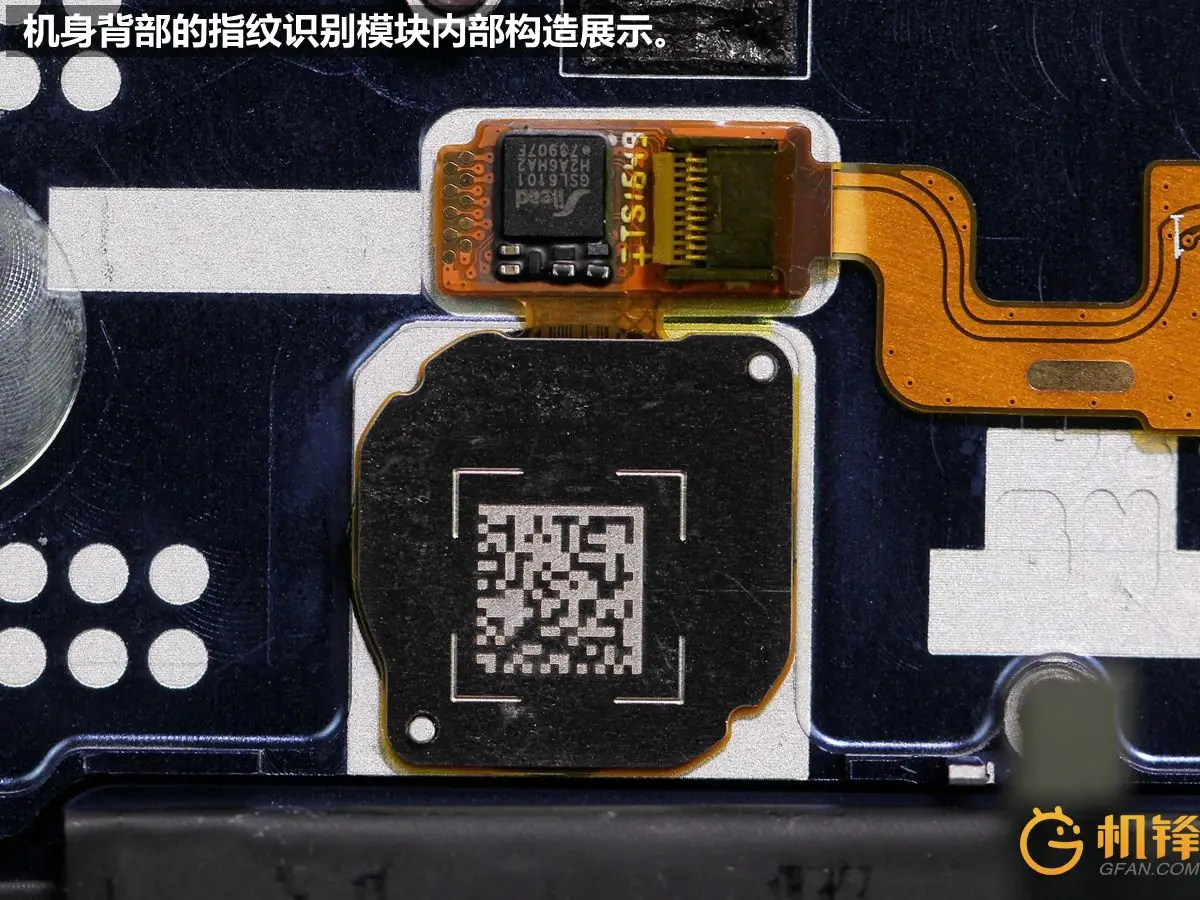

SILEAD GSL6101 fingerprint module

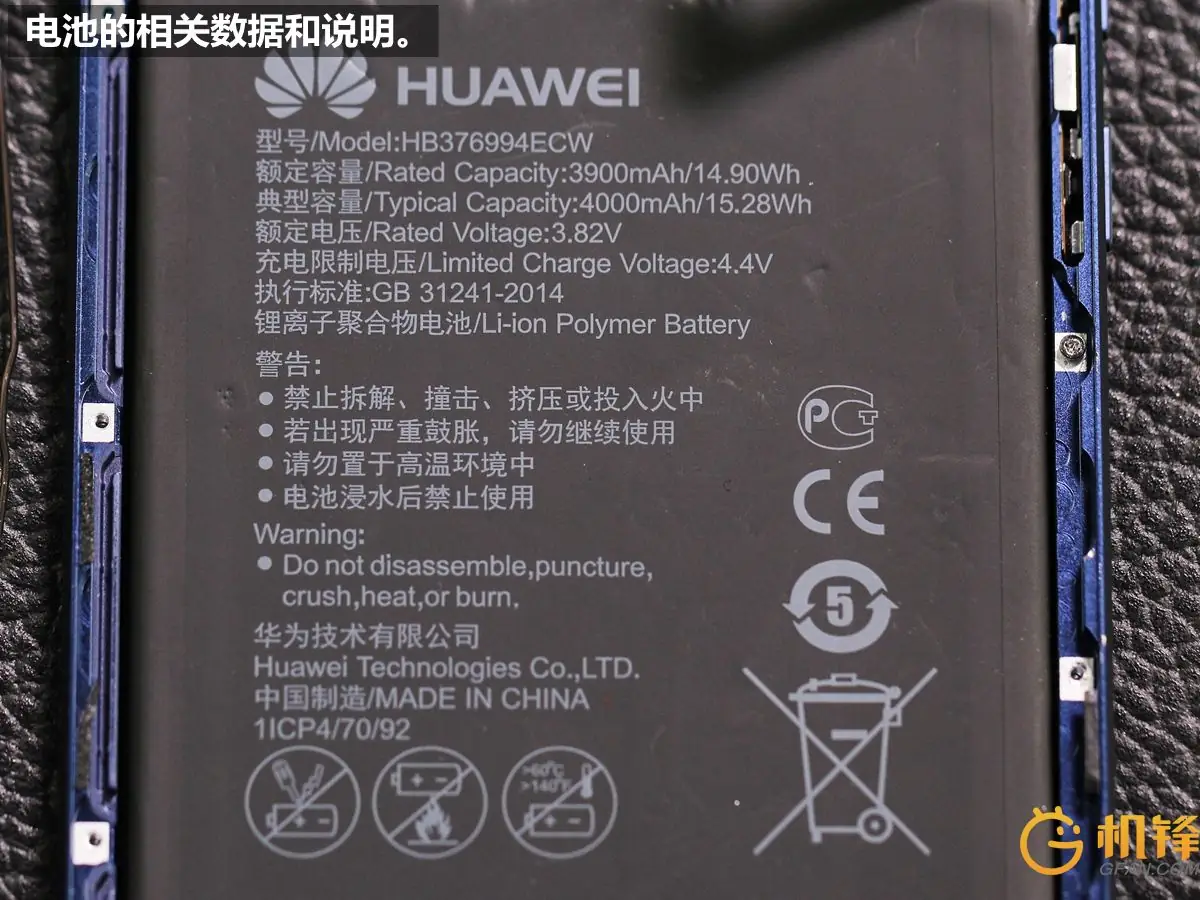

Huawei Honor V9 (8 Pro) comes with a 3.82V, 4000mAh Li-polymer battery, Huawei P/N: HB376994ECW.
