HP Pavilion M4 disassembly and RAM, HDD upgrade options

In this guide, I will explain how to disassemble the HP Pavilion M4 to remove the battery, DVD drive, hard drive, palm rest, RAM, cooling fan, speakers, wireless card, and motherboard.

In my case, the laptop model is Pavilion m4-1009TX.

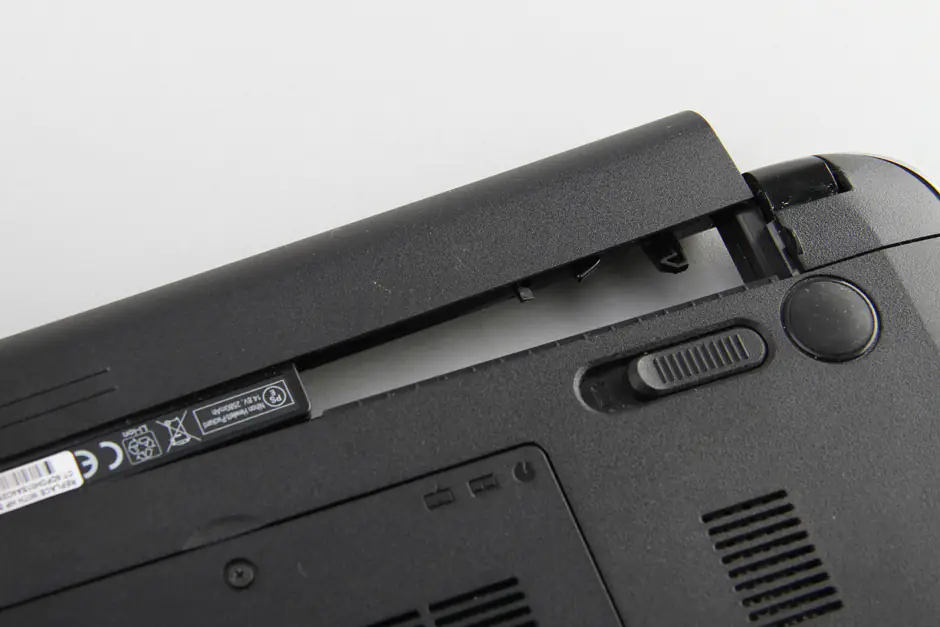

Slide the battery switch to the left, and then slide the battery downward to remove it.
Remove the battery

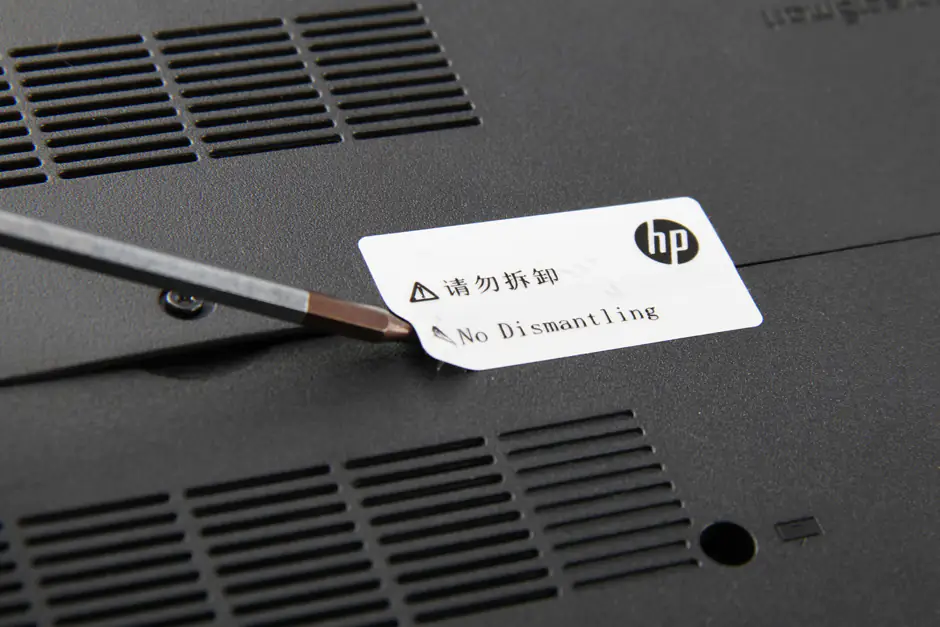

Remove the white ”No Dismantling“ sticker from the bottom cover. If you only want to upgrade the memory, you do not need to remove the label. Please note that removing it will void the warranty.
Remove the white sticker

Remove the screw securing the memory cover.
Remove the service cover

Open the memory cover with your fingers.

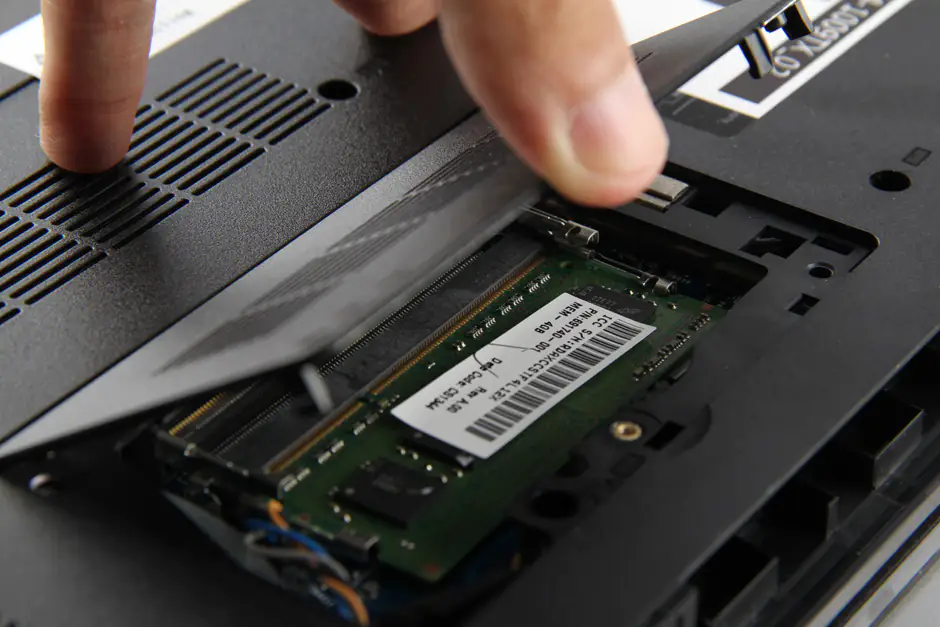

Open the memory cover

This laptop has two memory slots, but comes with only one memory module. You can add another memory module to upgrade the memory.

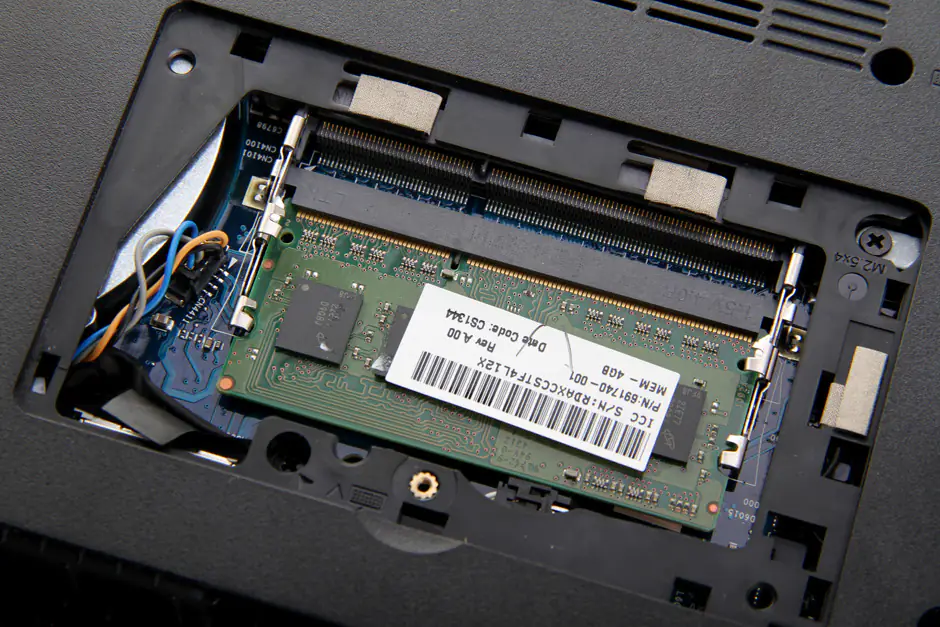

Remove the memory module

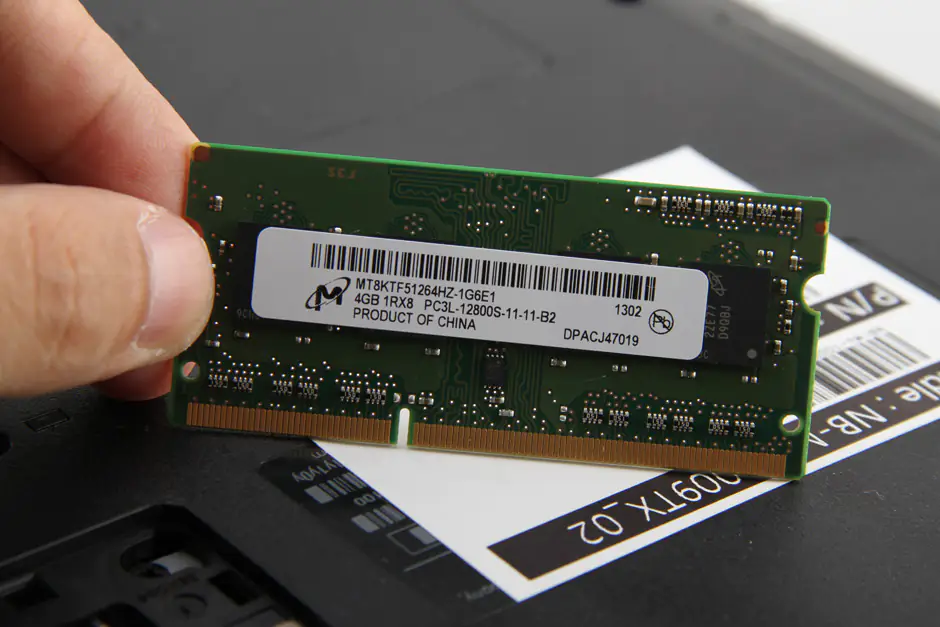

The HP Pavilion M4 features a Micron 4GB DDR3L 1600MHz memory module.
Micron 4GB memory module

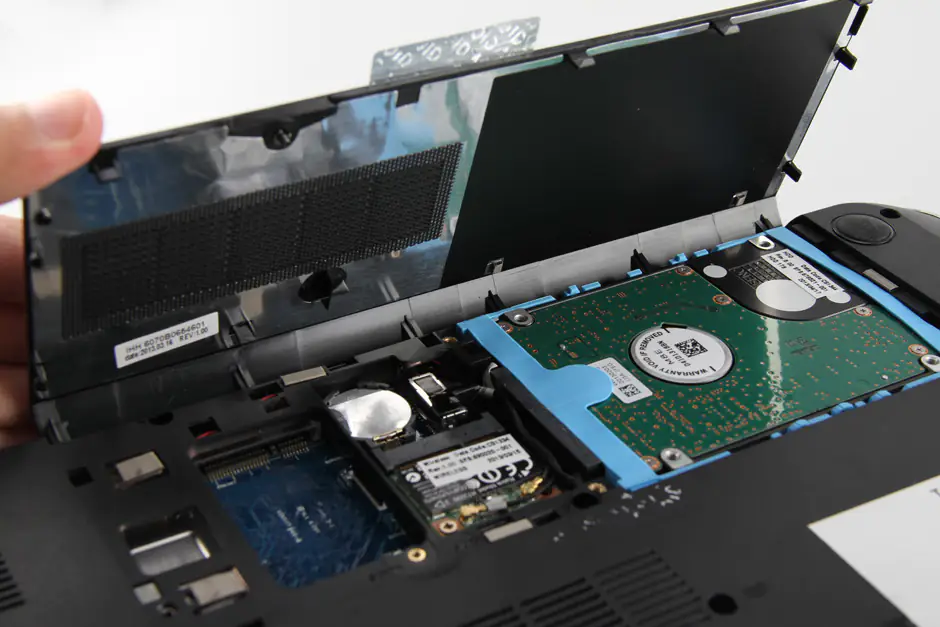

Remove all screws from the bottom case, and then use a pry tool to open the service cover.

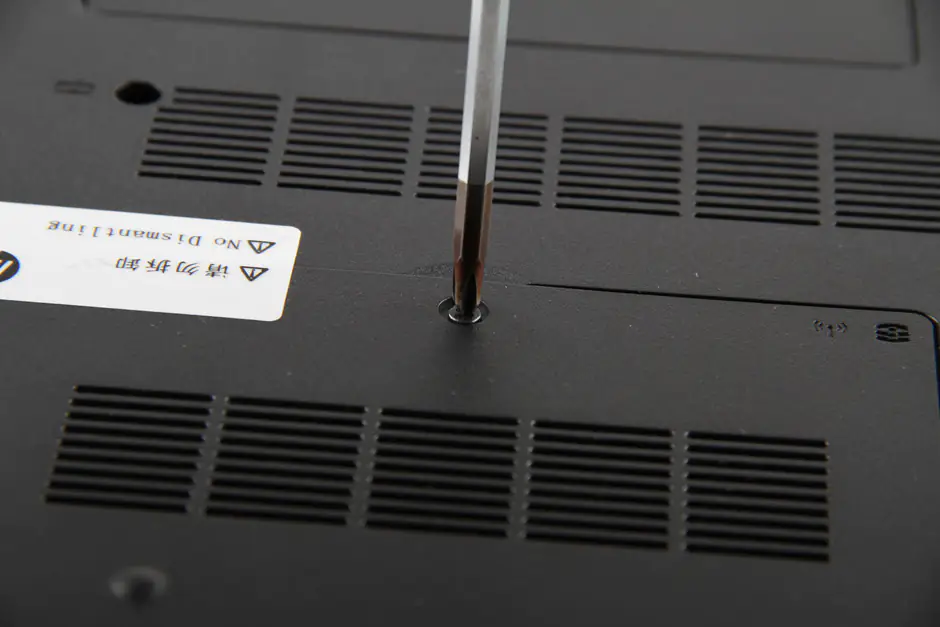

Remove the service cover

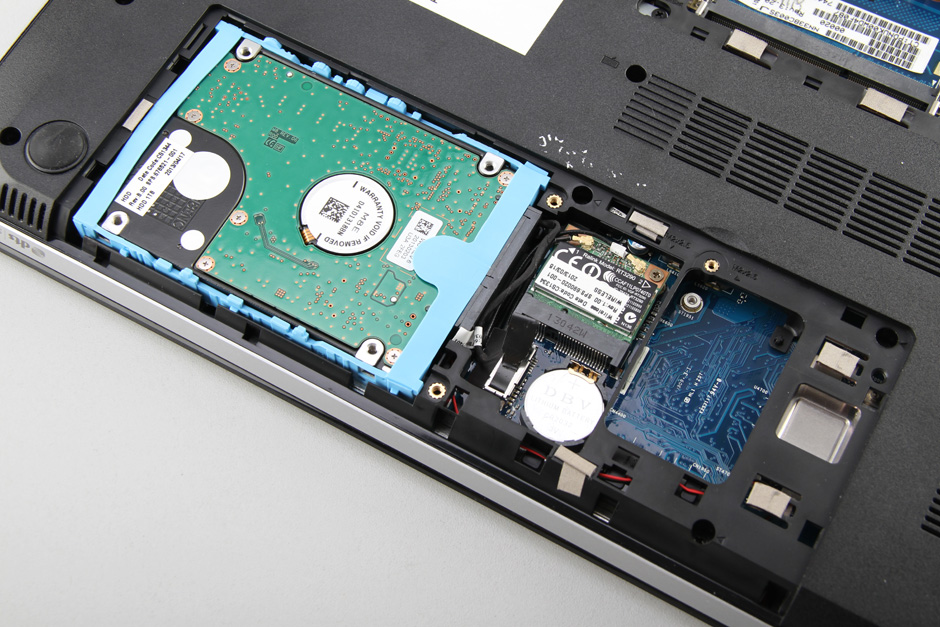

Under the service cover, you can access the hard drive and wireless card.
Hard drive and wireless card

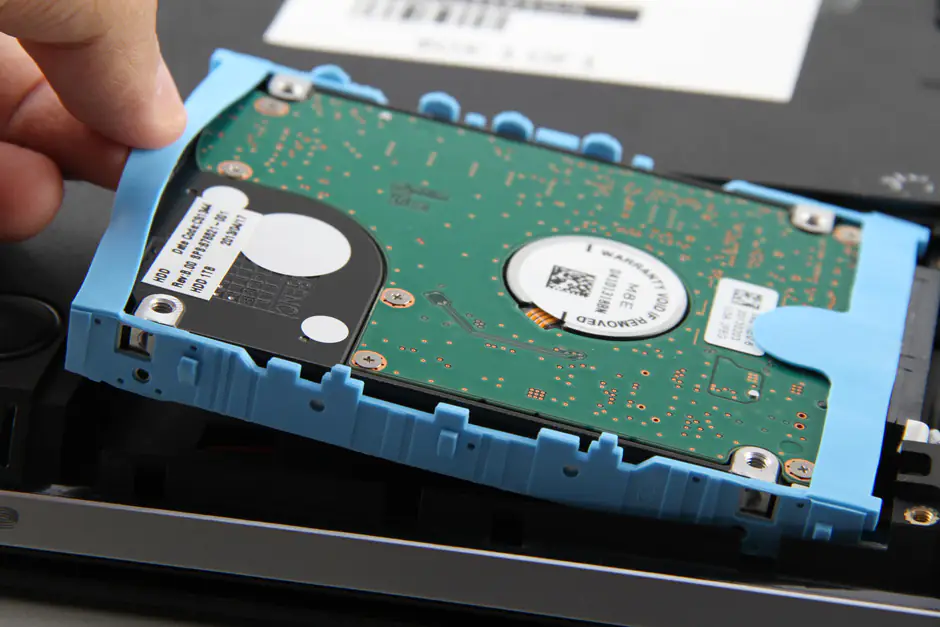

There is no screw securing the hard drive, making it easy to remove.
Remove the hard drive

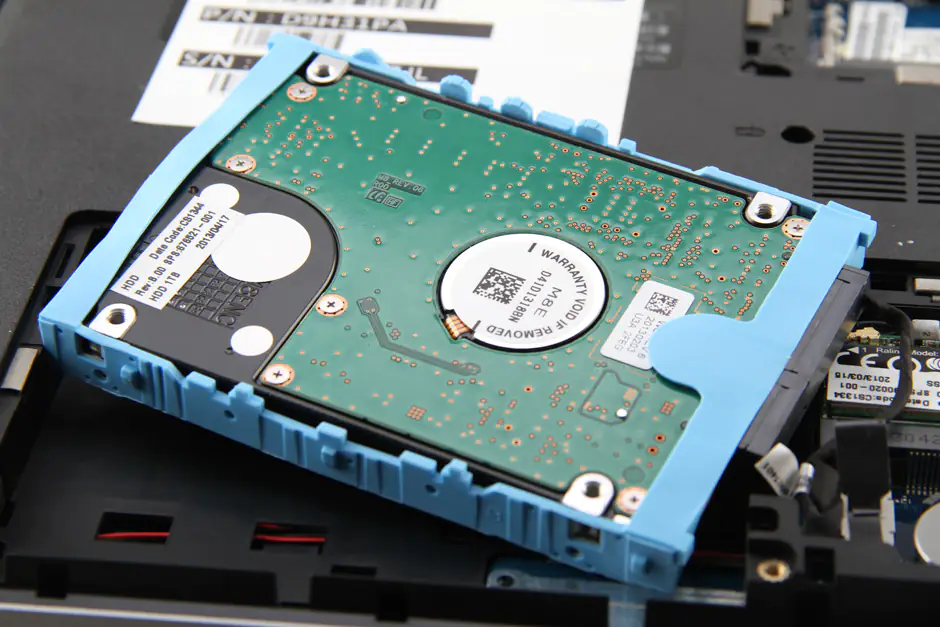

The cable is still connected to the hard drive. To remove the hard drive, you need to disconnect the hard drive cable from the motherboard.
Disconnect the hard drive cable

Disconnect the HDD cable from the motherboard.

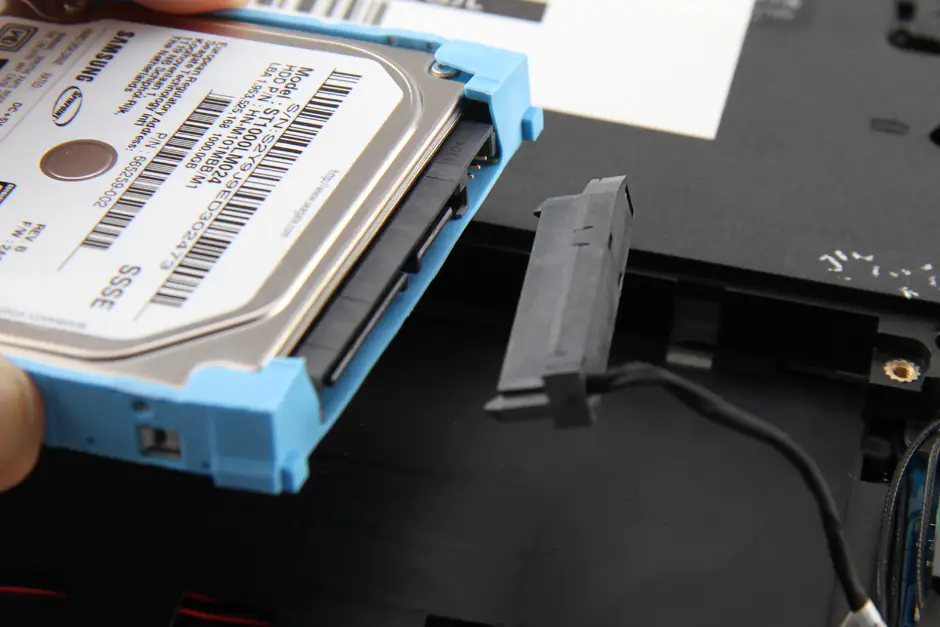

Disconnect the HDD cable

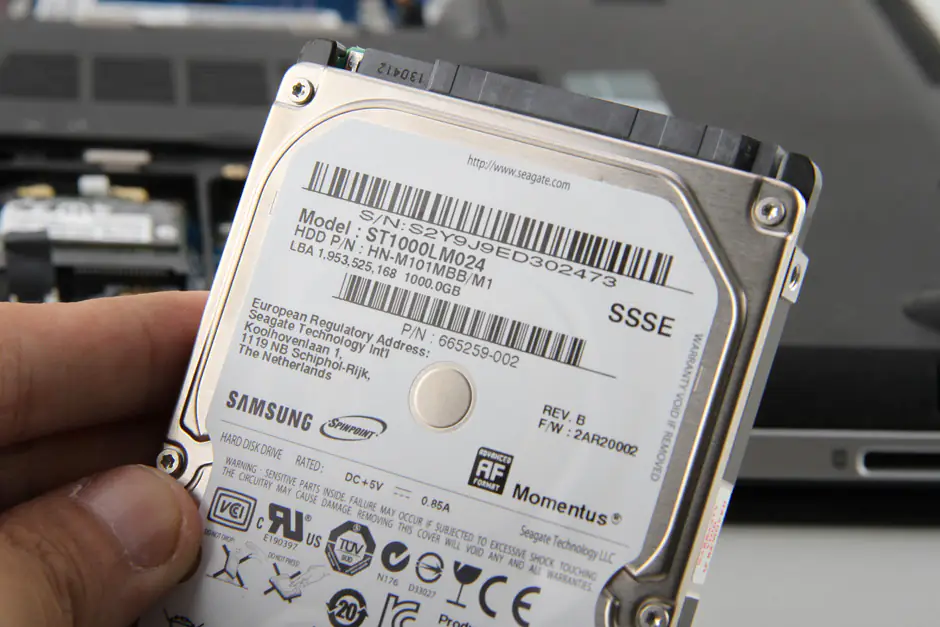

The HP Pavilion M4 features a 1TB Seagate hard drive, HP part number: 665259-002.
665259-002

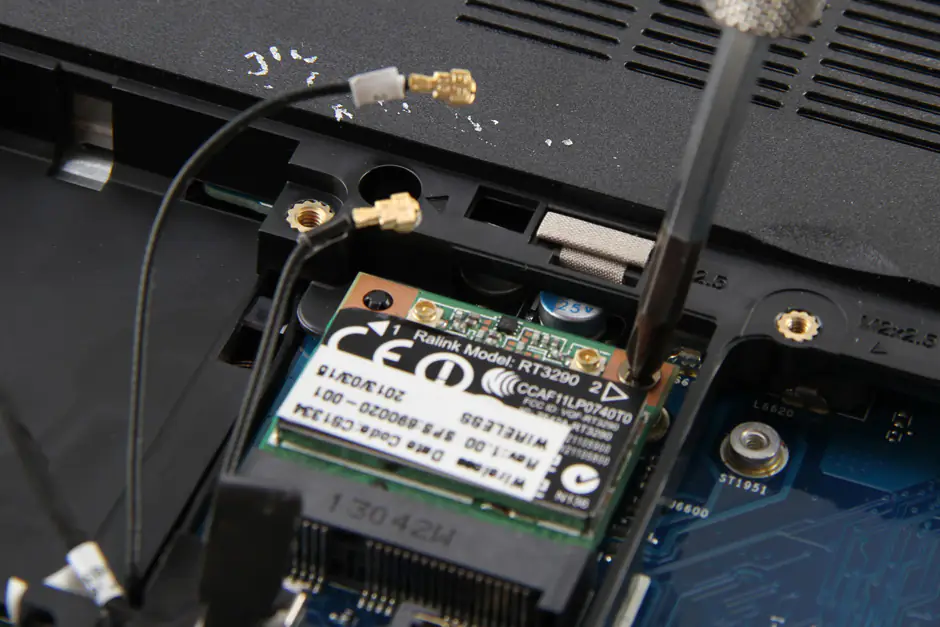

Unplug the two antenna cables and remove the screw securing the wireless card. You can remove it.
Wireless card

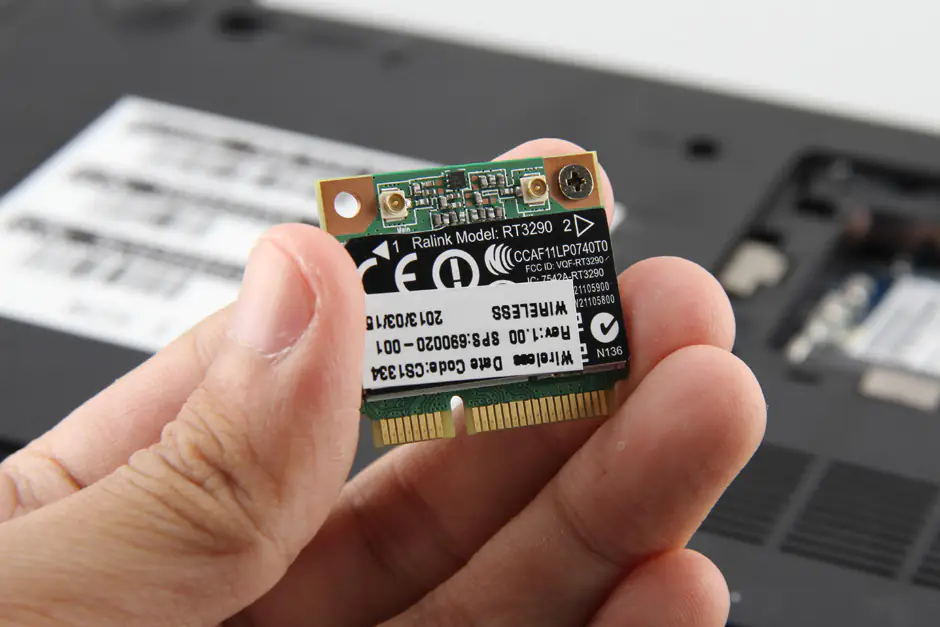

Ralink RT3290 wireless card, HP P/N: 690020-001.
690020-001

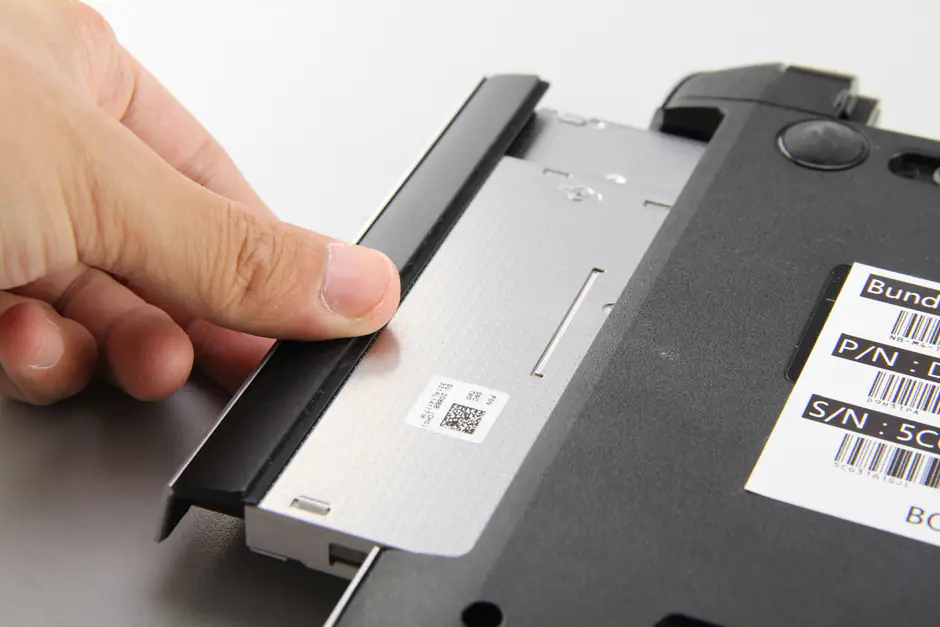

Pull out the DVD drive.
Remove the DVD drive

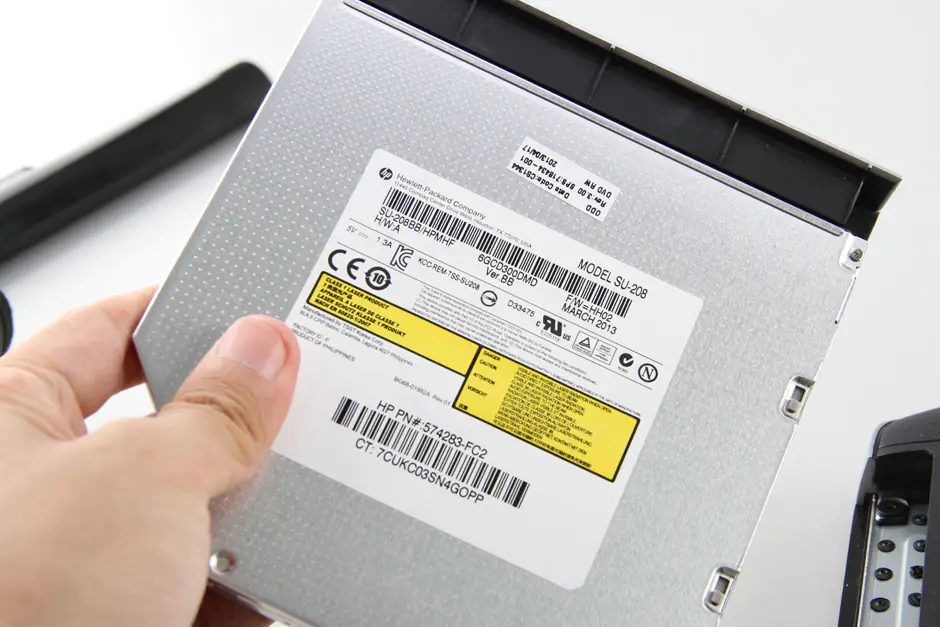

The laptop comes with a Samsung SU-208 DVD burner.
Samsung SU-208

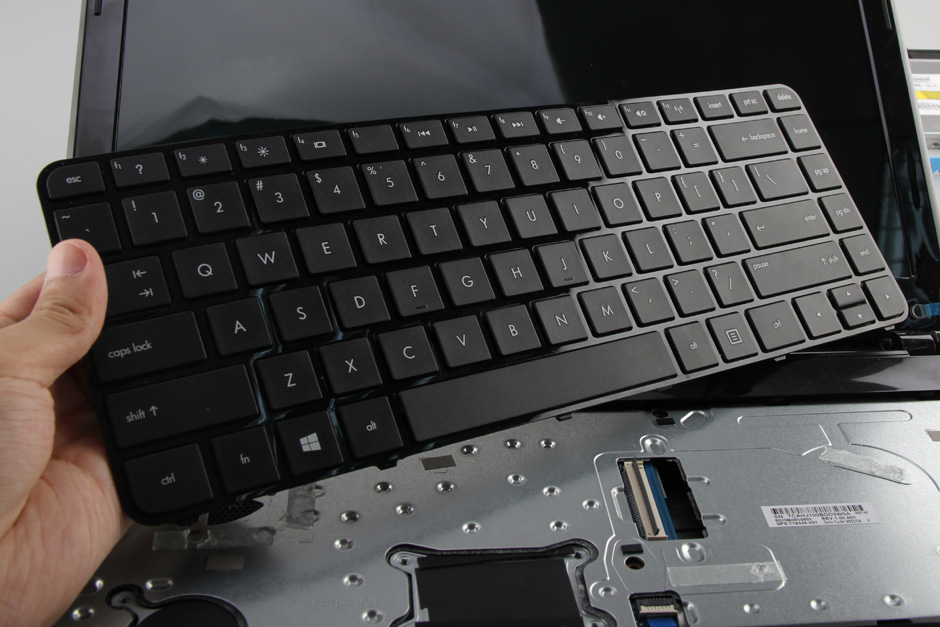

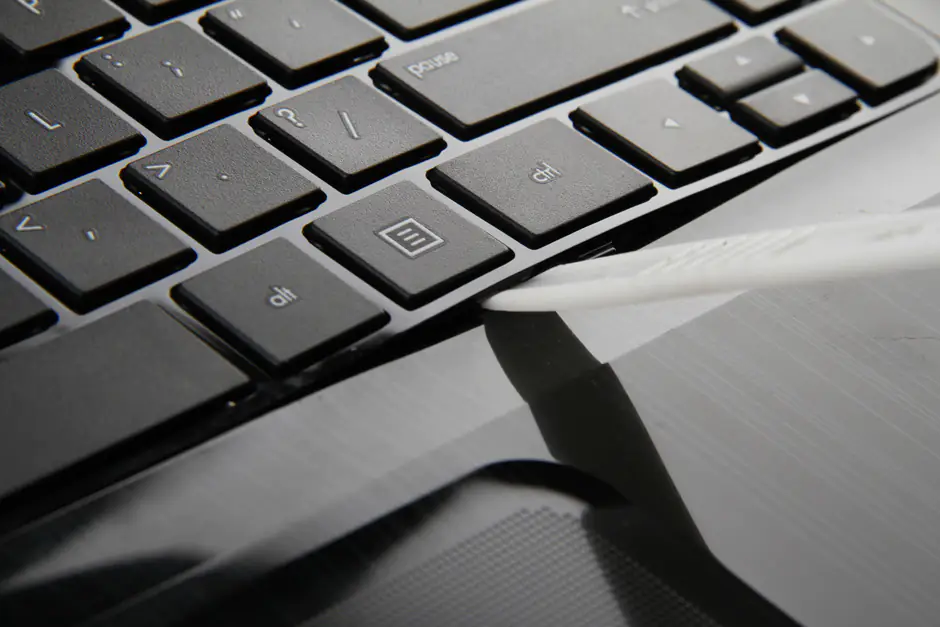

Insert a plastic pry tool under the keyboard and slowly pry it open. Please note that there are clips securing the keyboard to the palm rest; you must release these clips to remove the keyboard.
Remove the keyboard

Disconnect the keyboard cable from the motherboard.

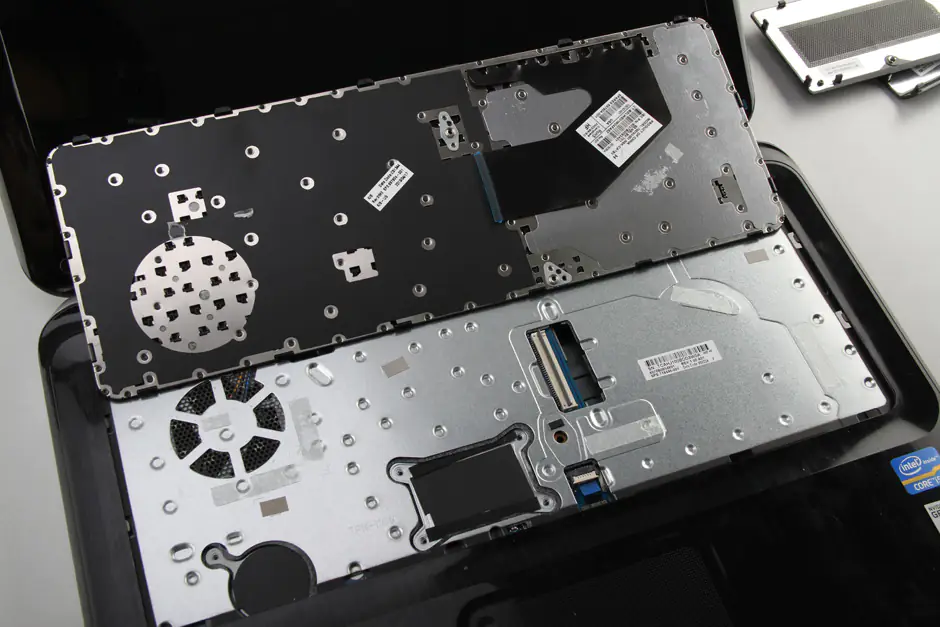

Disconnect the keyboard cable

HP Pavilion M4 keyboard

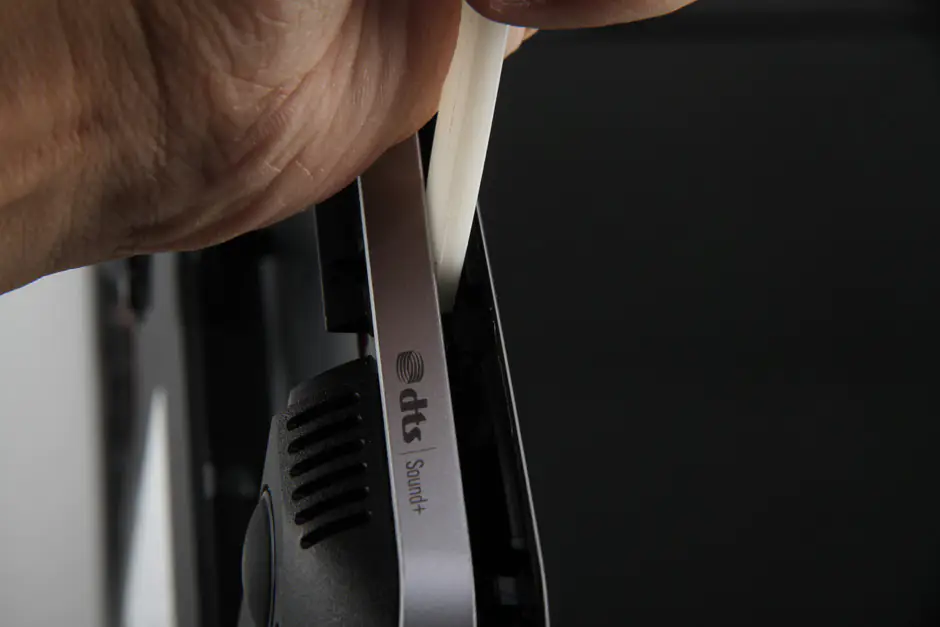

Insert a plastic pry tool under the palm rest and wiggle it to separate the palm rest from the laptop. There are several clips on the palm rest that need to be released in order to remove it from the laptop.
Remove the palm rest

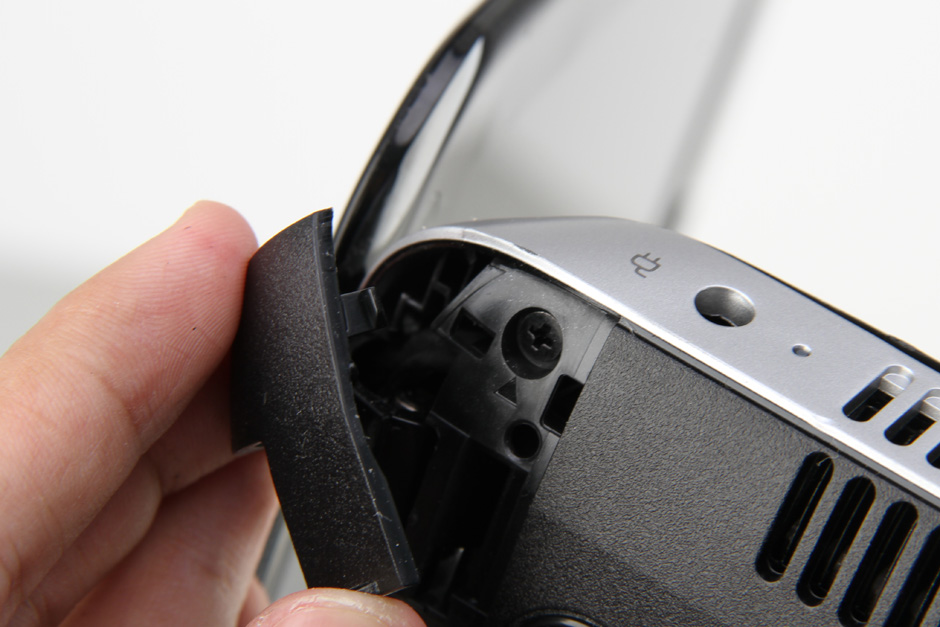

Remove the screw under the LCD hinge cover.
Remove the LCD hinge cover

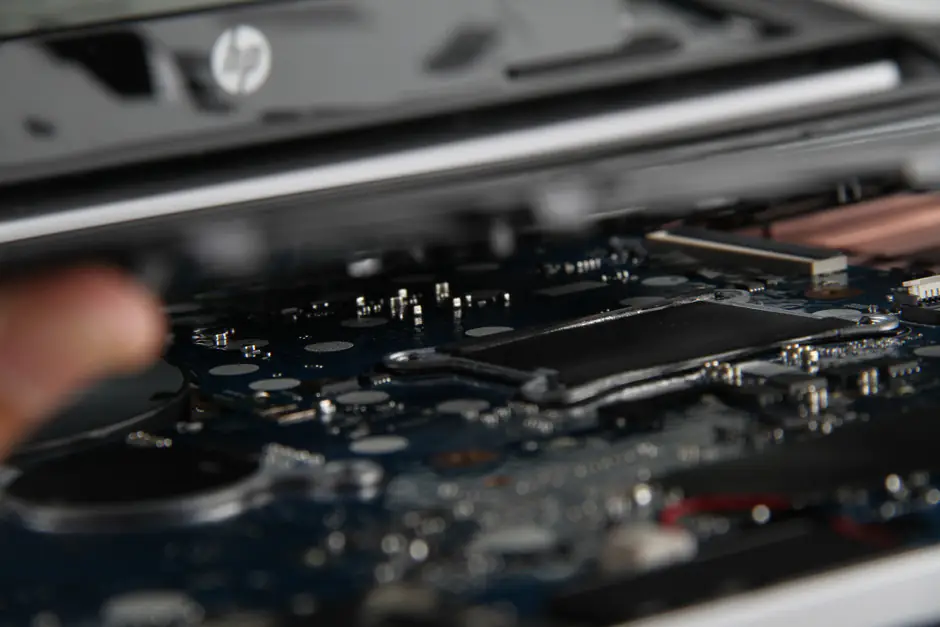

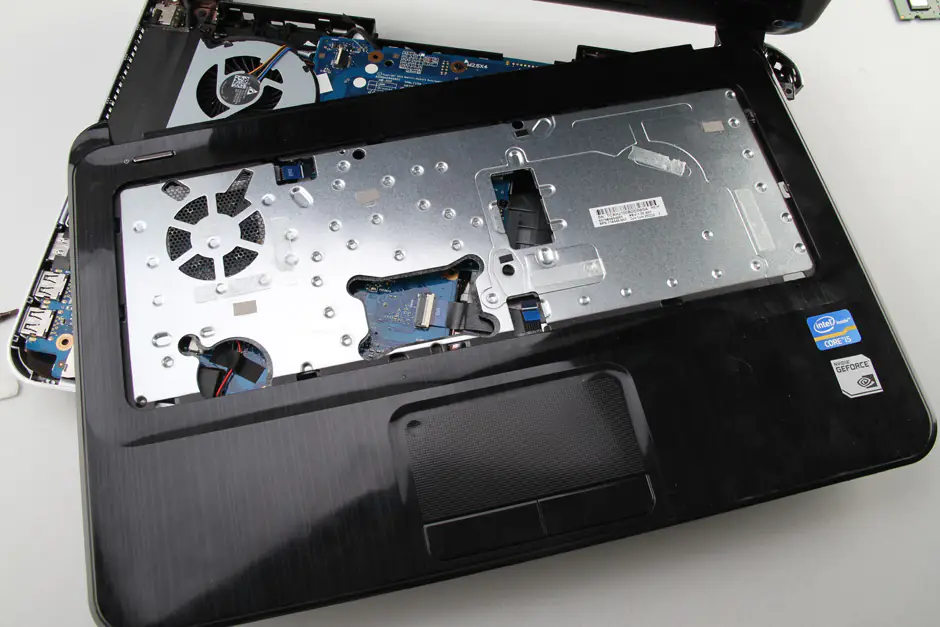

Turn the laptop over, pry it open, and lift the palm rest.

Close-up of the palm rest

When the palm rest is removed, you can access the heat sink, cooling fan, USB board, speakers, and motherboard.

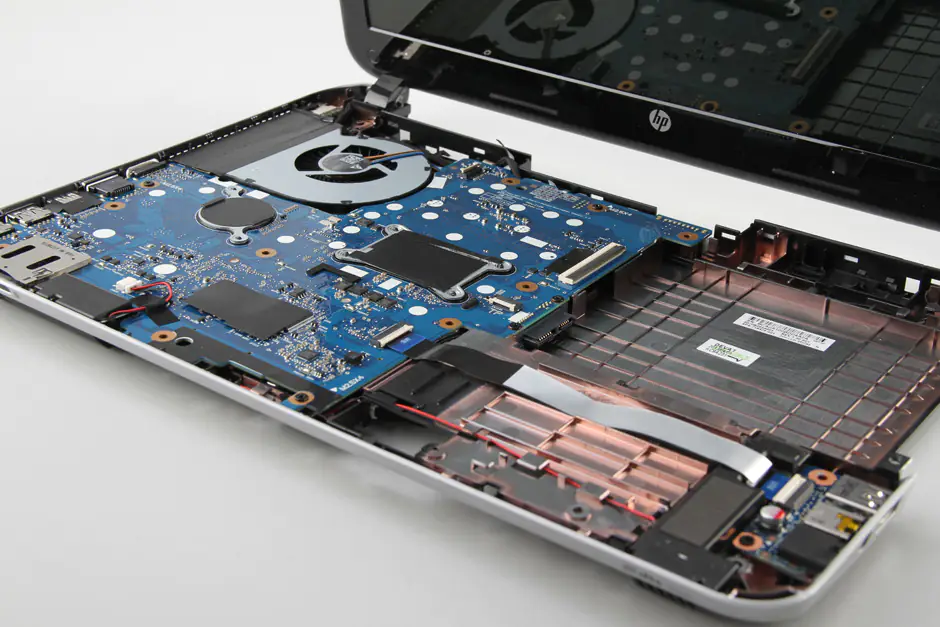

Close-up of the laptop after removing the palm rest

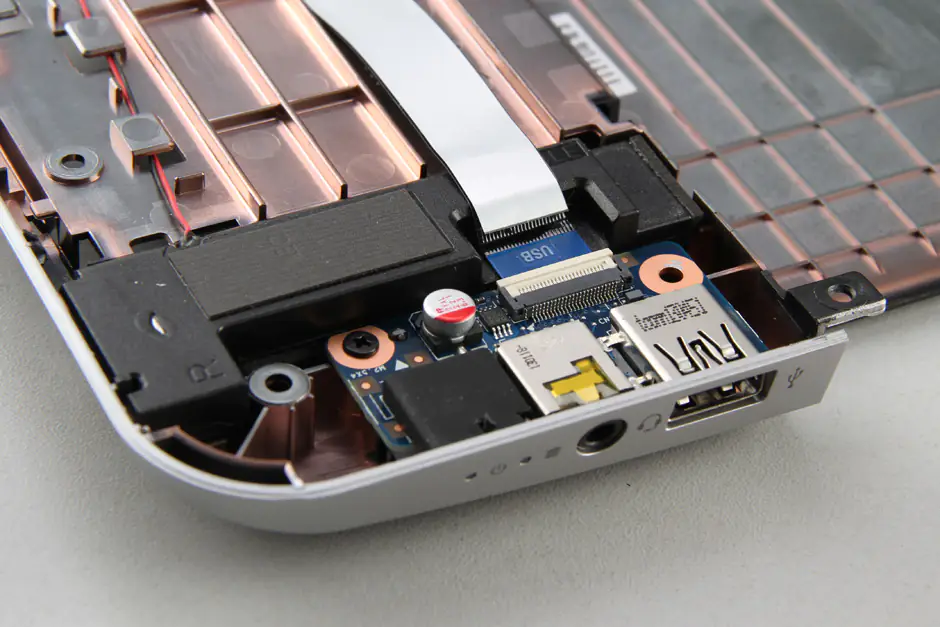

The USB board is connected to the motherboard via a data cable.
USB board

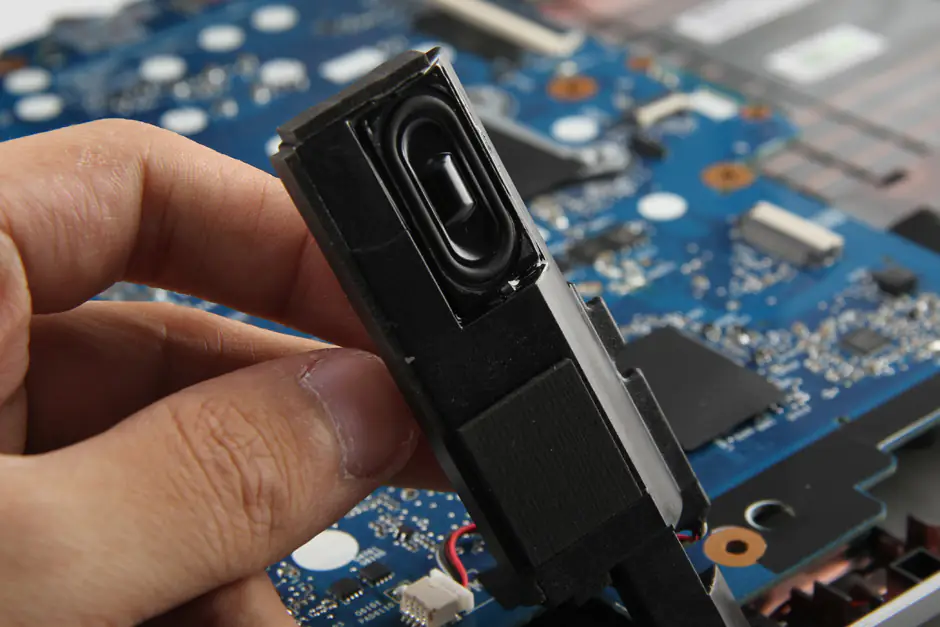

Speaker modules
Speaker

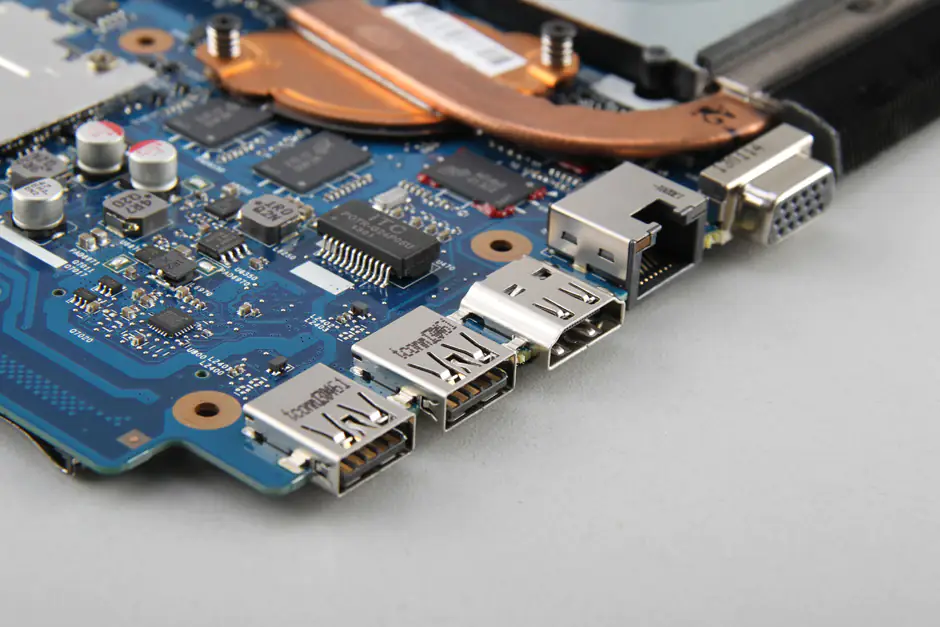

Close-up of the ports on the motherboard
Ports

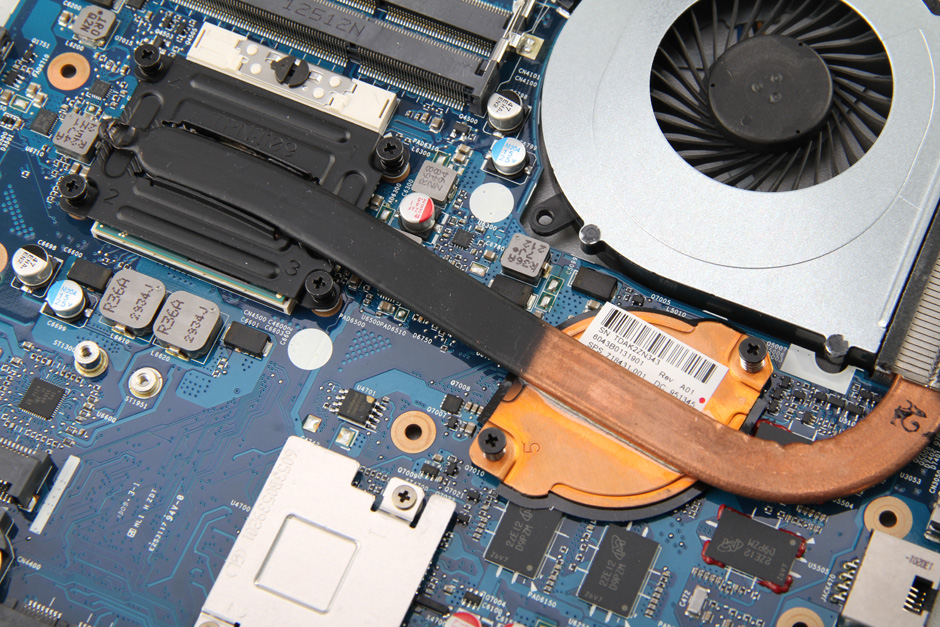

Remove the six screws securing the heat sink and disconnect the fan cable. You can remove the heat sink.
Cooling system

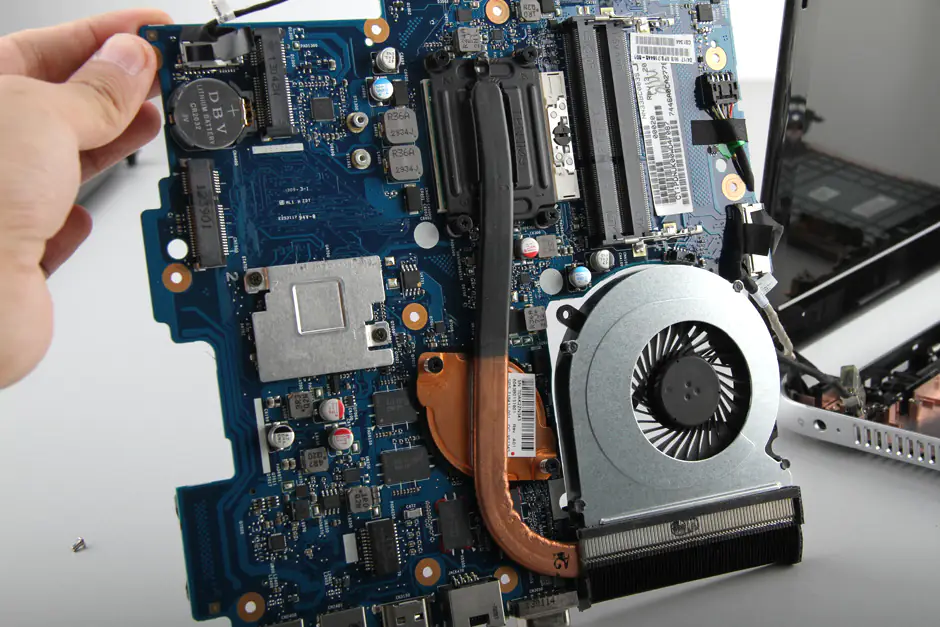

HP Pavilion M4 motherboard
Motherboard

LCD hinges

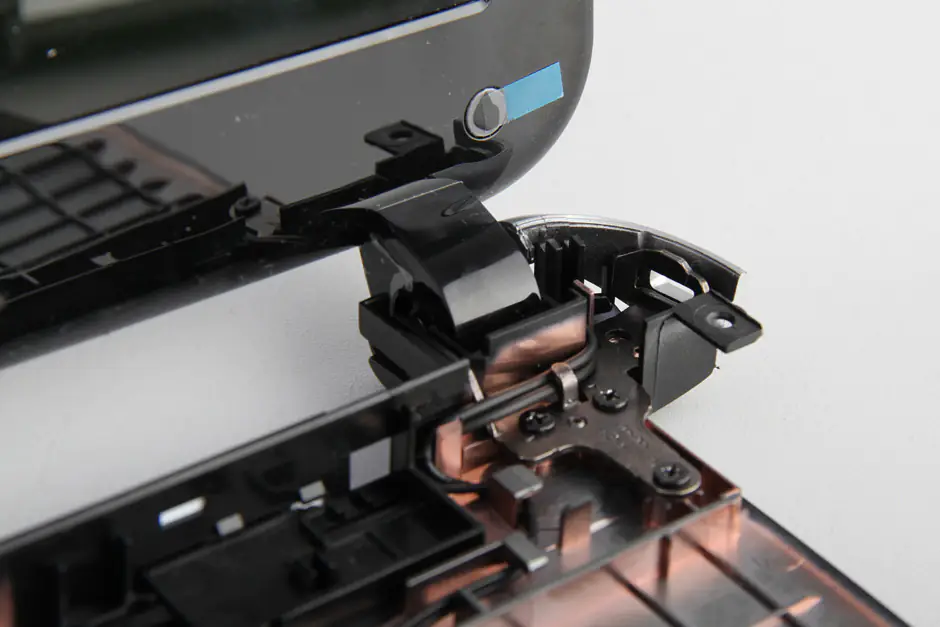

Display hinge

HP Pavilion M4 internal parts

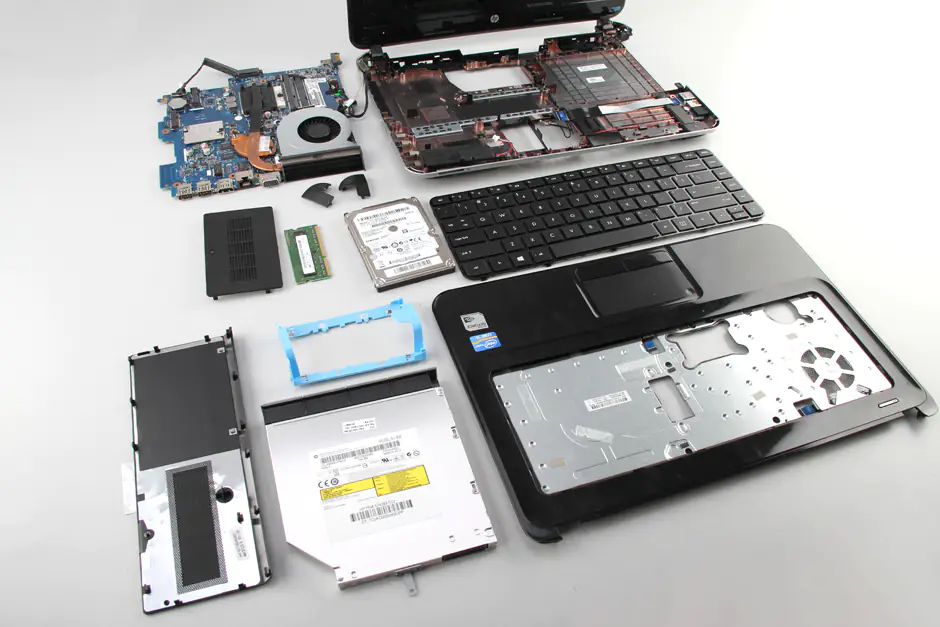

Internal parts
