Toshiba Satellite M40t-A Disassembly

In this guide, I will explain how to disassemble the Toshiba Satellite M40t-A to remove the battery, hard drive, RAM, palm rest, wireless network card, speakers, cooling fan, bottom case, and motherboard.

Want to be the first to see the latest smartphone and laptop inside? Follow us on Facebook for the latest teardown news.

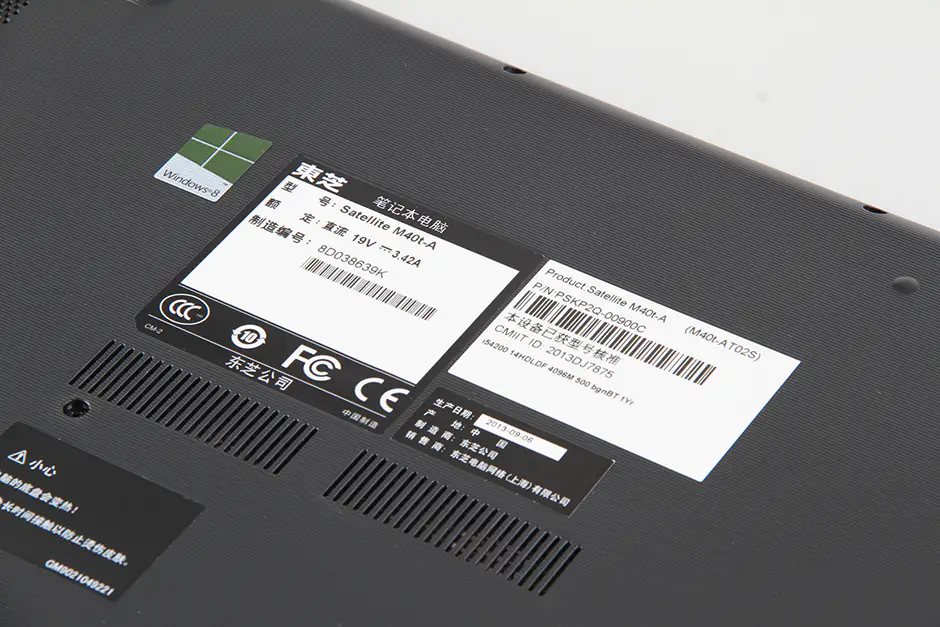

The sticker on the bottom cover indicates the laptop model is Satellite M40t-A T02s, and the Toshiba part number is PSKP2Q-00900C.
Toshiba Satellite M40t-A

Remove all screws from the bottom case.

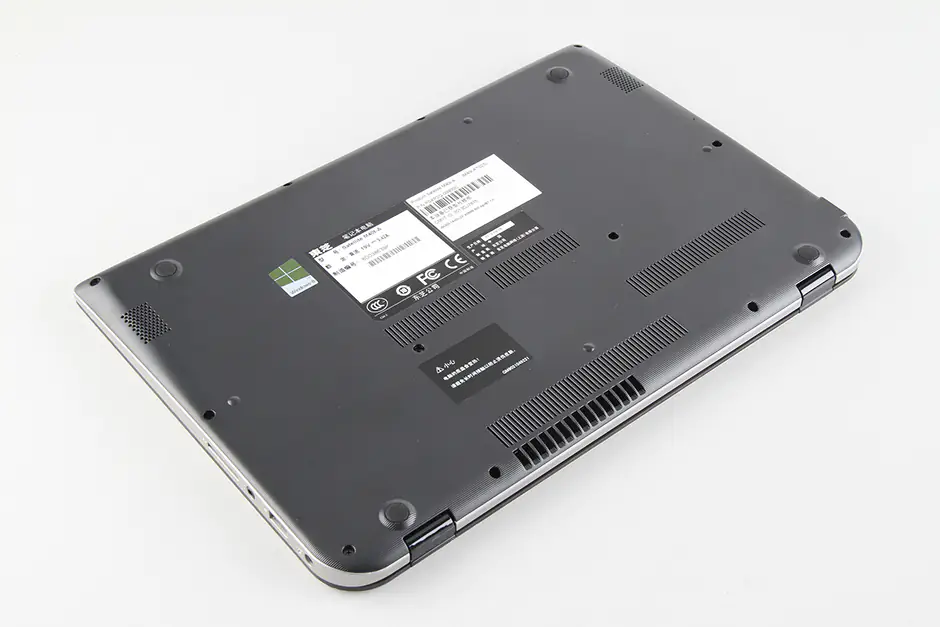

Remove all screws

Insert a pry tool between the bottom cover and palm rest. Carefully slide the pry tool to separate the bottom cover from the laptop. Please note that the bottom cover has some clips to secure it to the palm rest; take care not to damage these clips.

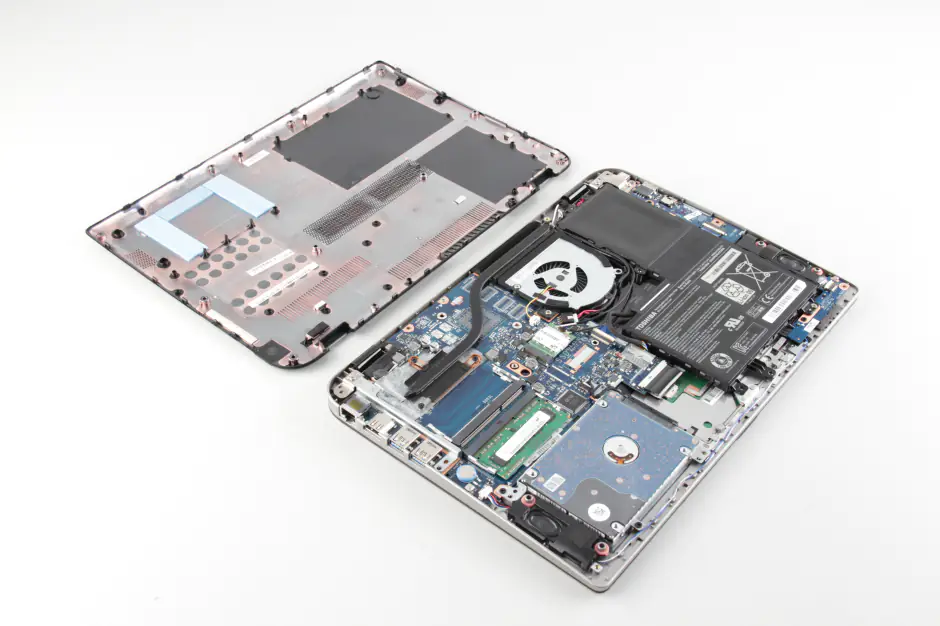

Remove the bottom cover

When the bottom case is removed, you can get access to the battery, heat sink, cooling fan, memory, wireless card, speakers, USB board, and motherboard.

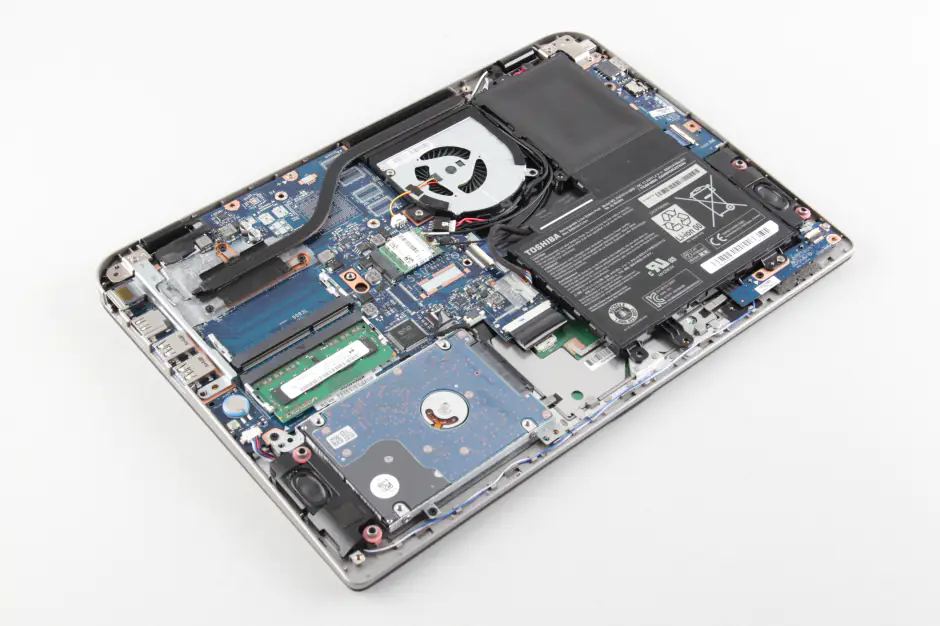

Close-up of the laptop after removing the bottom cover

Remove all screws securing the battery.
Disconnect the battery connector from the motherboard. You can remove the battery.

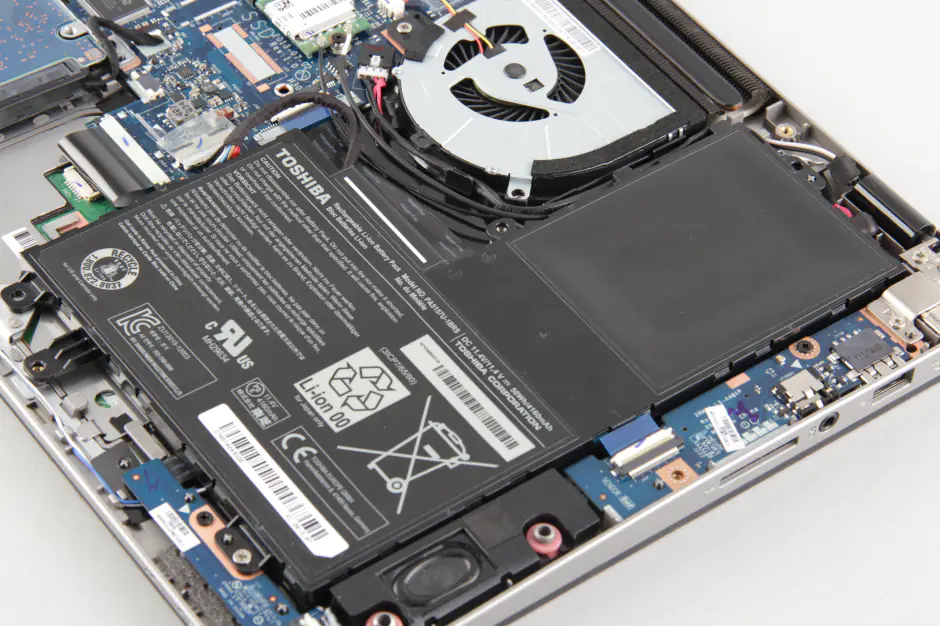

Remove the battery

Toshiba Satellite M40t-A battery

The laptop comes with a 4160mAh Li-ion battery, Toshiba P/N: PA5157U-1BRS.

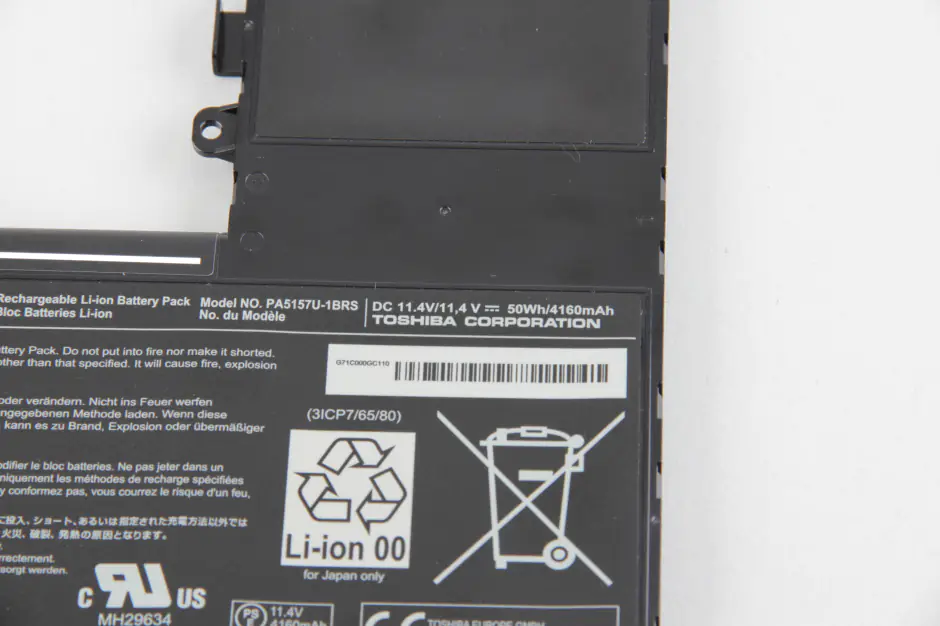

PA5157U-1BRS

Remove the two screws securing the hard drive.

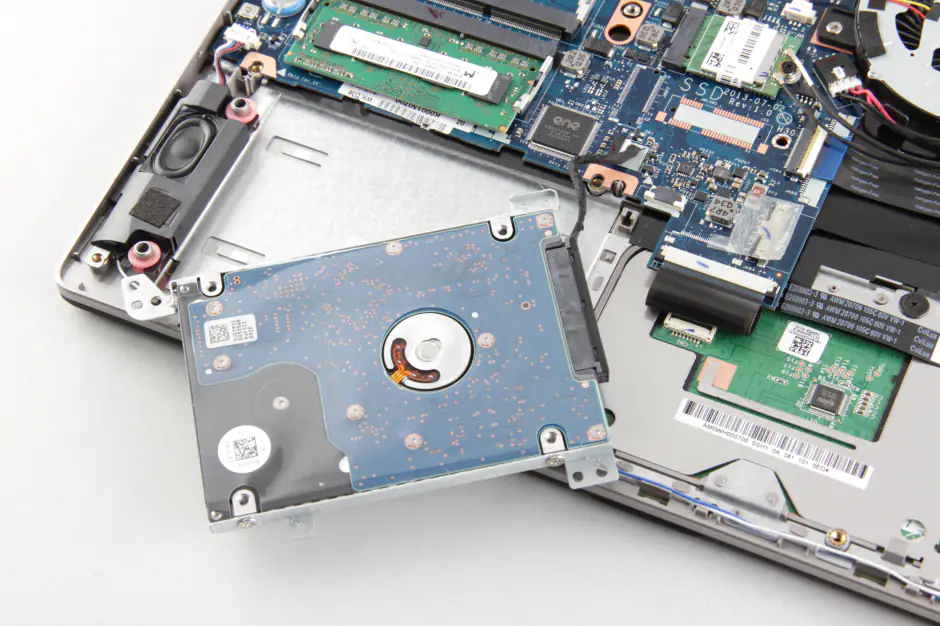

Disconnect the SATA cable from the motherboard. You can remove the hard drive.
Remove the hard drive

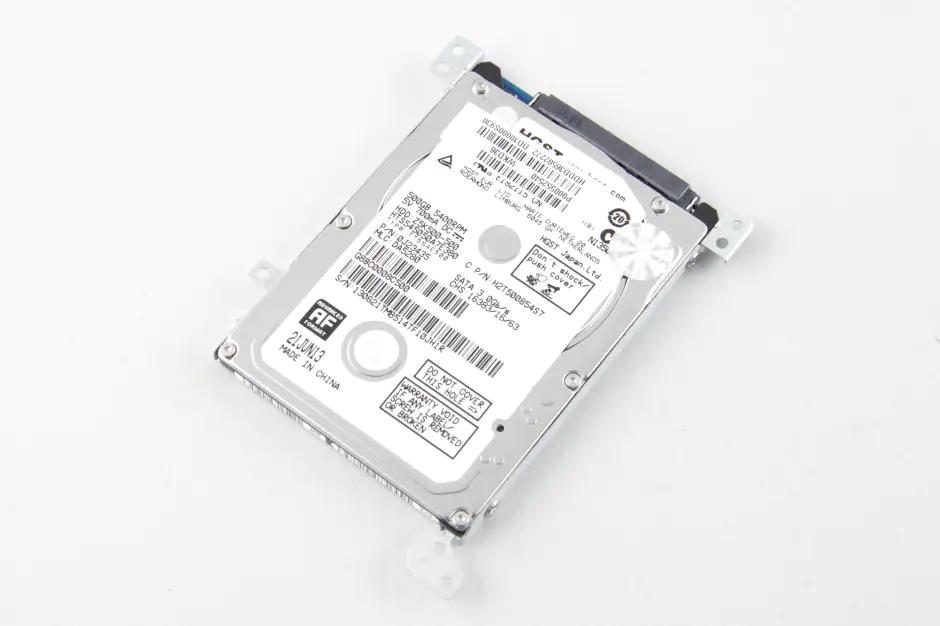

The Toshiba Satellite M40t-A comes with a 500GB 5400 RPM hard drive.
Hard drive

Use your fingernail to gently separate the clips on both sides, and the memory module will pop out automatically.
This laptop has two memory slots, but only one memory module is installed, so you can add another memory module.

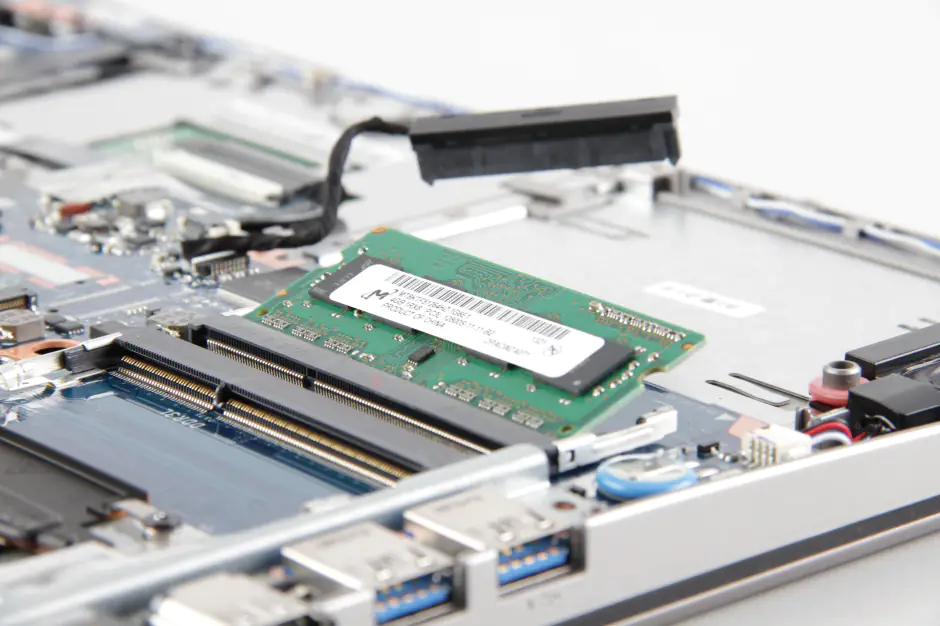

Remove the memory module

The M40t-A laptop comes with a Micron 4GB DDR3L-1600MHz memory module.

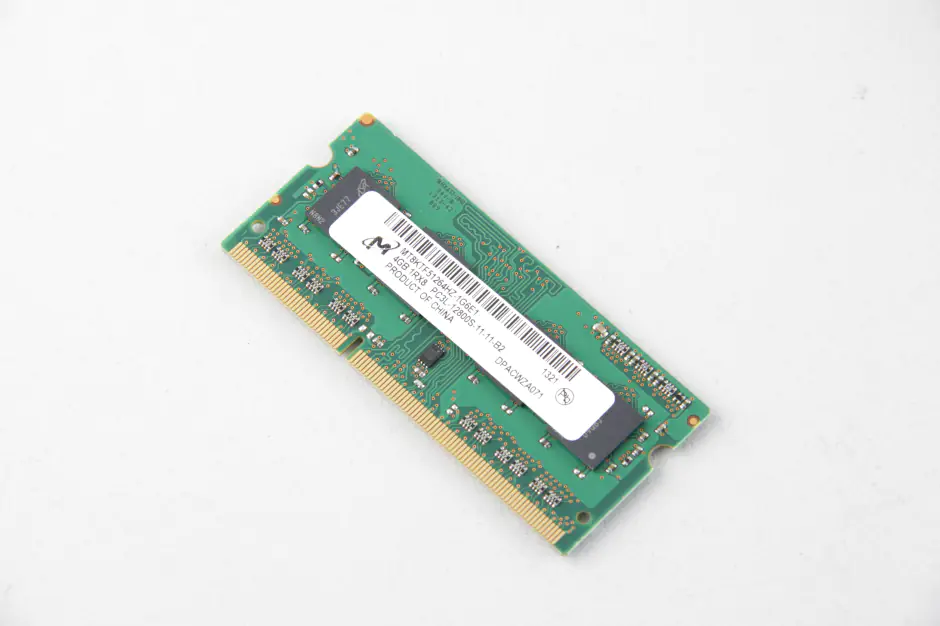

Micron 4GB DDR3L-1600MHz memory module

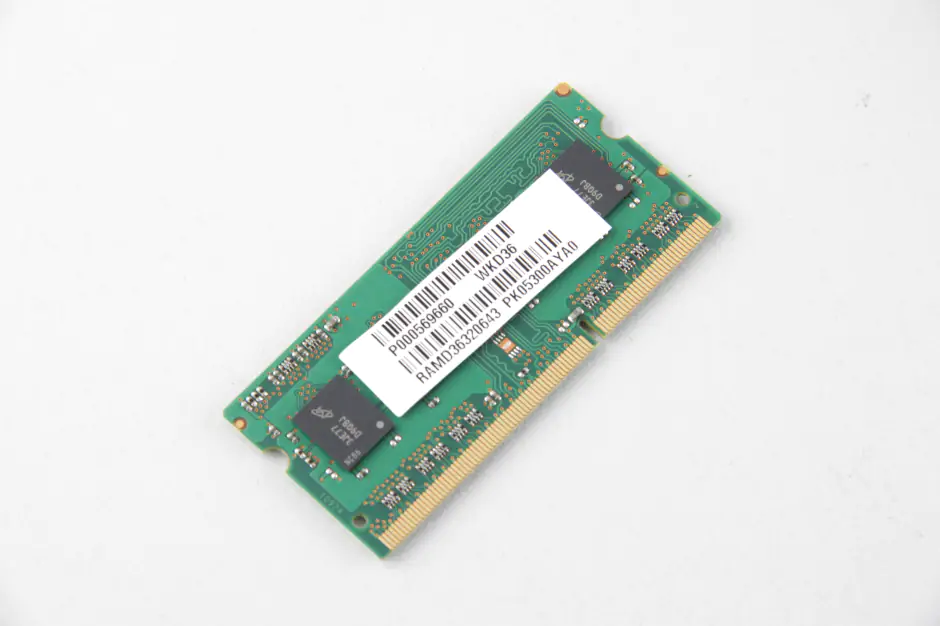

Toshiba P/N: P000569660.
P000569660

Remove the screw securing the wireless card.

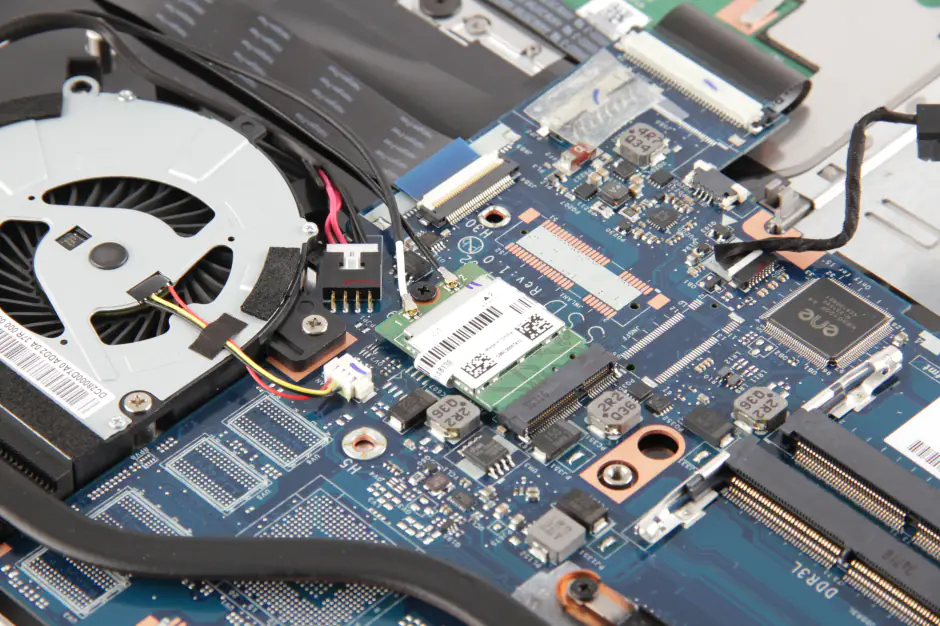

Unplug two antenna cables and remove the wireless card.

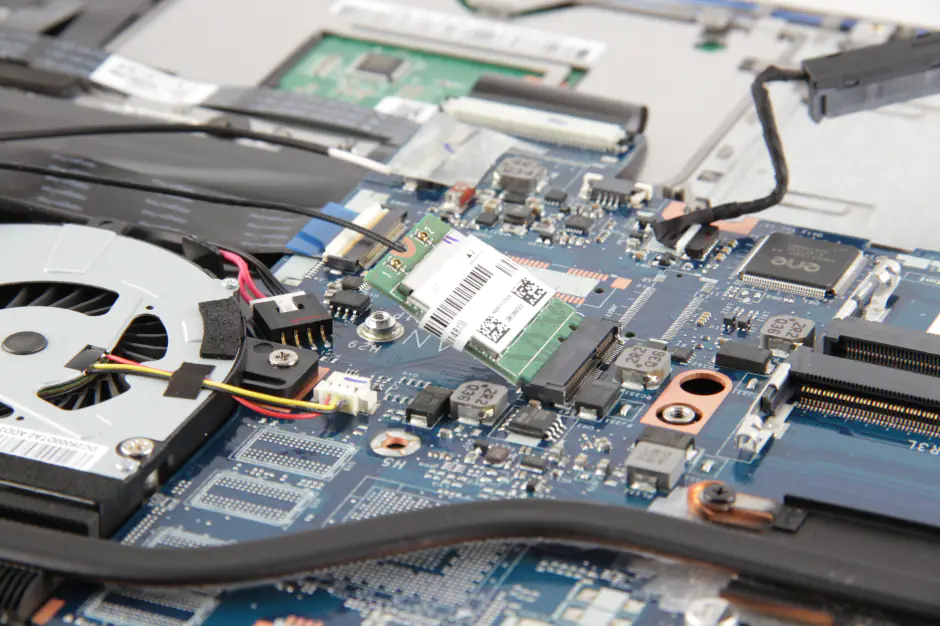

Remove the wireless card

Remove the wireless card.
Wireless card

Wireless card

Remove the two screws securing the cooling fan.
Disconnect the fan cable from the motherboard. You can remove the cooling fan.
Remove the CPU fan

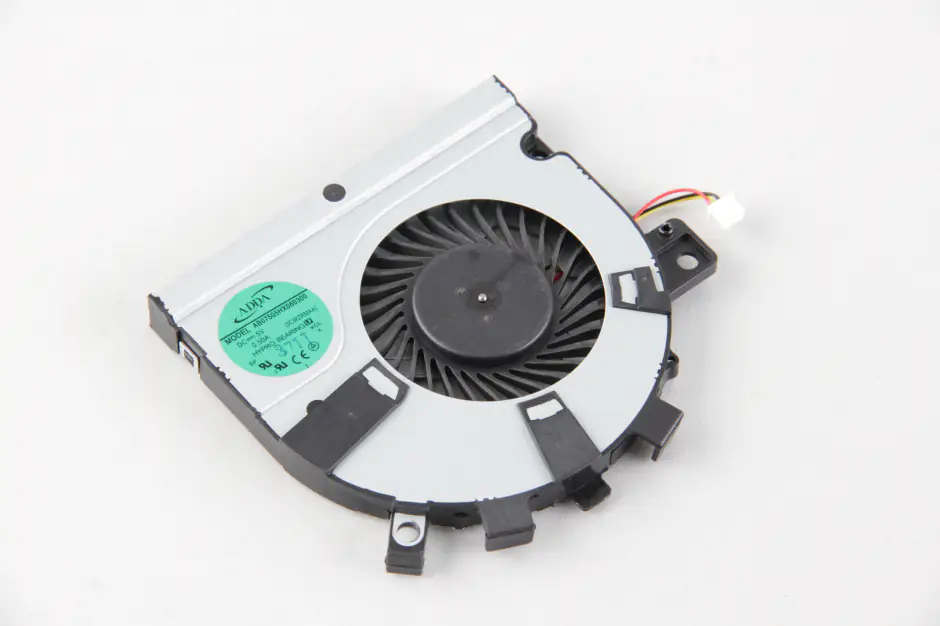

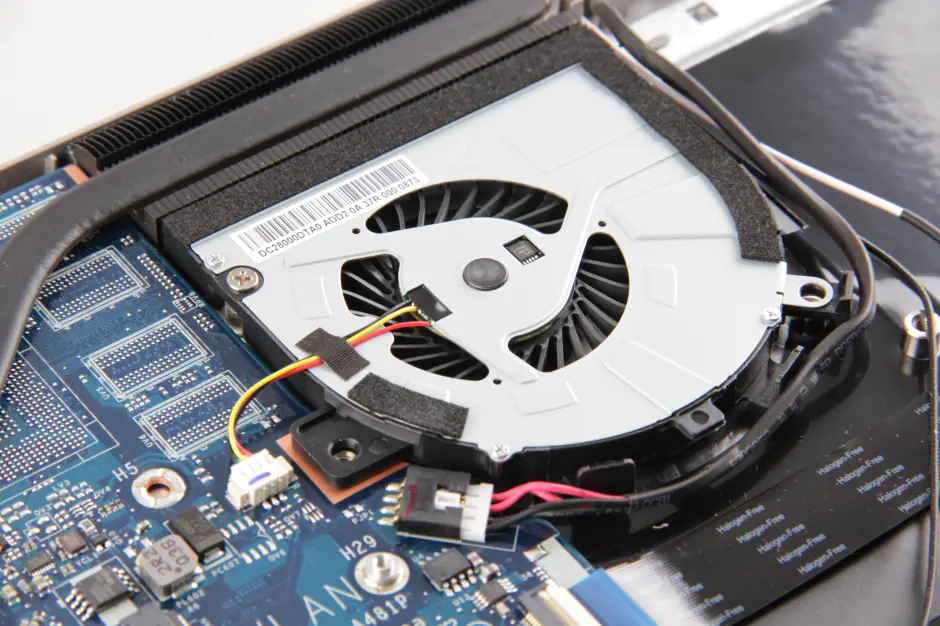

Close-up of the Toshiba Satellite M40t-A cooling fan, OEM by ADDA
CPU fan

Remove the three screws securing the heat sink.

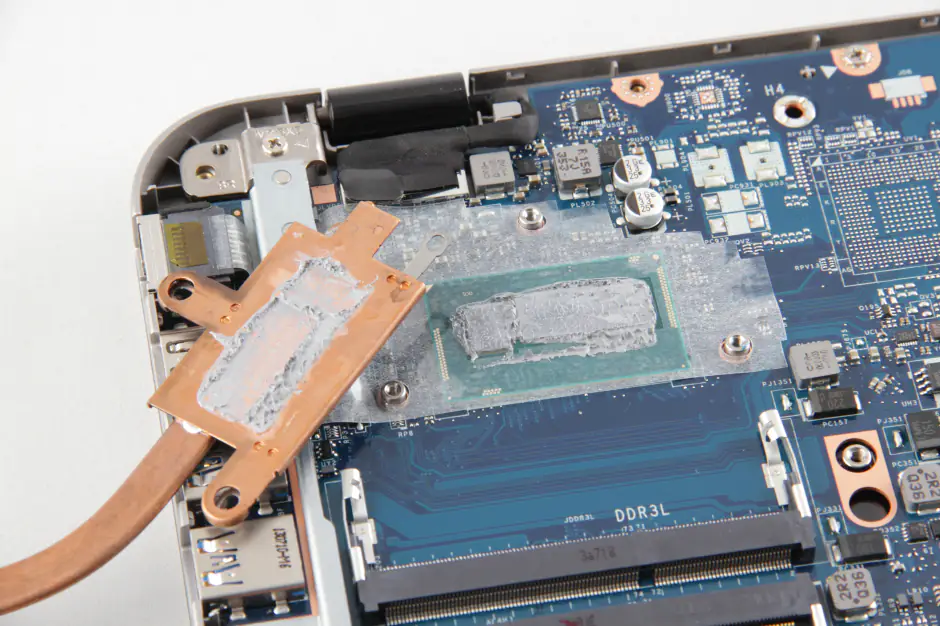

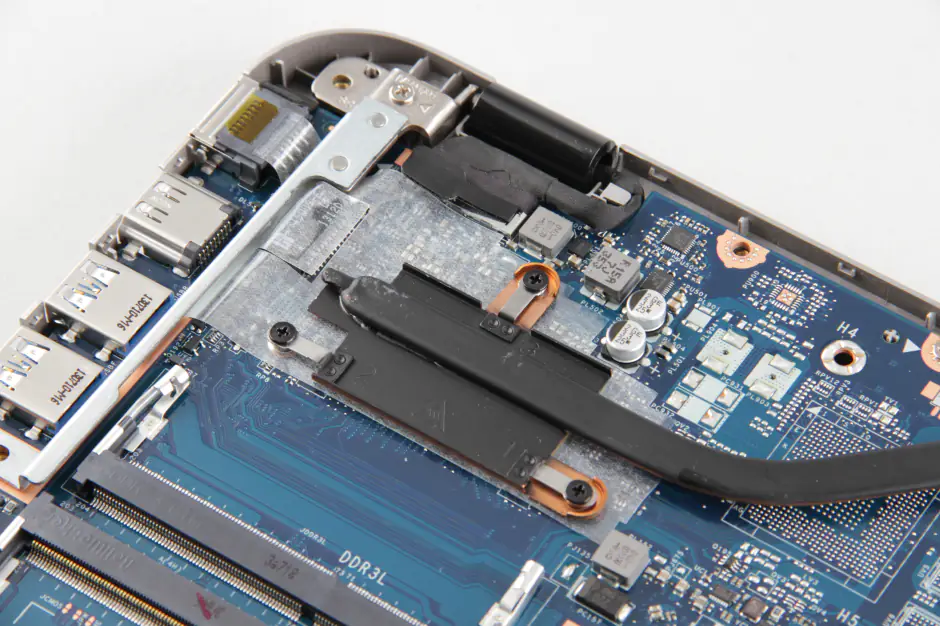

Remove the heat sink

Remove the heat sink.

Toshiba Satellite M40t-A heat sink
Heat sink

Disconnect all ribbon cables connected to the motherboard.
Remove the motherboard

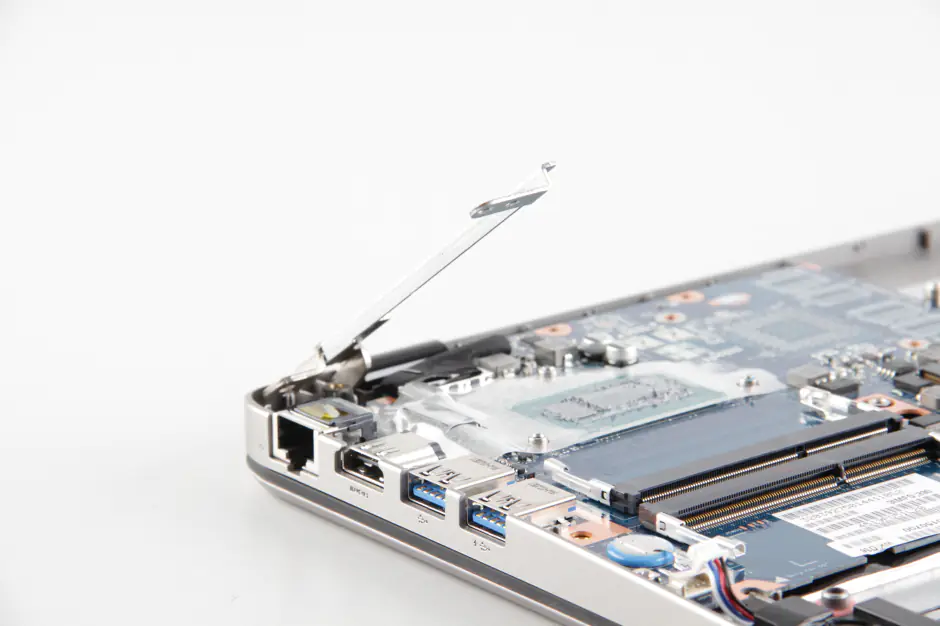

Lift up the LCD hinges. Remove all screws securing the motherboard.

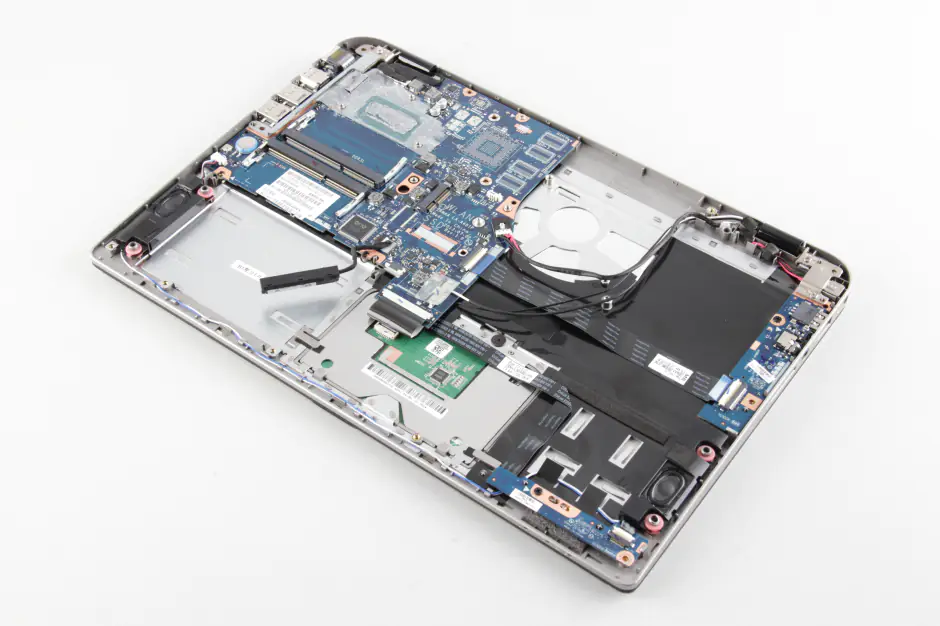

Remove the motherboard

The processor in the Toshiba Satellite M40t-A is soldered onto the motherboard, so it cannot be upgraded.

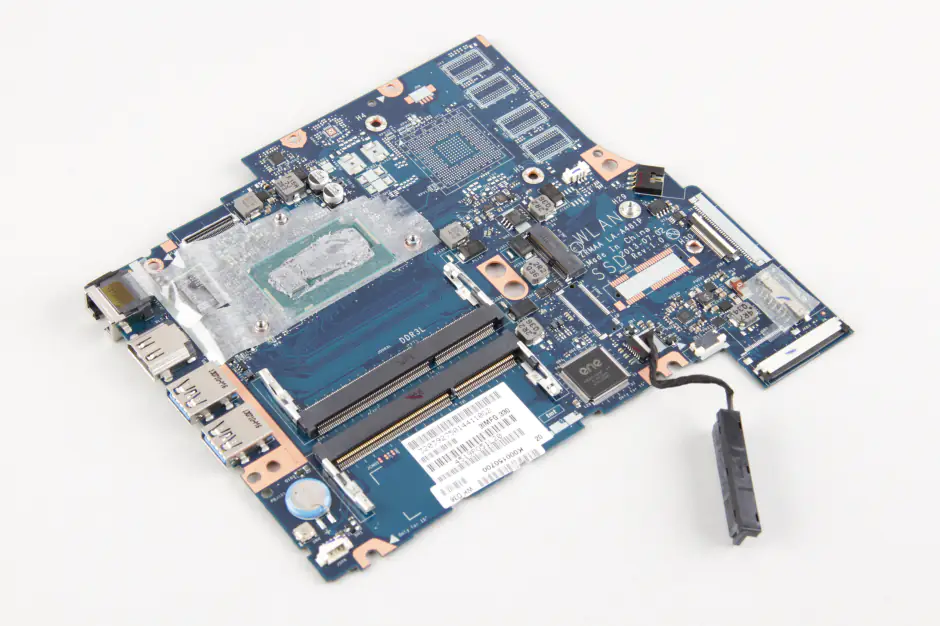

Motherboard

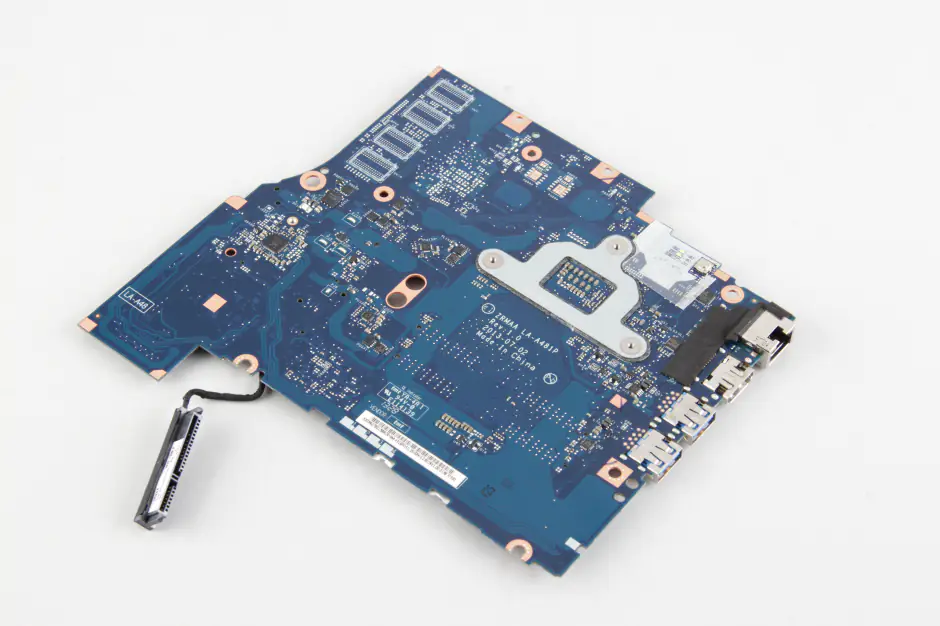

The back of the motherboard

When the motherboard is removed, you can get access to the keyboard and touchpad.

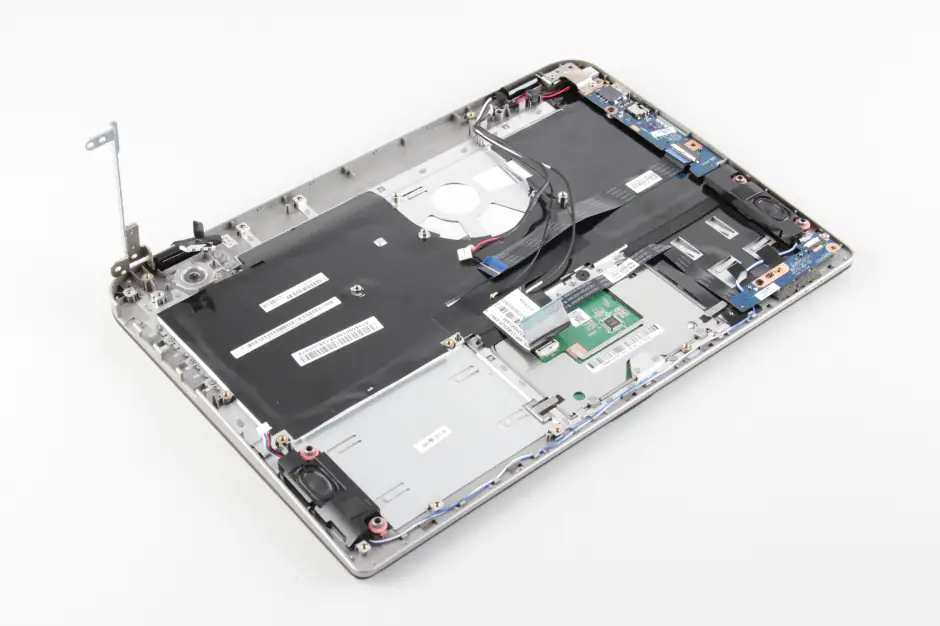

Keyboard and touchpad

Speaker module

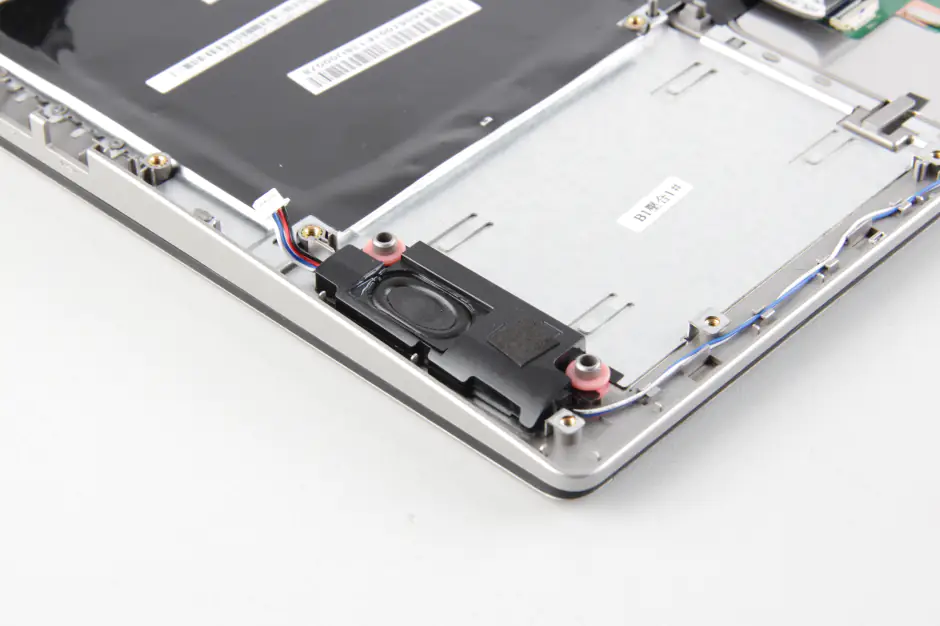

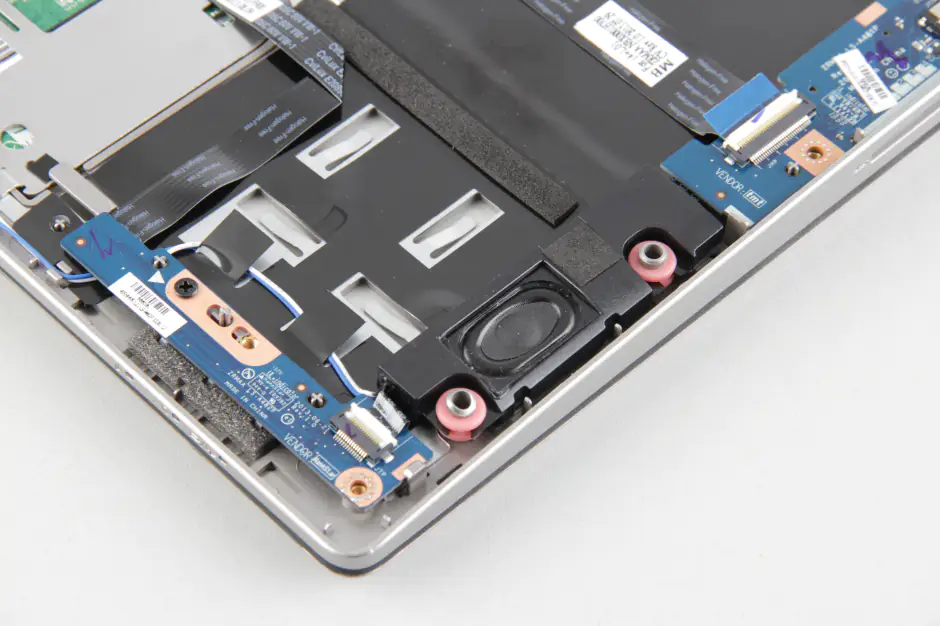

Speaker

Speaker

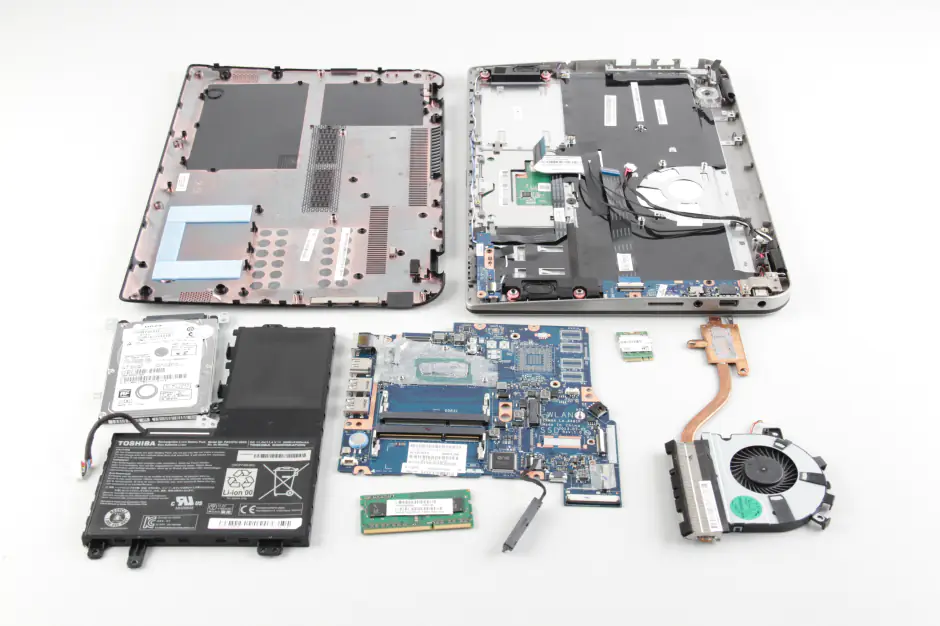

Toshiba Satellite M40t-A internal parts
Internal parts
