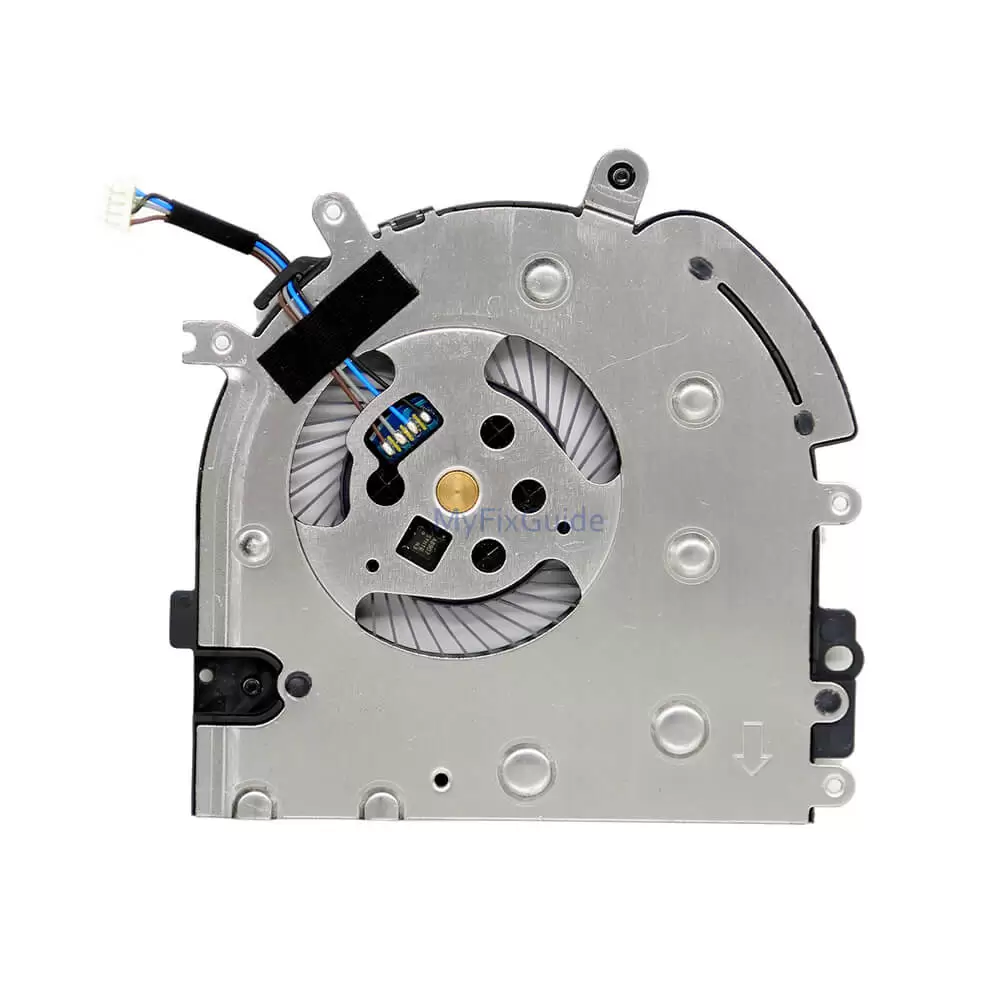

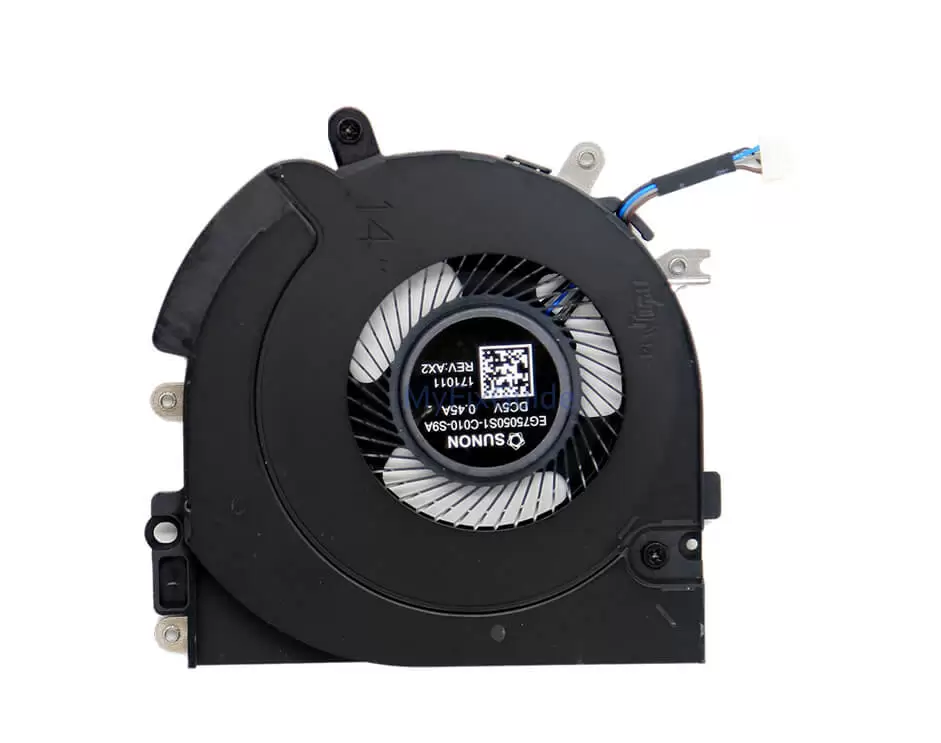

It is a brand new, genuine CPU Fan for HP EliteBook 840 G5, EliteBook 745 G5, and ZBook 14u G5 with the part number L22306-001. This fan is manufactured by SUNON and in brand new condition.
1. it is a cooling fan only, the heatsink is not included.
2. The CPU fan has four wires that connect to the motherboard.
3. There are two screws attached to the fan.
EliteBook 840 G5
EliteBook 745 G5
ZBook 14u G5
Condition: Original, brand new
Warranty: One (1) Year
1. To replace the fan, please shut down your laptop and remove all the screws securing the bottom cover. Using a plastic tool pry the bottom cover up to remove it
2. Disconnect the battery connector from the motherboard.
3. Remove the two Phillips screws that secure the keyboard to the laptop, Lift up the keyboard and disconnect the keyboard cable from the motherboard.
4. Now remove the five Phillips screws that secure the fan to the laptop. Close the laptop and position it upside down. Disconnect the fan cable from the system board and Loosen the two Phillips screws that secure the fan to the laptop
5. Now you can take out the fan.
