Original Touchscreen for Pavilion 15-cw0055nr 15-cw0075nr 15-cw0088nr – L29687-001 L29684-001

$199.95

1 review

Ask A Question

Out of stock

Guaranteed Safe Checkout

trust symbols

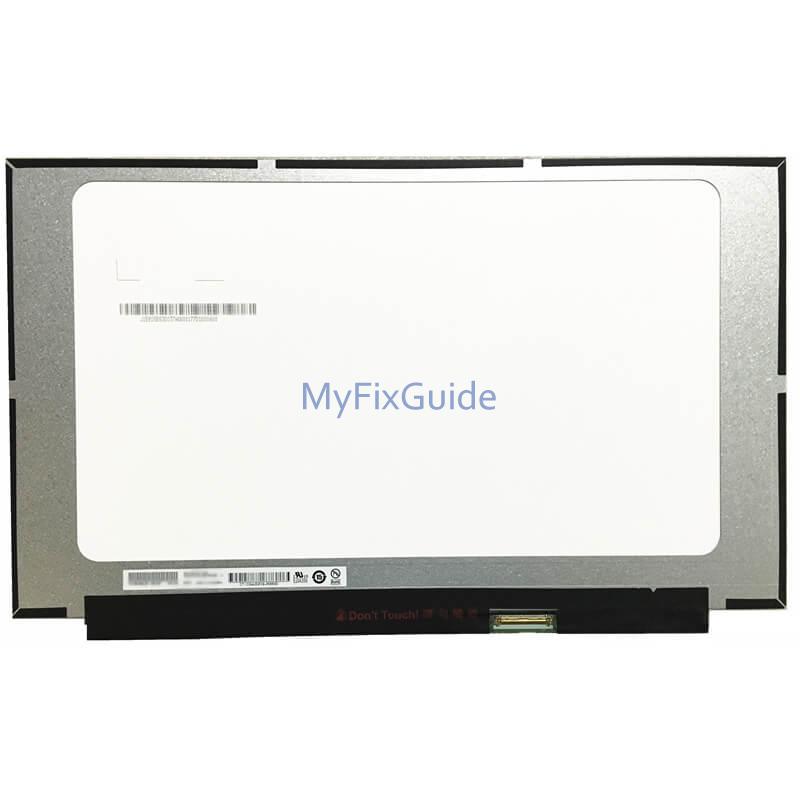

This is an original, brand new touchscreen for HP Pavilion 15-cw series laptop with a part number of L29687-001 or L29684-001. The L29687-001 with with a resolution of 1366X768 and the L29684-001 with a resolution of 1920X1080, it compatible with HP Pavilion 15-cw0007ca, 15-cw0017ca, 15-cw0027ca, 15-cw0055nr, 15-cw0064cl, 15-cw0075nr, 15-cw0085nr, 15-cw0088nr laptop.

Note:
1. This is a brand new, original screen with Touch on cell.
2. Please choose the correct resolution in the options area. Click here to learn how to check your screen resolution.

Part Number:
L29687-001, L29684-001

Specifications:
Size: 15.6-inch Touchscreen
Resolution: FHD (1920×1080) or HD (1366X768)
Surface Type: Glossy
Backlight type: LED
Connector: 40 pin
Condition: Original, Brand New, No dead pixel
Warranty: One (1) Year

Compatible laptop:
Pavilion 15-cw0007ca
Pavilion 15-cw0010ca
Pavilion 15-cw0017ca
Pavilion 15-cw0020ca
Pavilion 15-cw0027ca
Pavilion 15-cw0030ca
Pavilion 15-cw0040ca
Pavilion 15-cw0055nr
Pavilion 15-cw0060ca
Pavilion 15-cw0061nr
Pavilion 15-cw0062nr
Pavilion 15-cw0064cl
Pavilion 15-cw0075nr
Pavilion 15-cw0085nr
Pavilion 15-cw0088nr
Pavilion 15-cw0097ca
Pavilion 15-cw1015cl
Pavilion 15-cw1085nr
and more

Original Description
L29684-001 FHD, BrightView, UWVA, touch screen
L29687-001 HD, BrightView, touch

Note
1. Before you start to replace the screen, please remove the bottom cover and disconnect the battery connector from the motherboard.
2. If you don’t have experience in replacing laptop parts, please take your laptop to the repair shop to replace the screen.
3. With the battery connector is unplugged, insert your fingers and the LCD bezel and release the top edge, left edge, right edge and bottom edge of the LCD bezel from the screen.
4. Disconnect the cable from the camera module. And then swing the top edge of the touchscreen up and forward until it rests upside down on the keyboard.
5. Release the adhesive strip that secures the LCD cable connector to the screen. Now, you can remove the screen from your laptop.
6. When you reconnect the LCD cable to the LCD screen, please use a new transparent tape to fix the LCD cable connector to prevent it from loosening.

Additional information
Weight 1 kg
Options

L29684-001 1920X1080, L29687-001 1366X768

1 review
  1. Colin

    I ordered an L29687-001 screen for my Pavilion 15-cw0061nr. Came very quickly, packaged nicely with a very strong box! Worked a treat and it’s given my laptop a new lease of life. Really pleased. Would definitely use it again. Thank You!
