HP EliteBook Folio 9470m Disassembly

In this guide, I will explain how to disassemble the HP EliteBook Folio 9470m to remove the battery, wireless card, RAM, hard drive, cooling fan, and motherboard.

Want to stay connected to MyFixGuide.com? Follow us on Facebook to check out the latest teardowns.

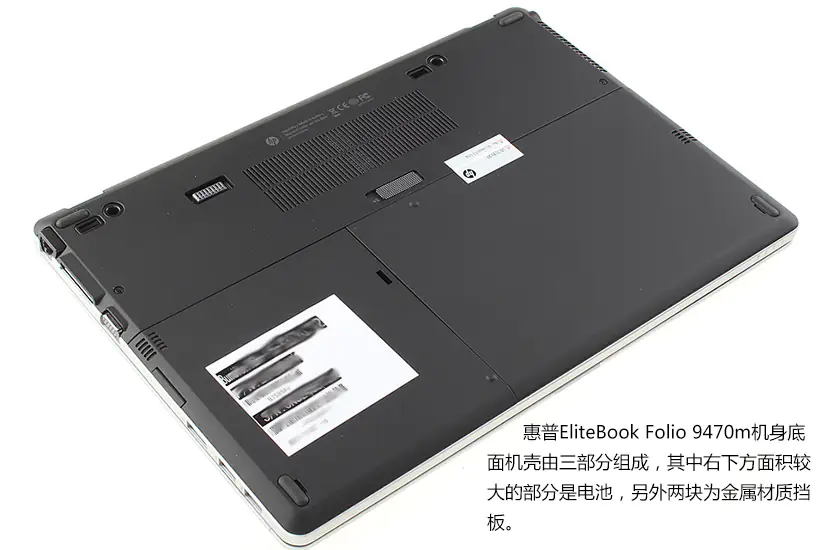

Remove the screws securing the back cover. Unlock and remove the battery.
Remove the battery

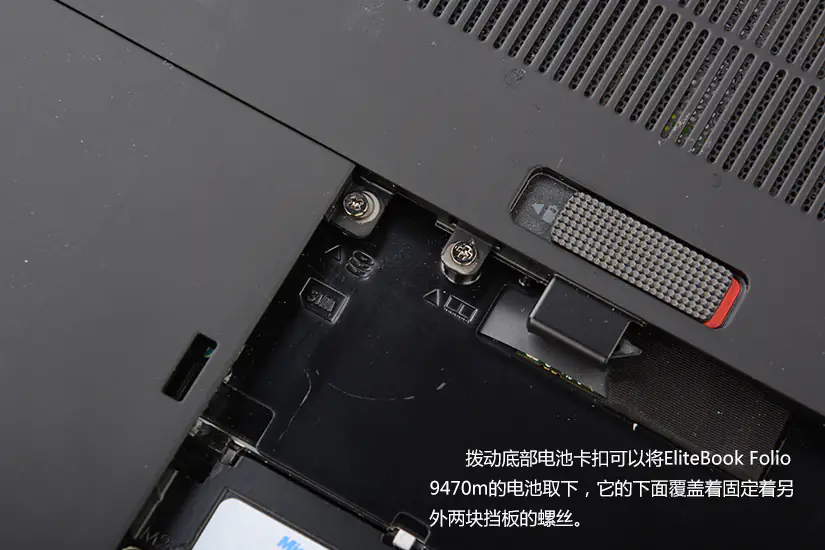

In the battery bay, you can find two screws.
Remove the two screws.
Remove the two screws

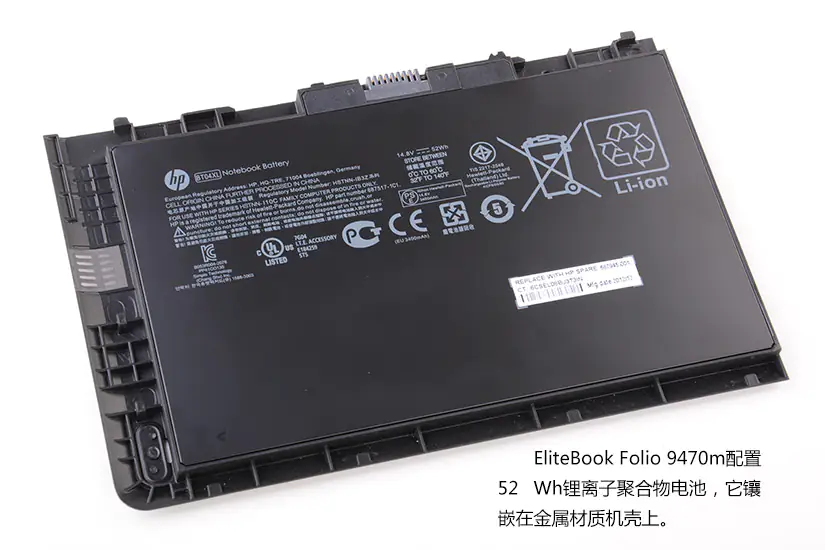

The laptop comes with a 52Wh Li-polymer battery, which is encased in a metal shell.
Battery

Remove the other two covers. Insert a plastic pry tool under the bottom cover and slide it to separate the cover from the laptop.

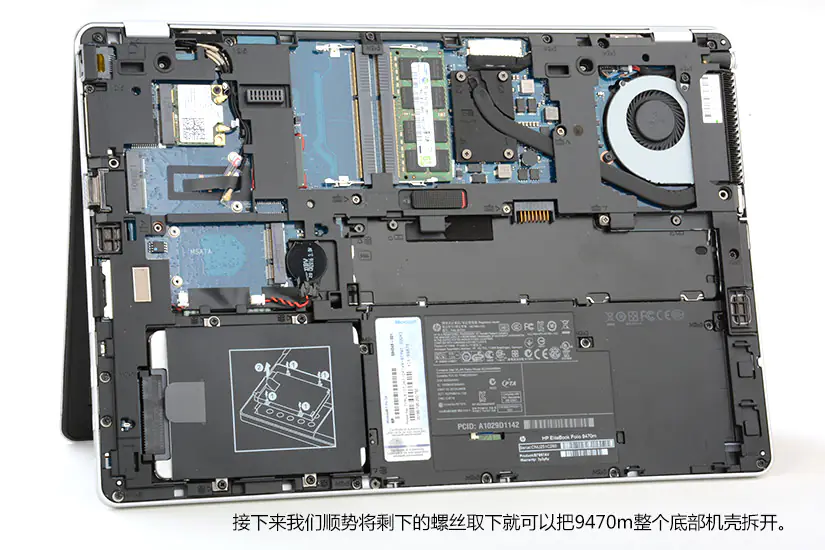

There are several clips on the bottom cover that secure it to the laptop. You need to unlock all clips to remove the bottom cover. After removing the cover, you can access the hard drive, RAM, and wireless card.
Internal Structure

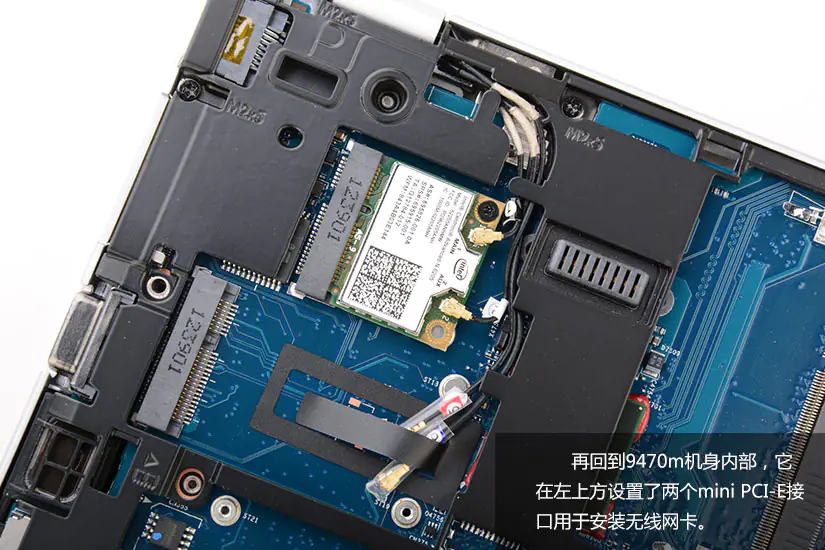

The HP EliteBook Folio 9470m has two mini PCI-E ports. You can install another wireless card.
Disconnect the two antenna cables and remove the screw. You can remove the wireless card.
Remove the wireless card

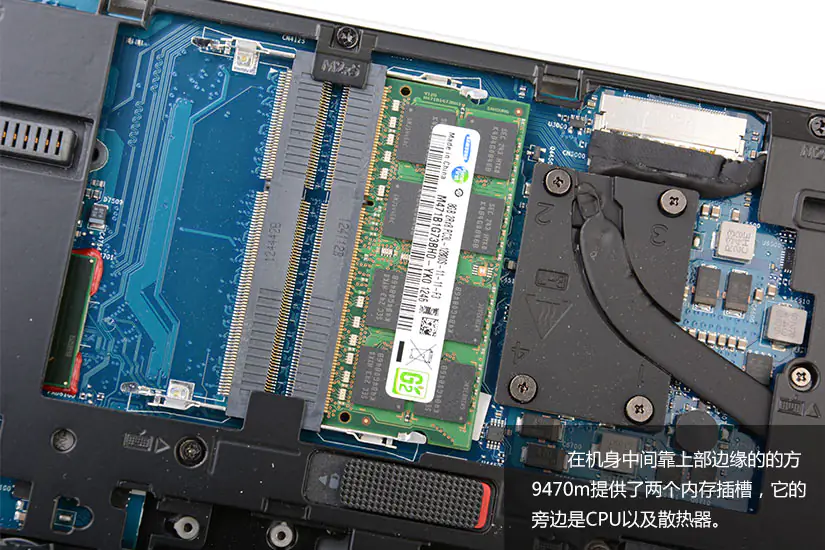

The laptop has two memory slots, but only one memory stick is installed. Therefore, you can install another memory stick to upgrade the memory.
Memory slots

Remove all screws securing the black frame and remove the black frame.

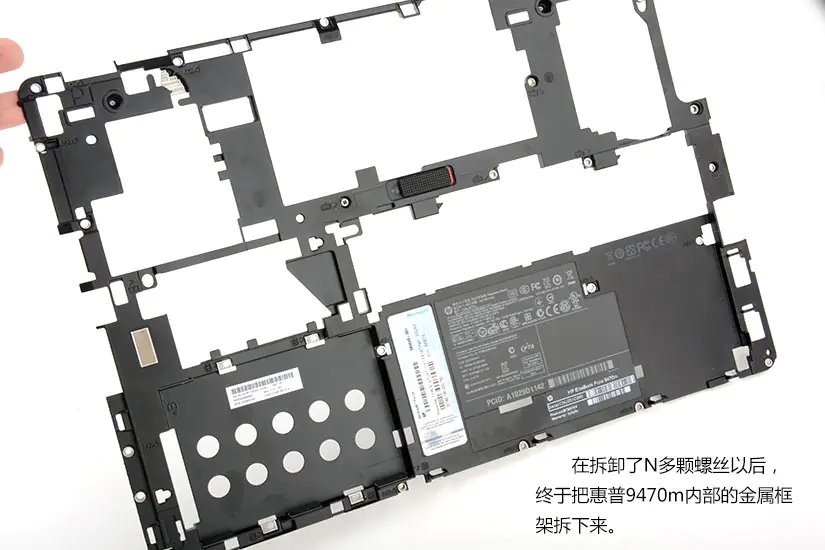

Remove the black frame

HP EliteBook Folio 9470m middle frame
Middle frame

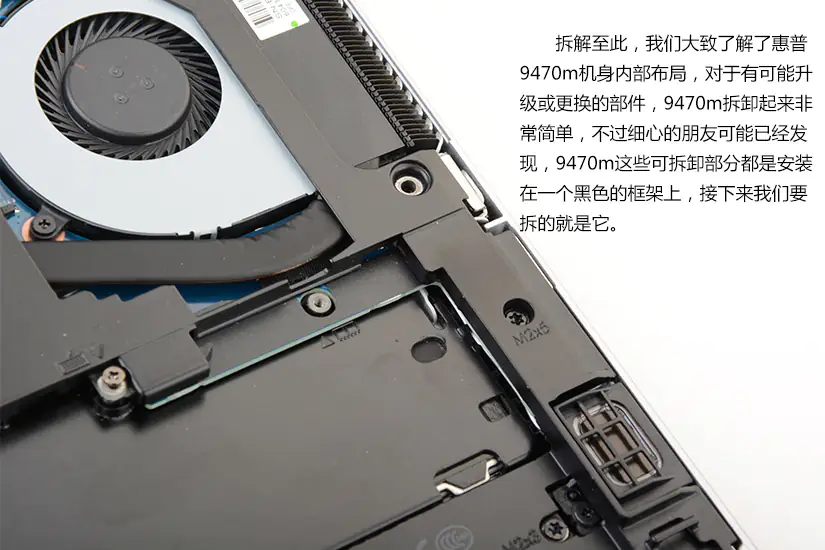

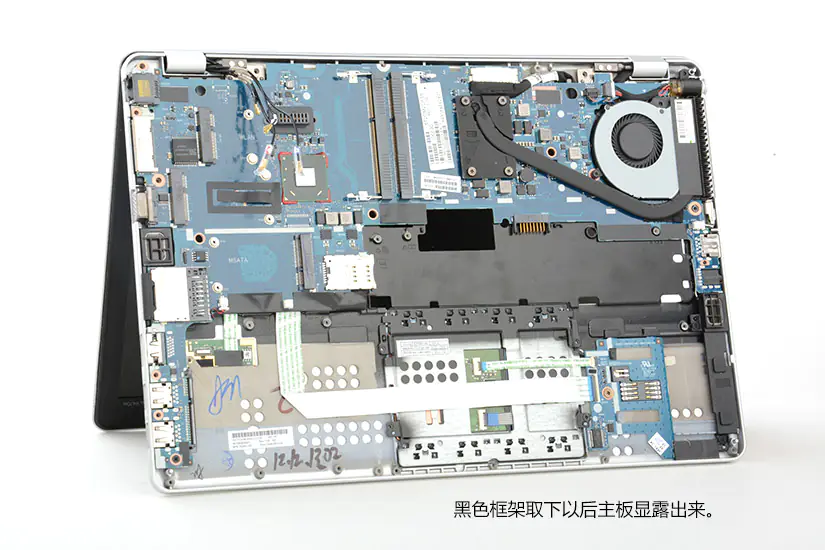

When the black frame is removed, you can access the heat sink, cooling fan, speakers, and motherboard.
Remove the screws securing the motherboard and disconnect all cables from the motherboard. Lift the motherboard from the right side with your hand and wiggle it until it completely separates from the laptop.
Remove the motherboard

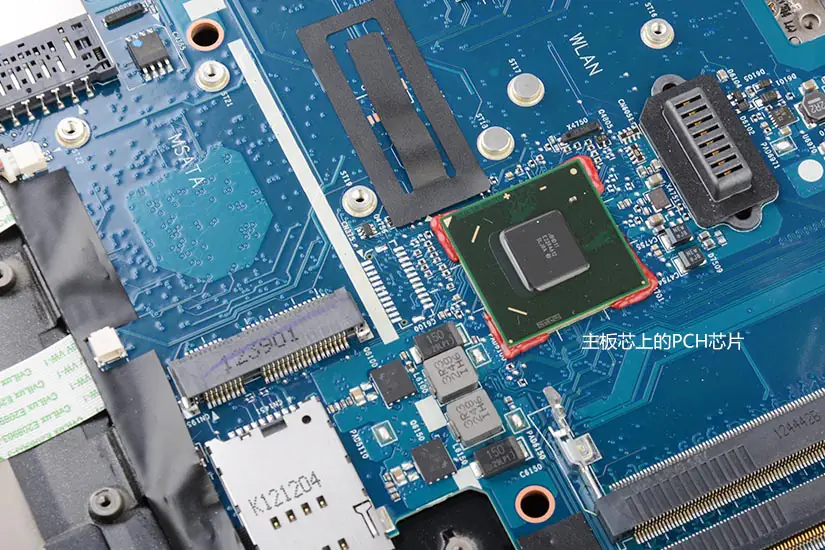

The PCH chip on the motherboard
PCH chip

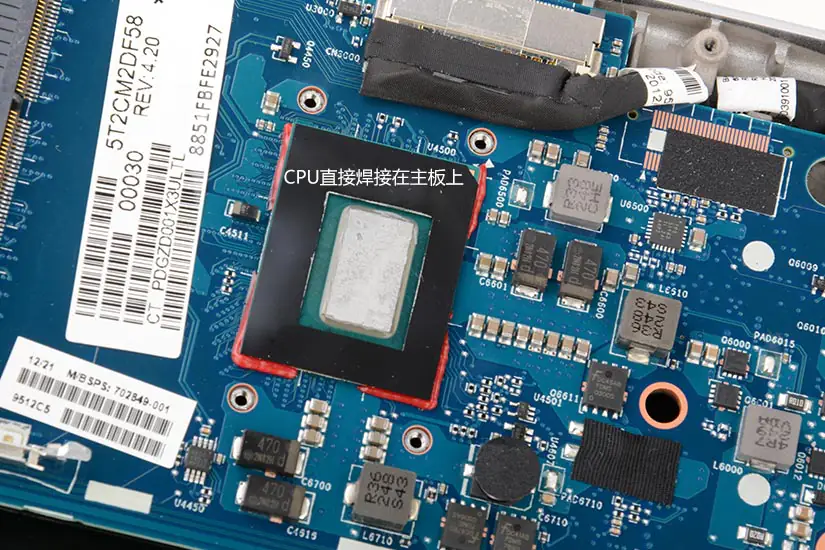

The processor of the HP EliteBook Folio 9470m is soldered to the motherboard, so its processor cannot be upgraded.
HP EliteBook Folio 9470m processor

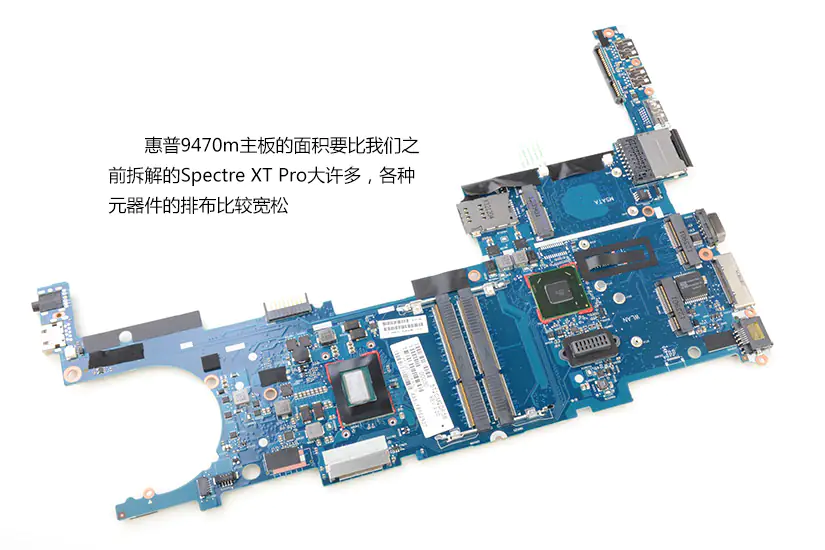

HP EliteBook Folio 9470m motherboard
Motherboard

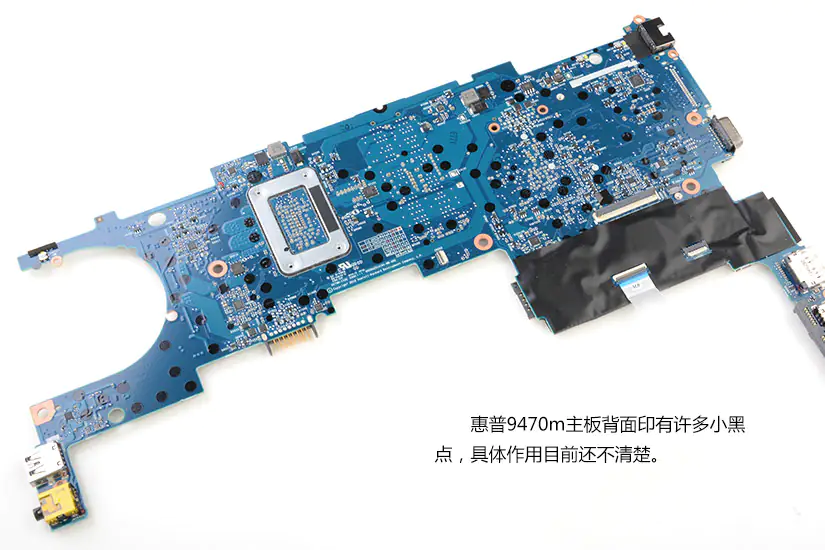

There are some black spots on the motherboard, and their specific function is not yet clear.
Motherboard

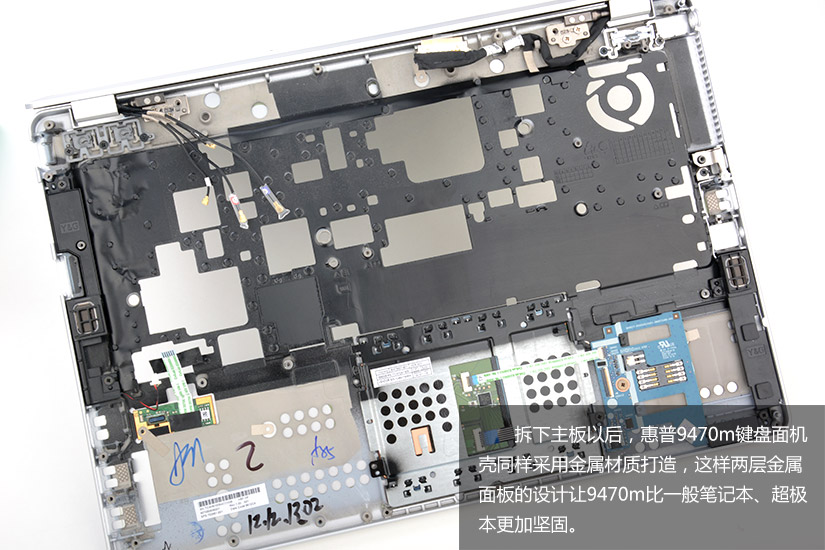

After removing the motherboard, you can access the keyboard and touchpad. At this step, you can replace the keyboard.
Keyboard
