Samsung Galaxy A8 Teardown
In this guide, I will explain how to disassemble the Samsung Galaxy A8 to remove the display assembly, battery, camera, middle frame, and motherboard.
Looking for more guides? Follow us on Facebook for all the latest repair news.

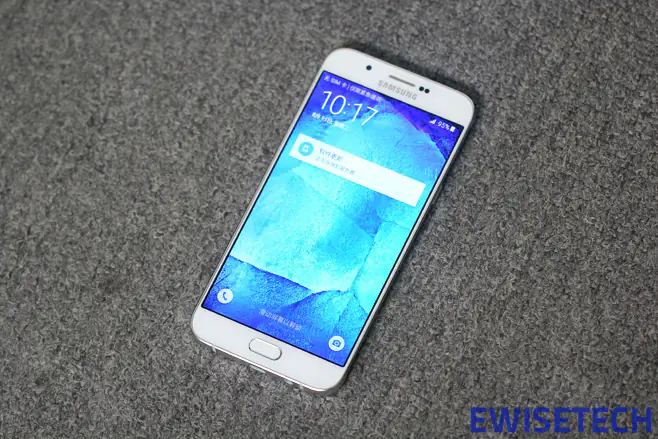

The Samsung Galaxy A8 has two card slots, both of which support 4G, and one of them supports SIM cards. It is also compatible with Micro SD cards and can be expanded up to 128GB.

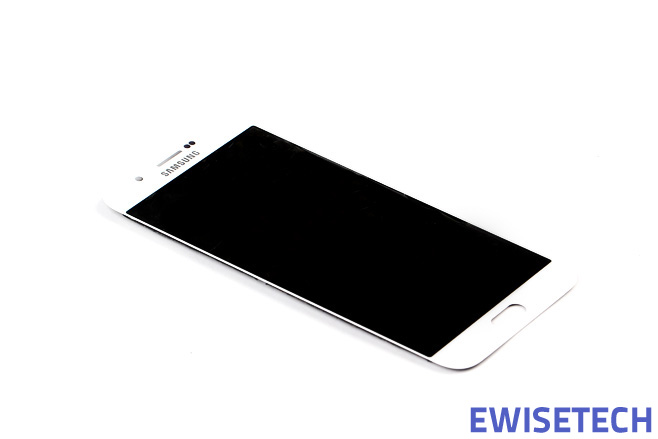

The Galaxy A8 has a Super AMOLED screen with fourth-generation Corning Gorilla glass, which is only 1.2mm thick.

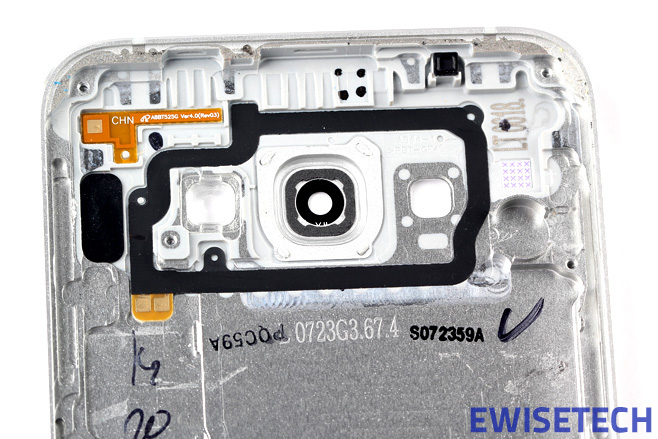

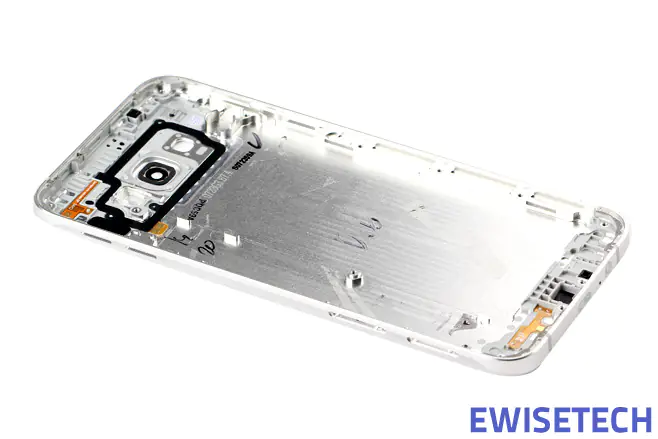

After removing the screen, you can see the middle frame. Remove the screws securing the middle frame. Insert a pry tool under the middle frame and slide it to separate the frame from the phone.

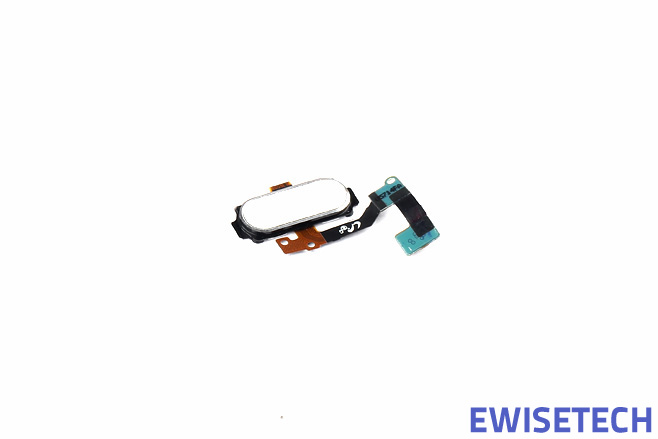

Close-up of the home button. Although it is a mid-range device, this phone is also equipped with a fingerprint recognition function.
The Samsung Galaxy A8 uses a 3050mAh Li-Polymer battery.
The phone features a 16MP rear camera and a 5MP front camera. The rear camera aperture has reached f/1.9, the maximum wide-angle self-timer can reach 120°, and the front camera supports Samsung’s latest electronic image stabilization technology.

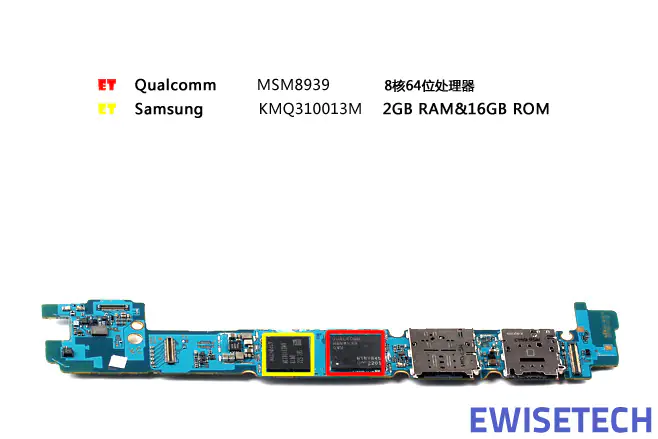

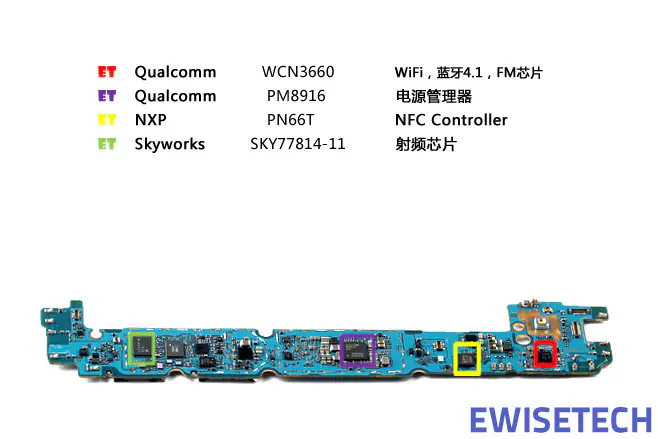

The Samsung Galaxy A8 features a Qualcomm Snapdragon 615 processor.

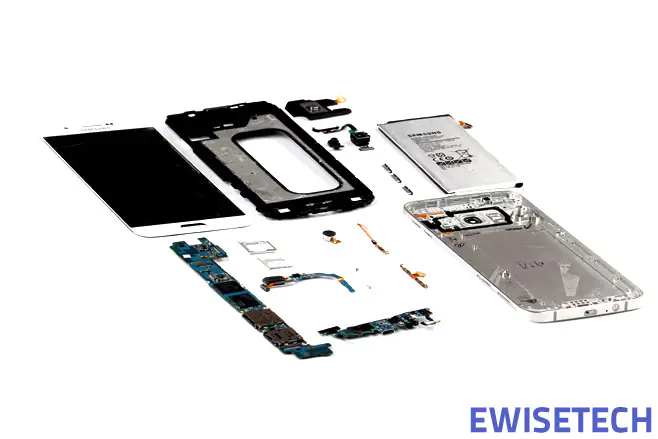

Samsung Galaxy A8 internal parts
