Dell Inspiron 15 5547 Disassembly and SSD, RAM, HDD Upgrade Options
In this guide, I will explain how to disassemble the Dell Inspiron 15 5547 to remove the RAM, hard drive, wireless card, keyboard, palm rest, heat sink, cooling fan, and motherboard.
Want to keep in touch with us? Follow us on Facebook for more repair news.

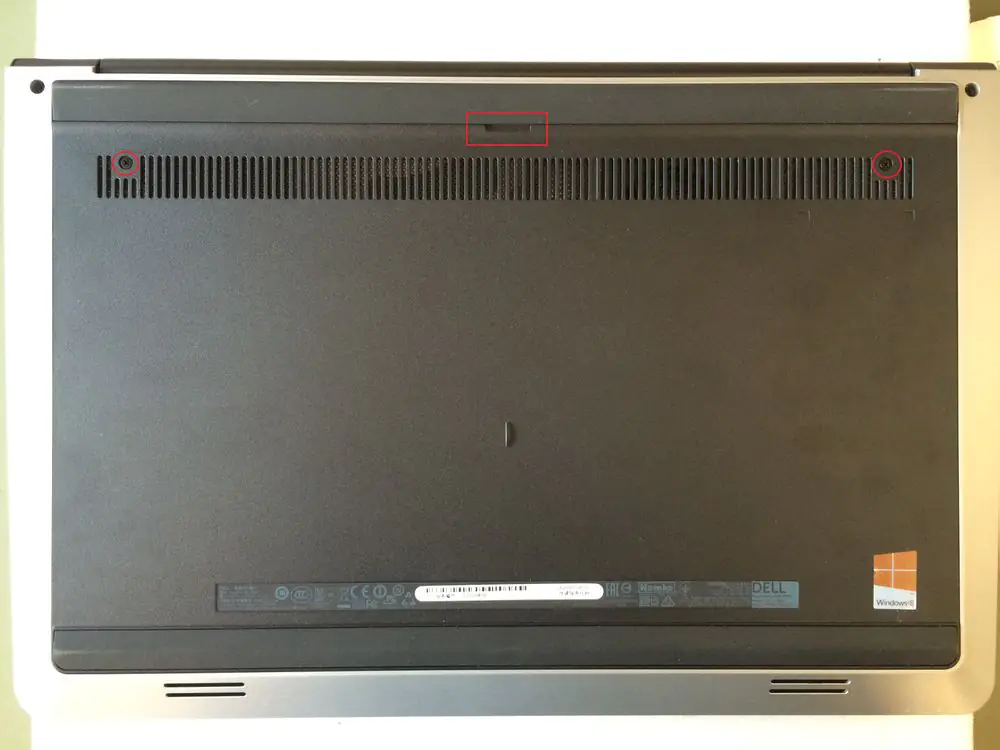

Remove the two screws securing the service cover. Use a flathead screwdriver or pry tool to lift the bottom cover from the groove and remove it.

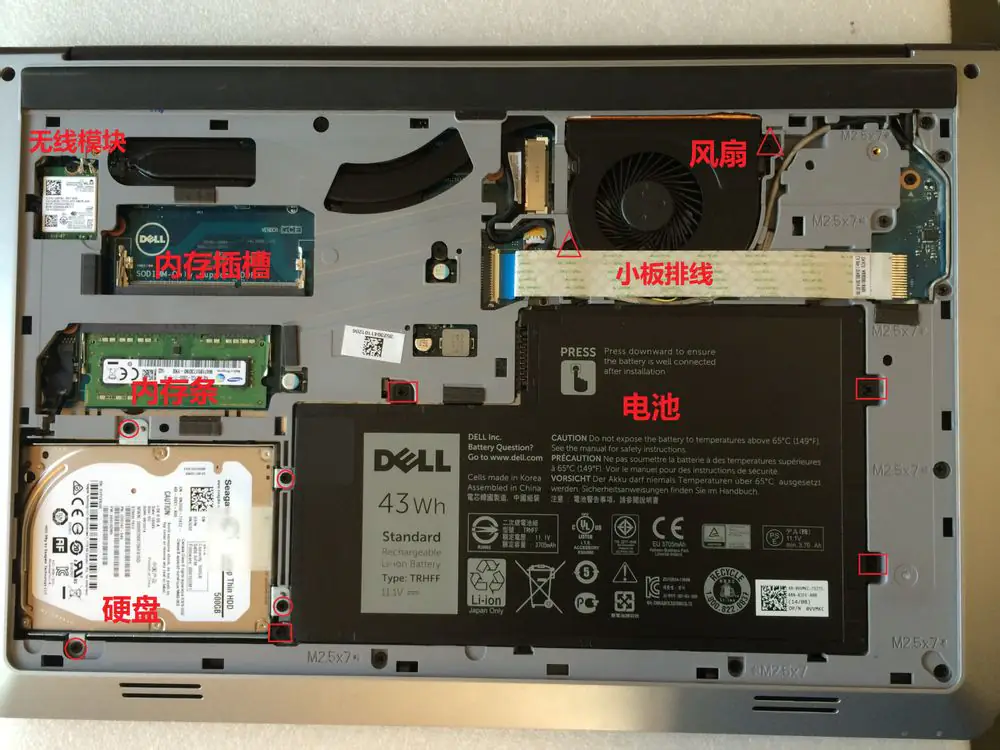

Under the cover, you can access the battery, hard drive, RAM, wireless card, and cooling fan.

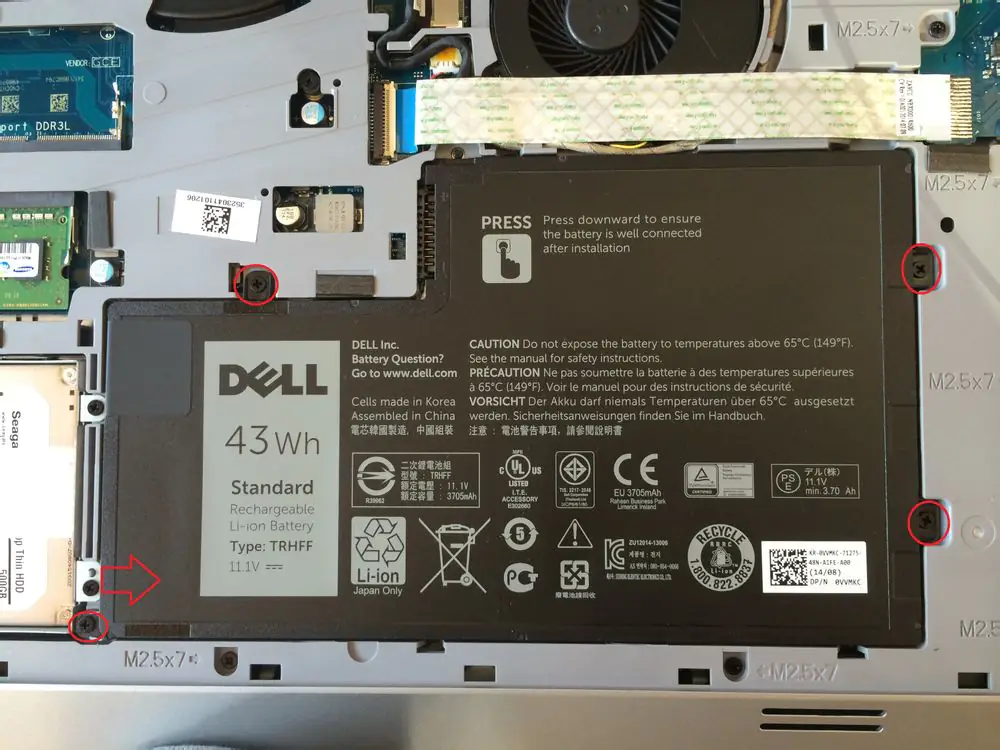

Remove the four screws securing the battery and take the battery off the laptop.

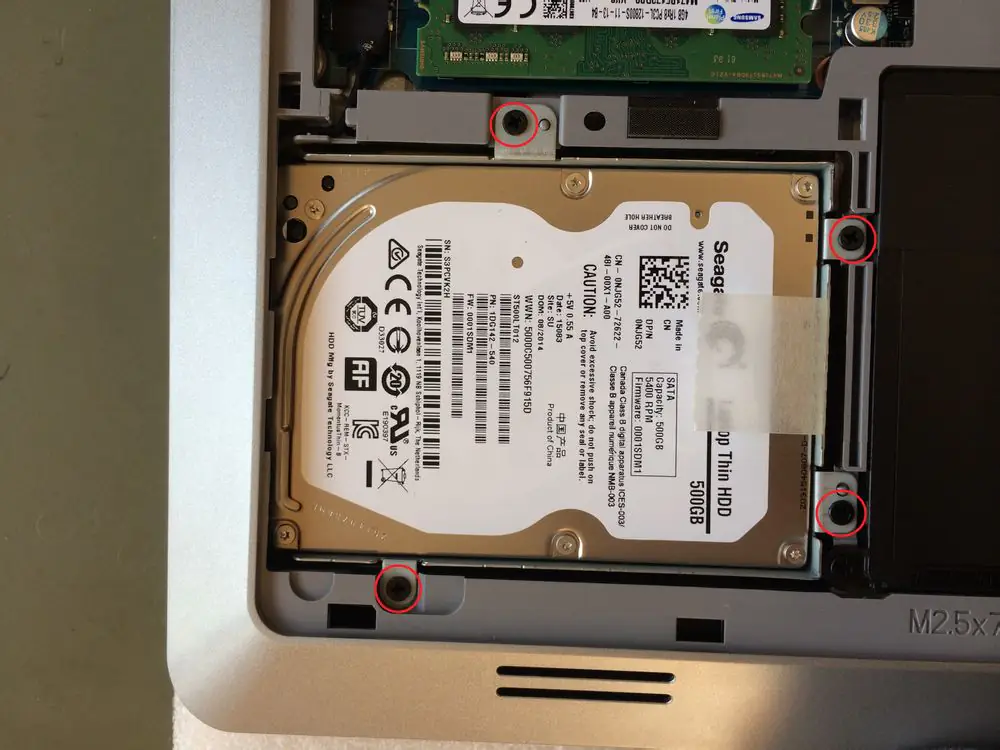

Remove the four screws securing the hard drive. Lift the white tape and remove the hard drive.

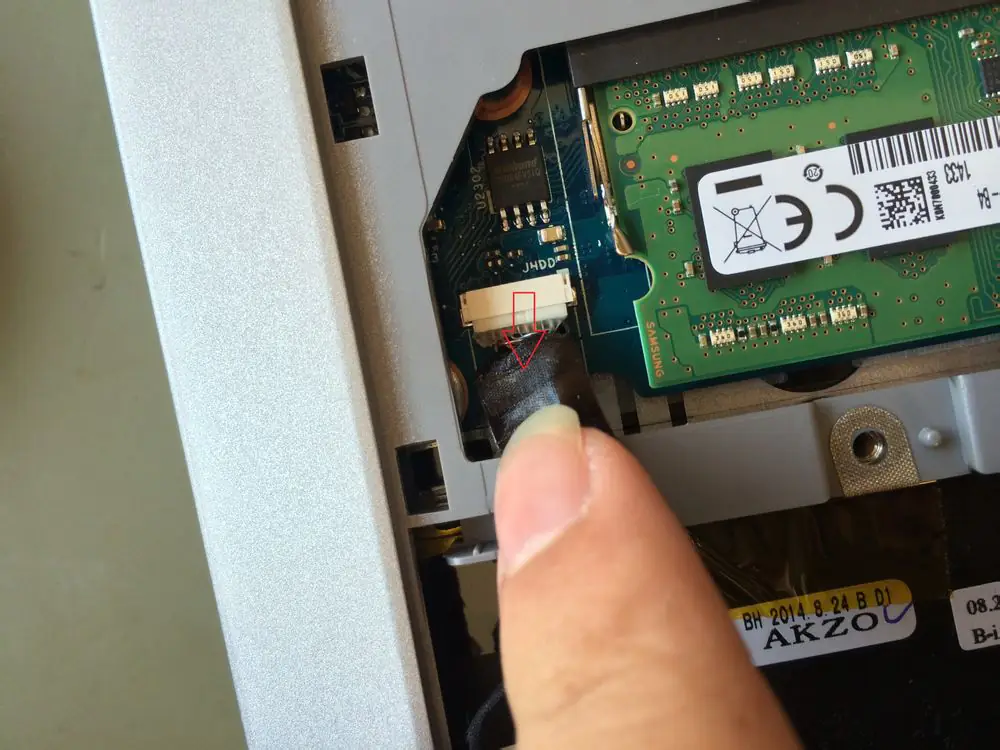

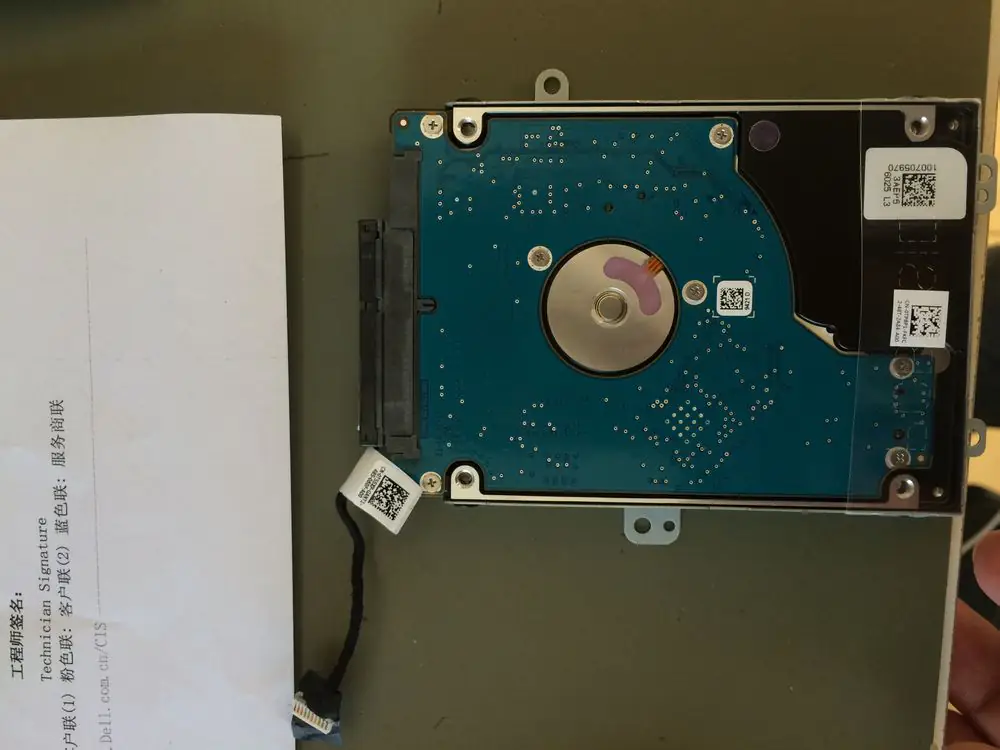

Disconnect the hard drive cable.
This Dell Inspiron 15 5547 features a Seagate 500GB 5400 RPM hard drive.

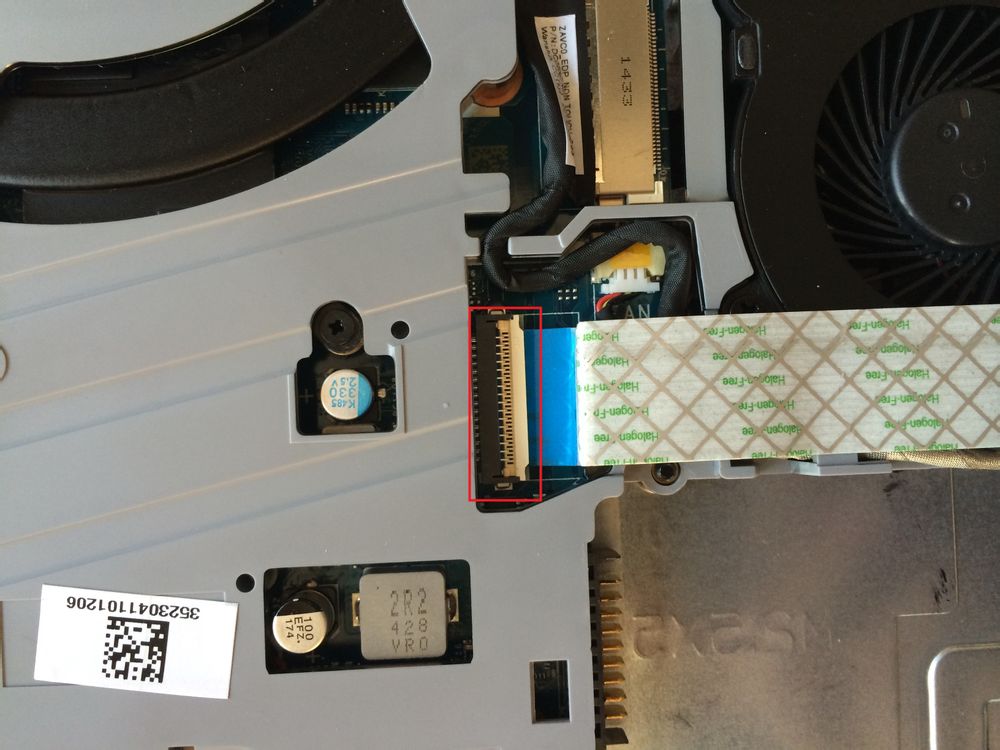

Disconnect the white cable.

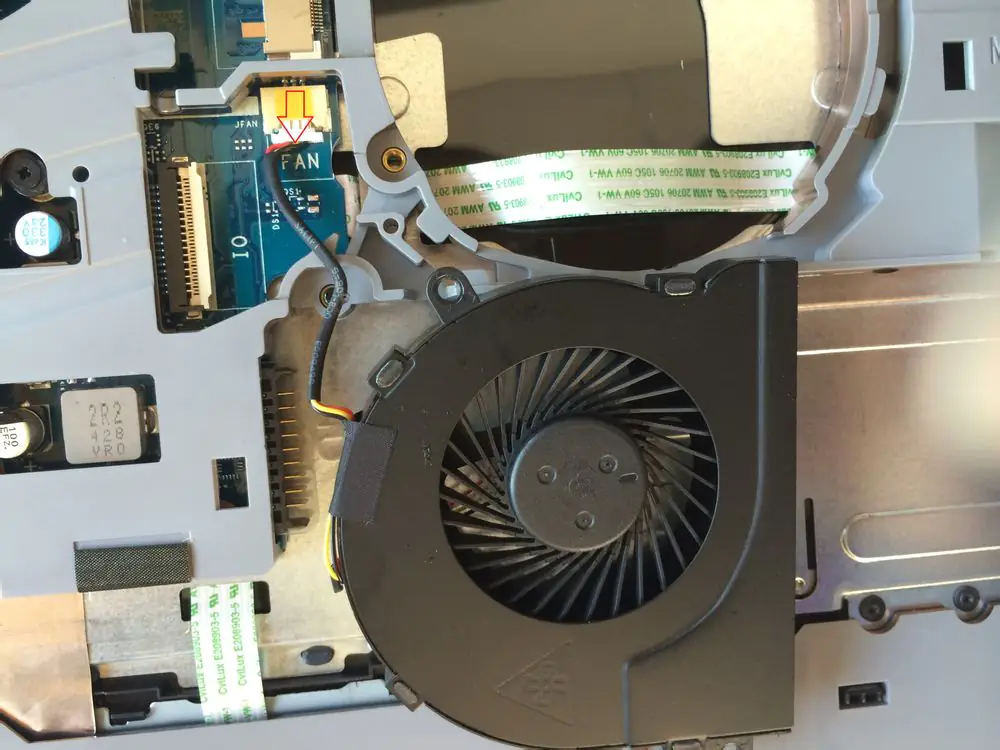

Remove the two screws securing the cooling fan and disconnect the cable from the motherboard.

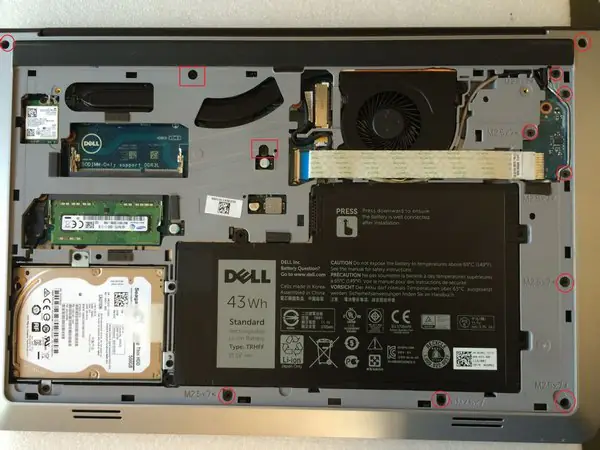

Remove all screws securing the middle frame.

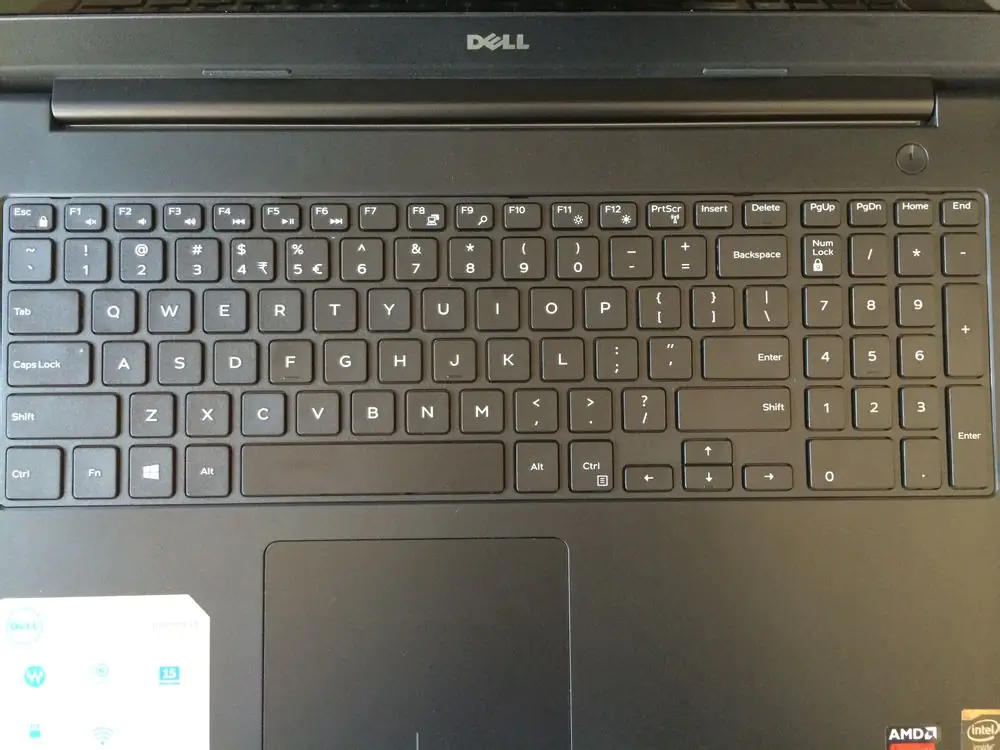

Flip the laptop over and use a flat-head screwdriver to unlock the five latches at the top of the keyboard.
Lift the keyboard and disconnect the keyboard cable.

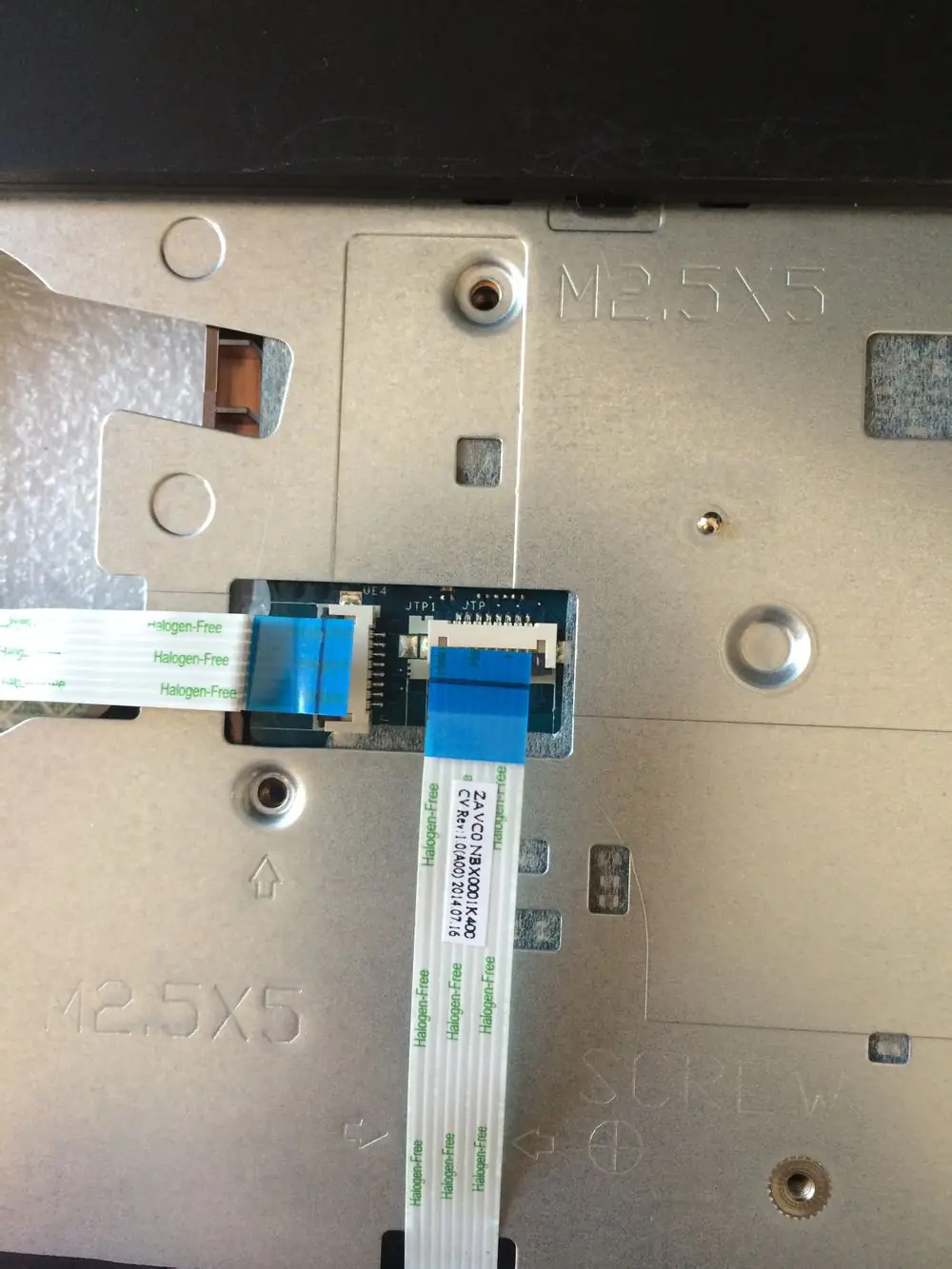

Disconnect the power button cable and touchpad cable.

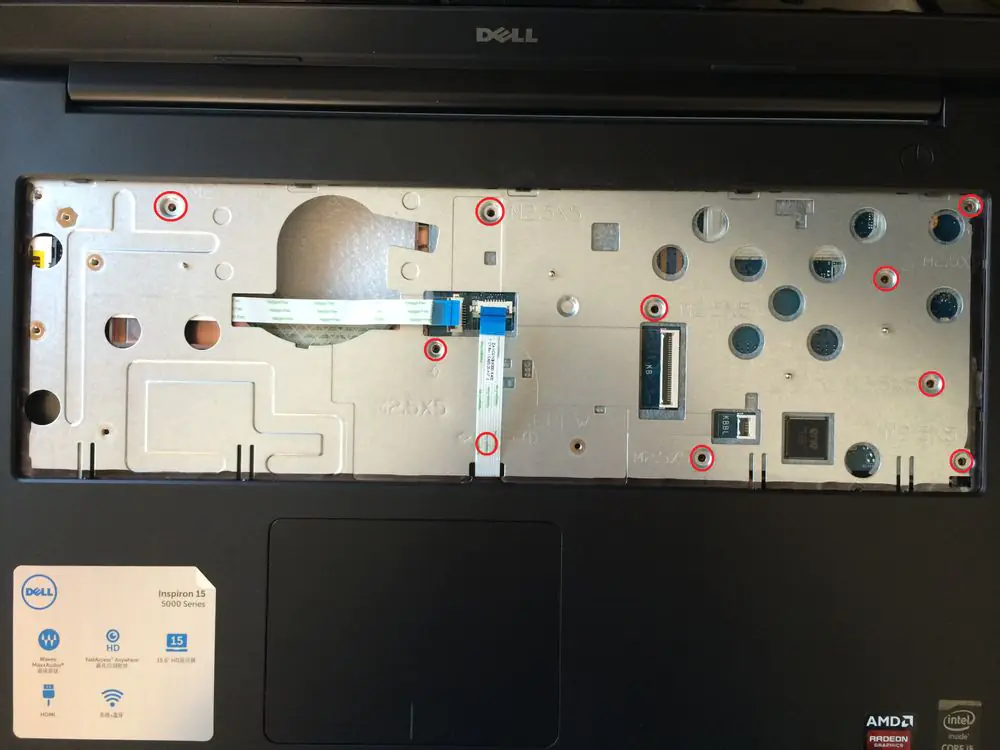

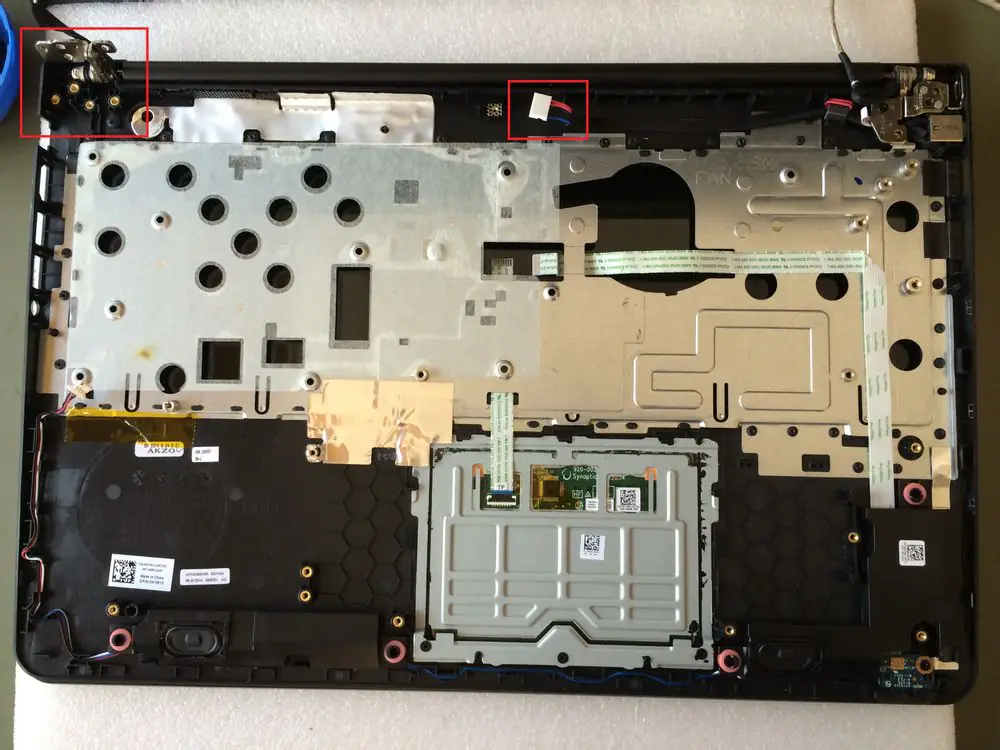

Remove the ten screws securing the palm rest.

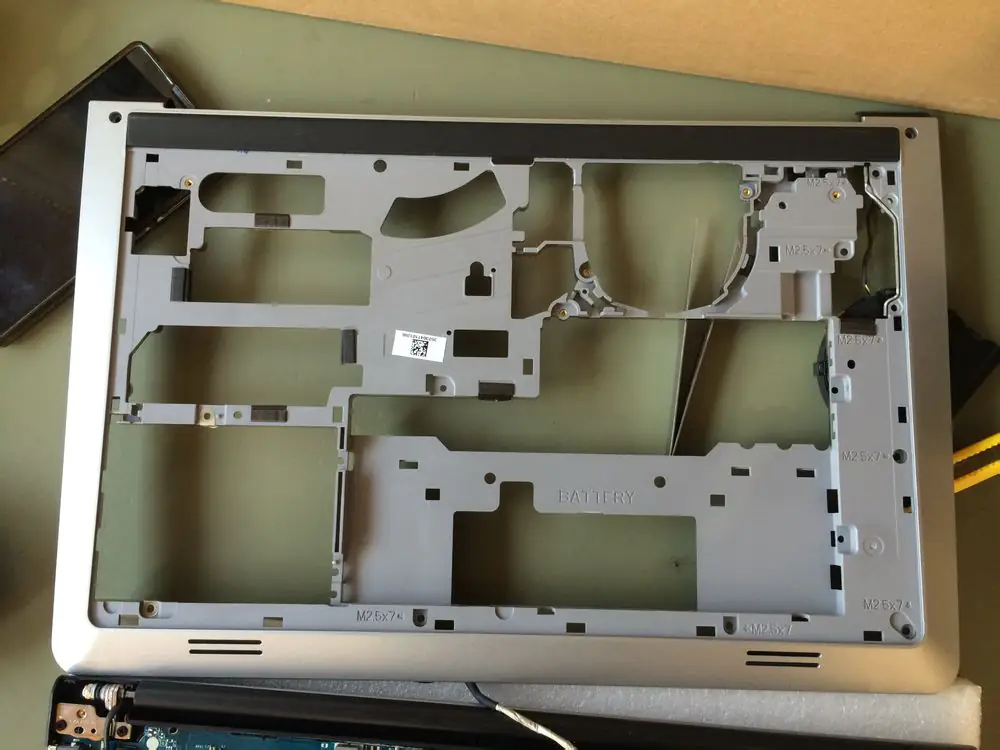

Insert a plastic pry tool under the middle frame. There are some clasps on the middle frame to secure it to the cover. You need to move the pry tool and unlock all the clips to detach the middle frame from the laptop completely.

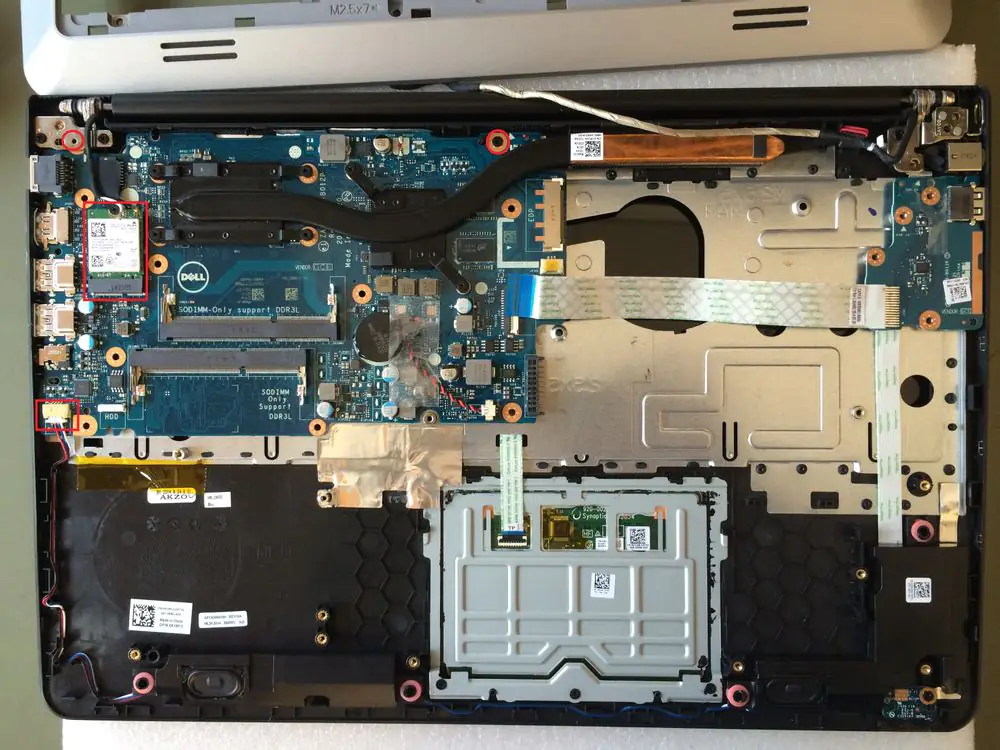

After removing the middle frame, you can access the wireless network card, heat sink, USB board, speakers, and motherboard.
Remove the wireless card.
Remove two screws securing the motherboard.
Disconnect the speaker cable.

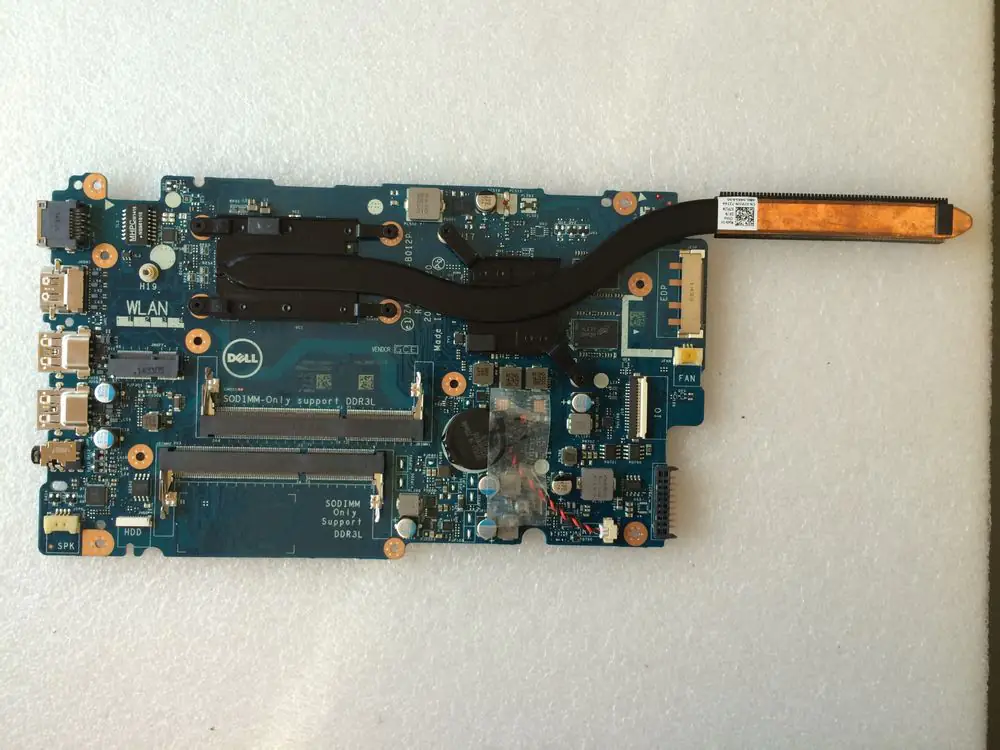

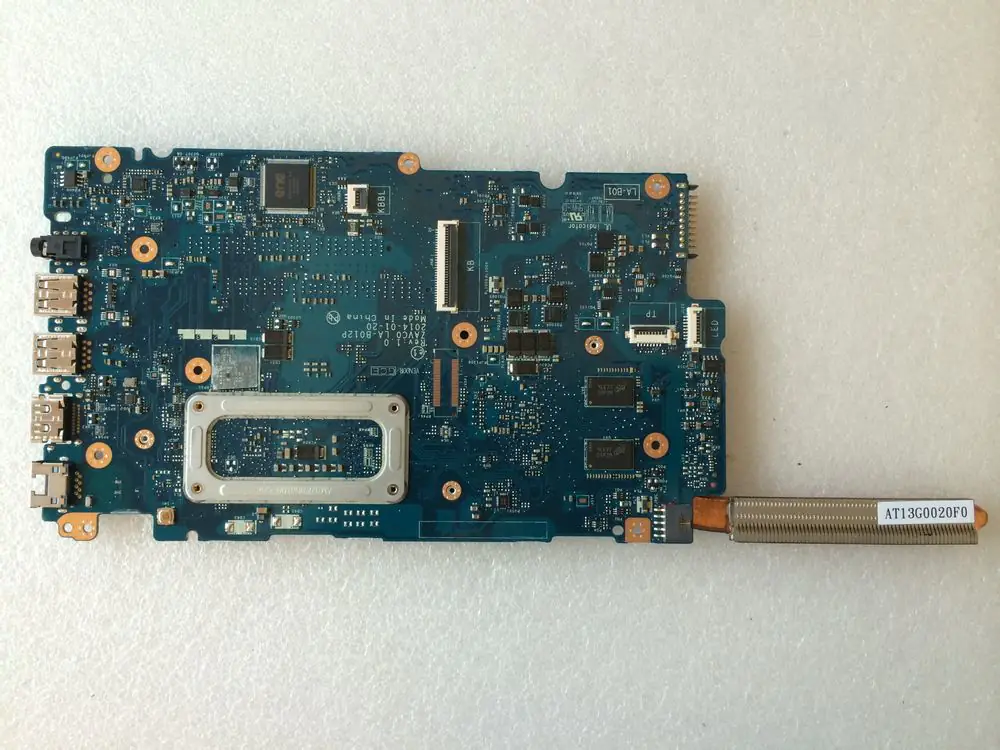

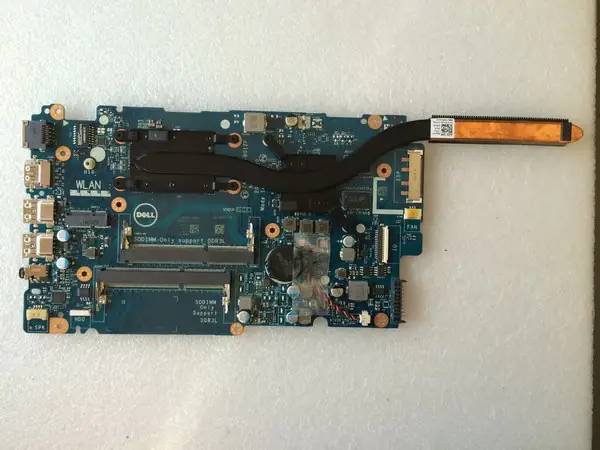

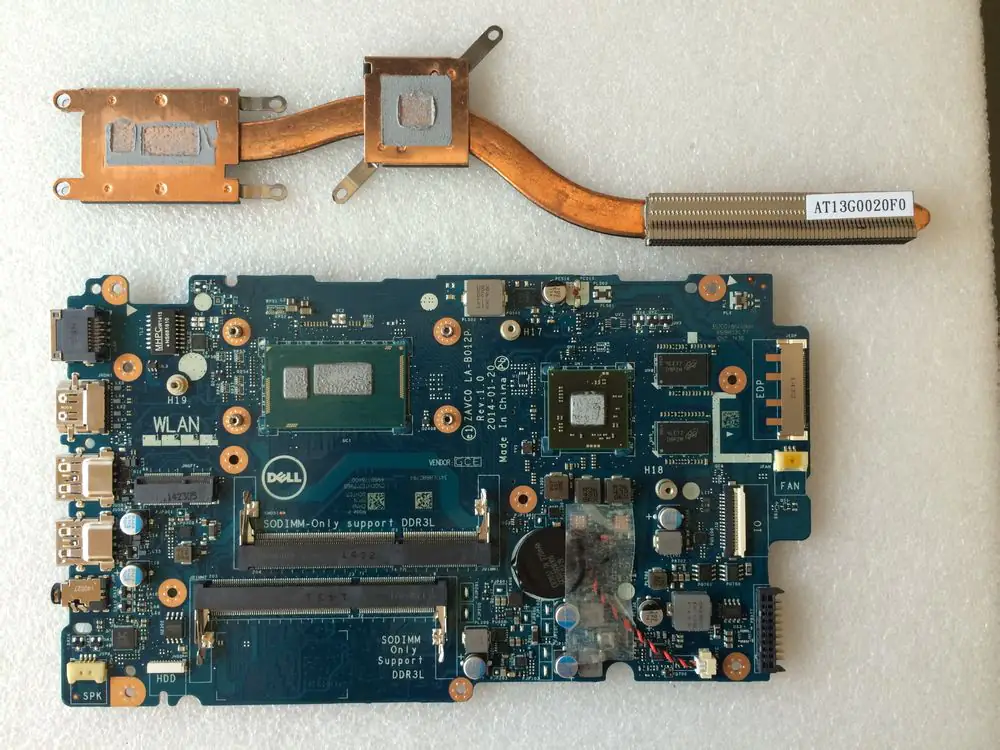

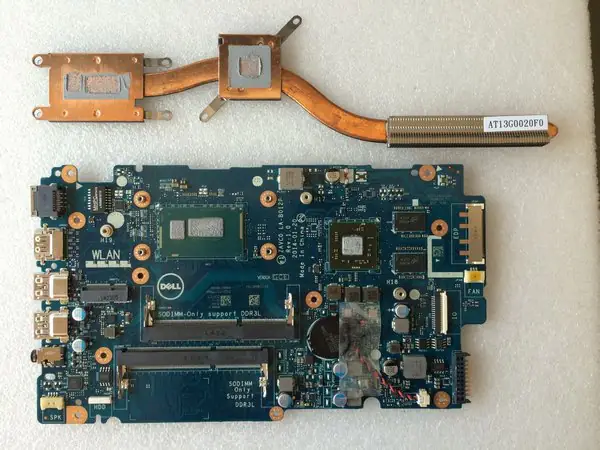

Dell Inspiron 15 5547 motherboard

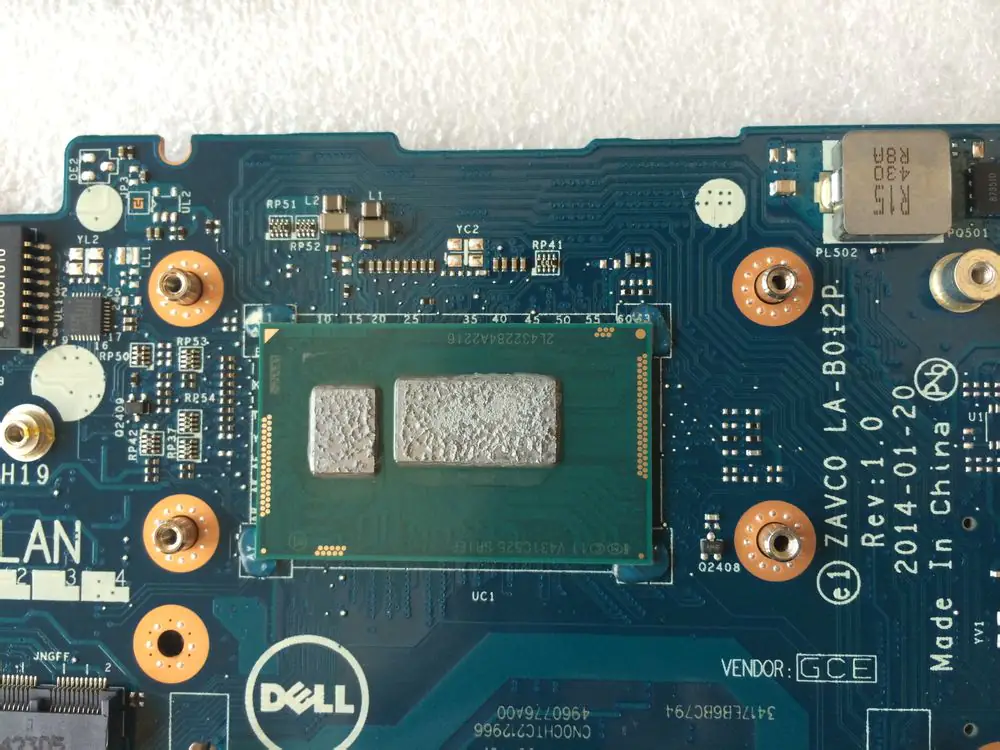

The CPU is soldered onto the motherboard, so it cannot be replaced.

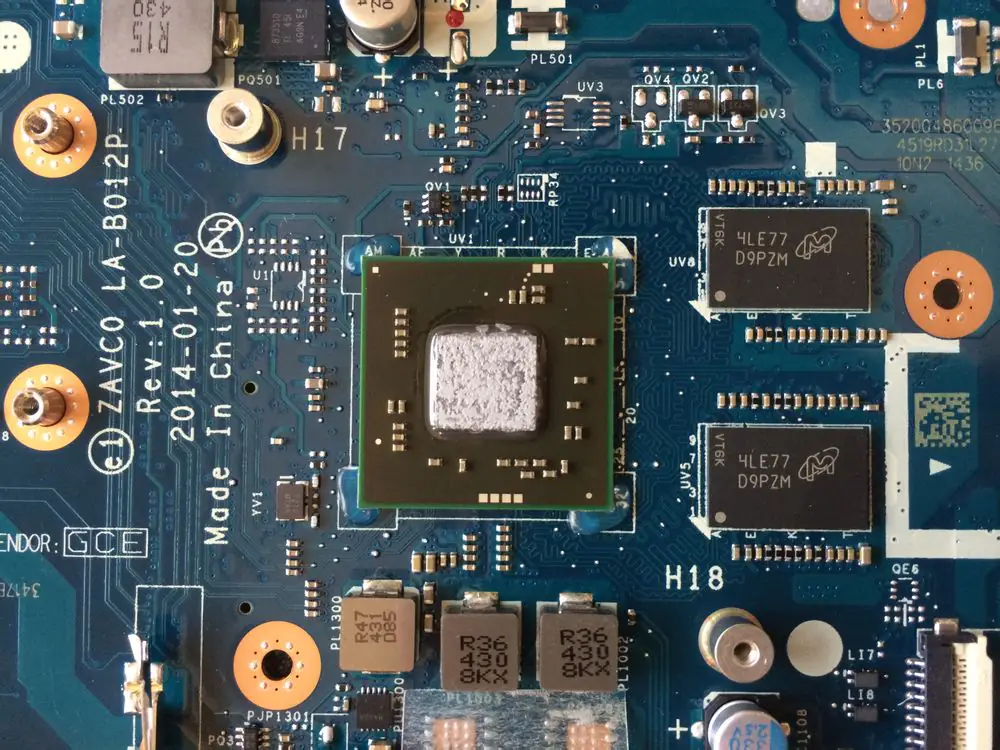

Graphics card
