Samsung Galaxy S6 Teardown

In this guide, I will explain how to disassemble the Samsung Galaxy S6 to remove the back cover, battery, speaker, rear camera, front camera, and motherboard.

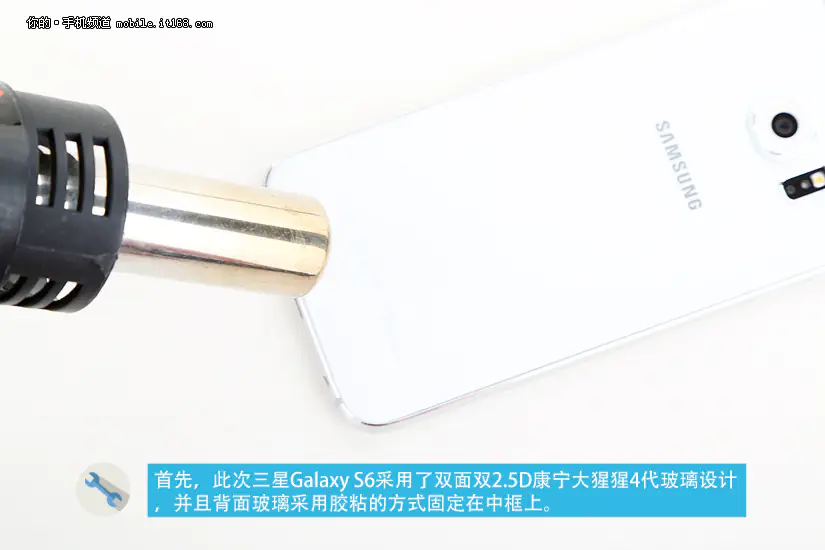

First, heat the back cover with a heat gun for about 2-3 minutes.

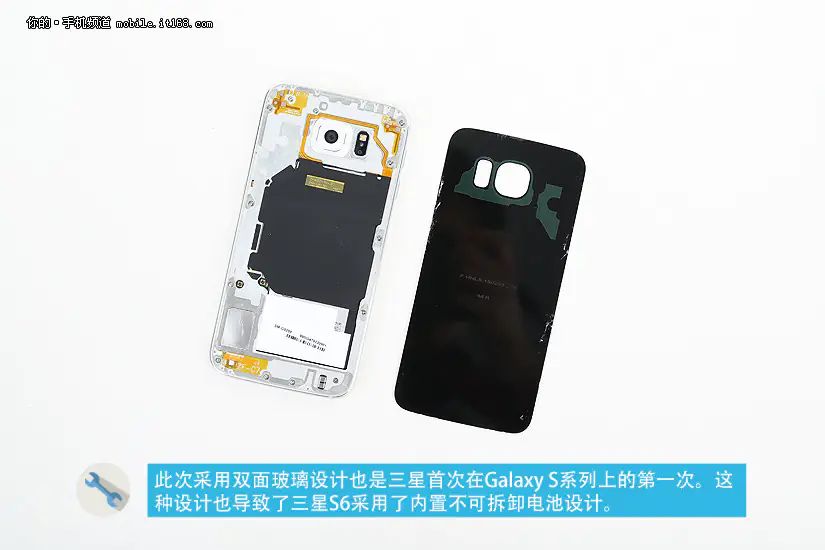

The Samsung Galaxy S6 features a dual-glass design and has a non-removable battery.

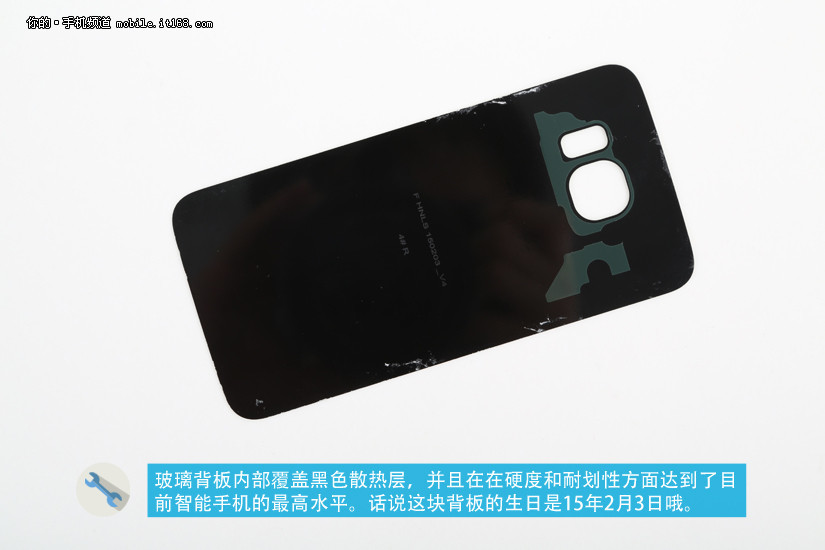

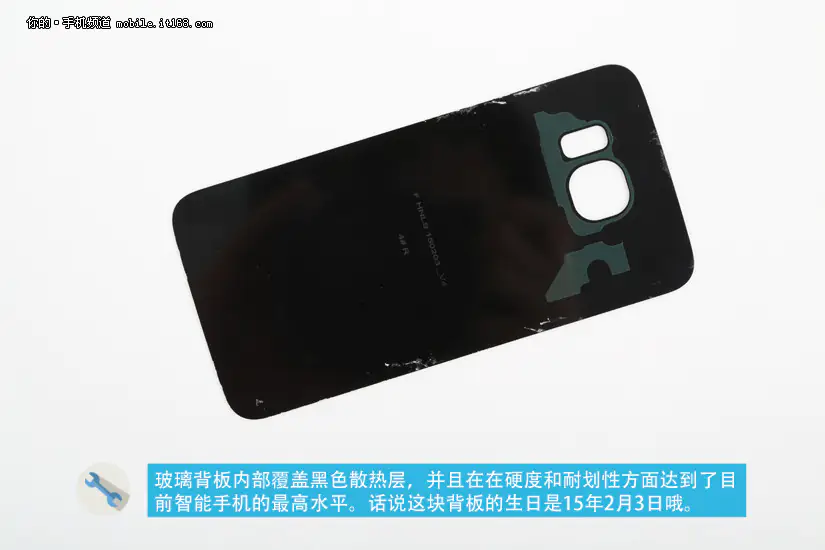

The back cover is covered with a layer of black thermal sticker.

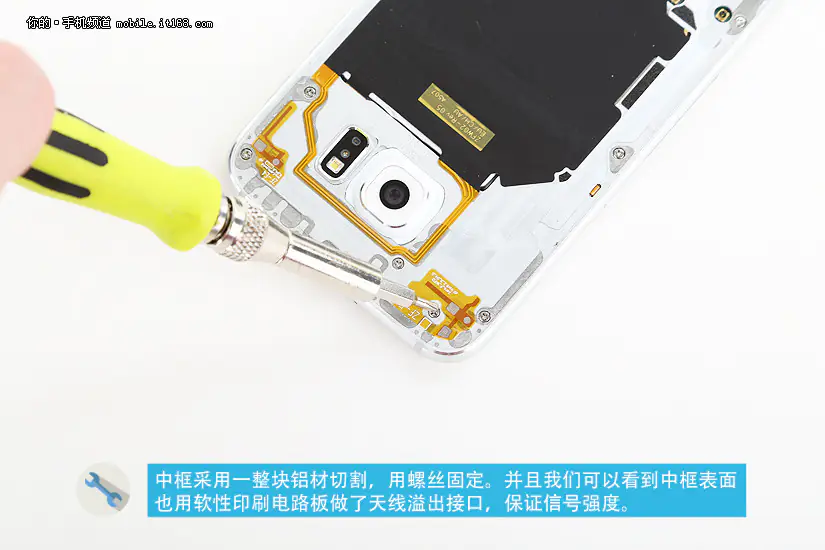

Remove all screws securing the middle frame.

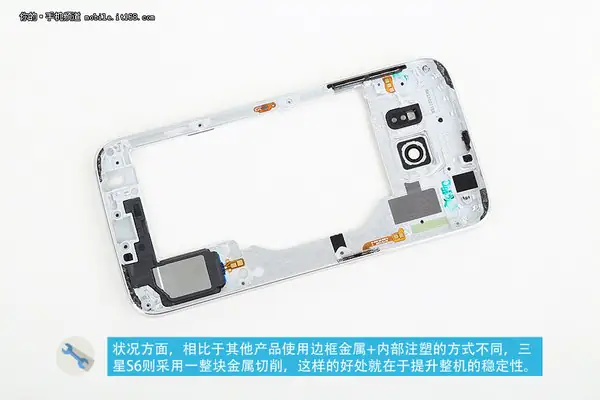

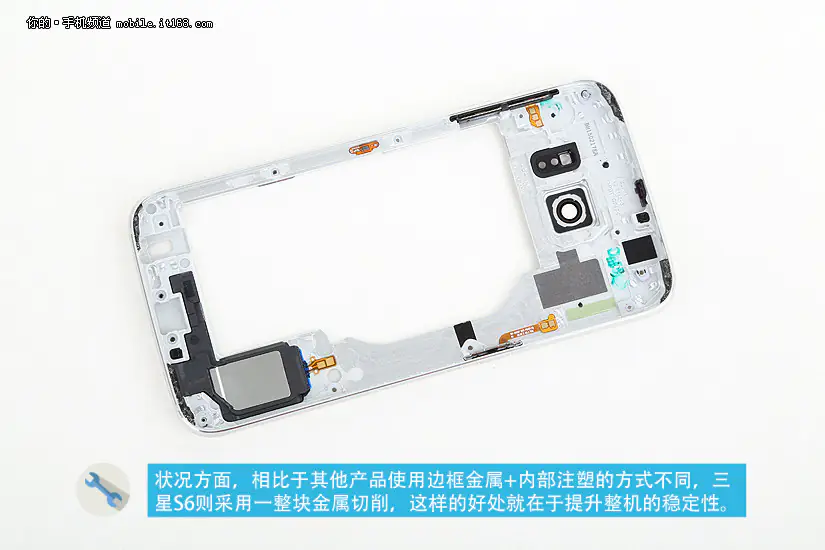

Insert a pick under the middle frame, then slide it along the frame. Once the middle frame is opened at a certain angle, you can continue to separate it with your hand.

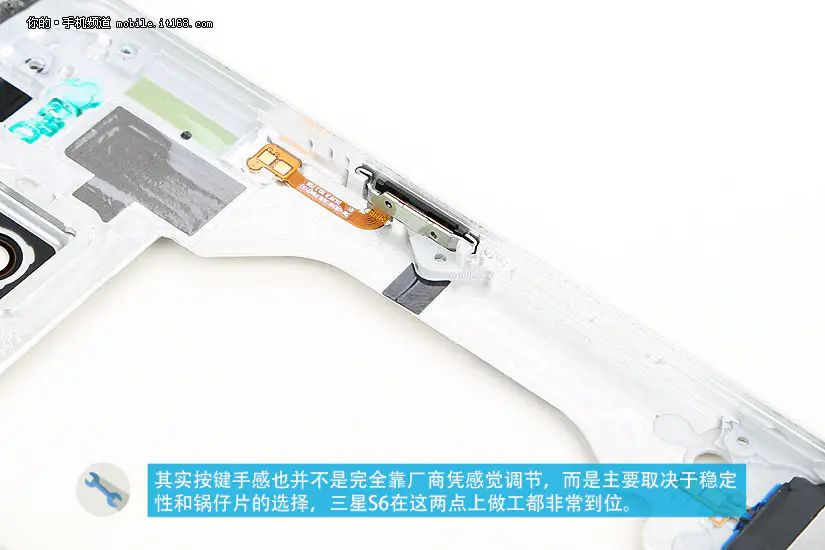

The buttons of the Samsung Galaxy S6 are integrated into the back cover.

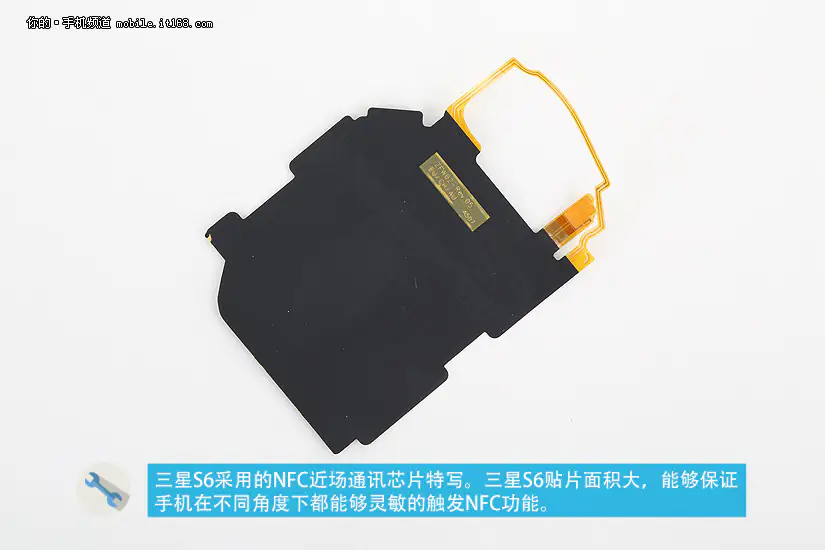

Close-up of the NFC near field communication chip. The NFC module of the Samsung Galaxy S6 is quite large, ensuring that the phone can sensitively trigger the NFC function at different angles.

Remove the screws securing the motherboard.

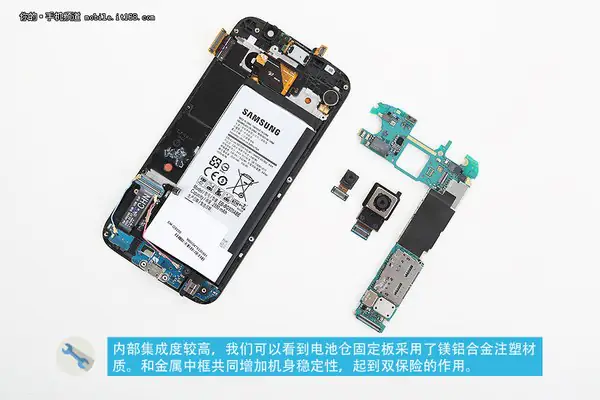

Use tweezers to pry up the motherboard and remove it.

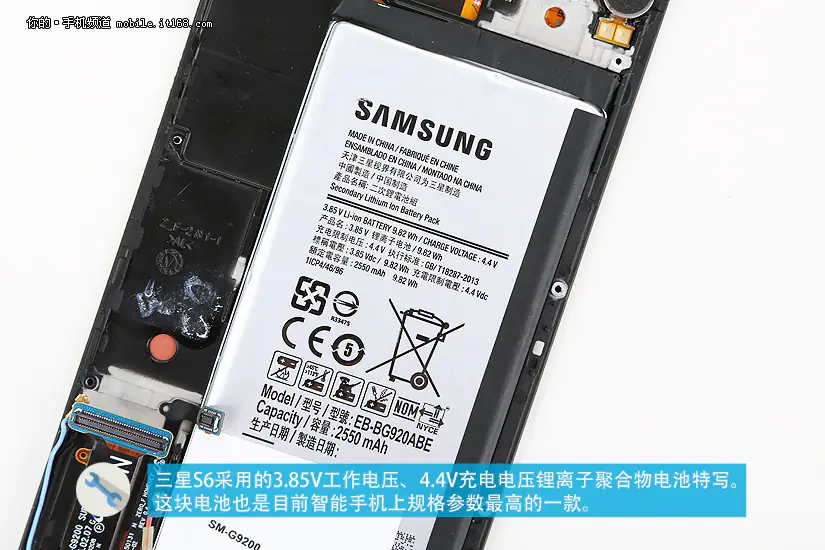

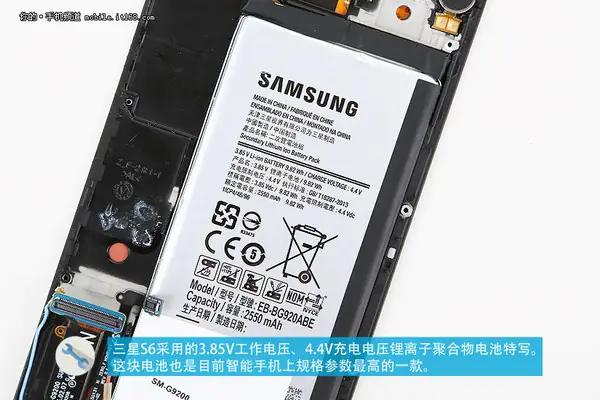

The Samsung Galaxy S6 comes with a 3.85V, 2550mAh, 9.82Wh Li-ion battery. The Samsung part number is EB-BG920ABE.

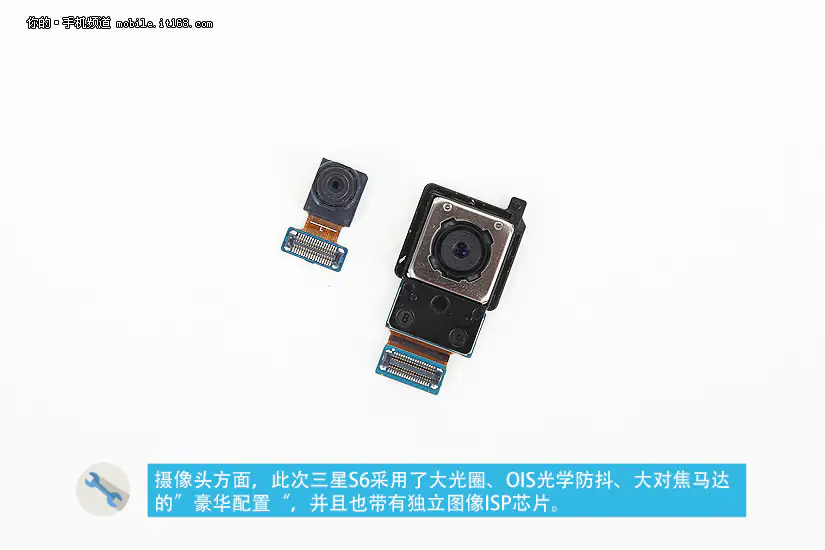

Close-up of the rear camera and front camera. Its rear camera supports OIS and features a dedicated ISP chip.

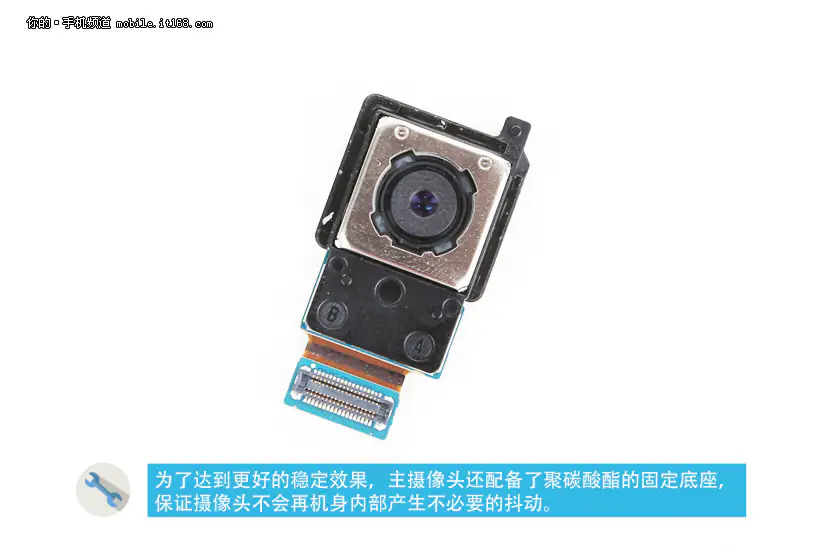

To achieve better stability, the main camera is also equipped with a fixed base to ensure that the camera does not produce unnecessary shaking.

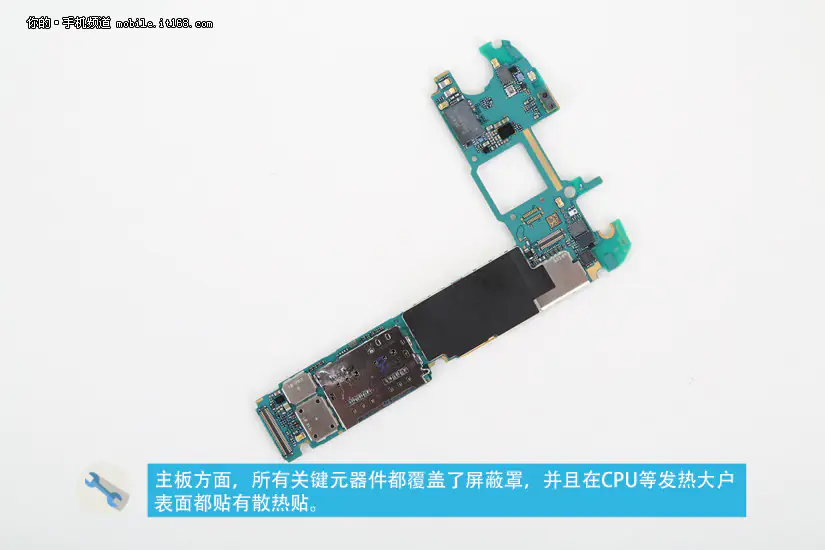

All chips on the motherboard are covered with metal shields. There is a cooling sticker covering the processor.

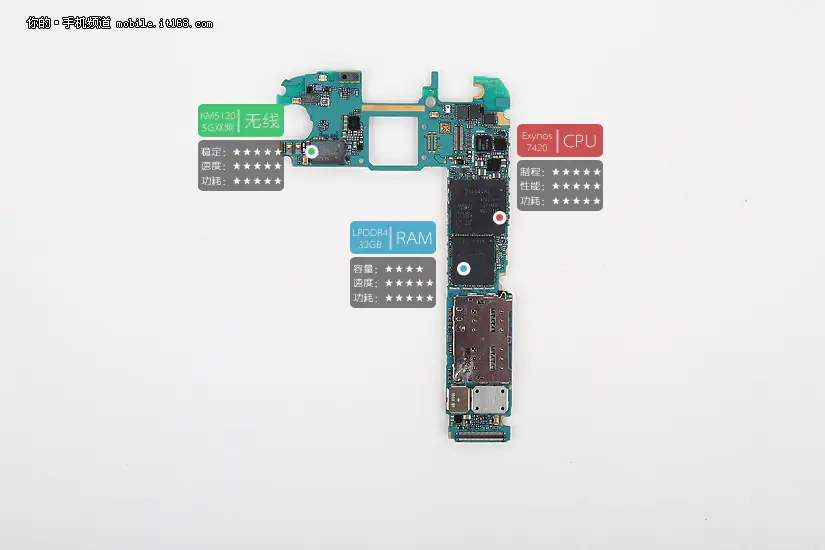

Green: KM5120 chip
Blue: LPDDR4 32GB ROM
Red: Samsung Exynos 7420 processor

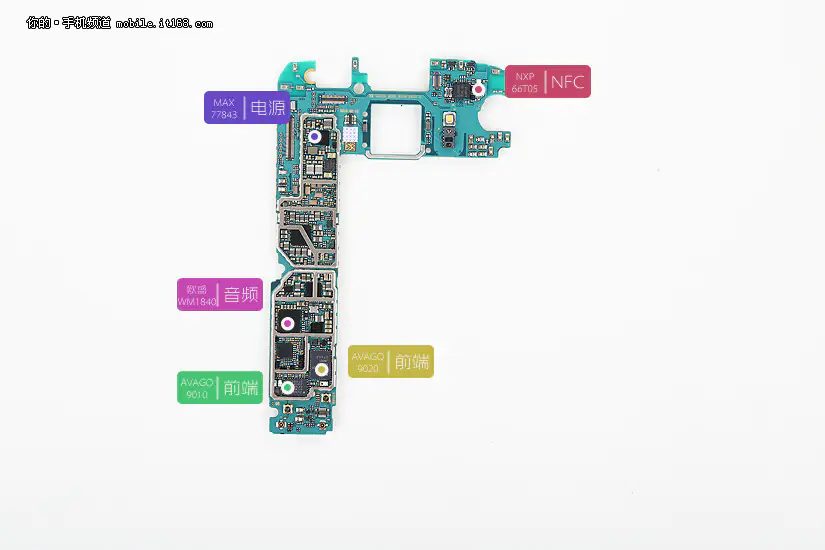

Maxim Integrated MAX77843 power management chip
NXP 66T05 NFC chip
Wolfson WM1840 audio coder
AVAGO 9010
AVAGO 9020

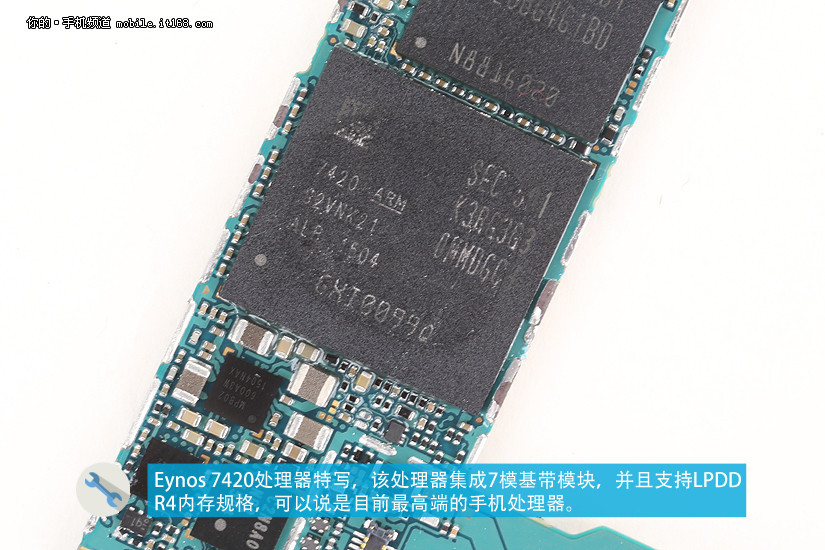

Samsung Exynos 7420 processor

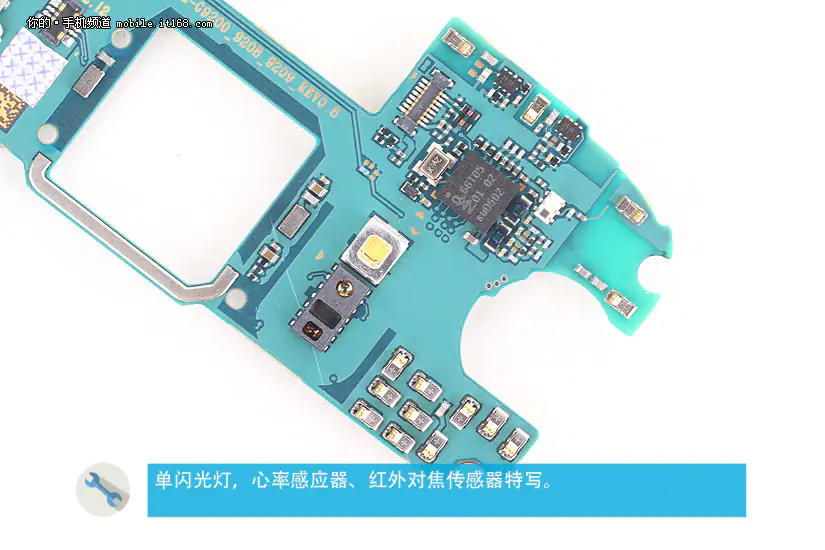

Single flash, heart rate sensor, and infrared sensor

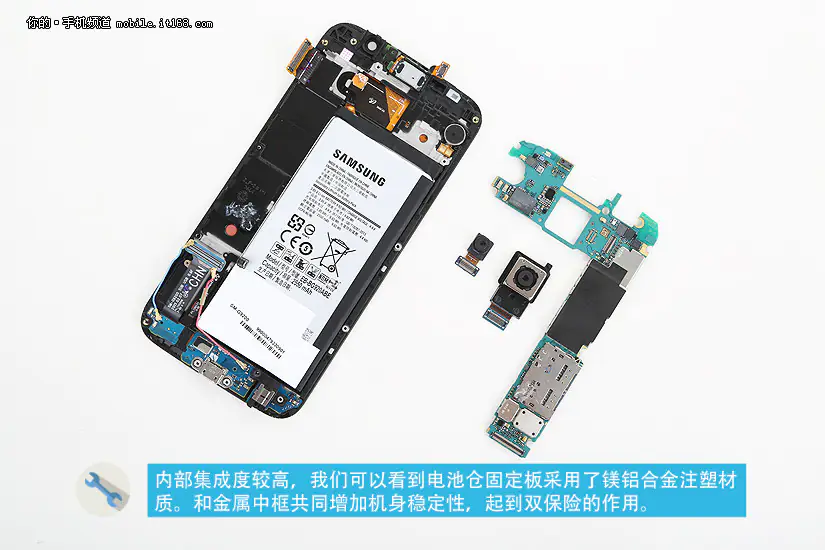

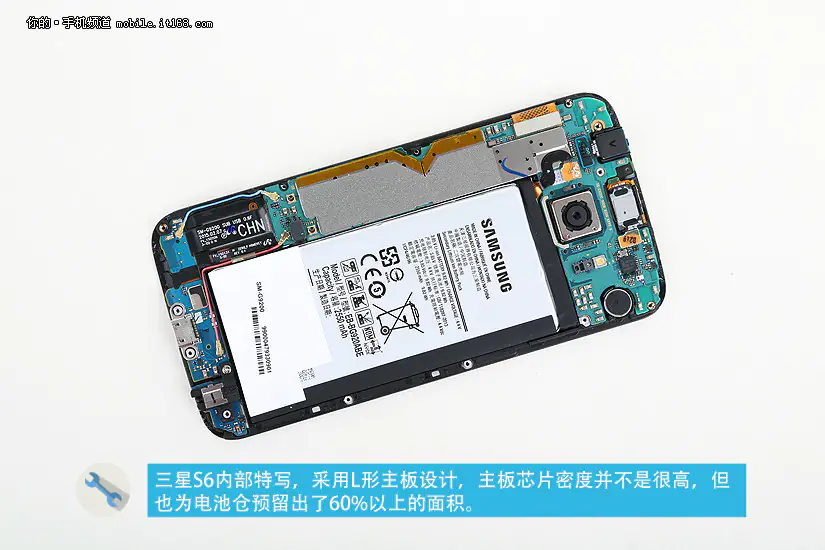

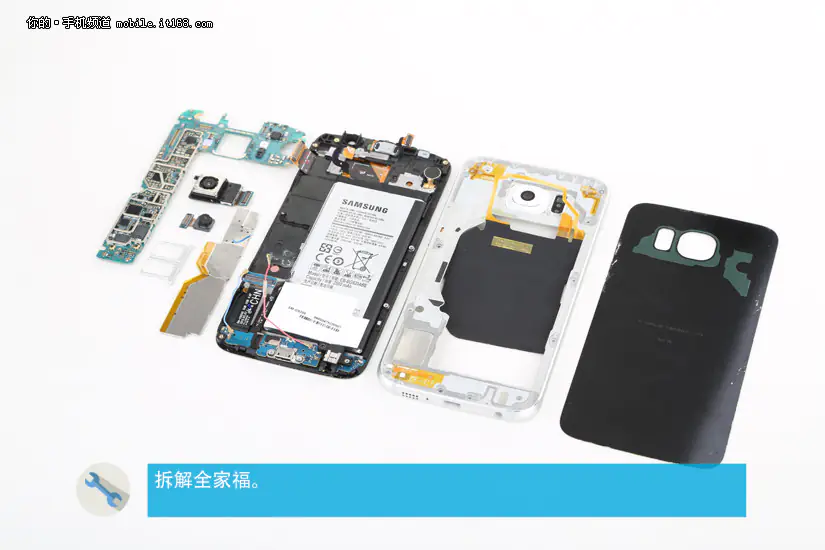

Samsung Galaxy S6 internal parts
