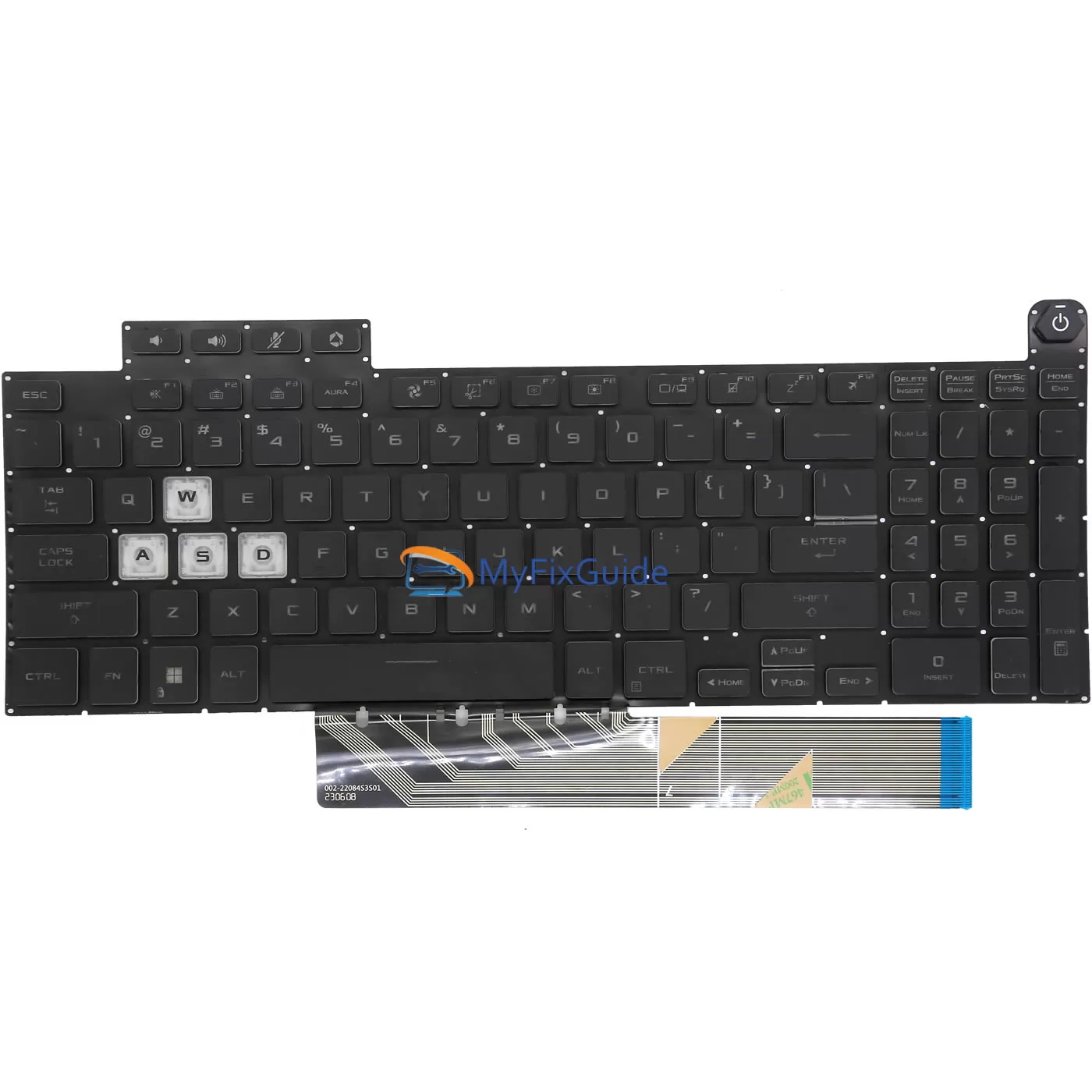

This is a new backlit keyboard for Asus TUF Gaming F15 2022 FX507 and Asus TUF Gaming F17 2022 FX707. This keyboard has a 1-Zone RGB backlight, and there is a keyboard cable and a backlit cable on the back of the keyboard.
Features:
1. This is a US keyboard.
2. We also have this keyboard in other languages. If you need a keyboard in another language, please contact us in the Q&A section.

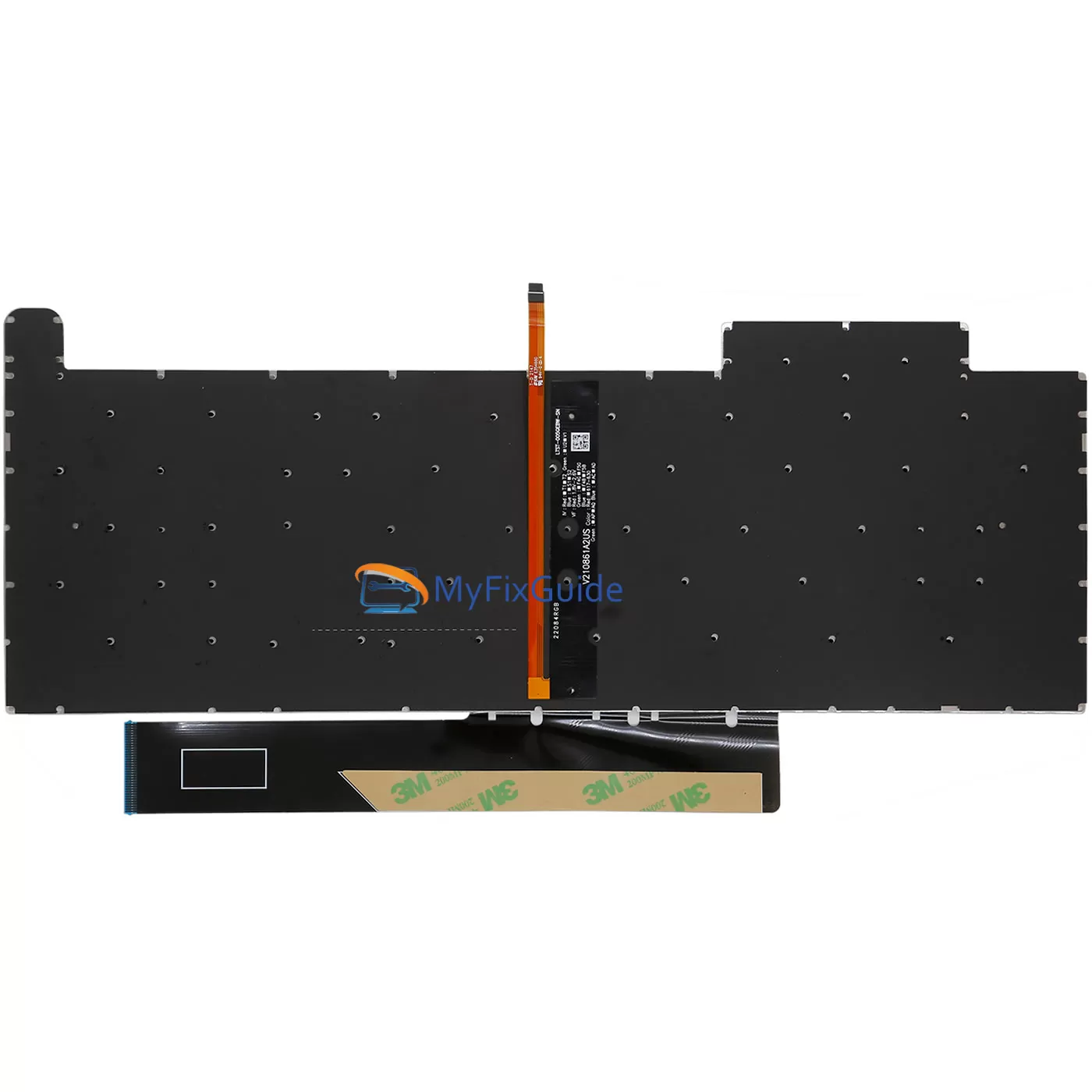

3. There is a backlit cable and keyboard cable on the back of the keyboard.
Compatible Laptops:
TUF Gaming F15
FX507ZC
FX507ZE
FX507ZM
FX507ZR
TUF Gaming F17
FX707ZC
FX707ZE
FX707ZM
FX707ZR
Specifications:
Layout: US
Color: Black
Backlit: 1-Zone RGB
Condition: New
Warranty: One (1) Year
Replacement Tips:
1. Please verify that the part number, description, and image match your old keyboard.
2. This laptop comes with a built-in keyboard. You have to remove your palmrest from the laptop and install this keyboard on your existing palmrest.
3. To replace the keyboard, you have to remove the battery, laptop screen, CPU fan, motherboard, and most laptop parts on the palmrest.
4. If you want to replace it yourself, please go to the Asus website to download the hardware maintenance manual for this laptop, then follow the steps in the manual to remove the top cover.
