New Screen for HP EliteBook 640 G10, 645 G10 N00079-001 N00080-001 N00083-001 N42803-001 N42802-001

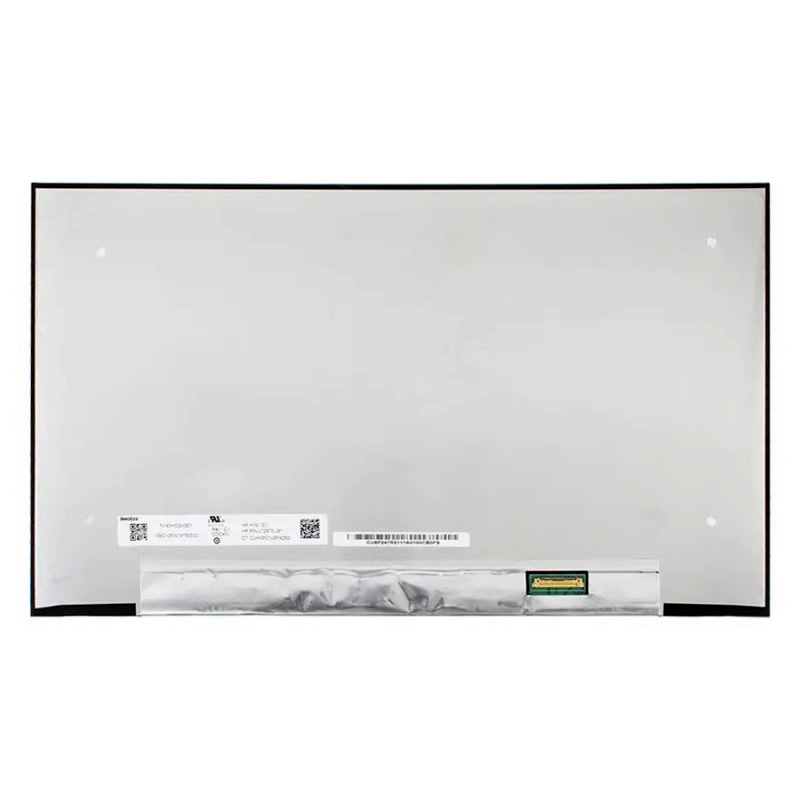

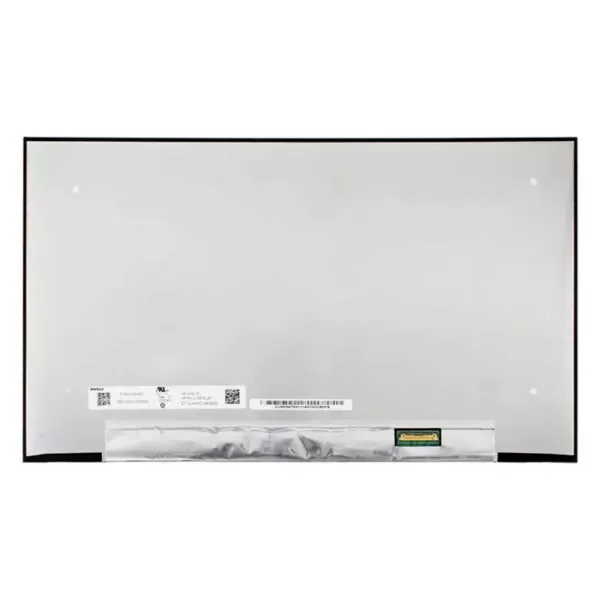

This is a new 14″ Screen for HP EliteBook 640 G10 and EliteBook 640 G10. This laptop’s screen comes in five specifications, and they are compatible with N00079-001, N00080-001, N00083-001, N42803-001, and N42802-001 respectively.

If you don’t know the specification of your screen, please choose any specification to place an order, then take a photo of the bottom cover of your laptop and send it to service@myfixguide.com, we will identify your screen specification.

Features:
1. It is a 100% new screen.
2. Each screen is rigorously tested to ensure that it works fine.

Compatible Laptops:
EliteBook 640 G10
EliteBook 645 G10
EliteBook 640 G9
EliteBook 645 G9

Specifications:
N00079-001 – FHD, 1000nits, Privacy
Size: 14-inch IPS Privacy Screen
Resolution: FHD (1920×1080)
Connector: 30 pins
Brightness: 1000 nits
Refresh Rate: 60Hz
Color Gamut: 100% sRGB
Surface Type: Matte, Anti-Glare

N00080-001 – FHD, 250nits, Touch
Size: 14-inch IPS TouchScreen
Resolution: FHD (1920×1080)
Connector: 40 pins
Brightness: 250 nits
Refresh Rate: 60Hz
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare

N00083-001 – HD, 250nits
Size: 14-inch IPS Screen
Resolution: HD (1366×768)
Connector: 30 pins
Brightness: 250 nits
Refresh Rate: 60Hz
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare

N42802-001 – FHD, 250nits
Size: 14-inch IPS Screen
Resolution: FHD (1920×1080)
Connector: 30 pins
Brightness: 250 nits
Refresh Rate: 60Hz
Color Gamut: 45% NTSC
Surface Type: Matte, Anti-Glare

N42803-001 – FHD, 400nits
Size: 14-inch IPS Screen
Resolution: FHD (1920×1080)
Connector: 30 pins
Brightness: 400 nits
Refresh Rate: 60Hz
Color Gamut: 100% sRGB
Surface Type: Matte, Anti-Glare

Condition: New
Warranty: One (1) Year

Dead Pixel Policy:
A+: No Dead Pixel
A-: Max of 1 to 3 dead pixels (In Accordance with ISO 13406-2 norm)

Screen for HP EliteBook 640 G10, 645 G10 N00079-001 N00080-001 N42803-001 N42802-001 Replacement Tips:

1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The LCD bezel is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive and you can easily remove the screen.
4. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover, and install the LCD bezel on your laptop.
