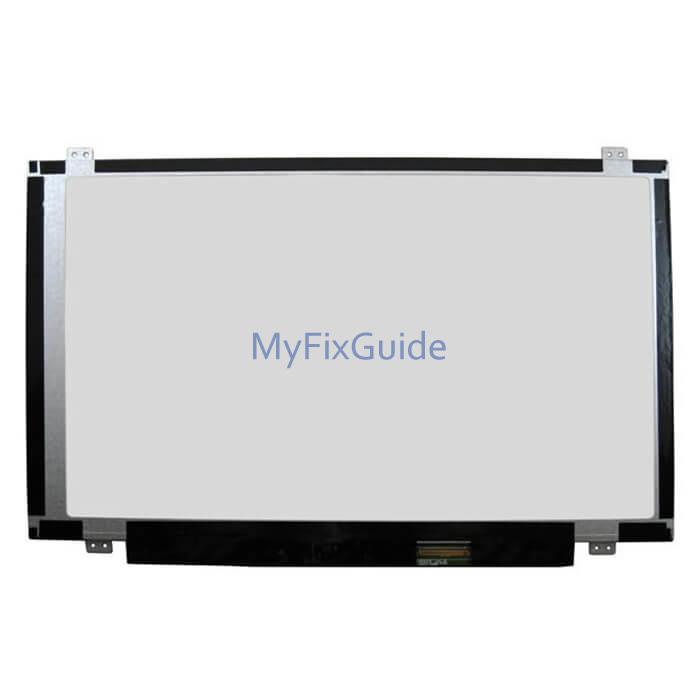

This is a brand new HD LCD Screen for Lenovo ThinkPad E480 and ThinkPad E490. The HD screen has three FRU: 01LW082, 01LW083, 01LW084. They are all compatible with your laptop. The difference is they are made by different manufacturers.
Compatible laptop:
ThinkPad E480
ThinkPad E485
ThinkPad E490
Compatible Part Number:
01LW082, 01LW083, 01LW084
Specifications
Size: 14.0-inch WideScreen
Resolution: WXGA (1366X768) HD
Backlight Type: LED
Surface Type: Matte
Video Connector: 30 pin socket
Condition: New, no dead pixel
Warranty: One (1) Year
Original Description:
01LW082 Dooku Intel FRU Dummy 14 HD TN AG narrow 220nit AUO
01LW083 Dooku Intel FRU Dummy 14 HD TN AG narrow 220nit INX
01LW084 Dooku Intel FRU Dummy 14 HD TN AG narrow 220nit BOE
Tips:
1. To replace the screen, you need to remove the LCD bezel first, and then remove the four screws securing the screen.
2. Place the screen on your keyboard and disconnect the LCD cable.
