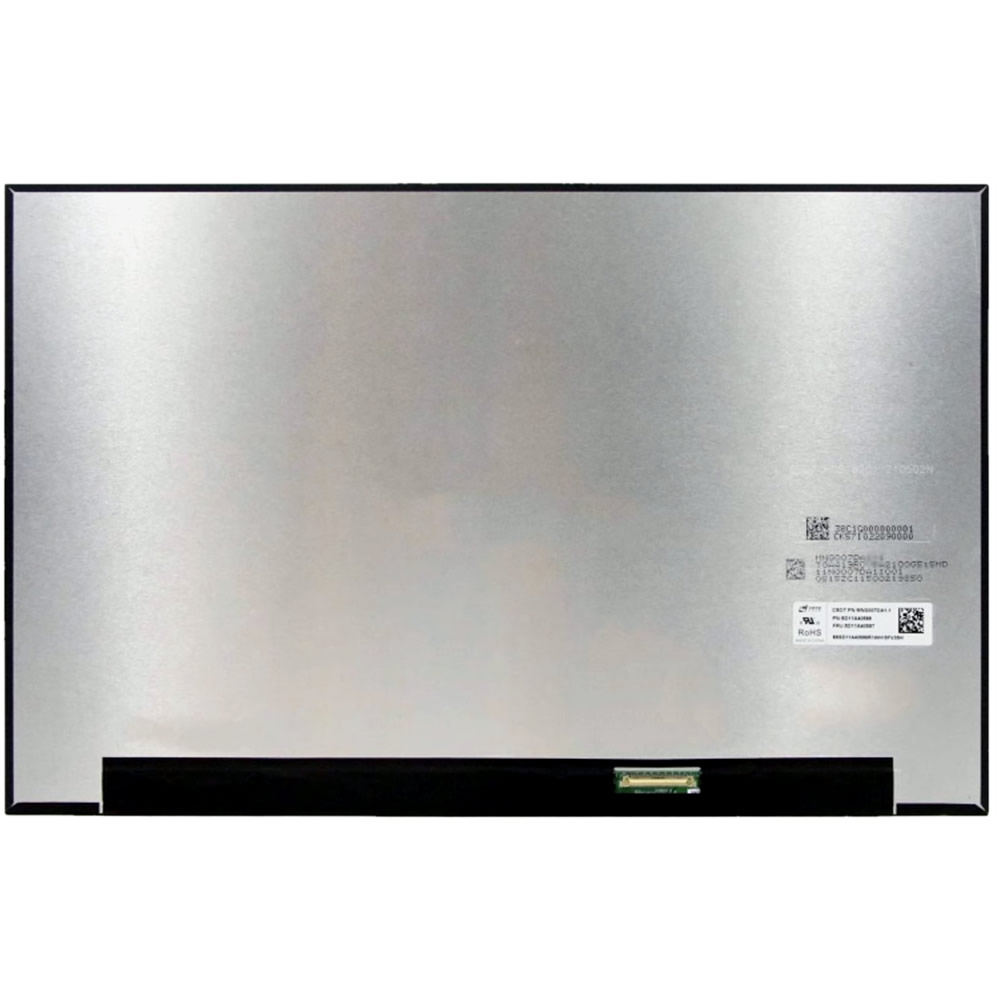

This is a new 14″ WQXGA+ Screen for Lenovo 5D11K83637. This screen has a brightness of 400 nits, a resolution of 2880×1800, a color gamut of 100% sRGB, a 40-pin connector, and a 120Hz refresh rate.
Features:
1. It is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.
Part Number:
5D11K83637
Specifications:
Size: 14-inch IPS Screen
Resolution: WQXGA+ 2880×1800
Touch: Non-Touch
Backlight Type: LED
Connector: 40 pins
Refresh Rate: 120Hz
Brightness: 400 nits
Color Gamut: 100% sRGB
Backlight Type: LED
Aspect Ratio: 16:10
Contrast Ratio: 1500:1
Surface Type: Matte, Anti-Glare
Condition: New, No Dead Pixels
Warranty: One (1) Year
Compatible Laptops
IdeaPad Pro 5 14APH8
IdeaPad Pro 5 14ARP8
IdeaPad Pro 5 14IRH8
Yoga Slim 6 14IAP8
Yoga Slim 6 14IRP8
Yoga Slim 7 Pro 14ARH7
Yoga Slim 7 Pro 14IAH7
Replacement Tips:
1. Make sure the part number, description, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. The screen is fixed on the LCD back cover with easy-stretch adhesive. Slowly pull out the adhesive, and you can easily remove the screen.
4. Place the screen on the keyboard, disconnect the display cable from the screen to remove the old screen, and then you can install the new screen on your laptop.
5. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
