Motorola Moto X Style Teardown

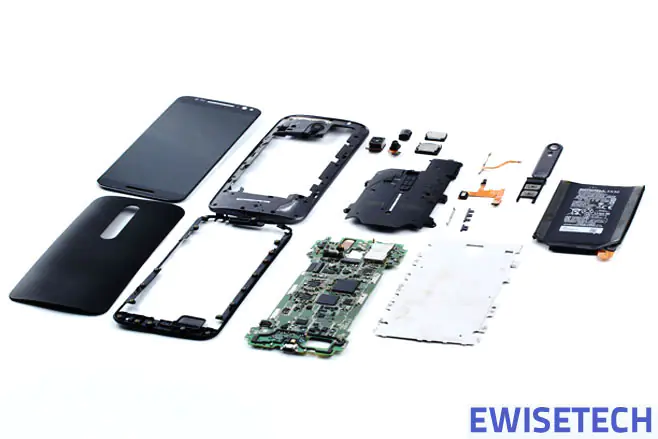

In this guide, I’ll explain how to disassemble Moto X Style to remove the back cover, battery, speaker, camera and motherboard. Refer to this guide. You can repair your Moto X Style.

Motorola Moto X Style is this year’s latest smartphone. 5.7 inch of 2K screen, 3GB of RAM, Qualcomm Snapdragon 808 processor, with up to 21MP main camera, support phase focusing. The front 5MP camera with a self-timer fill light, support the third-generation turbo fast-charge technology.

Want to be the first to see inside the latest gadgets? Follow us on Facebook for the latest news from the MyFixGuide.com.

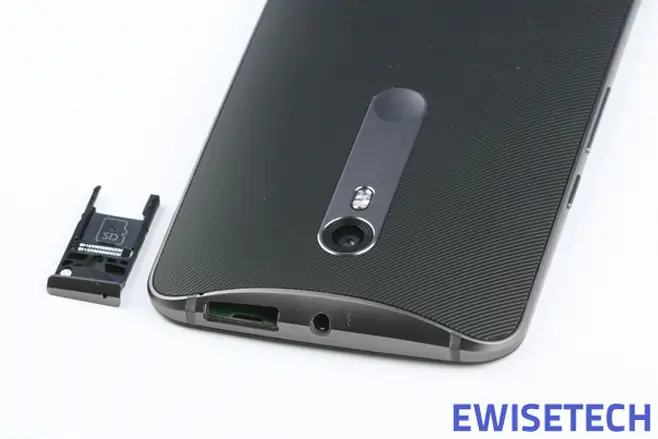

Moto X Style’s SIM card tray supports a Nano-SIM card, dual card dual standby, also support Micro SD card expansion.

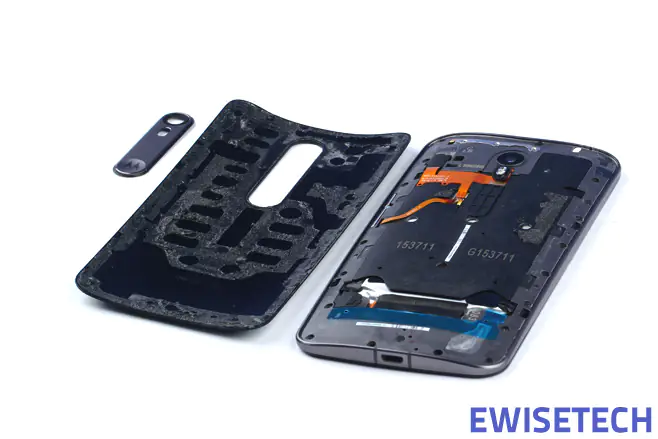

Moto X Style back cover can be customized, you can choose different colors and materials. This Moto X Style back cover is a standard version of the black silicone material. Cover with diagonal stripes in order to increase the slip on feeling more comfortable.

The back cover uses a lot of glue fixed. Back cover made of PVC material. The overall bending flexibility is better.

Remove all screws securing the middle frame.

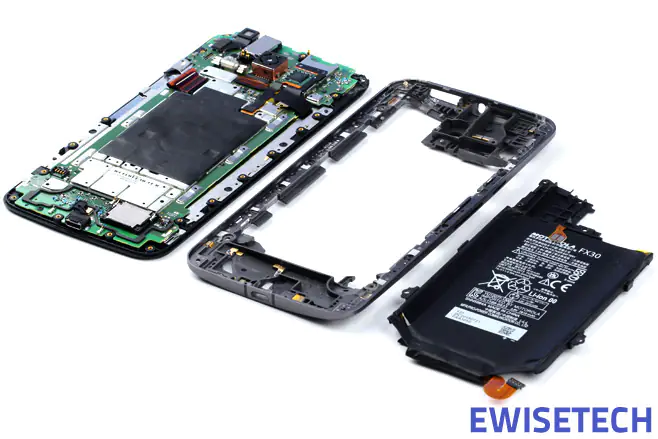

Remove the middle frame.

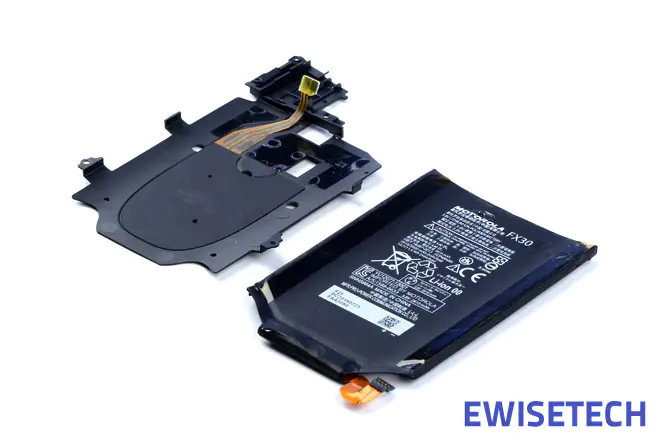

Remove the battery.

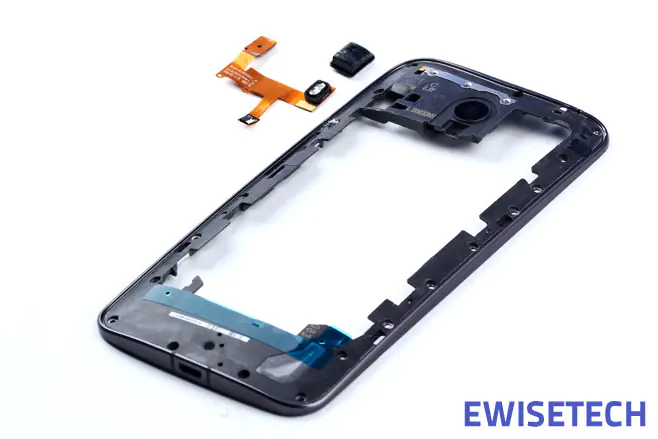

The flash FPC is fixed in the middle frame.

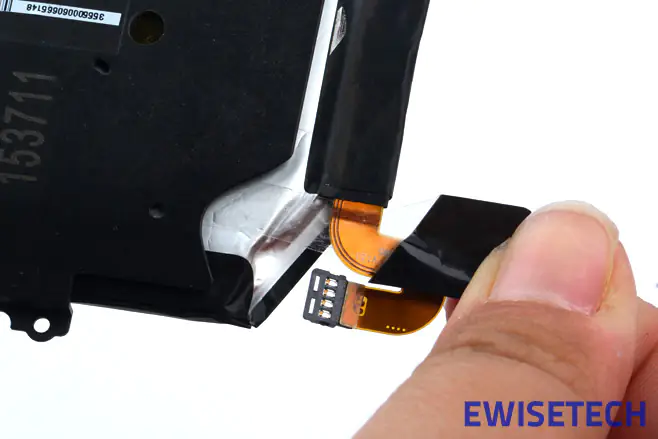

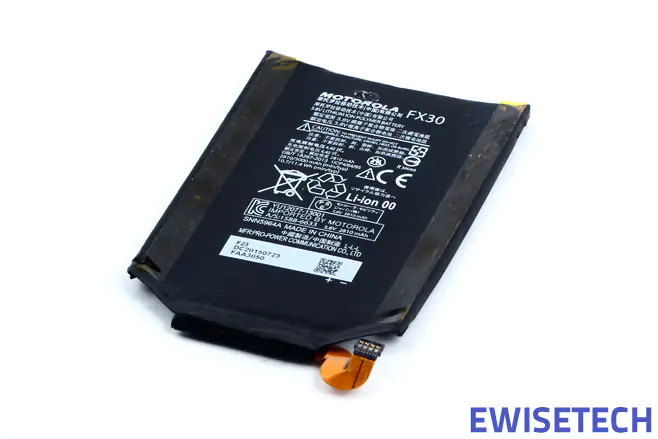

Moto X Style battery capacity of 3000mAh, and support fast charge mode. Official propaganda saying is: to meet the 10 hours of charge for 15 minutes, and it is currently the fastest on the market. Batteries still use LG batteries, the thickness of the battery is 3.2mm. During phone charging temperature rise more quickly, there may be fast charge’s sake, but in normal use, the phone temperature control is not very satisfactory.

In order to achieve the good cooling effect, all the metal shield covered large graphite. The back of the motherboard also uses a larger copper foil.

The display expanded from 5.2-inch to 5.7-inch, AMOLED screen from the 1080P replaced by 2K (2560 x 1440) LCD screen. The border has also been more narrowed. It’s different with the previous generation, the back of the screen plus a piece of metal plate as internal support. This metal plate reinforced body stability, but also further increase the thickness of the fuselage.

The top of the front of the phone in order of priority is the infrared sensor, light/distance sensor, earpiece, infrared sensors, front camera and self-portrait photo light.

Moto X Style with a 21MP rear camera, 2.0 large aperture, with a dual flash, 5MP front camera.

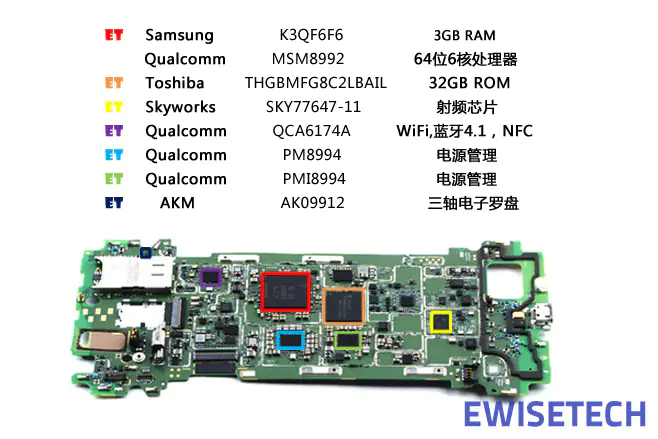

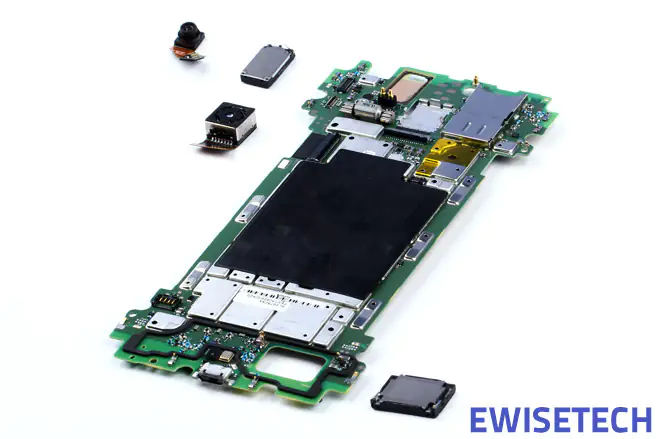

Motherboard Front: 6-core Qualcomm Snapdragon 808 processor, Samsung’s 3GB RAM, Toshiba’s 32GB flash memory, Qualcomm QCA6174A of Wi-Fi, BT, NFC chip, two Qualcomm power management chip, Japan AKM’s electronic compass chip.

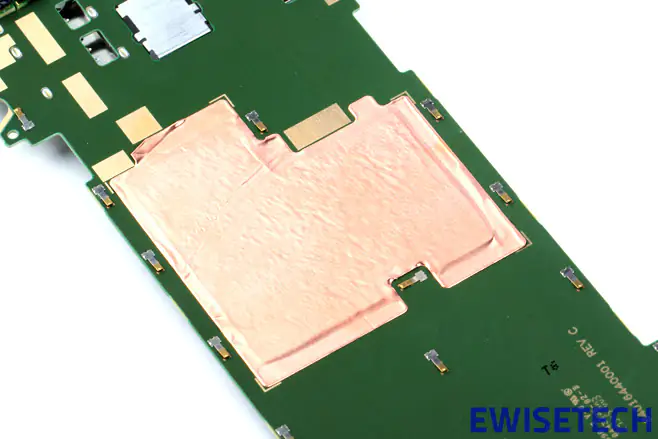

The back of the motherboard: the middle there is a large copper foil, no chips, just integrated microphone, four infrared sensors and ground shrapnel.

For more guides, check out the Moto X Style device page.
