Lenovo ThinkPad T440 Disassembly

In this guide, I’ll explain how to Lenovo ThinkPad T440 to remove and replace the battery, RAM, hard drive, SSD, RAM, wireless card, heat sink, cooling fan and motherboard. Refer to this guide, you can repair, upgrade, clean the cooling fan for your ThinkPad T440.

Want to stay connected to the MyFixGuide.com? Follow us on Facebook to check out the latest teardown news

Unlock and remove the battery.

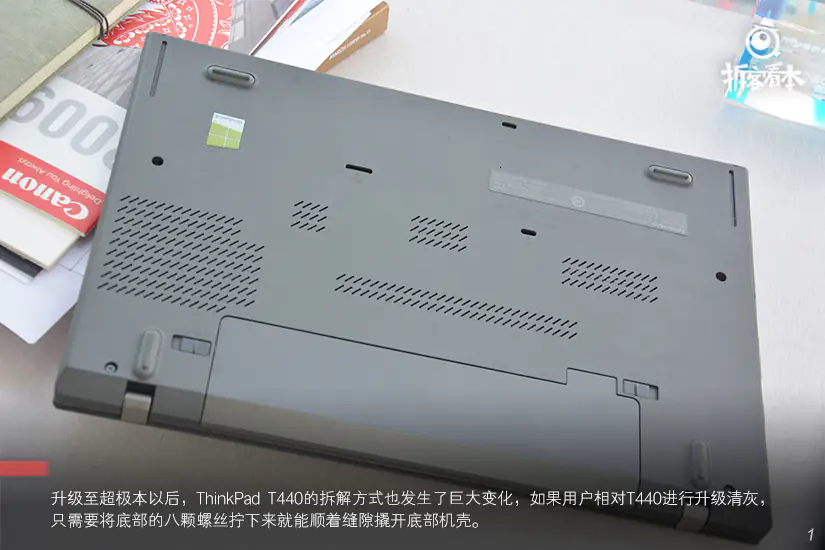

Remove eight screws securing the bottom case.

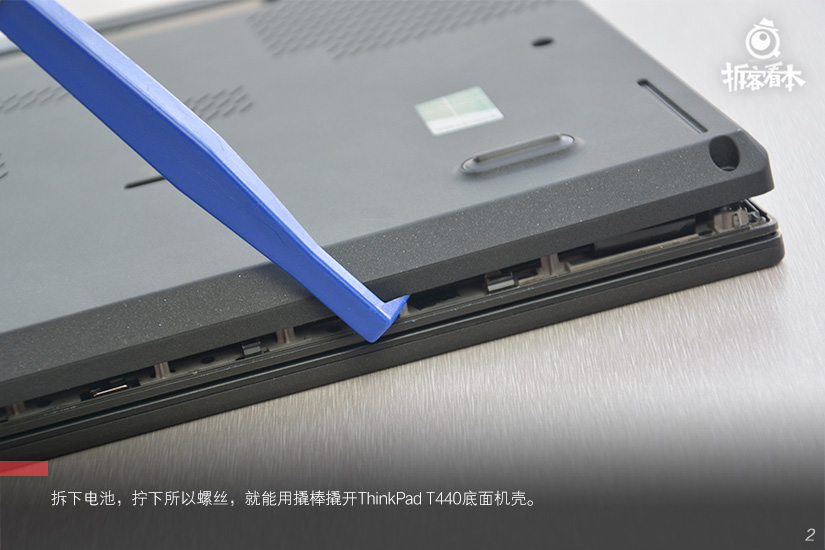

Pry up the bottom case with a pry bar. There are some snaps fixed the bottom case, and you need to release all the snaps.

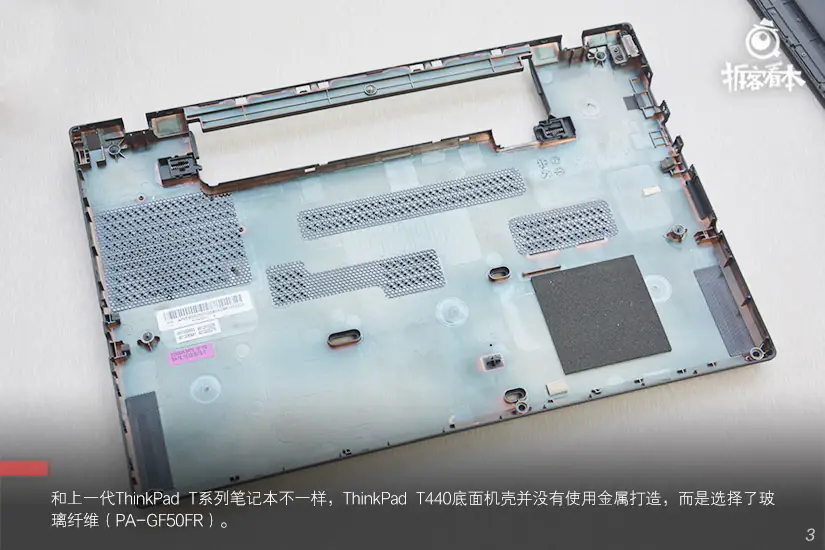

Lenovo ThinkPad T440 bottom case, the case made of glass fiber (PA-GF50FR).

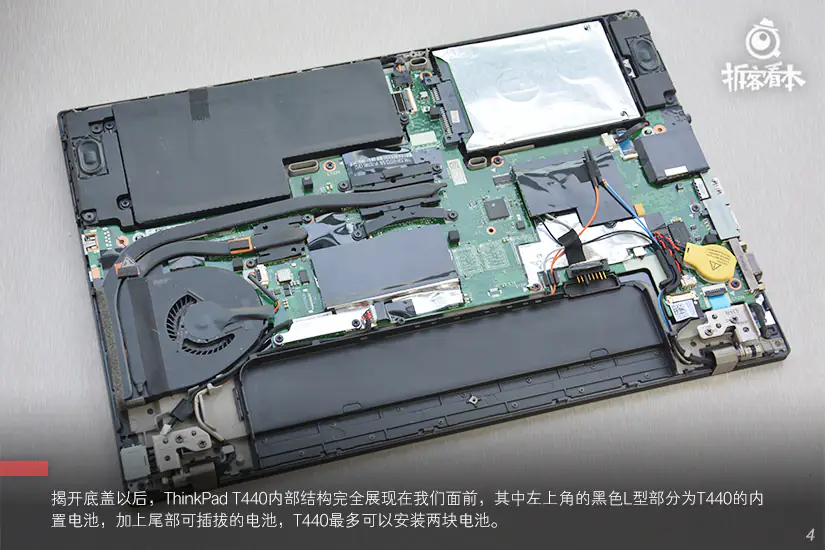

Under the bottom case, you can access the battery, RAM, SSD, wireless card, speaker, heat sink and cooling fan.
Remove three securing the battery and disconnect the power cable from the motherboard.

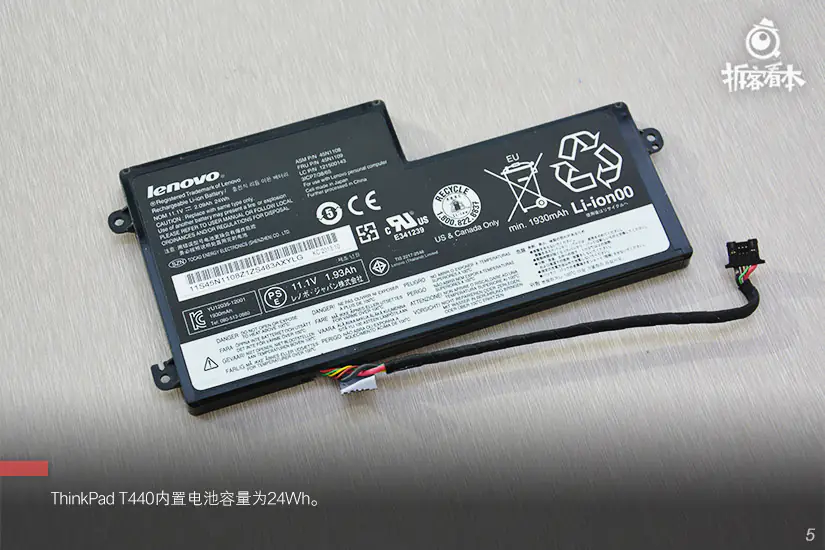

Lenovo ThinkPad T440 installed an 11.1v, 24wh Li-ion battery.

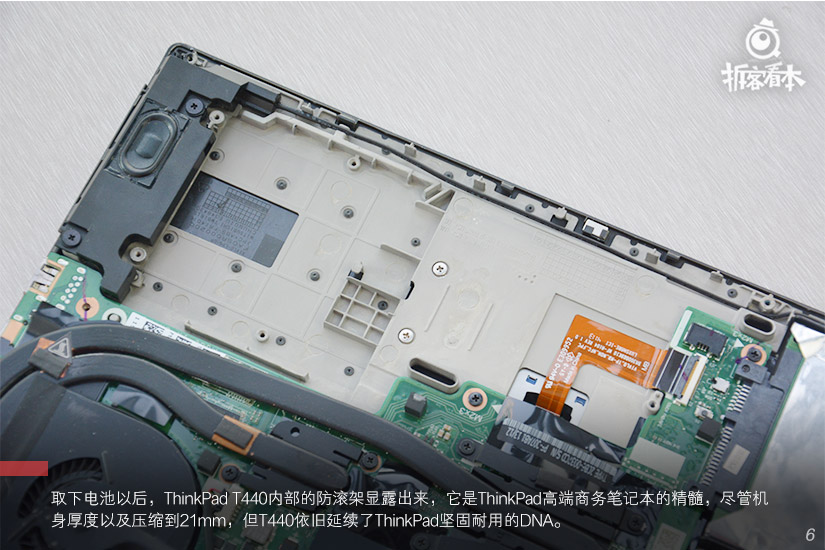

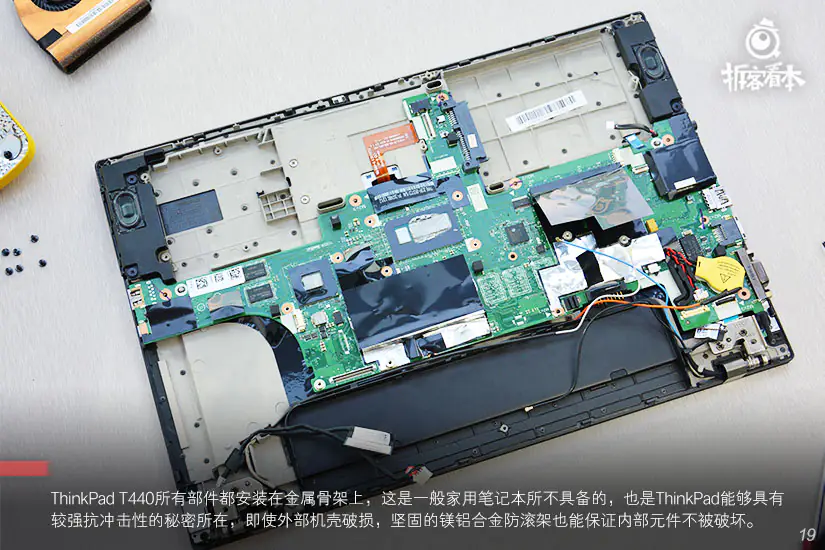

T440 Roll Cage

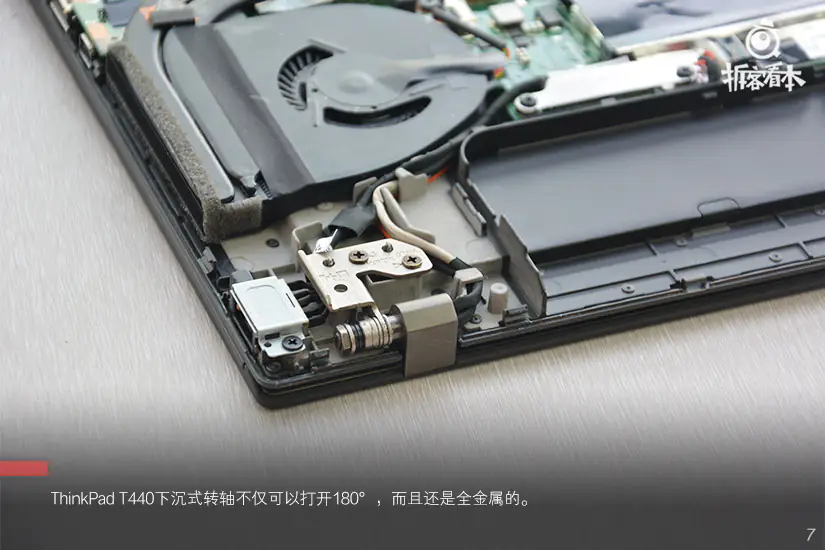

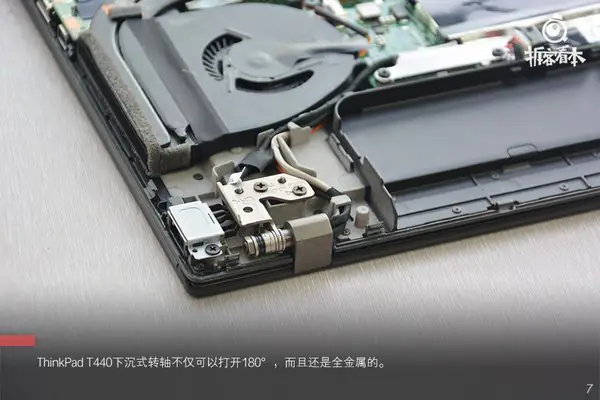

T440 LCD hinge

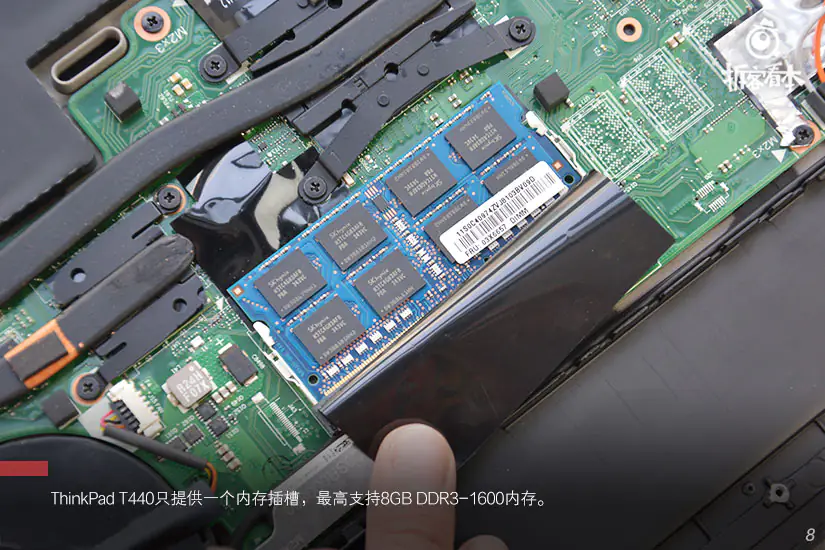

The laptop only has one memory slot. It supports up to 8GB DDR3-1600MHz RAM.

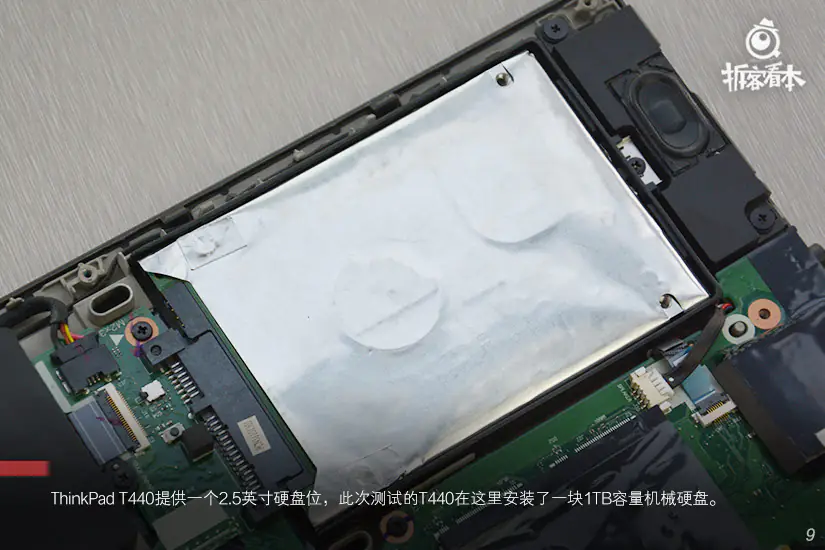

2.5″ 1TB hard drive

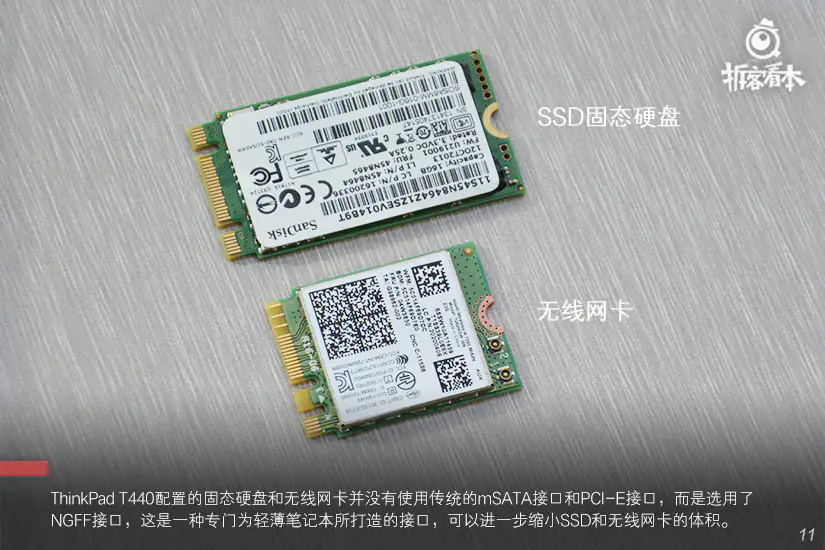

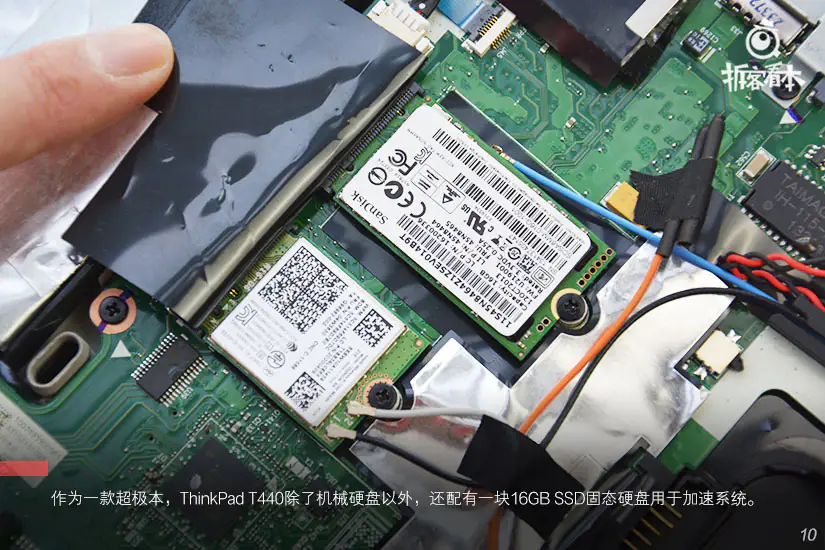

SanDisk 16GB SSD and wireless card

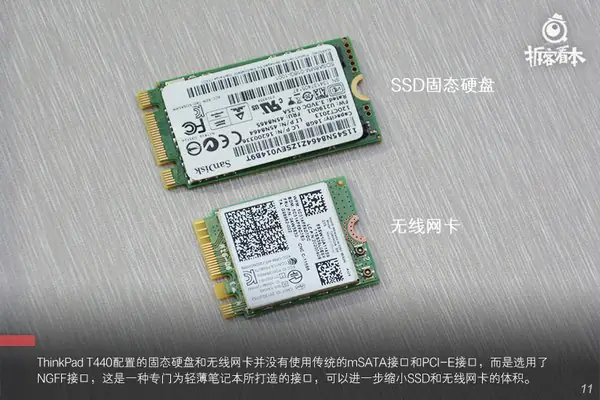

SanDisk 16GB SSD and wireless card

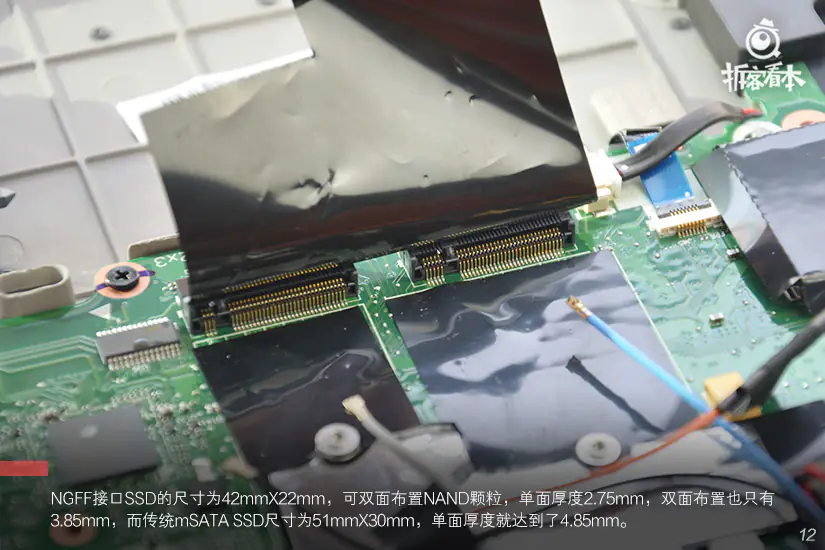

mSATA slot and a PCI-E slot

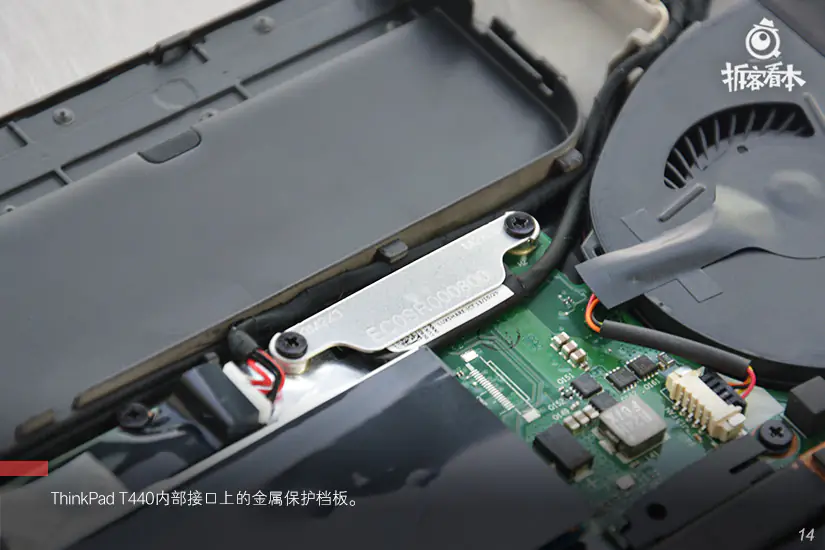

Metal protective plate on the internal interface

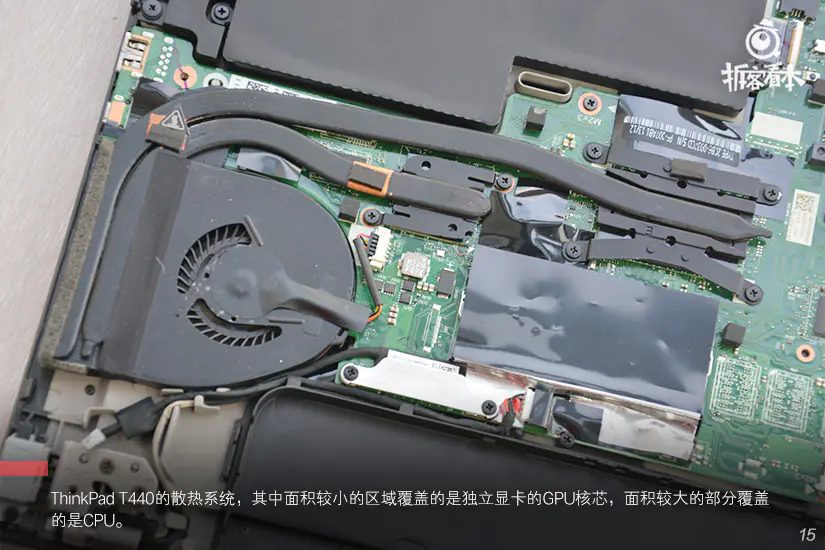

Remove six screws securing the heat sink. Disconnect the cooling fan cable. Remove the heat sink and cooling fan.

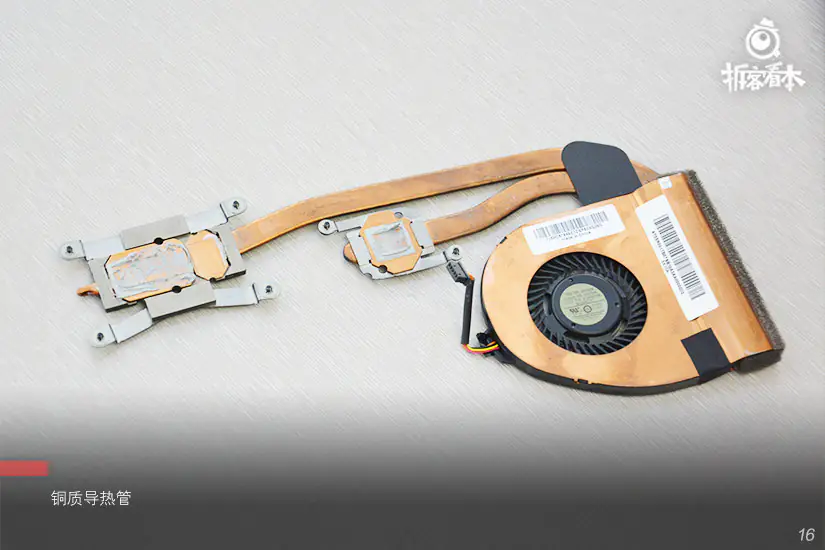

The heat sink and cooling fan

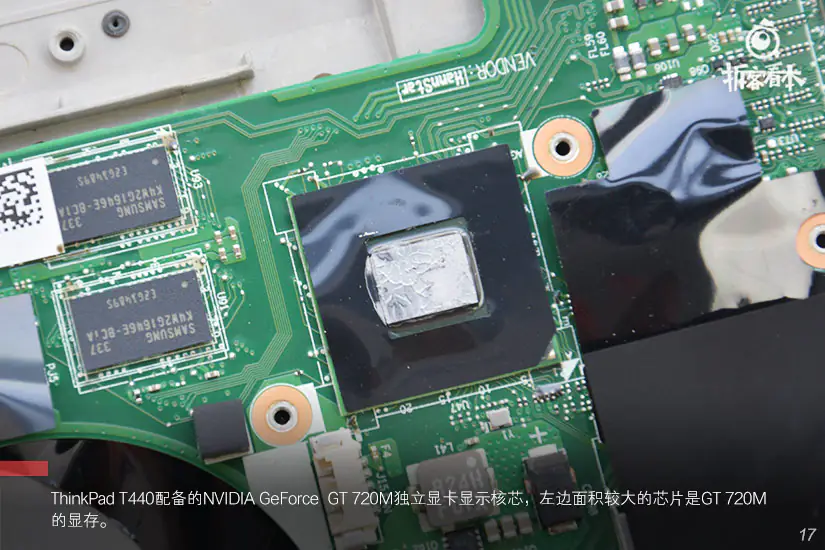

ThinkPad T440’s NVIDIA GeForce GT 720M graphics card

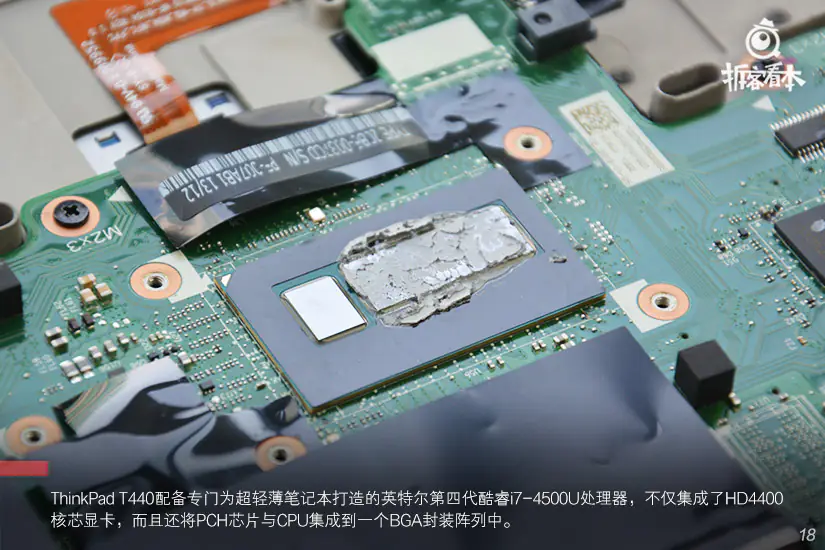

The Intel i7-4500U Core processor integrated an HD4400 graphics card.


For more guides, check out the Lenovo ThinkPad T440 device page.
