Huawei Honor 6 Plus Teardown

In this guide, I’ll explain how to disassemble Huawei Honor 6 Plus to remove the back cover, battery, rear camera, front camera, speaker, headphone jack, light distance sensor and motherboard. Refer to this guide. You can repair your Huawei Honor 6 Plus.

Want to keep in touch with us? Follow us on Facebook for more repair news.

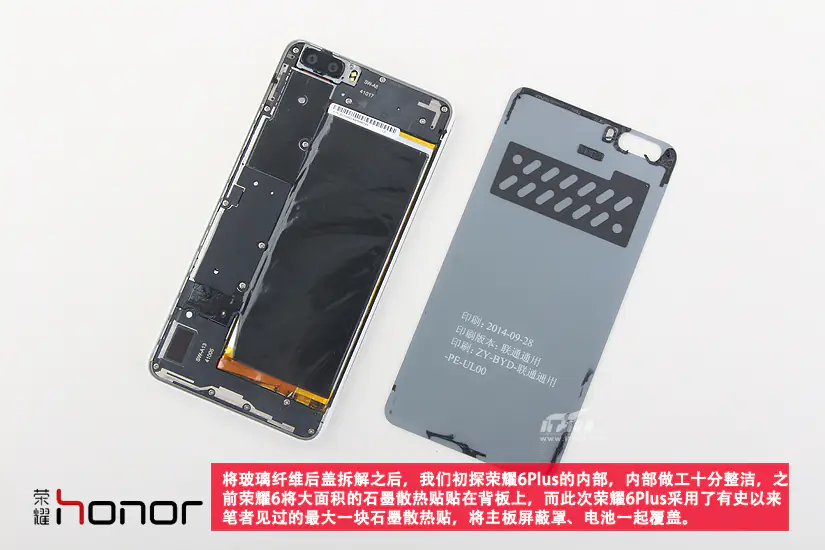

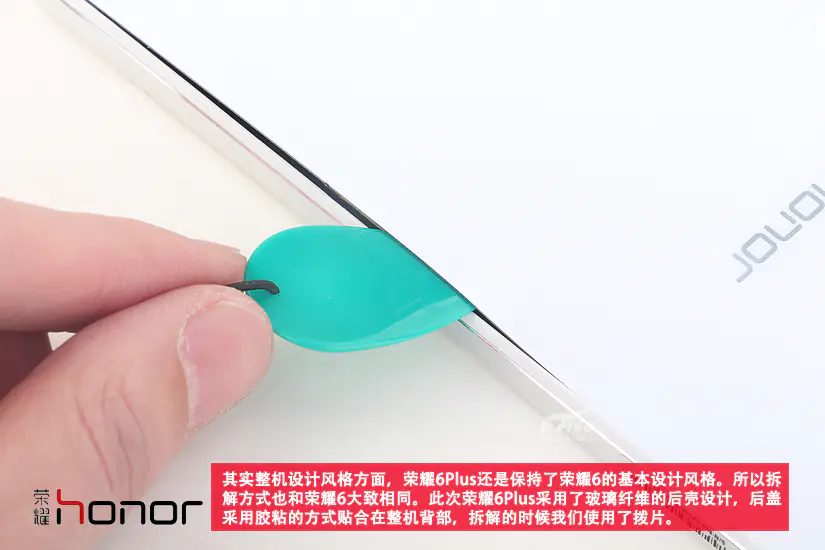

First of all, insert a guitar pick to pry up and remove the back cover.

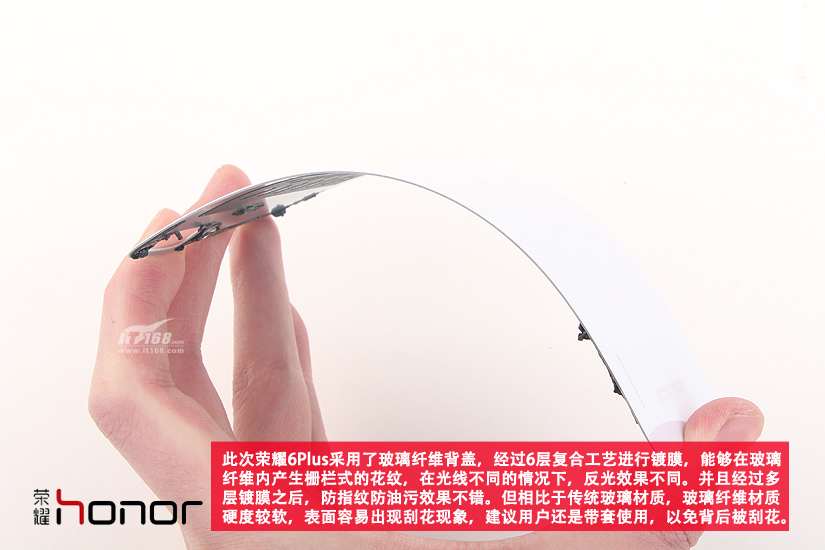

Huawei Honor 6 back cover made of glass fiber.

The back cover has good toughness.

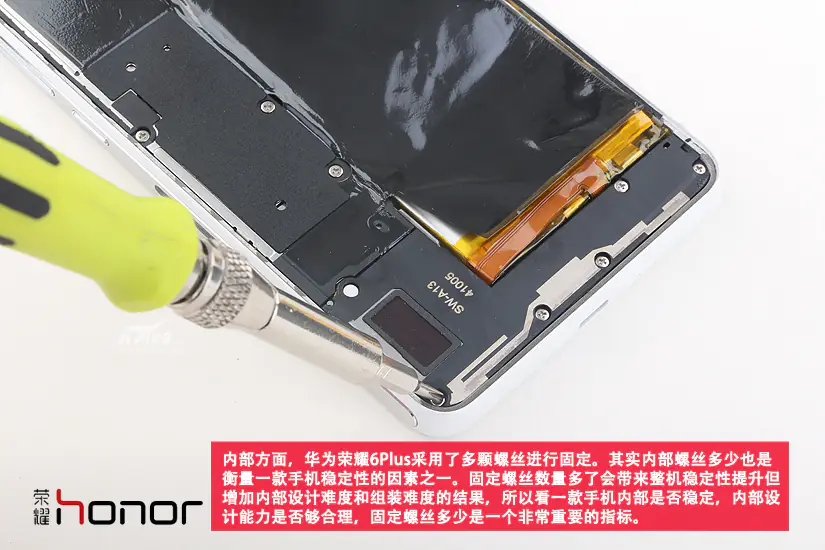

Remove all screws securing the middle frame.

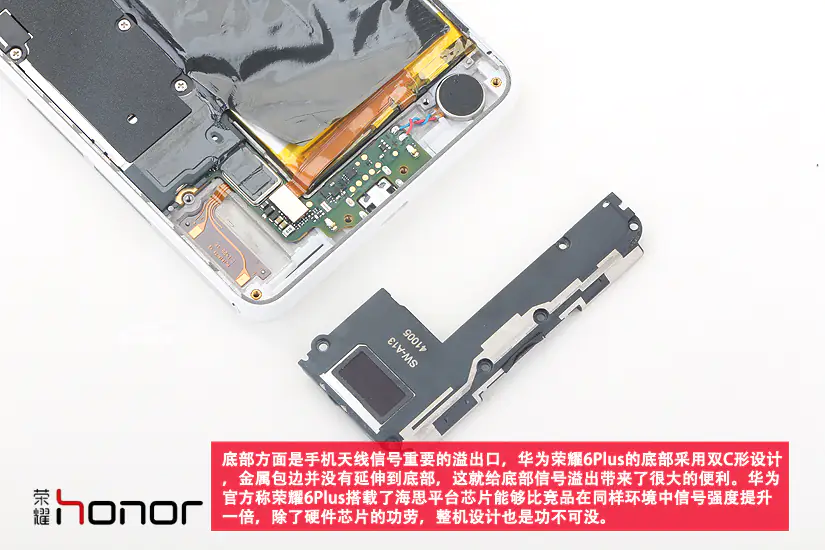

Remove the top middle frame.

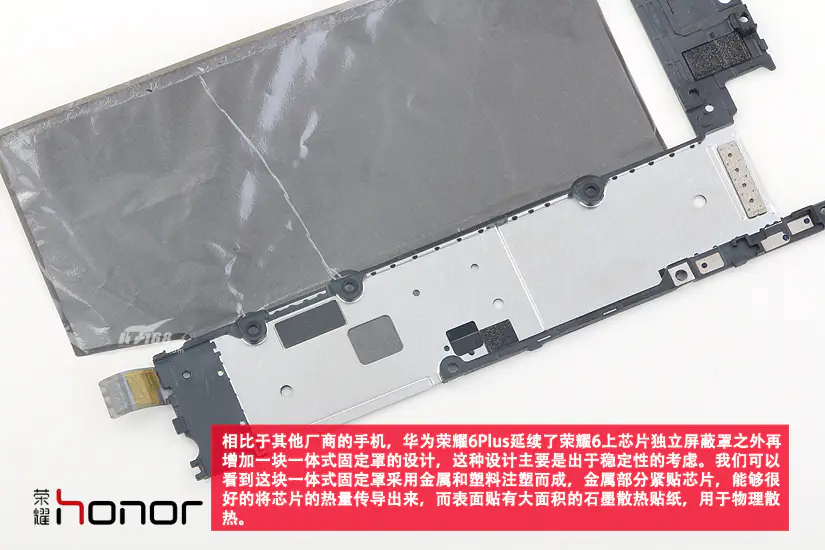

Remove the middle frame and graphite stickers.

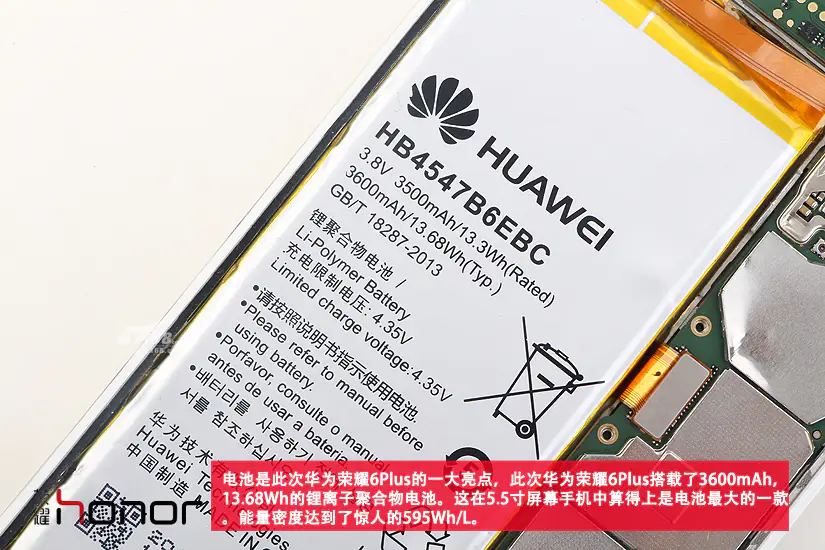

Huawei Honor 6 Plus comes with a 3.8v 3500mah/13.3wh – 3600mah/13.68wh Li-polymer battery. Huawei model: HB4547B6EBC.

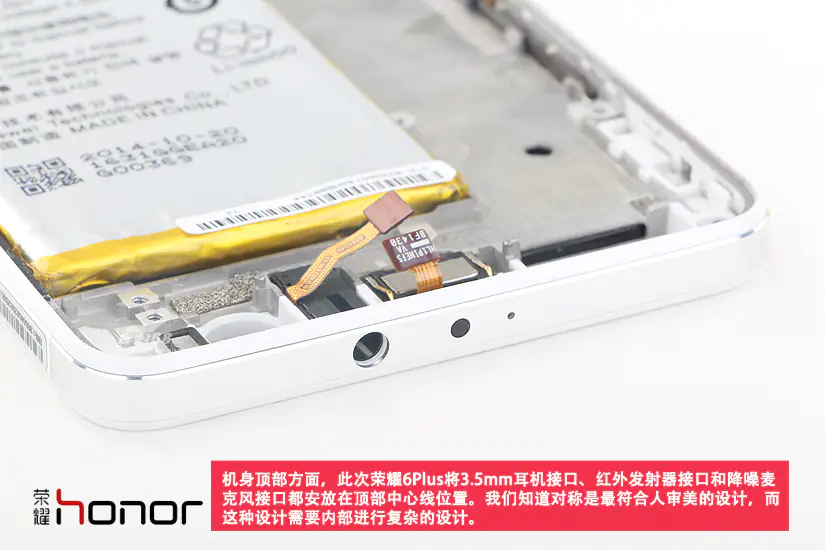

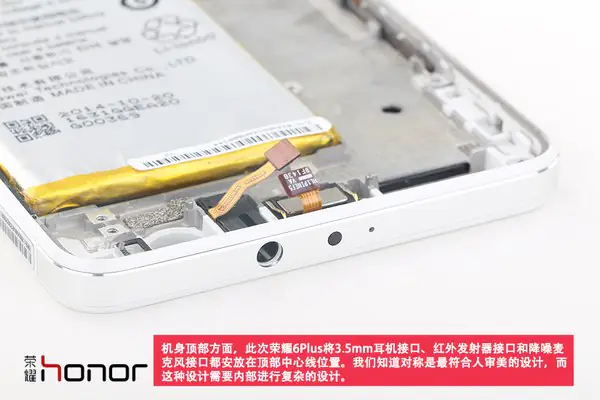

The 3.5mm headphone jack and the infrared transmitter port

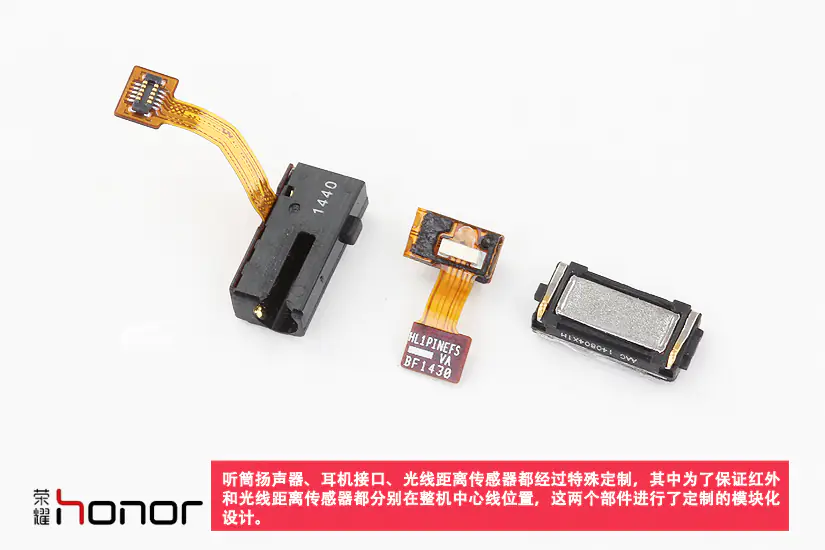

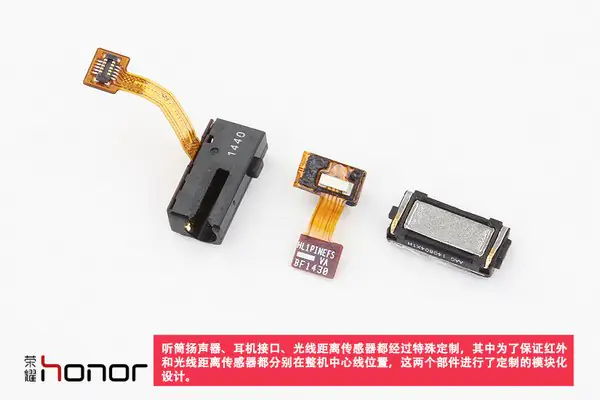

Earpiece speaker, headphone jack and light distance sensor

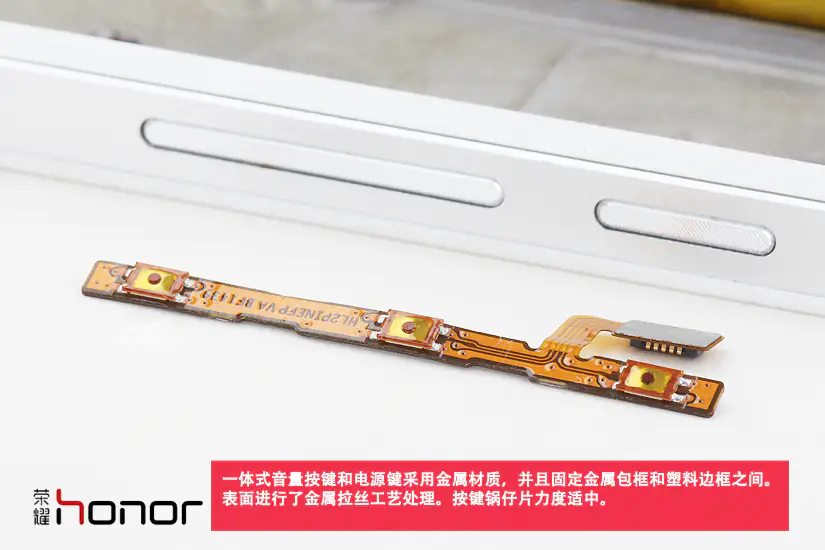

Volume buttons and power button are integrated on a small board.

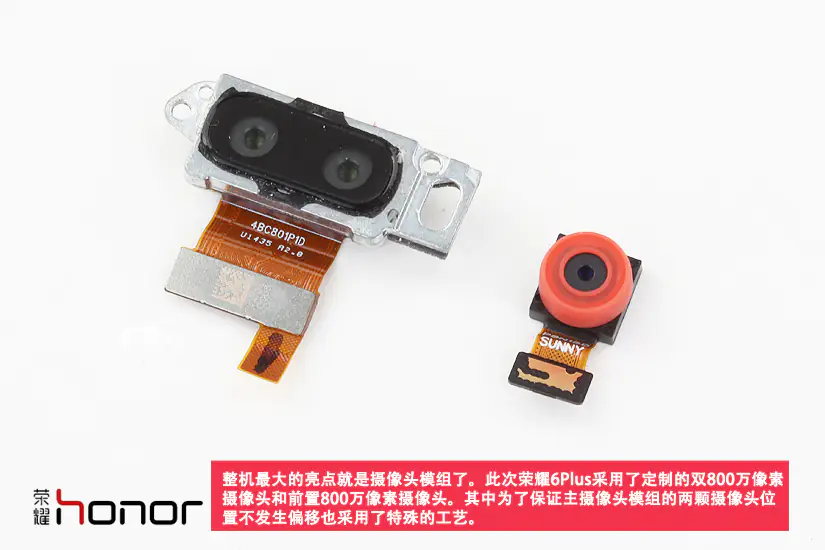

Rear camera and front camera

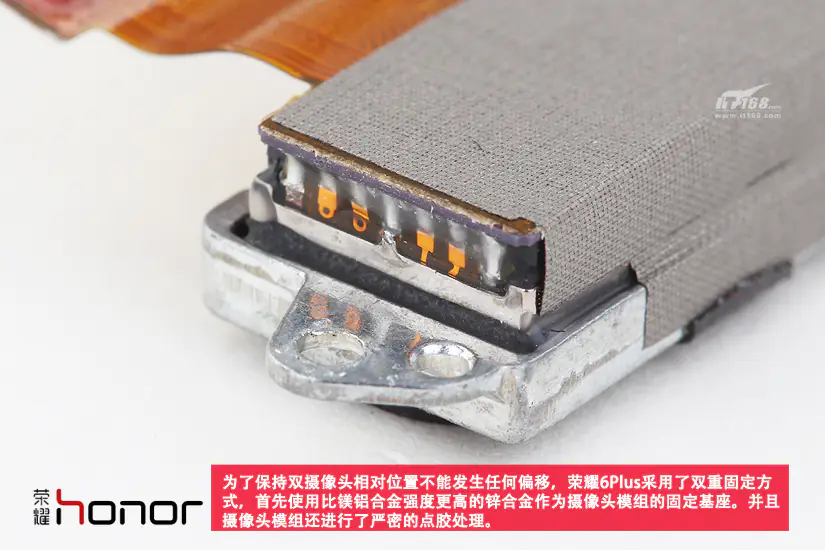

Camera fixed base

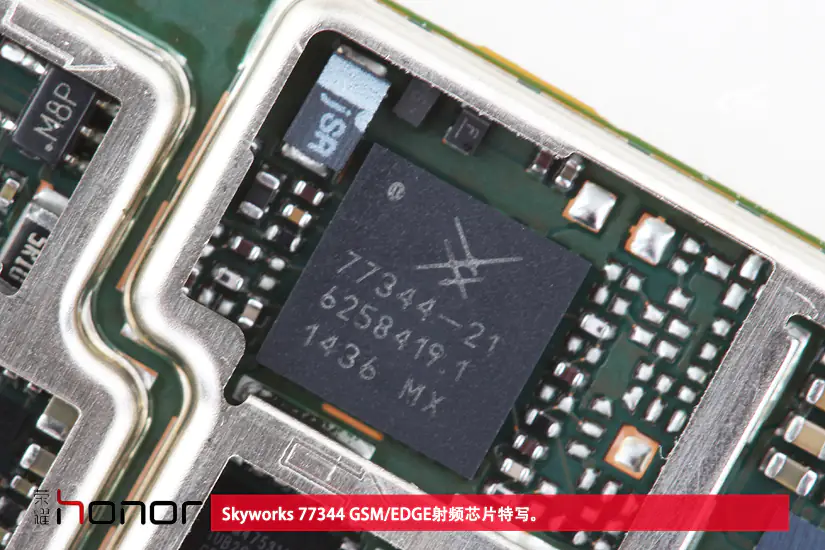

Skyworks 77344 GSM/EDGE RF chip

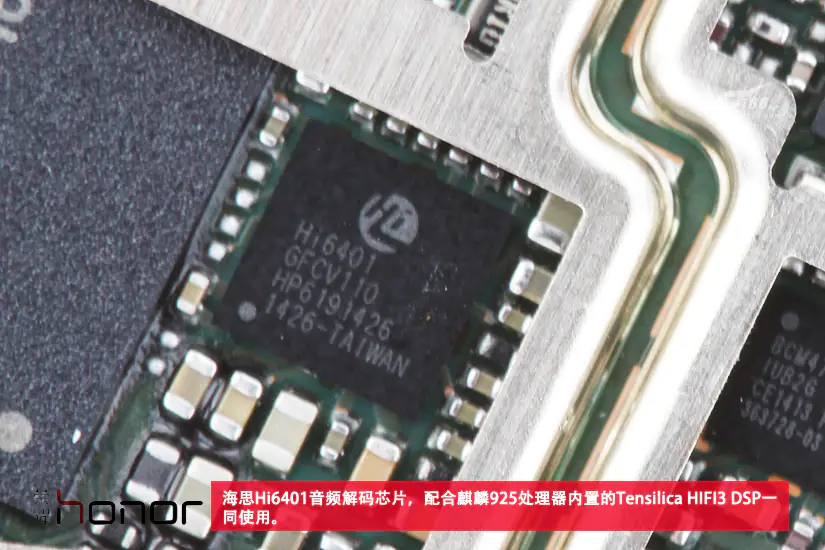

Hisilicon Hi6401 Audio decoder chip

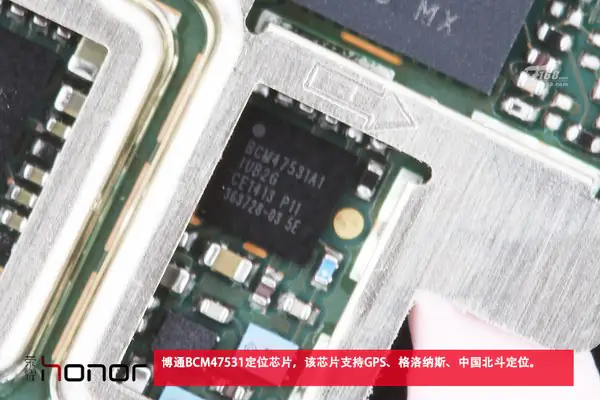

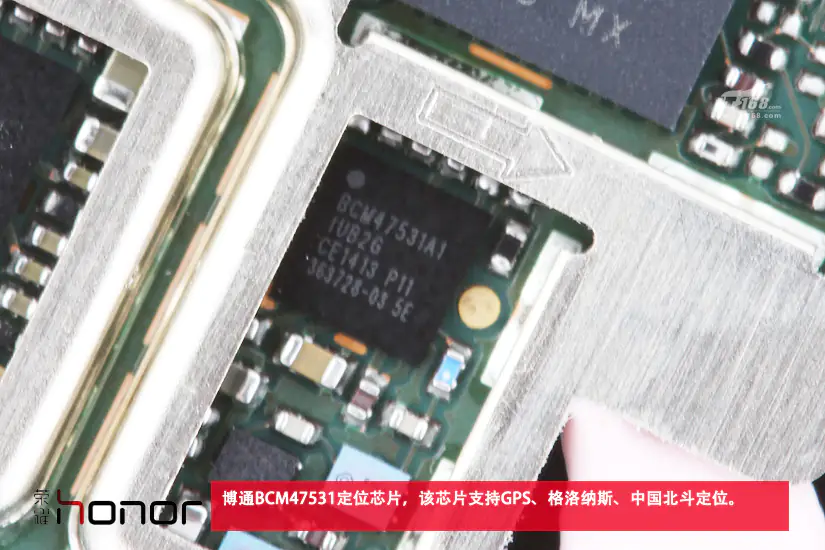

Broadcom BCM47531 GNSS Location Chip, support GPS, GLONASS, QZSS, SBAS and BeiDou

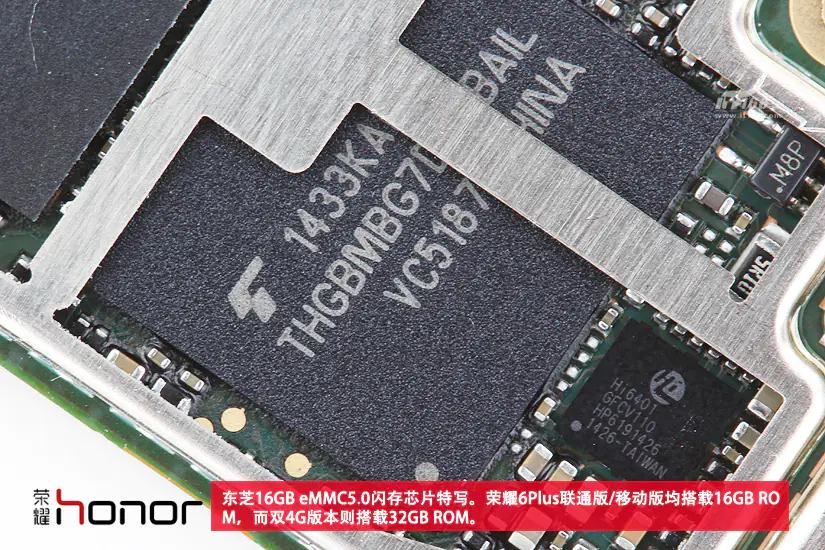

Toshiba 16GB eMMC5.0 ROM

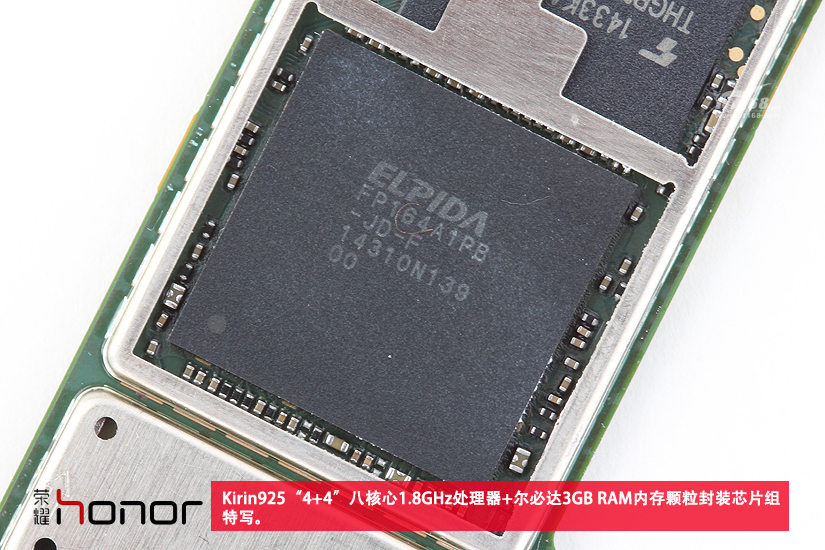

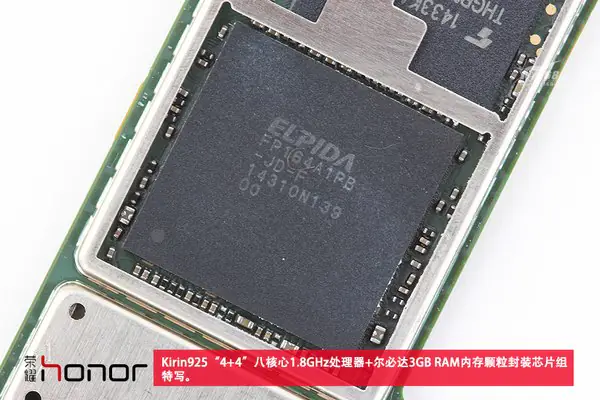

Hisilicon Kirin 925 1.8GHz processor + ELPIDA 3GB RAM

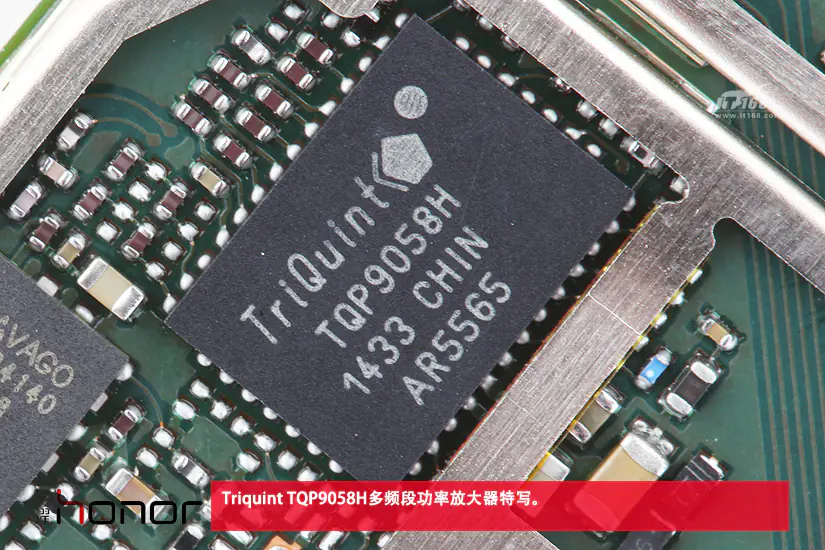

TriQuint TQP9058H power amplifier chip

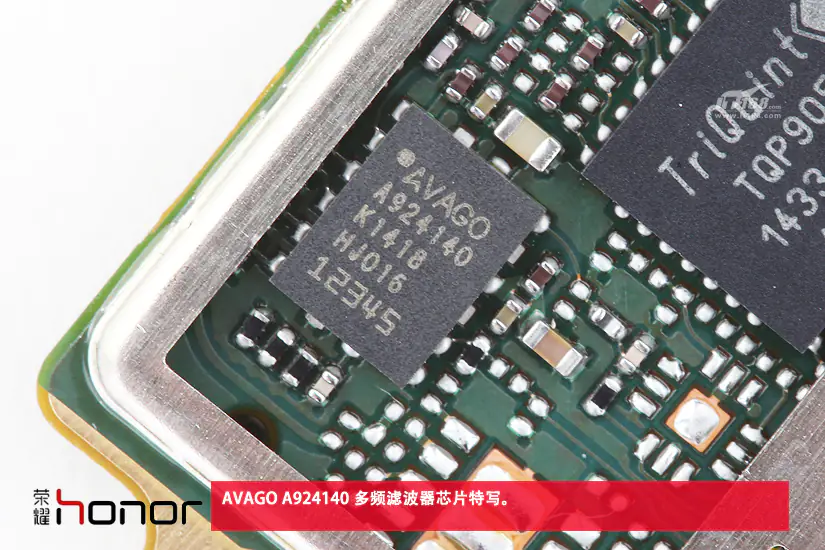

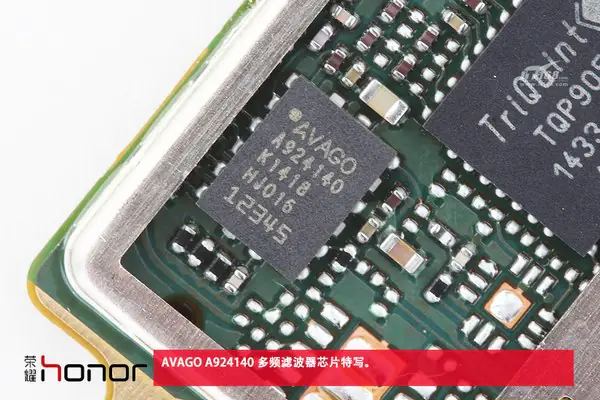

AVAGO A924140 filter chip

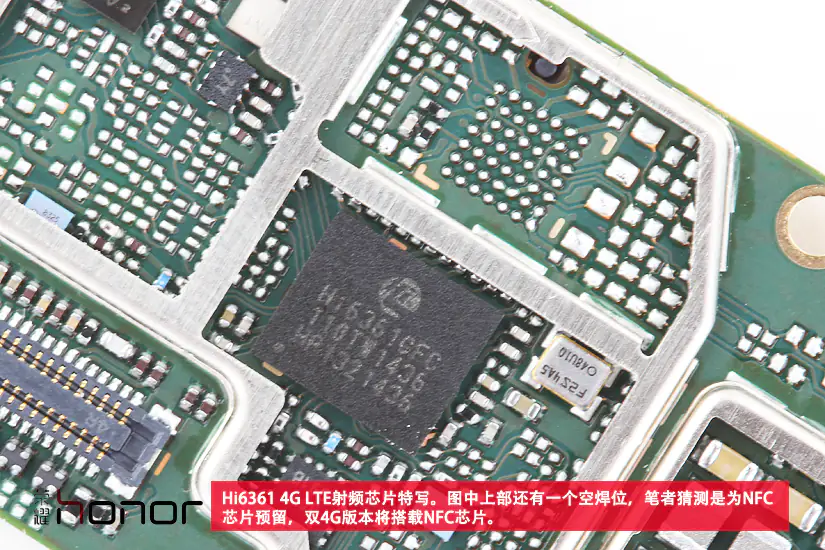

Hisilicon Hi6361 4G LTE RF chip

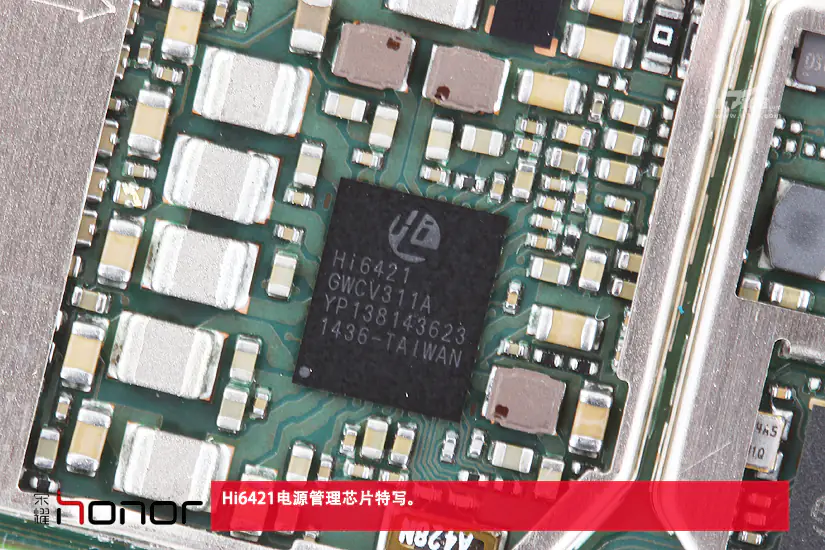

Hisilicon Hi6421 Power management chip

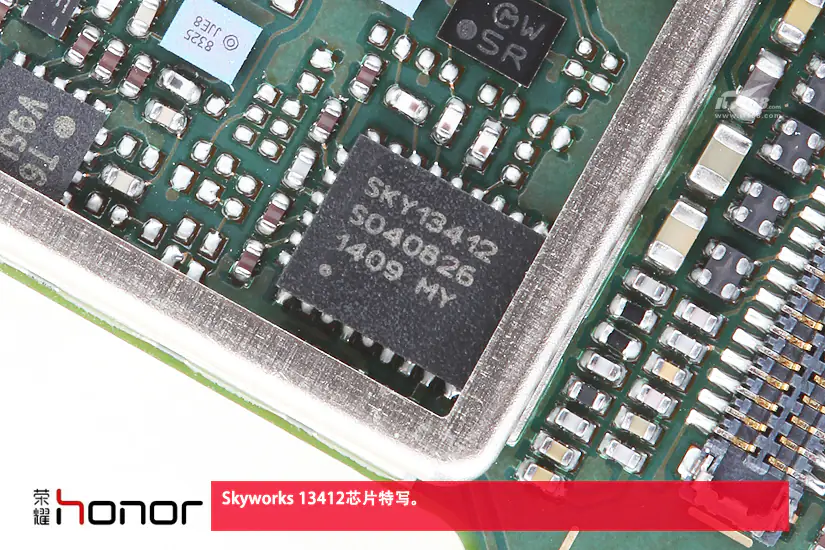

Skyworks 13412 chip

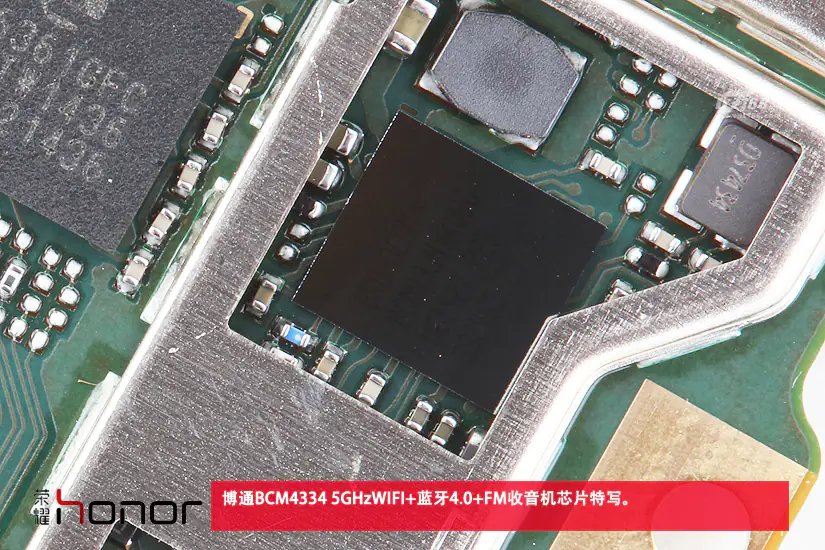

Broadcom BCM4334 5GHz Wi-Fi + Bluetooth + FM Radio chip

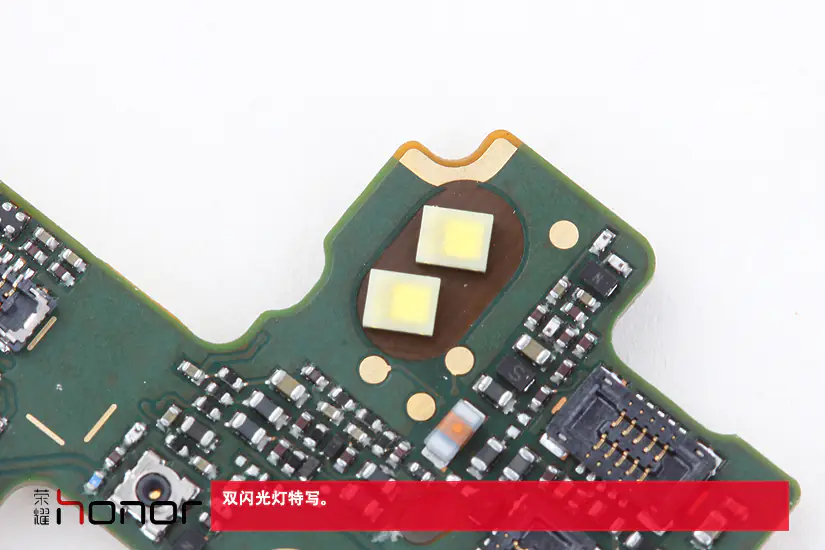

Dual flash

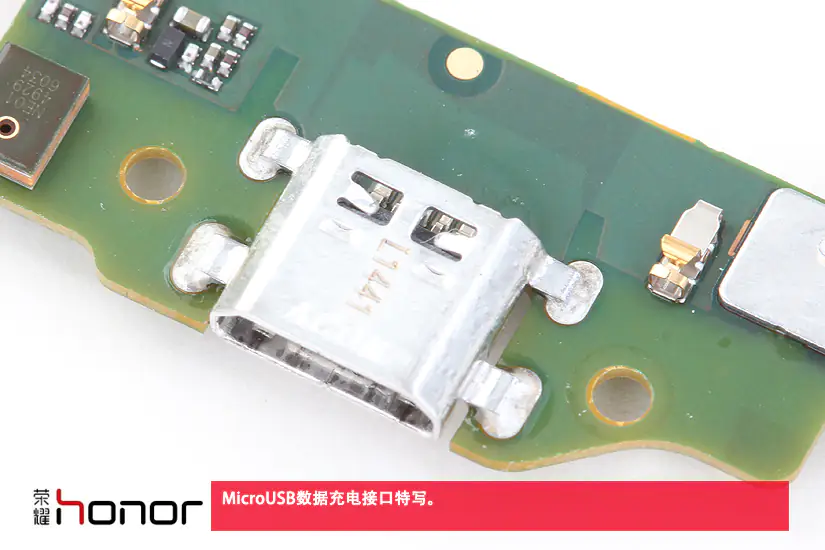

Micro USB charging port

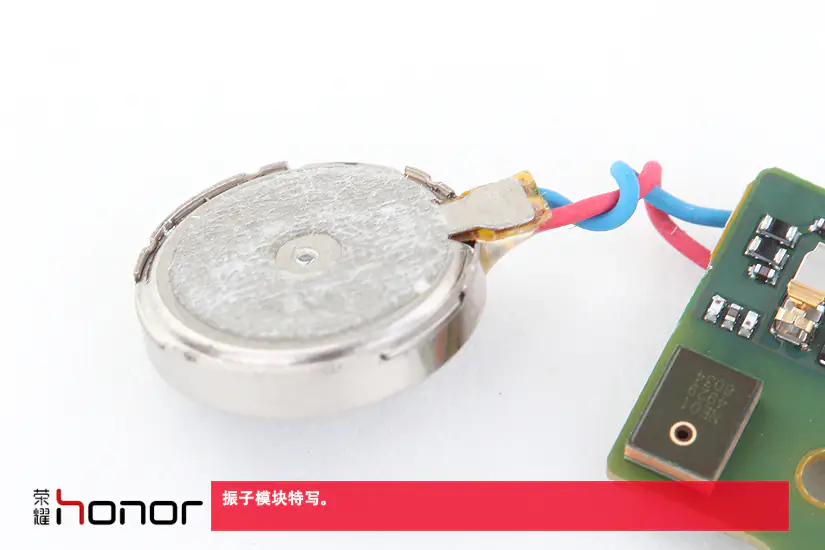

Vibrator module

Source: it168
