How To Replace Huawei P10 Front Facing Camera

In this guide, we are going to show you how to remove, replace the front facing camera on Huawei P10 smartphone. These removal instructions have been made into 3 easy to follow steps. In order to remove the front facing camera, you need to remove the back cover and disconnect the battery connector from the motherboard.

Teardown is what we do! Follow us on Facebook for the latest repair news.

The full teardown of the Huawei P10 can be found here.

Repair Tools Needed:
0.8 pentalobe screwdriver
Suction cup
SIM Card Eject Tool

1. Removing the SIM card tray and two Pentalobe screws

First of all, switch off your phone and remove the SIM card tray.

Remove the two Pentalobe screws located at the bottom next to the device’s USB Type-C port.

2. Removing the back cover

Use a suction cup to separate the display unit from the back cover.

Lift up the display a little bit with a suction cup and insert a pick.
Slide the pick along the display edge on both sides.

Don’t remove the back cover completely yet. The power button and volume button cable is still connected to the motherboard.

3. Disconnect the power button and volume button cable

Disconnect the power button and volume button cable using a spudger.

Once the cable disconnected, you can remove the back cover completely.

3. Disconnect the battery connector

Remove one screw securing the metal sheet.

Remove the metal sheet with a tweezer.

Disconnect the main FPC from the motherboard with a spudger

Disconnect the battery connector from the motherboard with a spudger

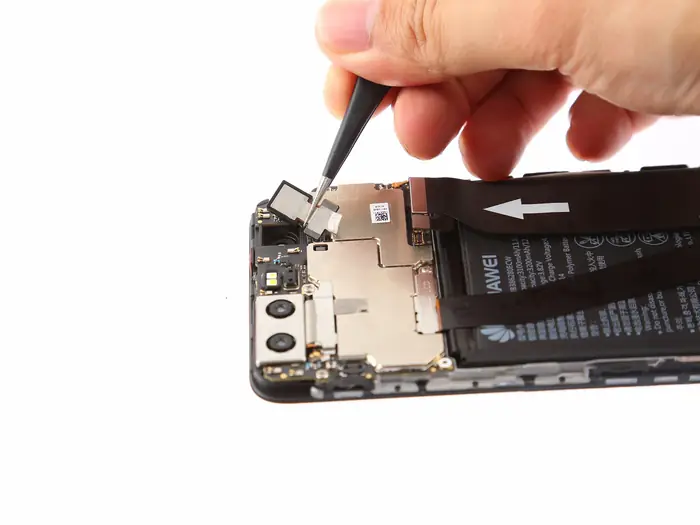

3. Removing the front camera

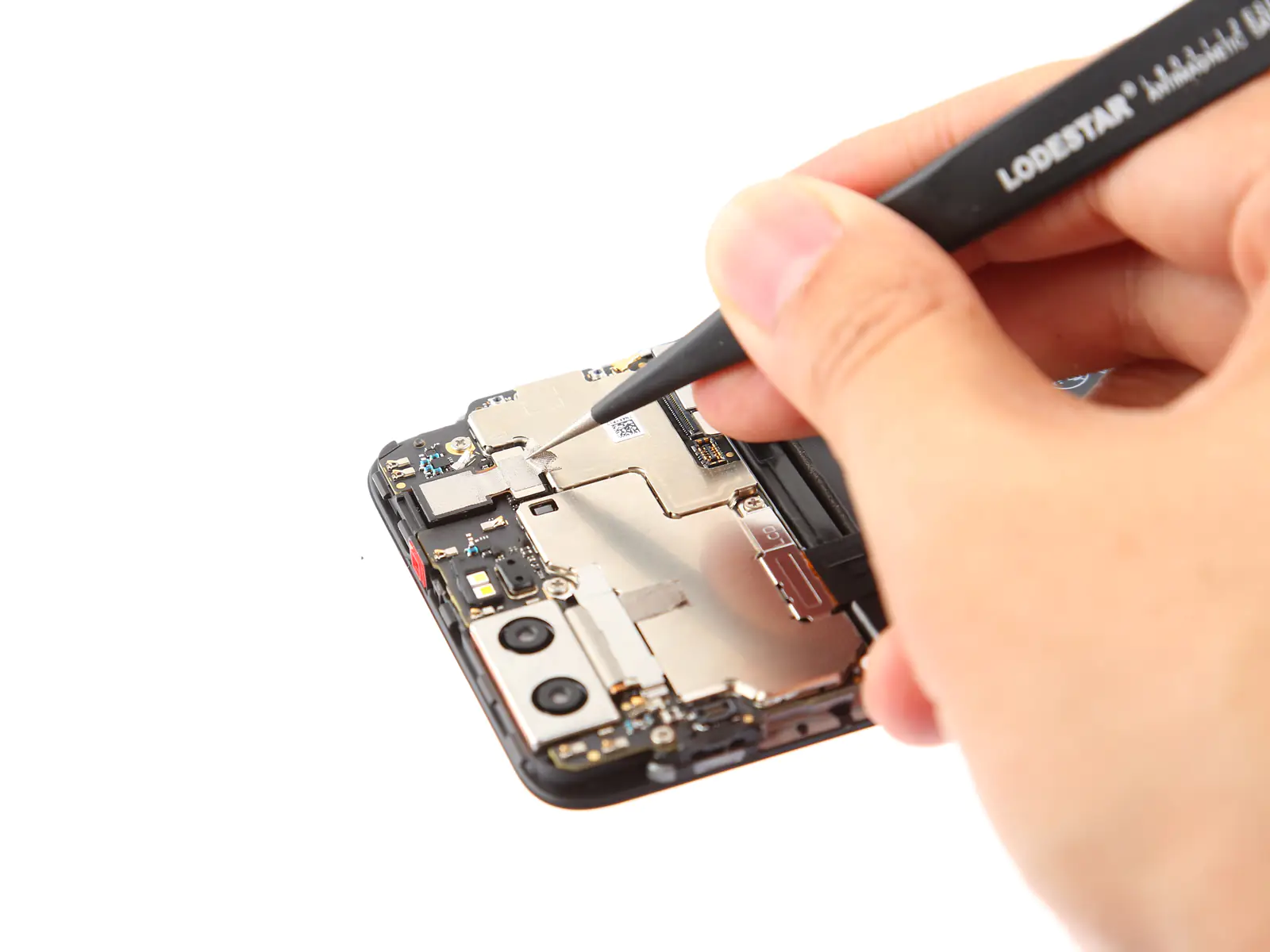

Peel off the conducting fabric.

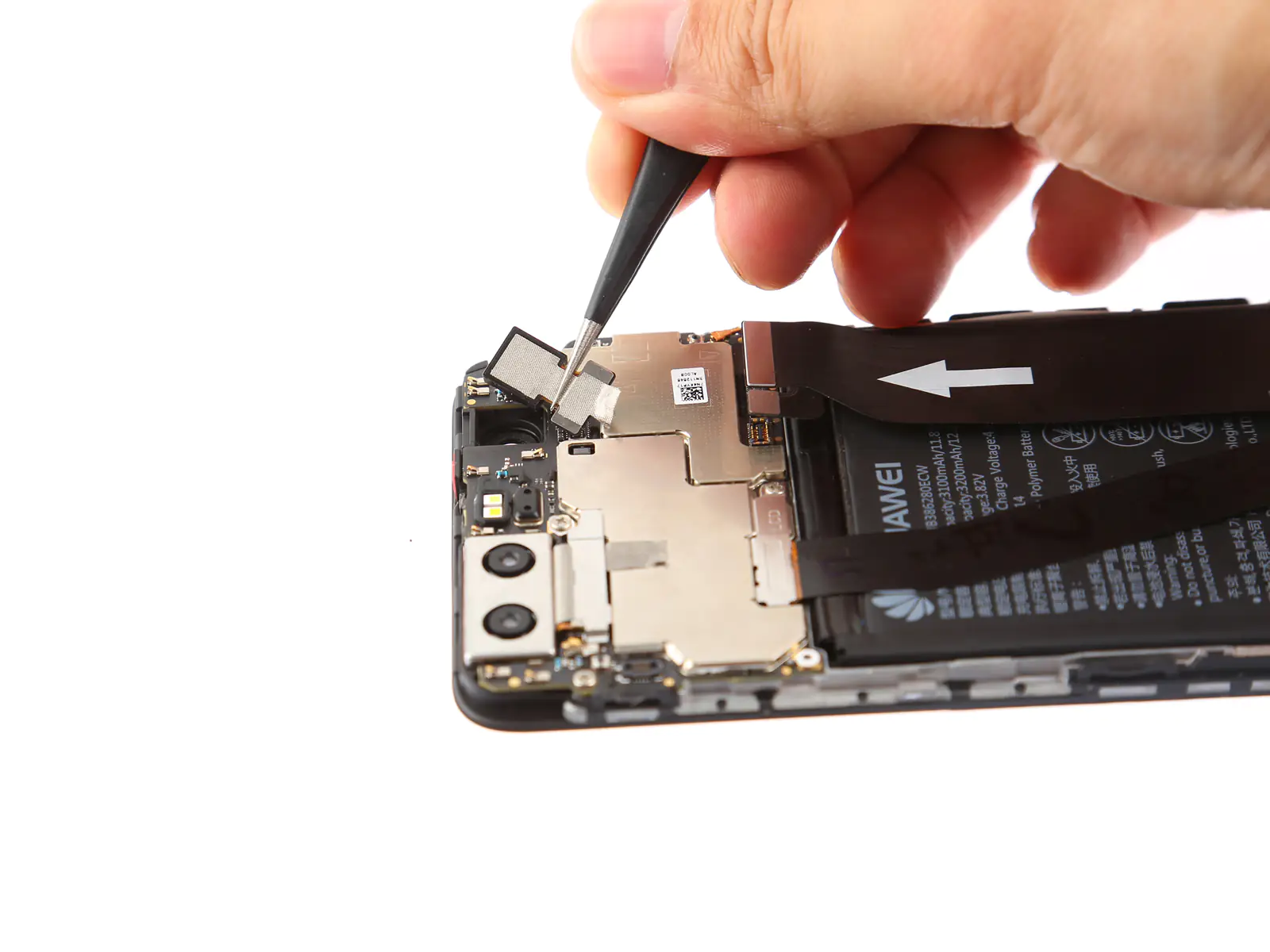

Unplug the camera connector from the motherboard. Now you can remove the front camera.

You can find the full Huawei P10 Teardown here. Other parts replacement tutorial, please visit the P10 repair guide category.
